AR68.10-P-5001T Remove/Install Lock For Glove Compartment Lid
AR68.10-P-5001T Remove/Install Lock For Glove Compartment Lid

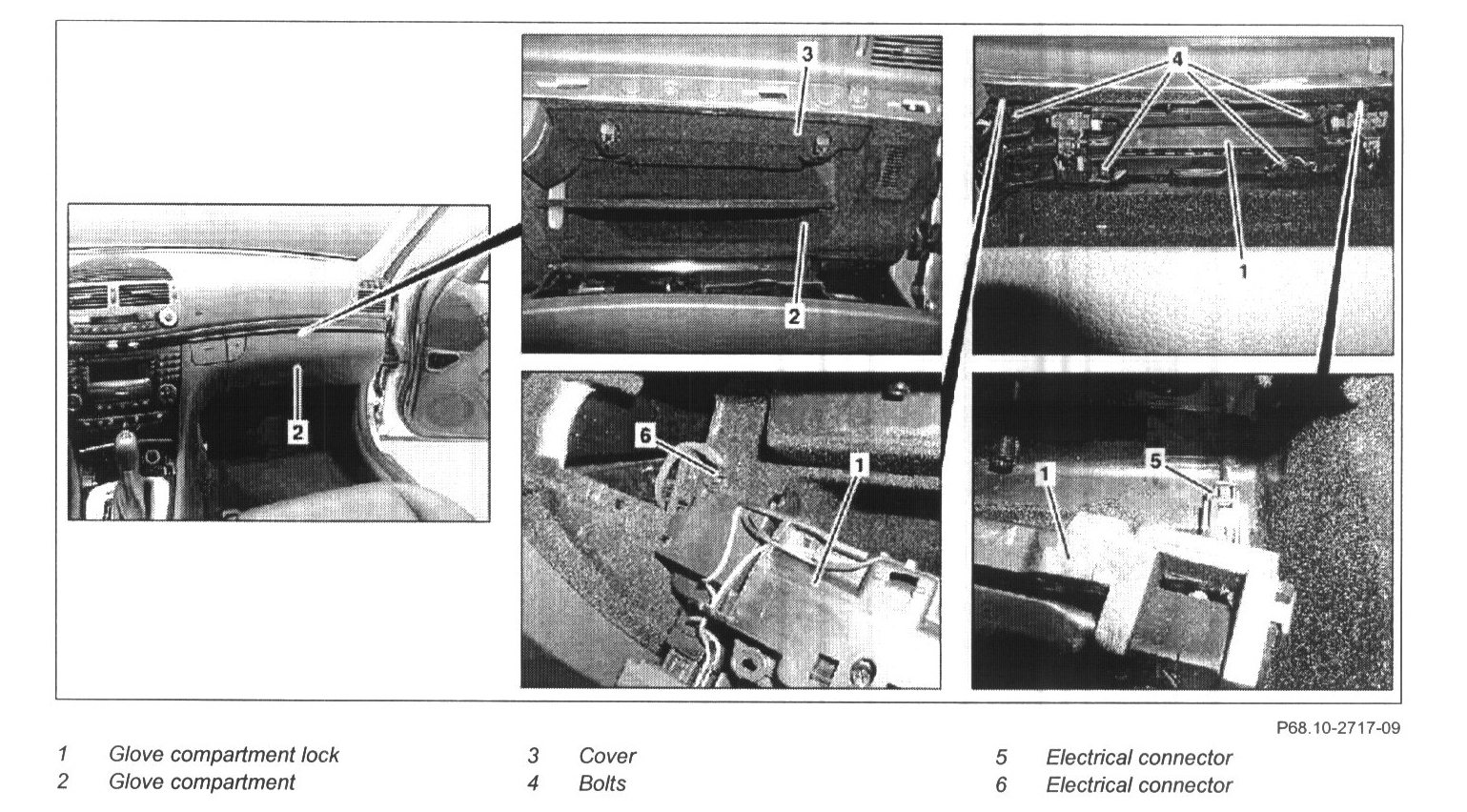

1 Disconnect ground line of battery
2 Open glove compartment (2)
3 Unclip cover (3) using long wedge and remove out of glove compartment (2)
See "Special Tools" given below.
4 Unscrew bolts (4)
5 Take glove compartment lock (1) out of glove compartment (2) until the electrical connectors (5, 6) are accessible
6 Disconnect electrical connectors (5, 6) and remove glove compartment lock (1)
7 Install in the reverse order
8 Check adjustment of glove compartment lid, adjust glove compartment lid if necessary
Special Tools
Long Wedge, P/N # 115 589 03 00:
