AR68.10-P-1250T Remove/Install Lock Cylinder on Glove Compartment Lid

AR68.10-P-1250T Remove/Install Lock Cylinder on Glove Compartment Lid

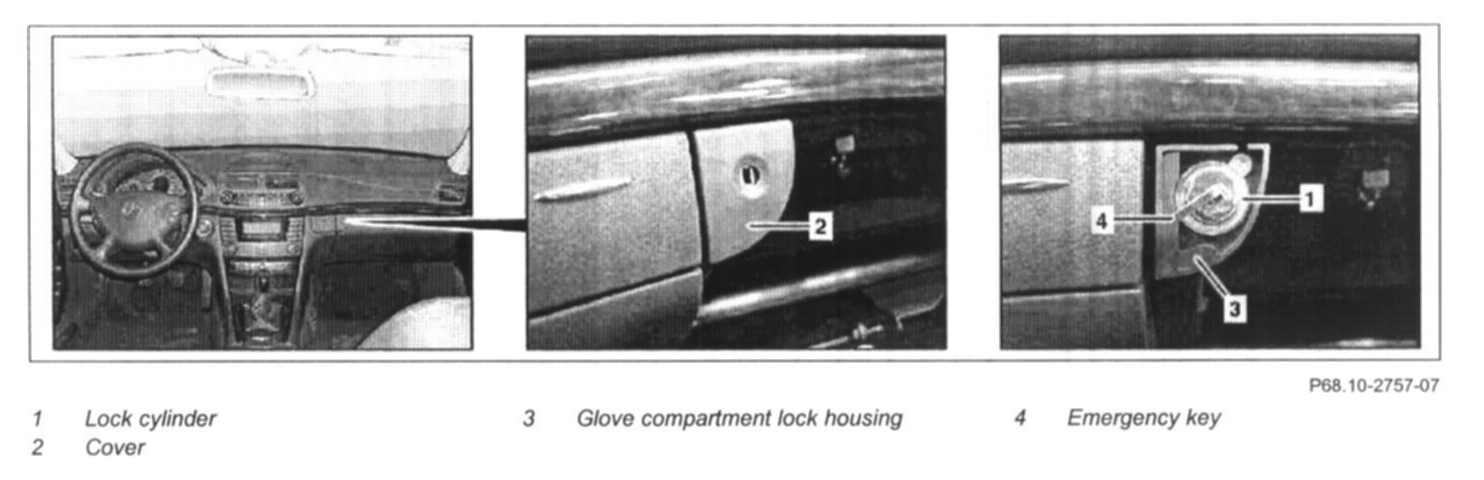

1 Open glove compartment
2 Unclip cover (2) toward rear from glove compartment lock housing (3)
3 Insert emergency key (4) into lock cylinder (1) and move to assembly position

NOTE: Turn emergency key (4) clockwise approx. 45 degrees.

4 Pull lock cylinder (1) with emergency key (4) out of glove compartment lock housing (3)

NOTE: Installation: Lock cylinder (1) must latch audibly.

5 Install in the reverse order
