AR88.20-P-2200T Remove/Install Rear
Bumper

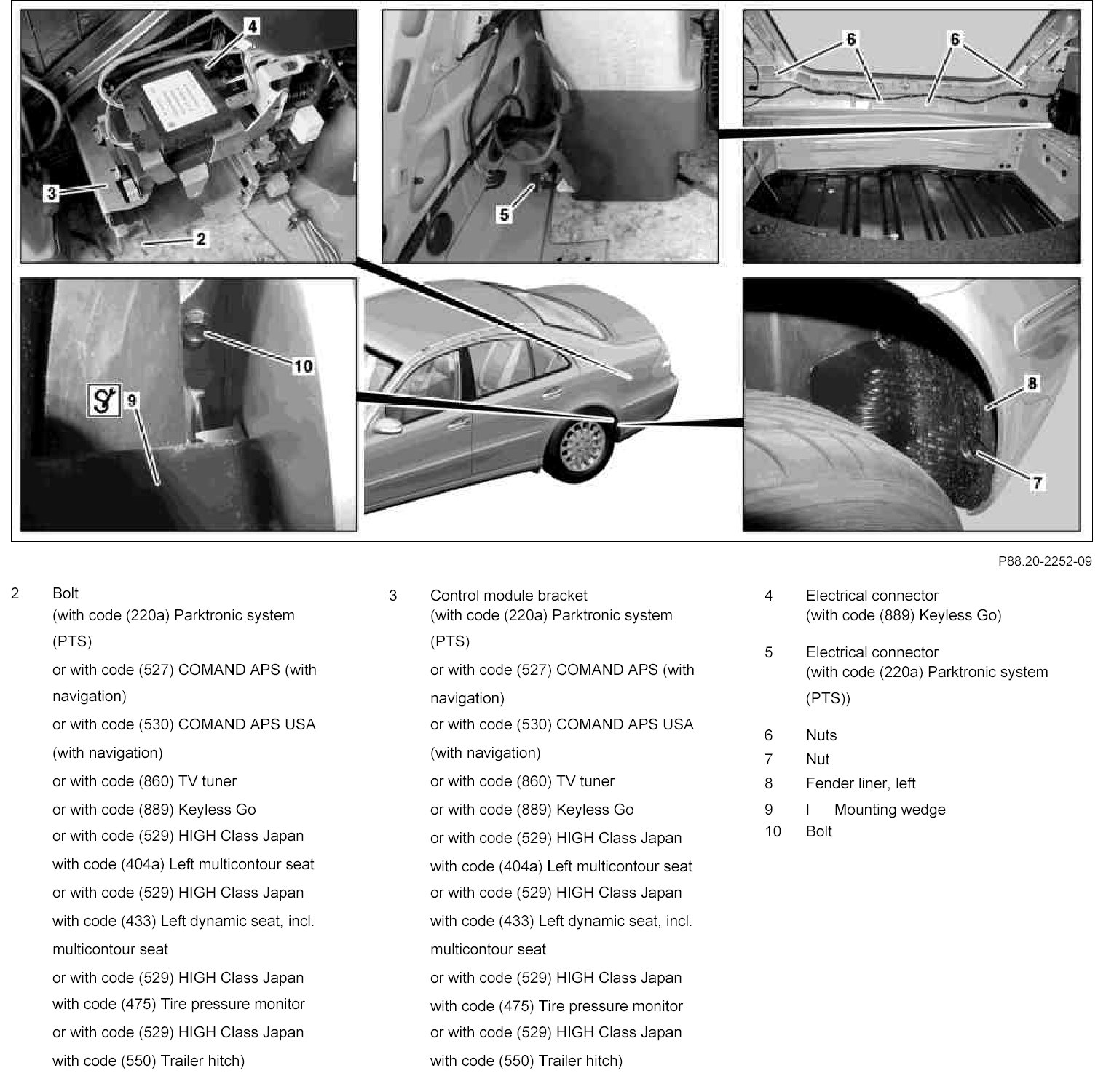

Component Identification:
Component Identification:
Component Identification:

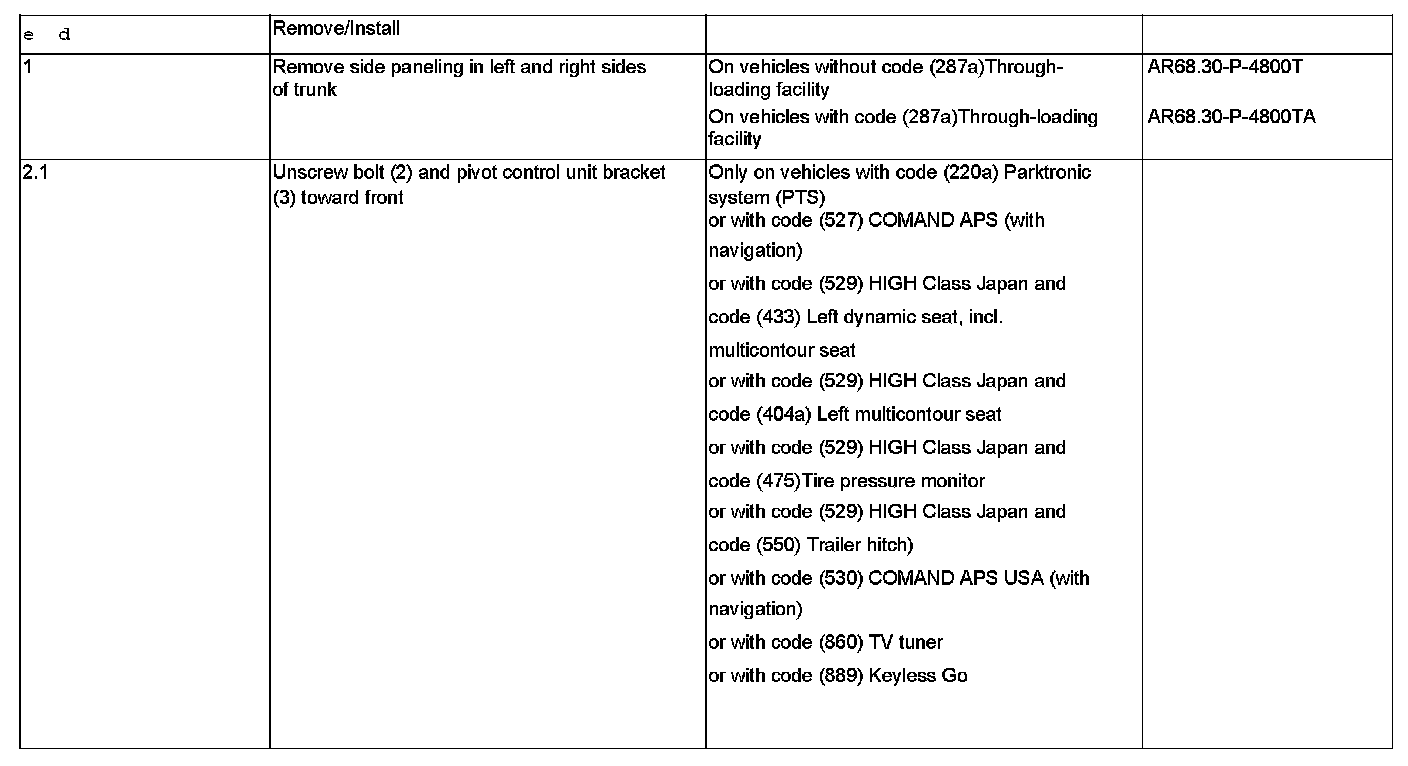

Steps 1 - 2.1:
Steps 3.1 - 15:

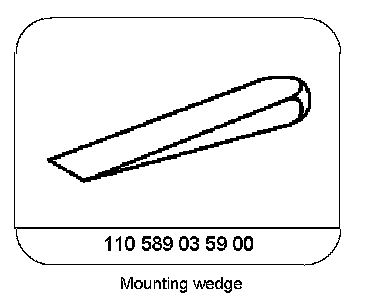

Special Tools:
