Wiring Diagram of Driver-Side SAM With Fuse and Relay Module PE54.21-U-2109DH

Wiring Diagram Of Driver-Side SAM Control Module With Fuse And Relay Module PE54.21-U-2109DH

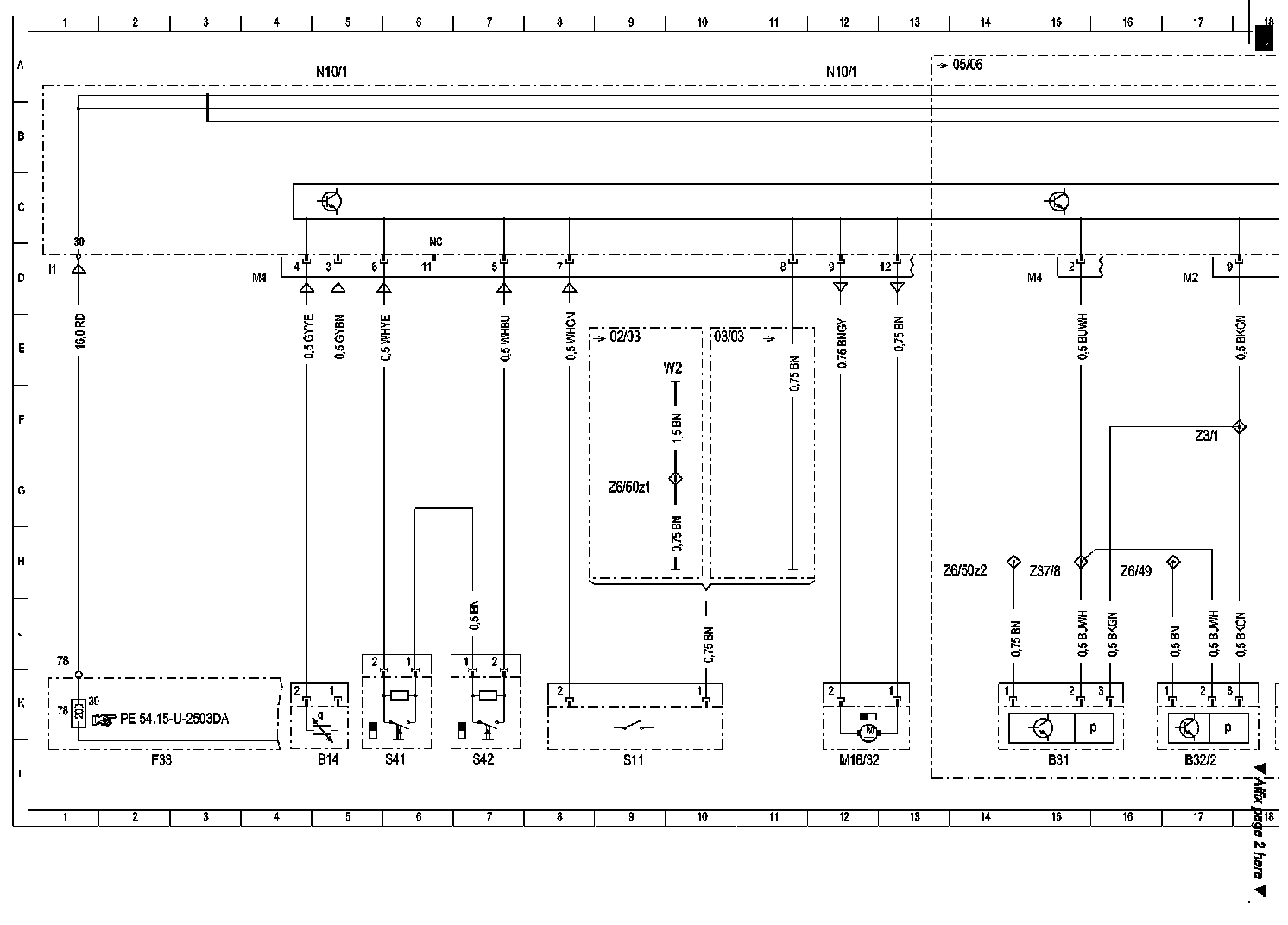

Wiring Diagram (Part 1):

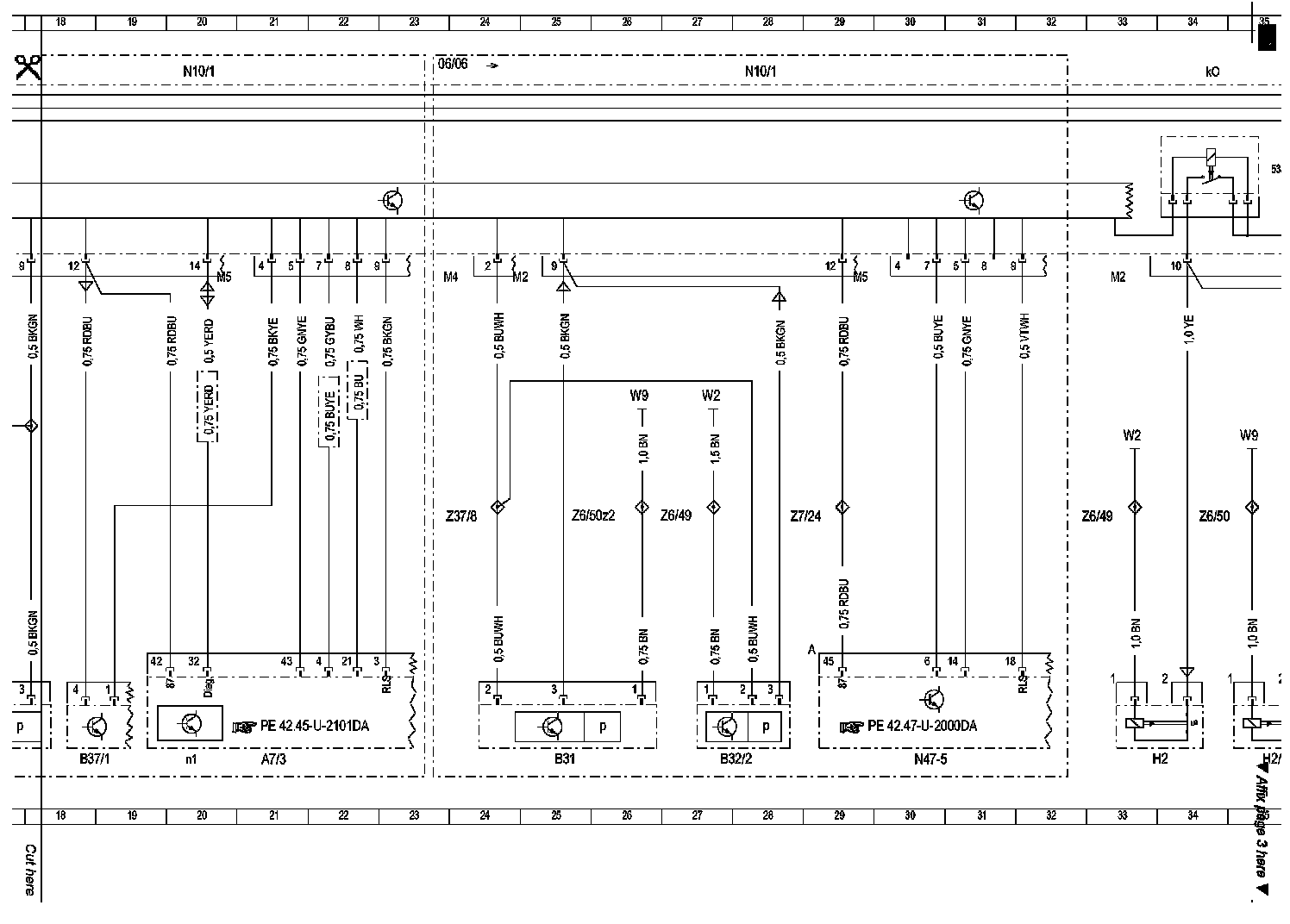

Wiring Diagram (Part 2):

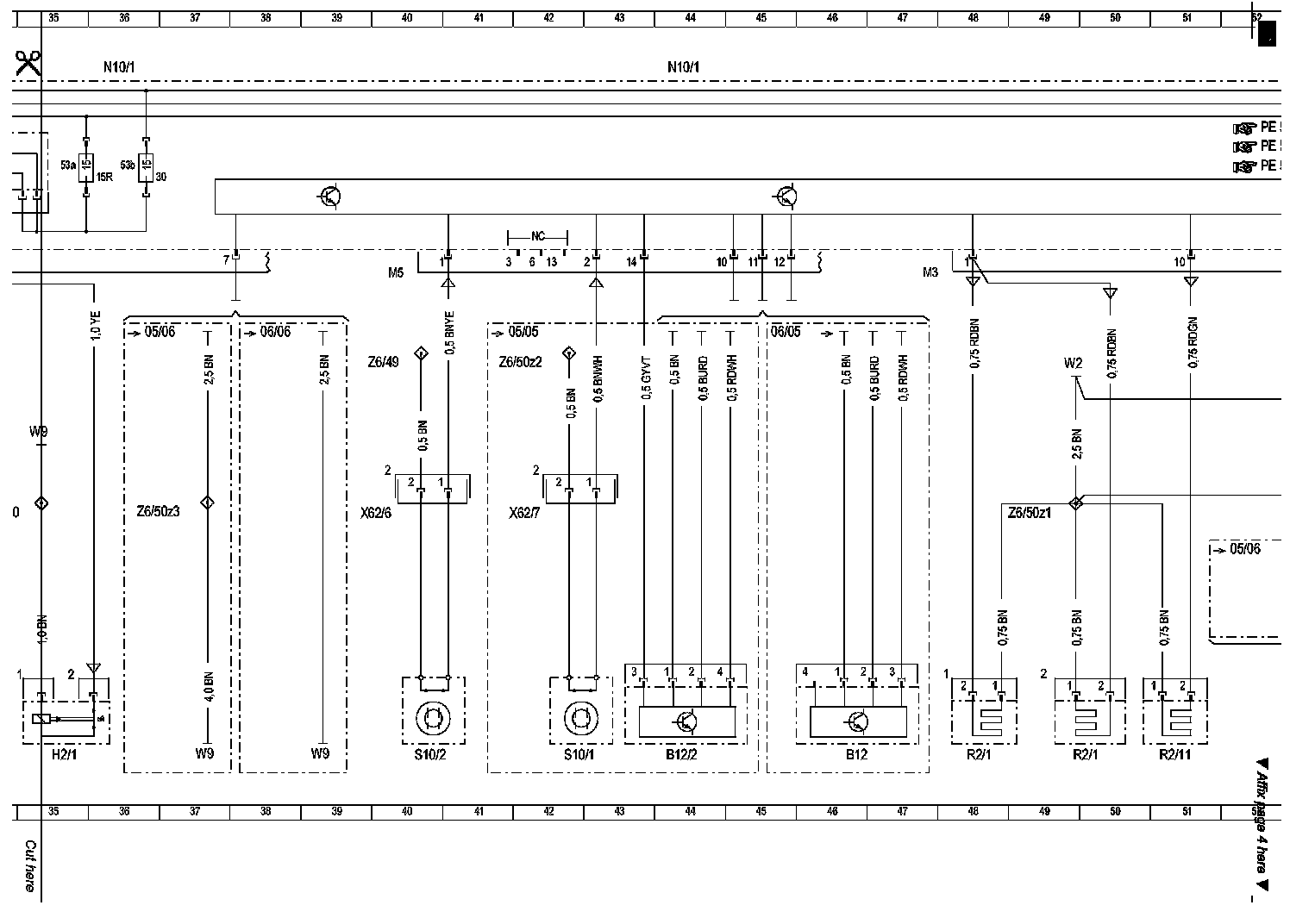

Wiring Diagram (Part 3):

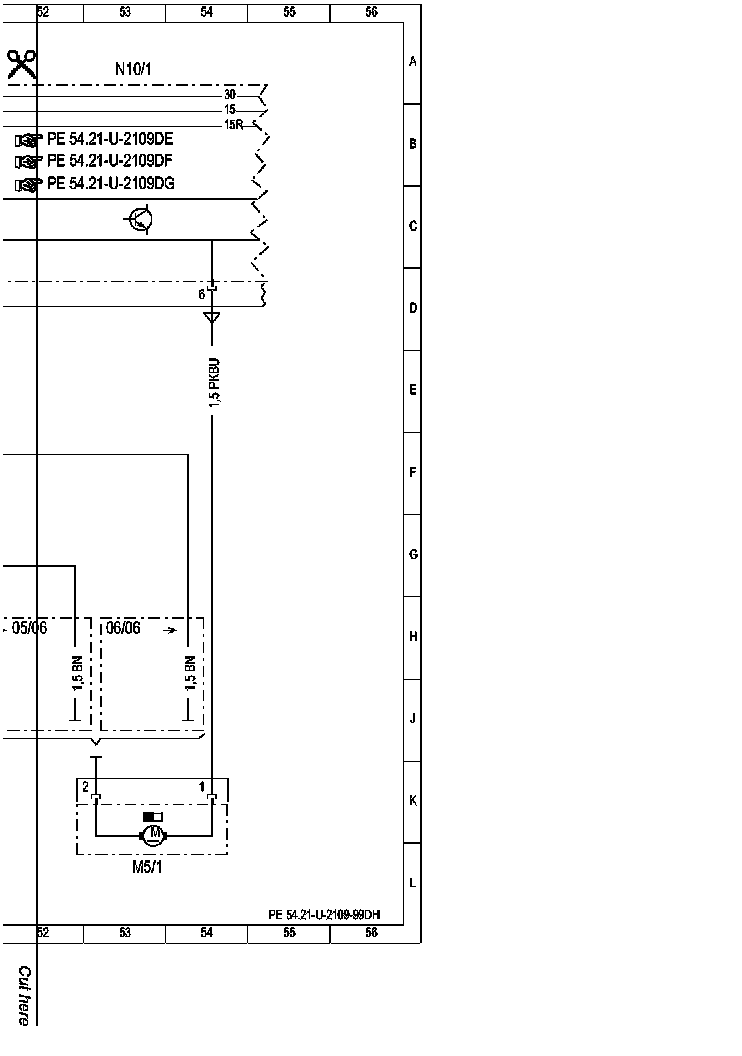

Wiring Diagram (Part 4):

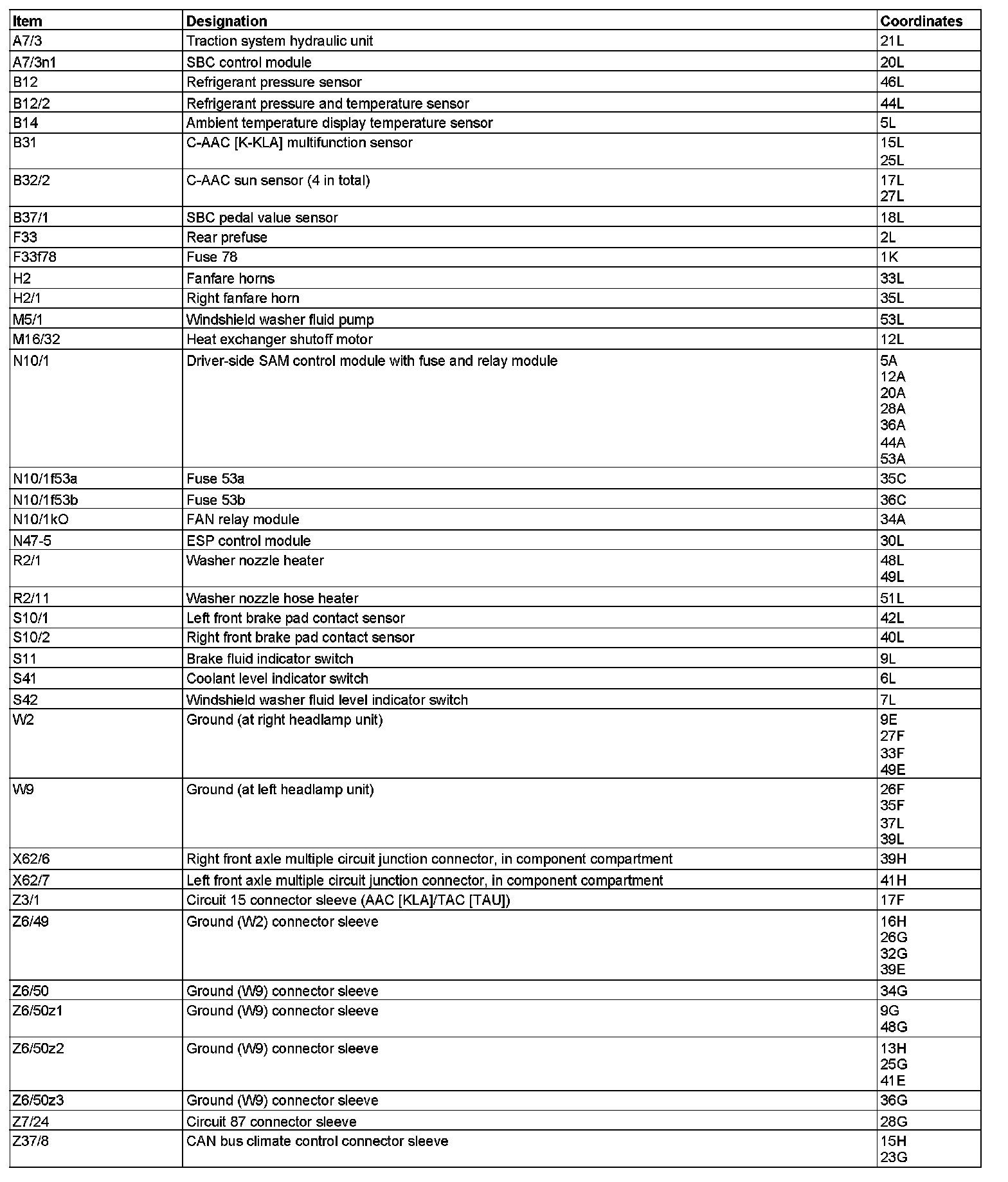

Component Description/Coordinates, A7/3 To Z37/8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
