GF82.60-P-0004-01TM Audio System, Location of Components



GF82.60-P-0004-01TM Audio System, Location Of Components
- with CODE (510) Audio 20 with CD changer
- with CODE (523) MB Audio 20 radio

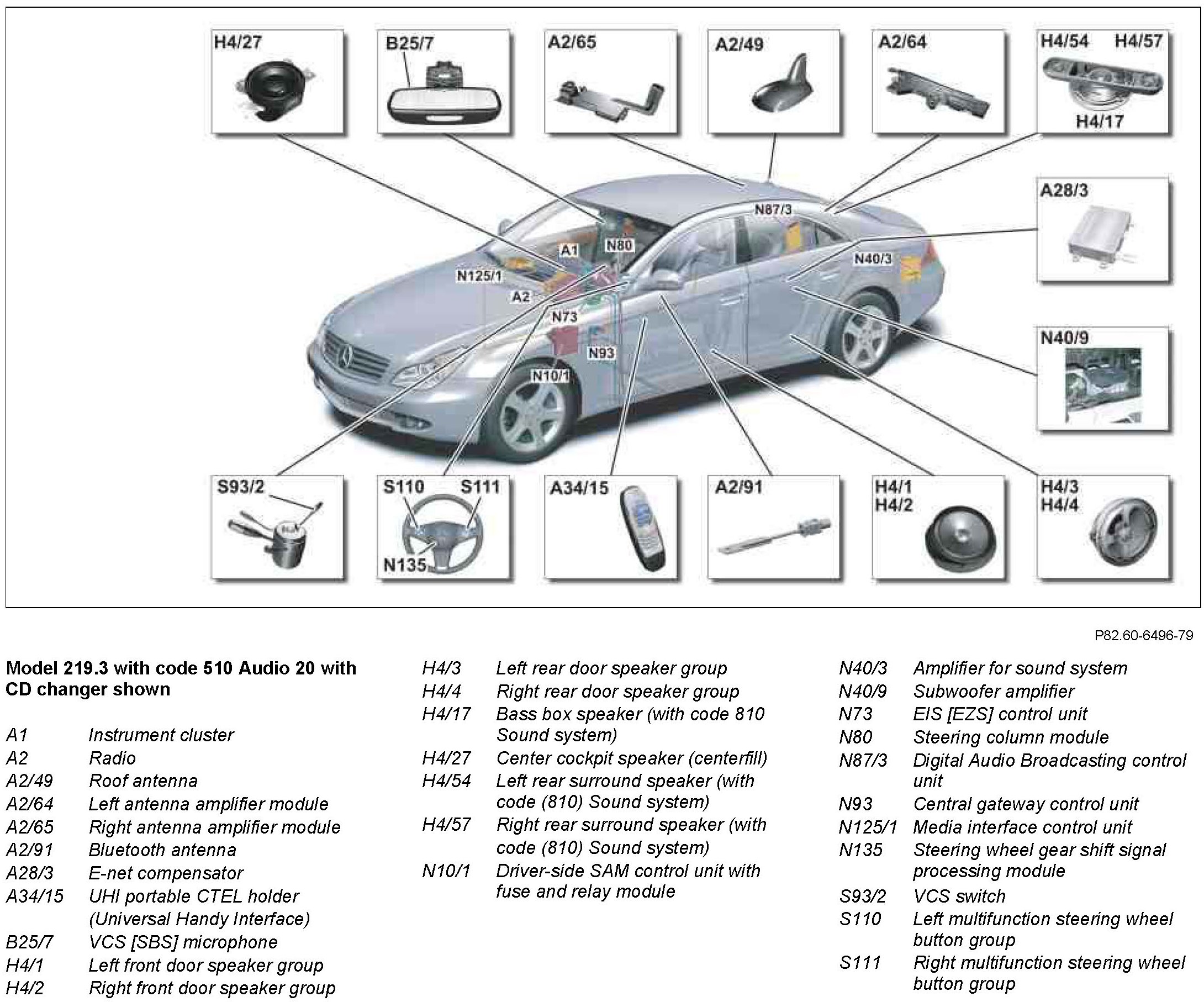

Component Identification:

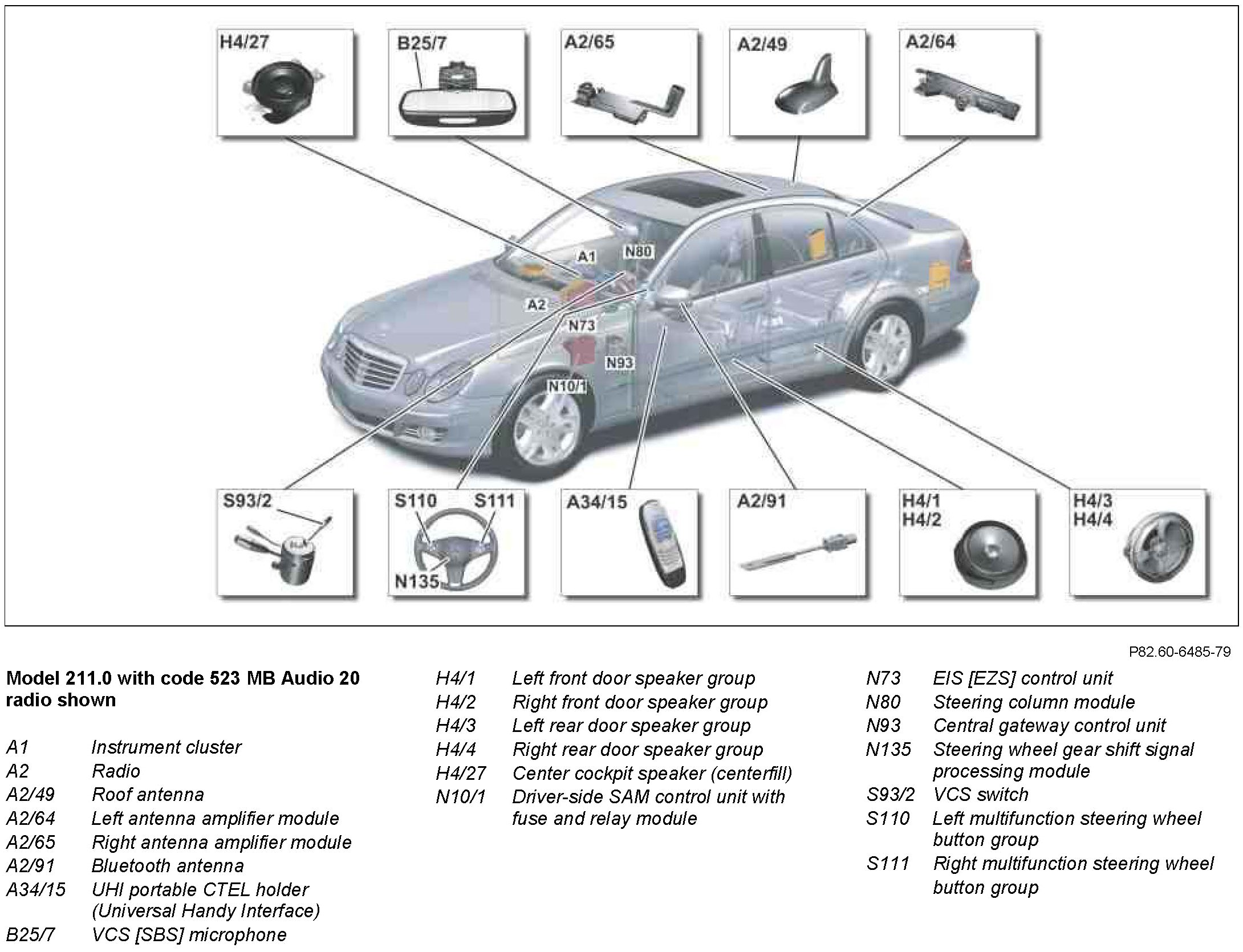

Component Identification:

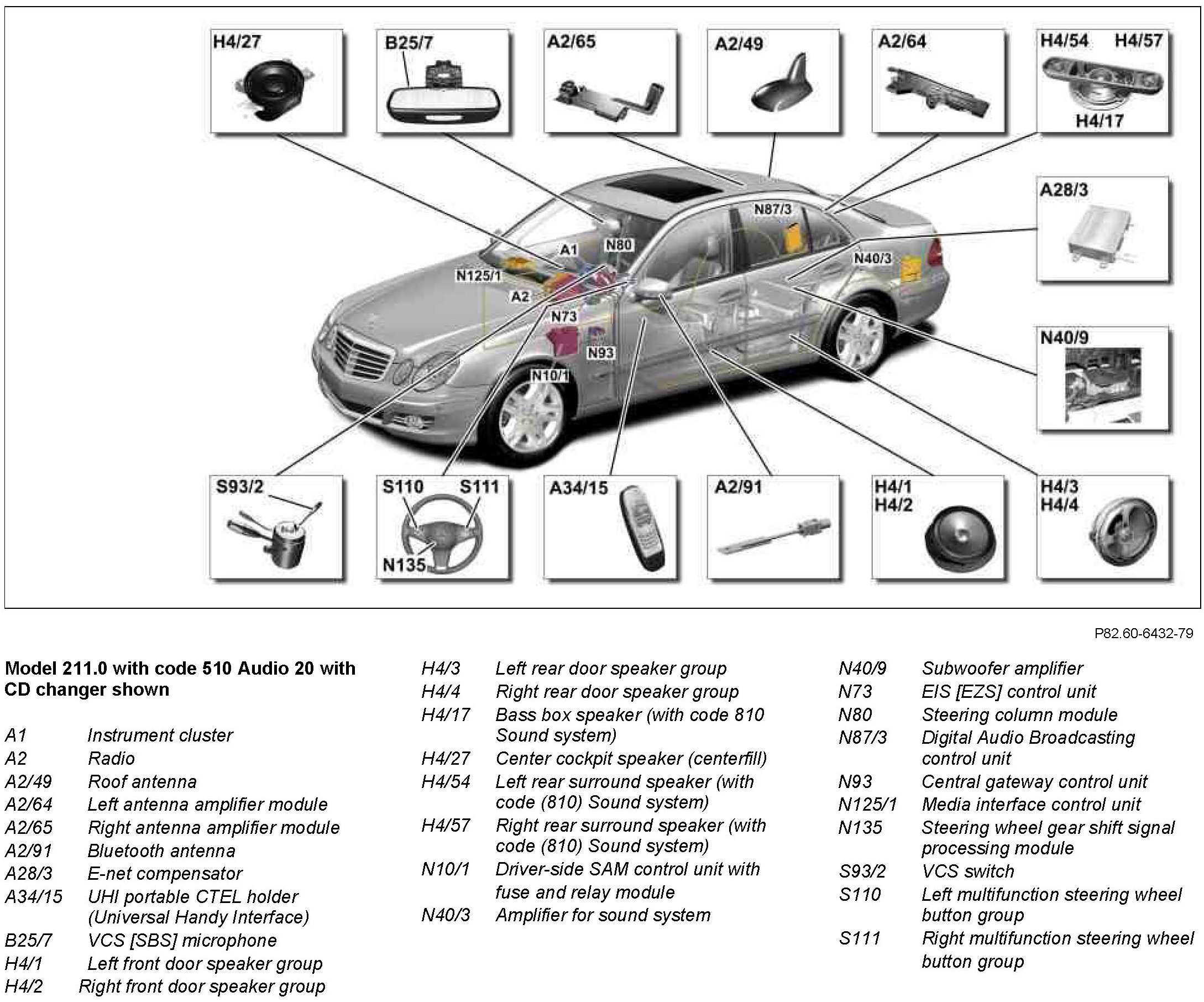

Component Identification:
