GF82.62-P-3050TM Subwoofer Amplifier, Component Description

GF82.62-P-3050TM Subwoofer Amplifier, Component Description
- with CODE (810) Sound system

Component Identification:

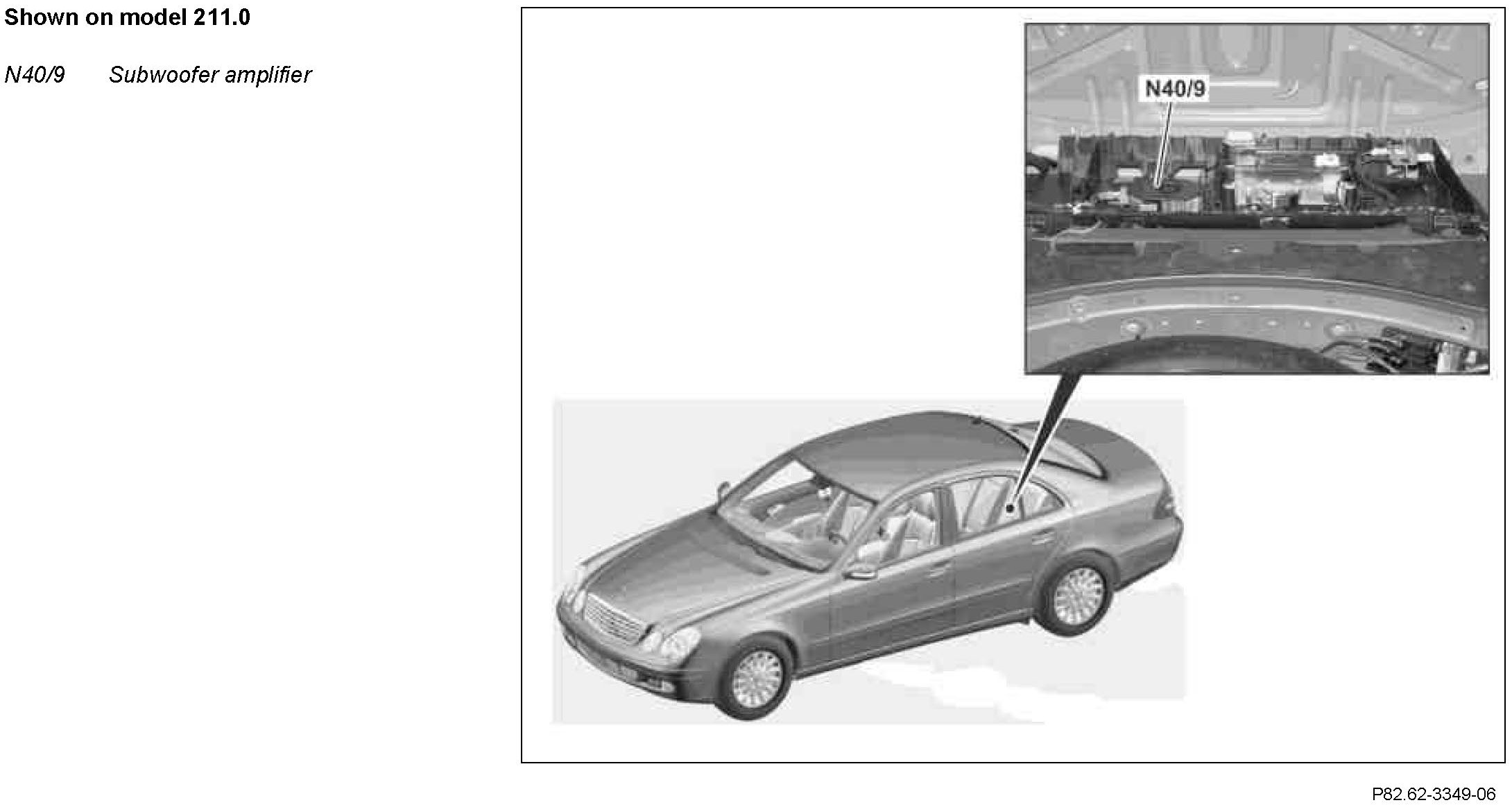

Location
The subwoofer amplifier is located on the equipment bridge in front of the spare tire well.

Task
^ Receiving signals
^ Amplifying and supporting signals
^ Transmitting signals

Receiving signals
Direct lines
- Power supply, circuit 30 and circuit 31 each via one discrete line
- Switch on signal from sound system amplifier (N40/3) over discrete line
- Audio signals over 2 discrete lines from sound system amplifier

Amplifying and supporting signals
- Support of 7.1 Surround technology
- Amplifying audio signals

Transmitting signals
Direct lines
- Audio signals to subwoofer speaker via discrete lines

Function
The subwoofer amplifier is controlled directly by the sound system amplifier. The audio signals are amplified according to their input strength and output to the subwoofer speaker.
