AN82.85-P-0001-01TAZ Retrofitting Navigation Processor In Trunk

AN82.85-P-0001-01TAZ Retrofitting Navigation Processor In Trunk

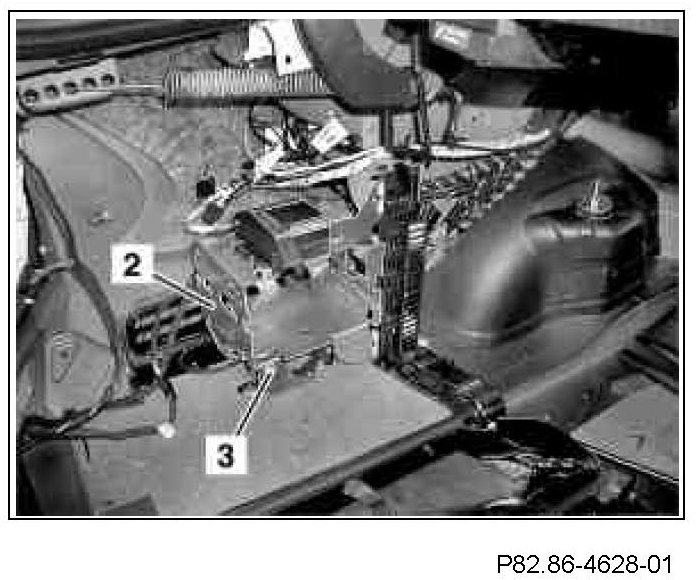

1 Remove bolt (3) from control unit bracket (2).

Bolt (3) still required.

Shown on model 211.0

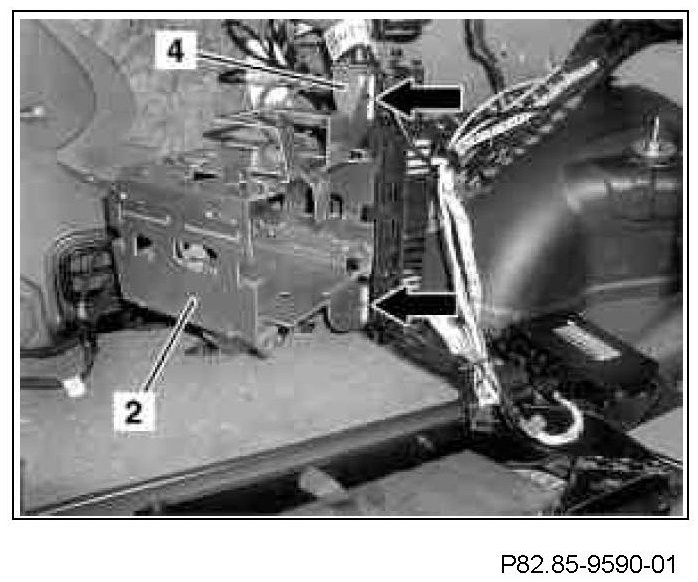

2 Swivel control unit bracket (2) in guides (see arrows) of bracket (4) to the front.

Shown on model 211.0

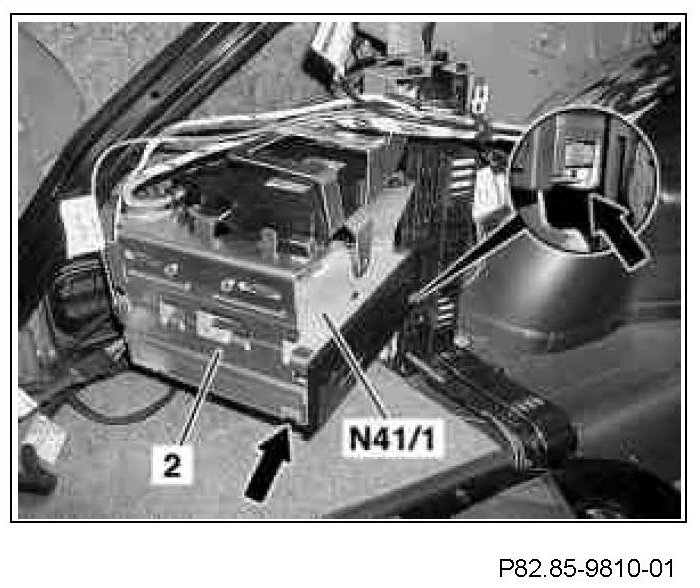

3 Insert navigation processor (N41/1) into control unit bracket (2) until the catches can be heard to engage (see arrow and enlarged detail).

Shown on model 211.0

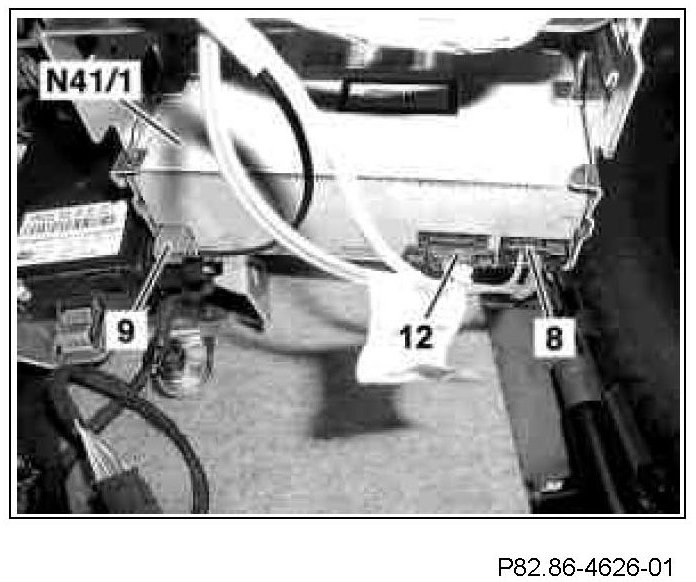

4 Connect the navigation processor coupling (12), MOST coupling (8) and GPS navigation processor coupling (9) to the navigation processor (N41/1).

The connectors are coded to prevent misconnection.

Shown on model 211.0

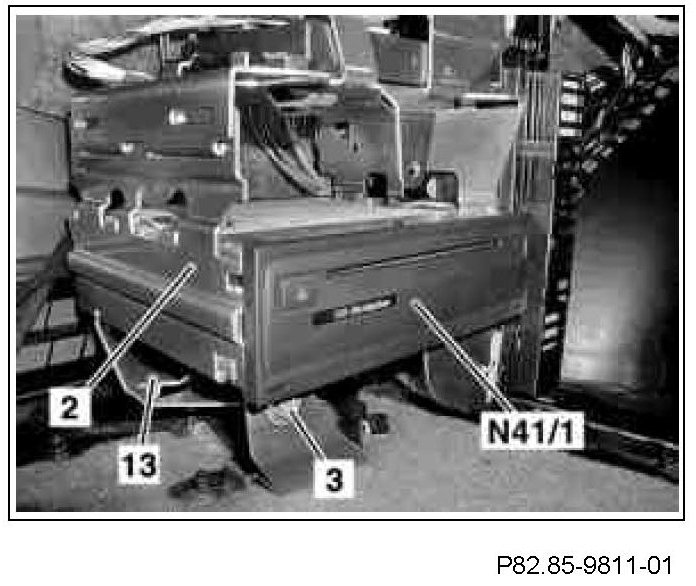

5 Insert control unit bracket (2) with navigation processor (N41/1) into guide for bracket (13) as far as the end stop.
6 Fasten control unit bracket (2) onto bracket (13) using bolt (3).

Shown on model 211.0
