GF82.85-P-2011TJ TV Operation Function

GF82.85-P-2011TJ TV Operation Function
- with CODE (529) HIGH Class Japan

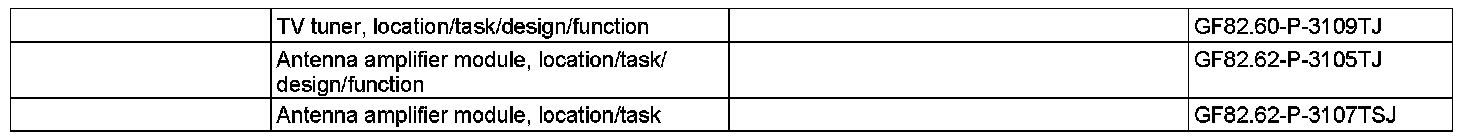

Component Identification:

Function requirements:
^ On-board power supply applied
^ Vehicle unlocked properly (Authentication)
^ Circuit 15R ON

TV system control
The COMAND TV system is controlled via the COMAND operating, display and control module (A40/3). The communication between the COMAND operating, display and control unit (A40/3) and TV tuner takes place internally.

The COMAND TV system has the following features:
^ 4-fold antenna diversity
^ Color decoder for NTSC recognition
^ 10 storage spaces for the station list sorted by reception field strength and 10 further storage spaces for stations which can be chosen at will
^ SCAN function: The stations are played in succession
^ OSD function (On-Screen Display) for text overlays on the screen

TV reception
The 4 antennas in the rear window receive the TV high frequency signals completely independently. The picture signal and sound signal are modulated on these high frequency signals.
