AZ54.65-P-0001-08M Perform Version Coding Subsequently

AZ54.65-P-0001-08M Perform Version Coding Subsequently







It is necessary to inform the vehicle that the ultrasonic backup assist has been retrofitted.

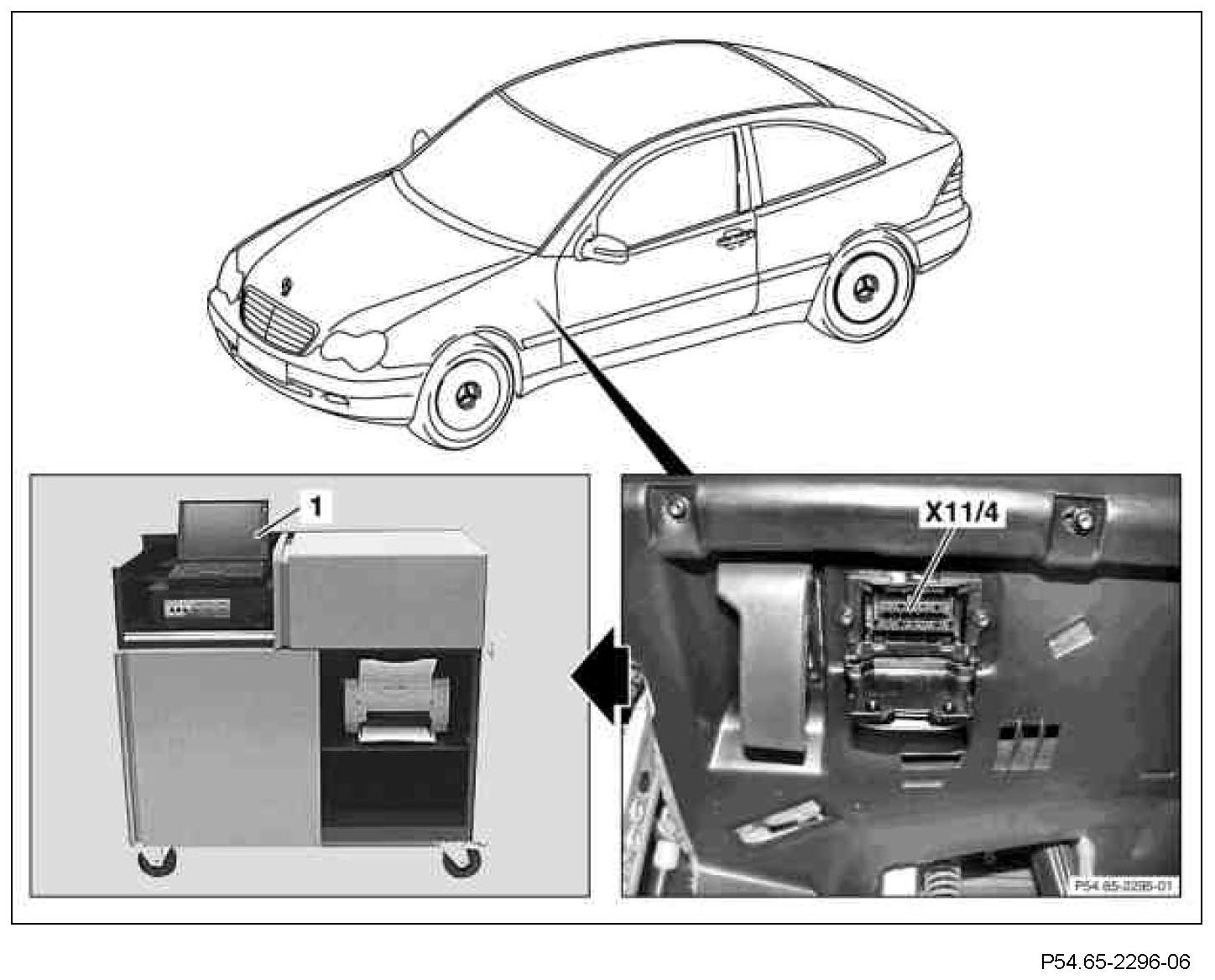

1. Connect Star Diagnosis tester (1) to data link connector (X11/4).
2. Enter type of vehicle and continue through the functions:
Read body/electronic ignition starter switch/control unit adaptation/coding, and change if necessary.

3. Enter"All codings" in function subpoint in line "Parktronic system PTS in the right column "present".
