GF82.62-P-3122TXE Right Antenna Amplifier Module Component Description

GF82.62-P-3122TXE Right Antenna Amplifier Module Component Description

Component Identification:

Location:

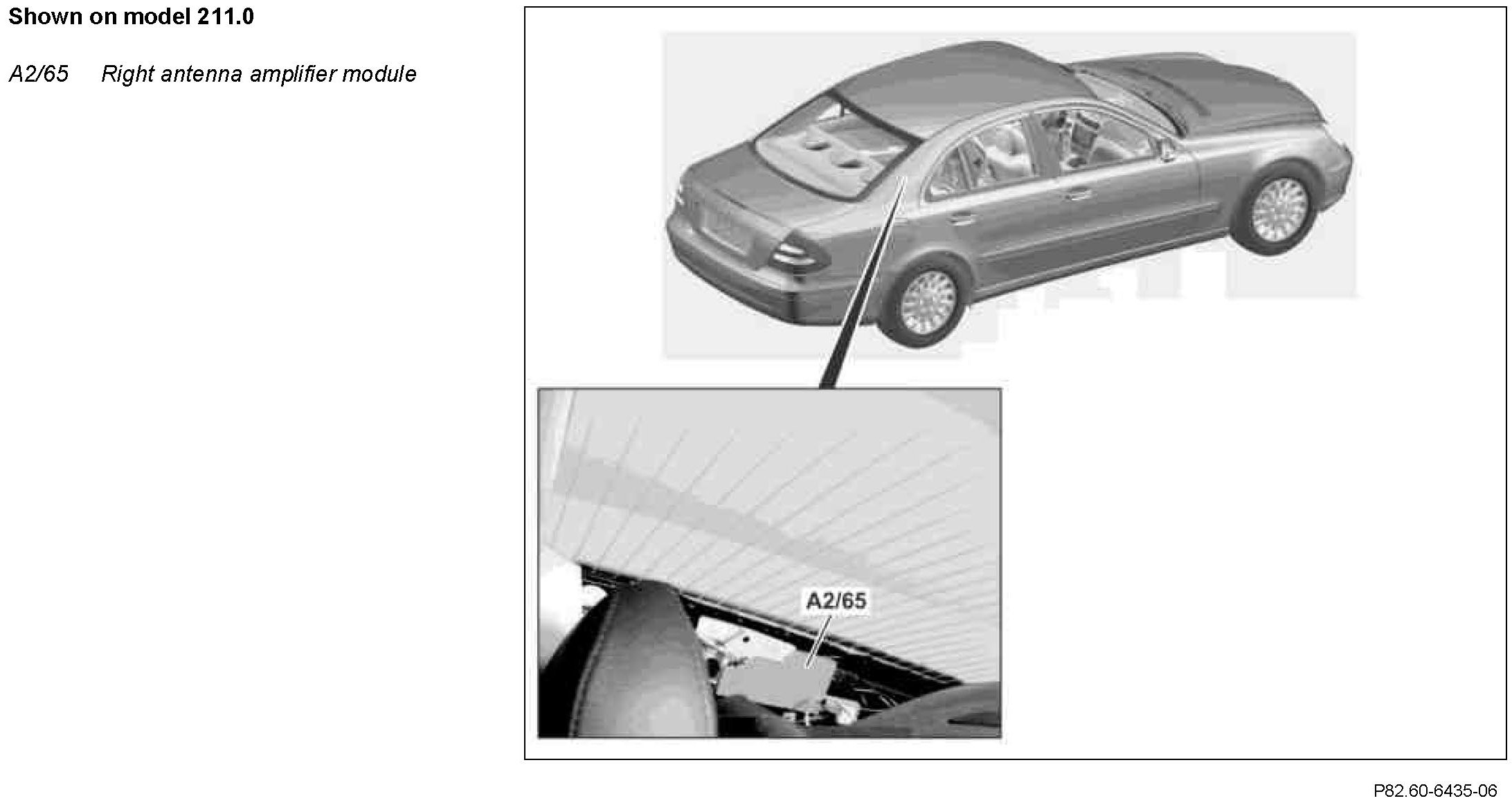

The right antenna amplifier module is located beneath the paneling at the right C-pillar.

Component Identification:

Location:

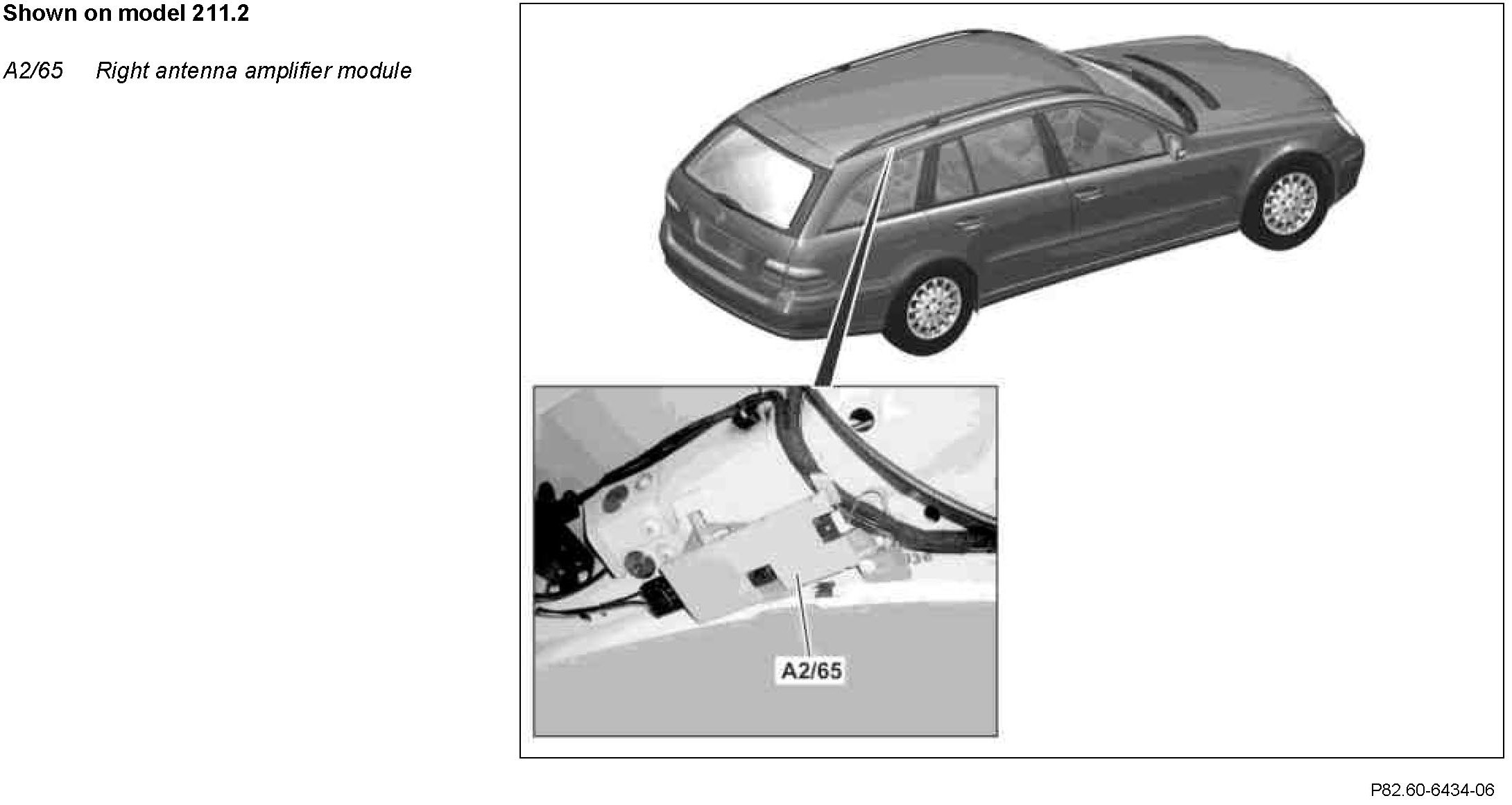

The right antenna amplifier module is located beneath the paneling above the right rear side window.

Task (models 211.0, 219)
^ Receiving and relaying Keyless Go signals to the rear module KEYLESS GO control unit (N102) (with code (889) Keyless Go)
^ Receiving and relaying band III signals to the Digital Audio Broadcasting control unit (N87/3) (with code 537 Digital radio)
^ Receiving and relaying the television (TV) signals (TV3 and TV4) to the TV combination tuner (analog/digital) (A90/1) (with code 863, Digital/analog TV tuner, except code 494, USA version).
^ Decoupling the rear window from the body mass and the subharness via a suppression filter

Task (model 211.2, except code 494 USA version)
^ Receiving, amplifying and relaying the frequency modulation (FM)2 signals:
- the radio (A2),
- the radio control panel and navigation unit (A2/56) or
- the COMAND operating, display and controller unit (A40/3).
^ Receiving and relaying Keyless Go radio signals to the rear module KEYLESS GO control unit (with code 889 Keyless Go)
^ Receiving and relaying band III signals to the Digital Audio Broadcasting control unit (with code 537 Digital radio)
^ Receiving and relaying the TV signals (TV1) to the TV combination tuner (analog/digital) (with code 863, Digital/ analog TV tuner, except code 494, USA
