GF82.62-P-3121TXD Left Antenna Amplifier Module, Component Description

GF82.62-P-3121TXD Left Antenna Amplifier Module, Component Description

Component Identification:

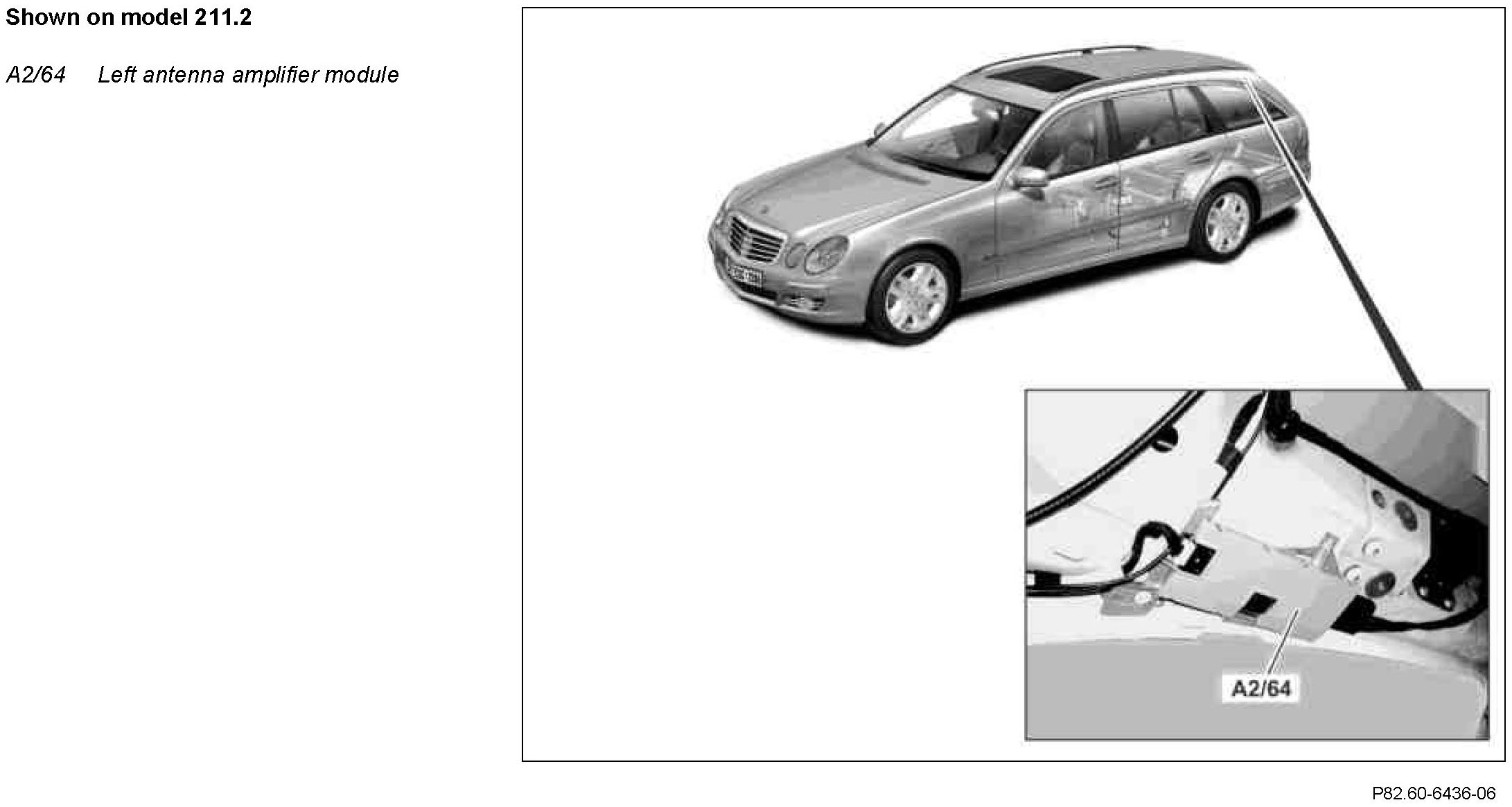

Location:
The left antenna amplifier module is located beneath the paneling at the left C-pillar.

Component Identification:

Location:
The left antenna amplifier module is located beneath the paneling above the left rear side window.

Task (model 211.0, 219)
^ Receiving, amplifying and relaying the amplitude modulation (AM)/frequency modulation (FM) signals to:
- the radio (A2),
- the radio control panel and navigation unit (A2/56) or
- the COMAND operating, display and controller unit (A40/3).
^ Receiving and relaying the weatherband signals (with code 494 USA version).
^ Receiving, demodulating and digitizing the signals for the electric central locking and relaying them to the rear SAM control unit with fuse and relay module (N10/2).
^ Receiving and relaying the television (TV)1 and TV2 signals to the TV combination tuner (analog/digital) (A90/1) (with code 863 Digital/analog TV tuner, except code 494 USA version).
^ Decoupling the rear window from the body mass and the subharness via a suppression filter

Task (model 211.2, except code 494 USA version)
^ Receiving, amplifying and relaying the AM/FM1 signals to:
- the radio,
- the radio control panel and navigation unit or
- the COMAND operating, display and controller unit
^ Receiving, demodulating and digitizing the signals for the electric central locking and relaying them to the rear SAM control unit with fuse and relay module.
