GF82.62-P-3121TMU Left Antenna Amplifier Module, Component Description

GF82.62-P-3121TMU Left Antenna Amplifier Module, Component Description
- with CODE (530) COMAND APS USA (with navigation system)

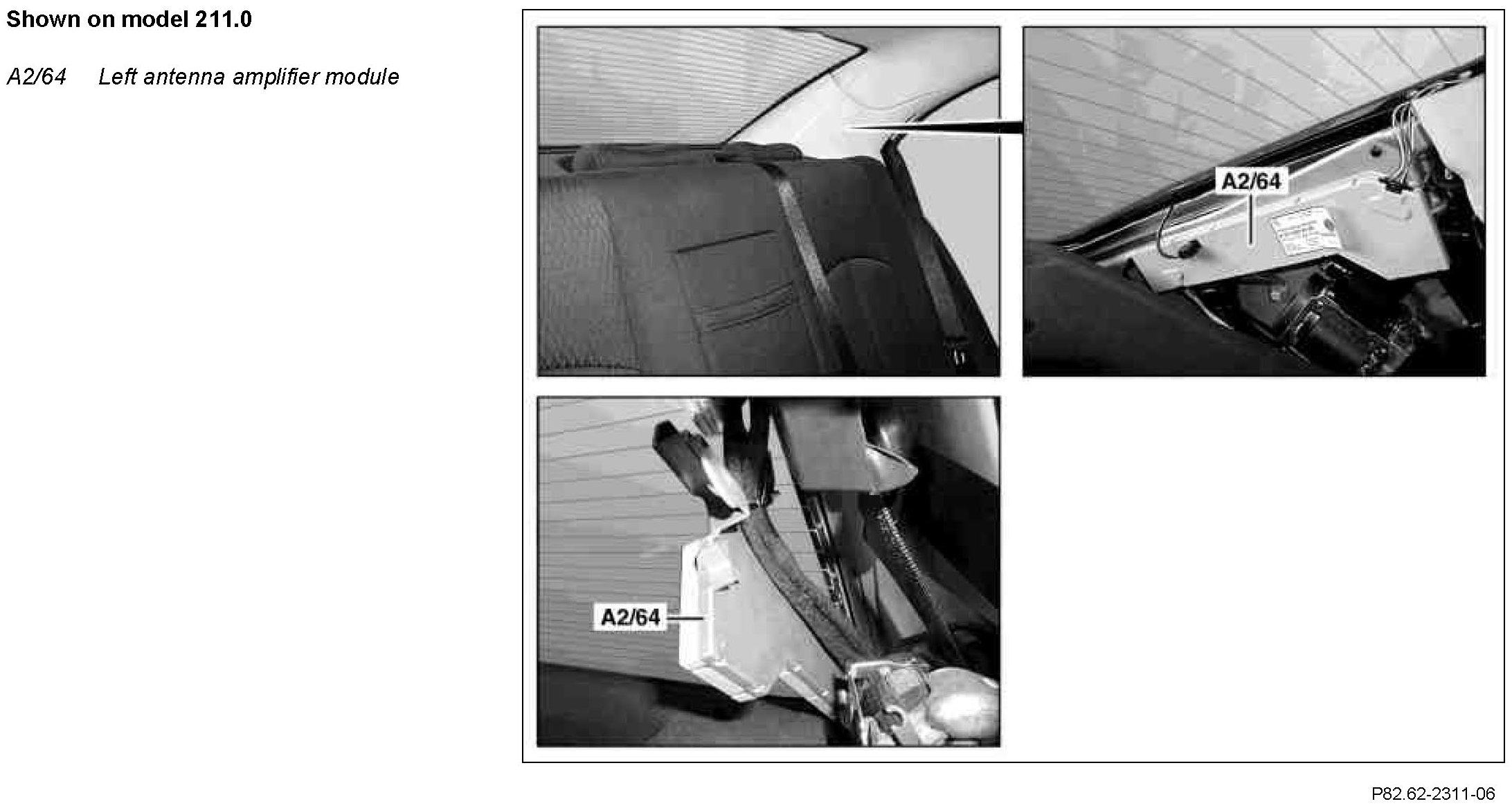

Component Identification:

Location
The left antenna amplifier module is mounted to the left of the C-pillar in the direction of travel.

Task
^ Receiving and forwarding the AM/FM signals via the amplifier module 1, window antenna (A2/71) to the audio gateway control unit (N93/1)
^ Decoupling the rear window from the body mass and the wiring harness via a block circuit
