GF82.62-P-3121TM Left Antenna Amplifier Module, Component Description

GF82.62-P-3121TM Left Antenna Amplifier Module, Component Description

Component Identification:

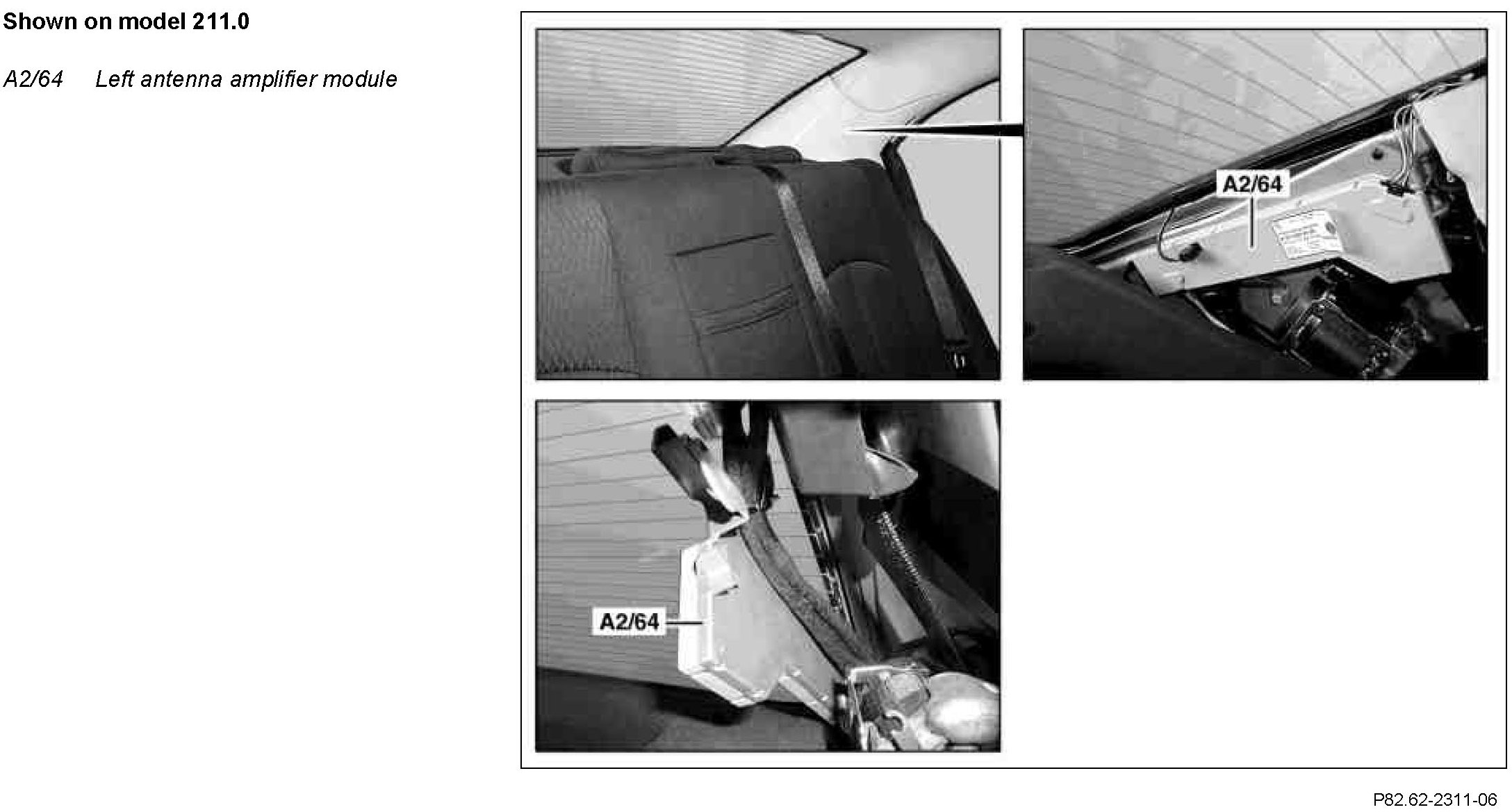

Location
The left antenna amplifier module is mounted to the left of the C-pillar in the direction of travel.

Task (model 211.0)
^ Receiving and forwarding the AM/FM signals to the audio gateway control unit (N93/1)
^ Receiving and forwarding the TV signals (TV1 and TV2) to the TV combination tuner (analog/digital) (A90/1)
^ Decoupling the rear window from the body mass and the wiring harness via a block circuit

Task (model 211.2)
^ Receiving and forwarding the AM/FM signals via the amplifier module 1, window antenna (A2/71) to the audio gateway control unit
^ Decoupling the rear window from the body mass and the wiring harness via a block circuit
