AR82.70-P-8951TM Remove/Install Antenna
AR82.70-P-8951TM Remove/Install Antenna
AR82.70-P-8951TM Remove/Install Antenna

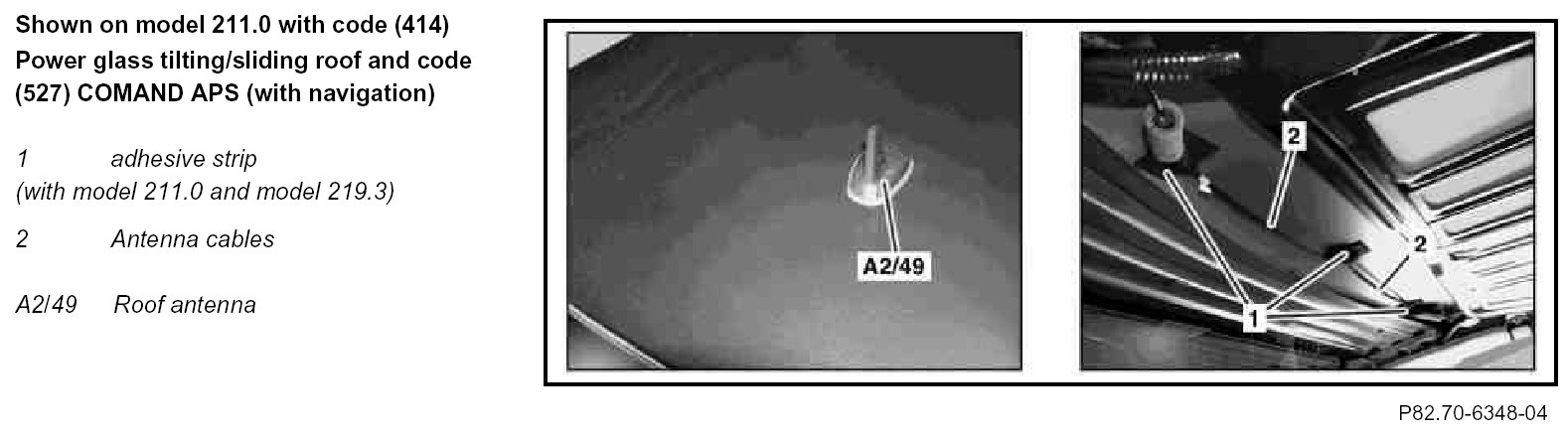

Component Identification:

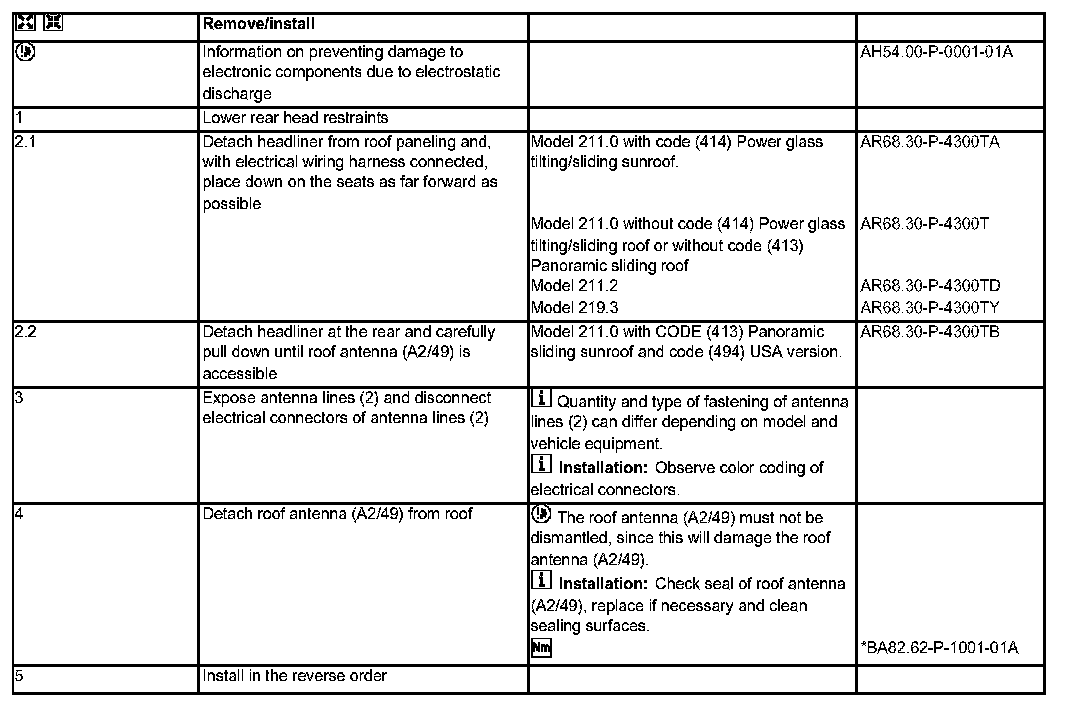

Steps 1 - 5:

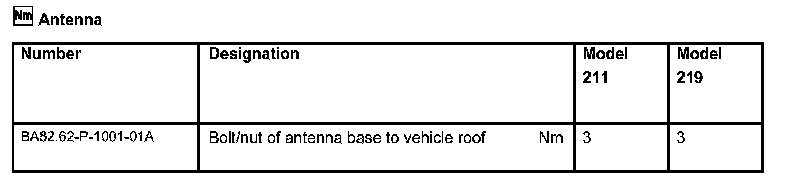

Antenna:
