GF82.95-P-4104TMB TELE AID Backup Antenna, Component Description

GF82.95-P-4104TMB TELE AID Backup Antenna, Component Description
- with CODE (359) TELE AID emergency call system

Component Identification:

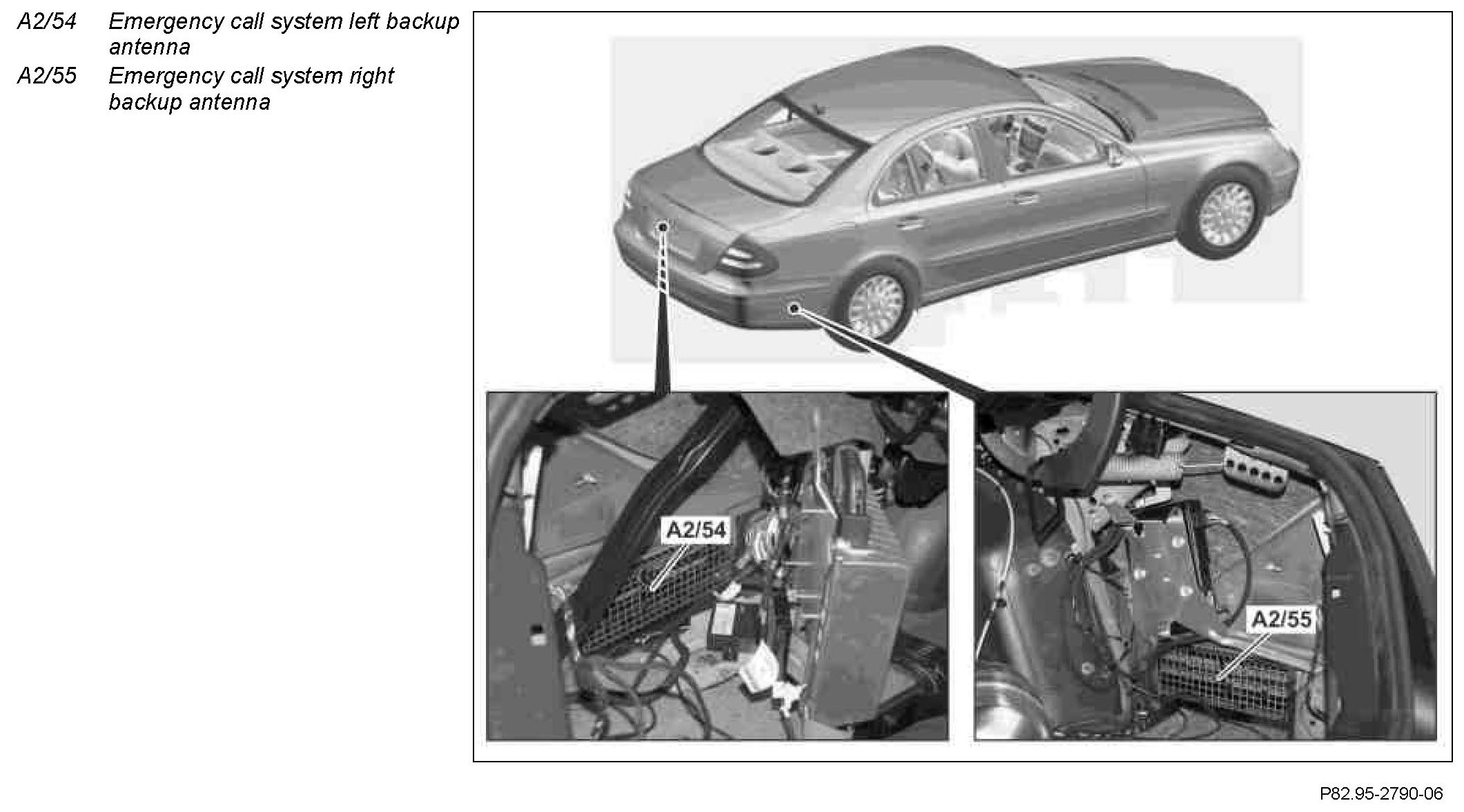

Location
The left backup antenna, emergency call system and the right backup antenna, emergency call system are located in the vent grilles in the trunk, on the corresponding side.

Task
In the event of a roof antenna (A2/49) failure, these antennas transmit the mobile radio data from and to the emergency call system control unit (N123/4).
