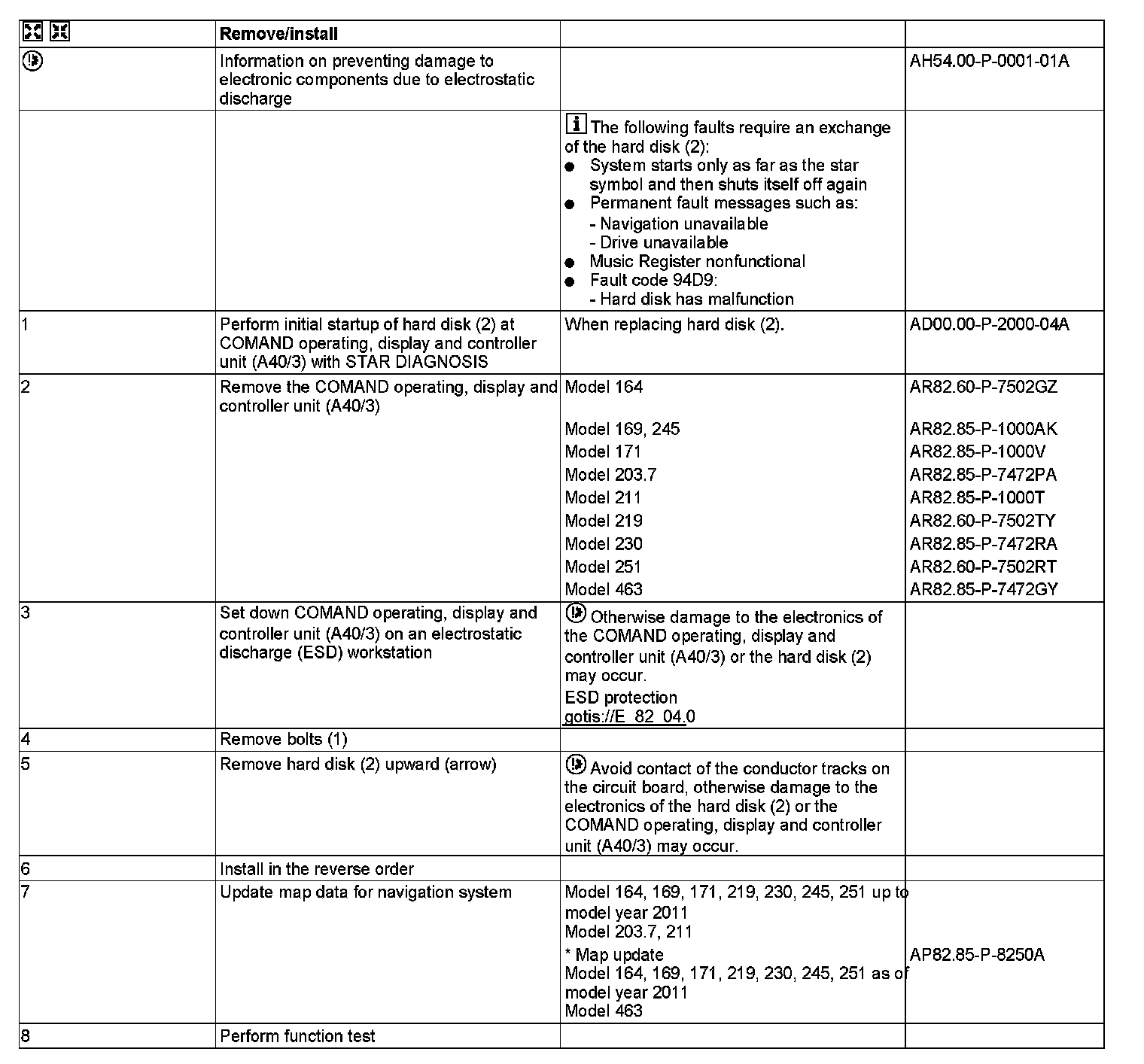

AR82.85-P-1001A Remove/Install COMAND APS Hard Drive

AR82.85-P-1001A Remove/Install COMAND APS Hard Drive
MODEL 164, 169, 171, 211, 219, 230, 245, 251 as of model year 2009
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (498) Japan version
MODEL 203.7
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (044) New Telematics Generation NTG 2.5
- except CODE (498) Japan version
MODEL 463
- with CODE (EU1) COMAND APS
- except CODE (ZJ1) Japan version





1 Screw
2 Hard disk
A40/3 COMAND operating, display and controller unit
