GF82.85-P-0003-11TXB Cockpit Management and Data System (COMAND) Block Diagram

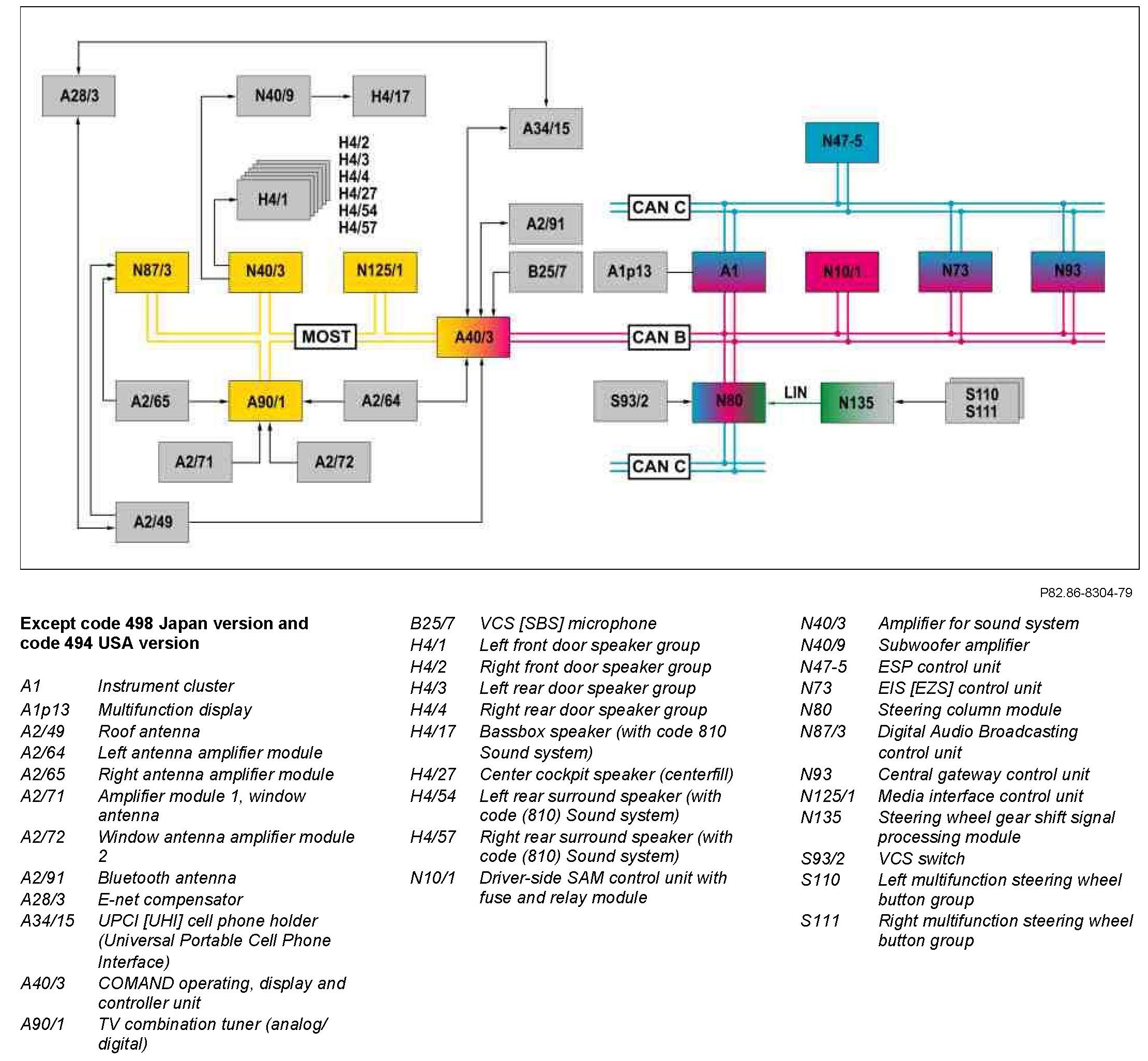

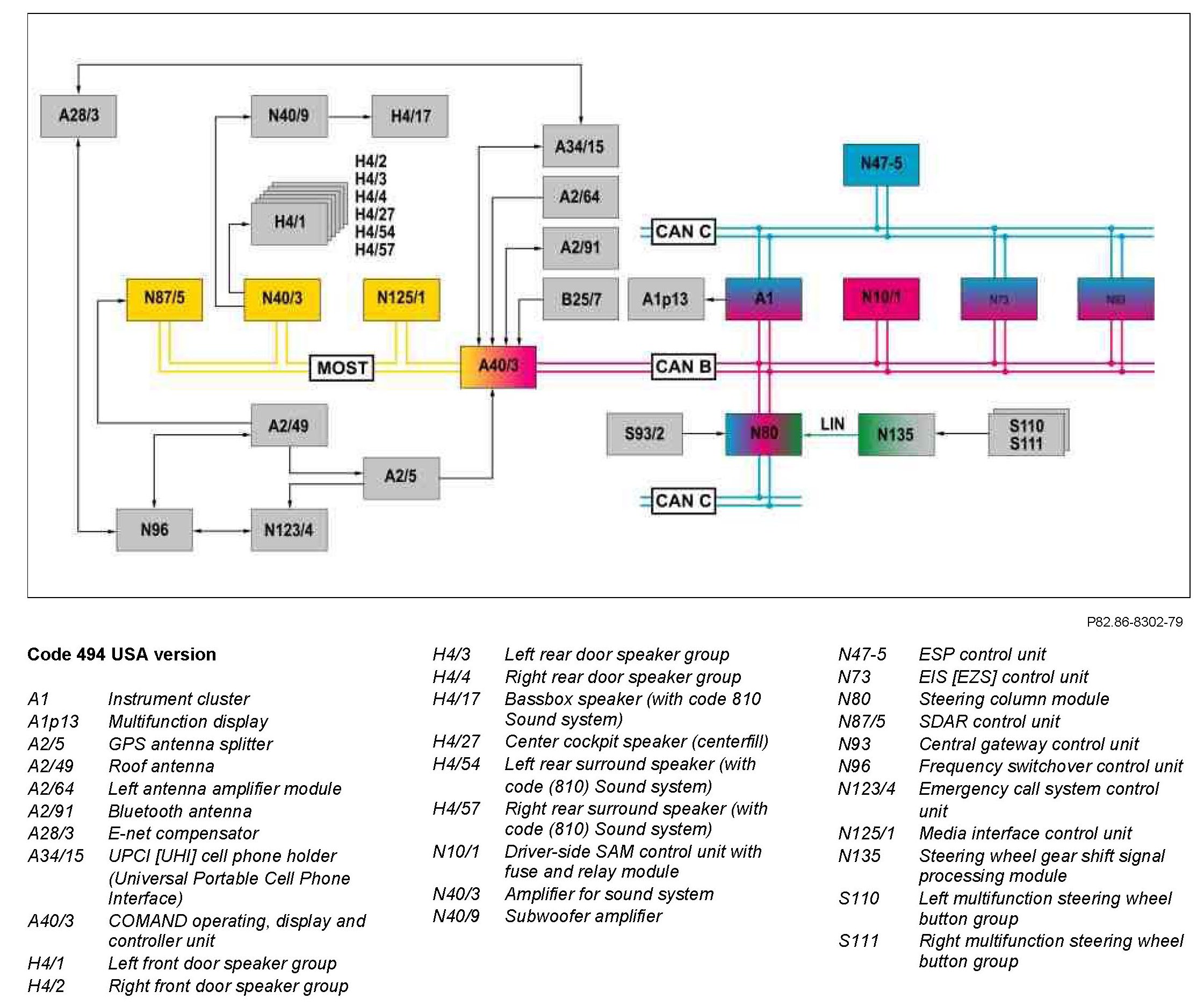

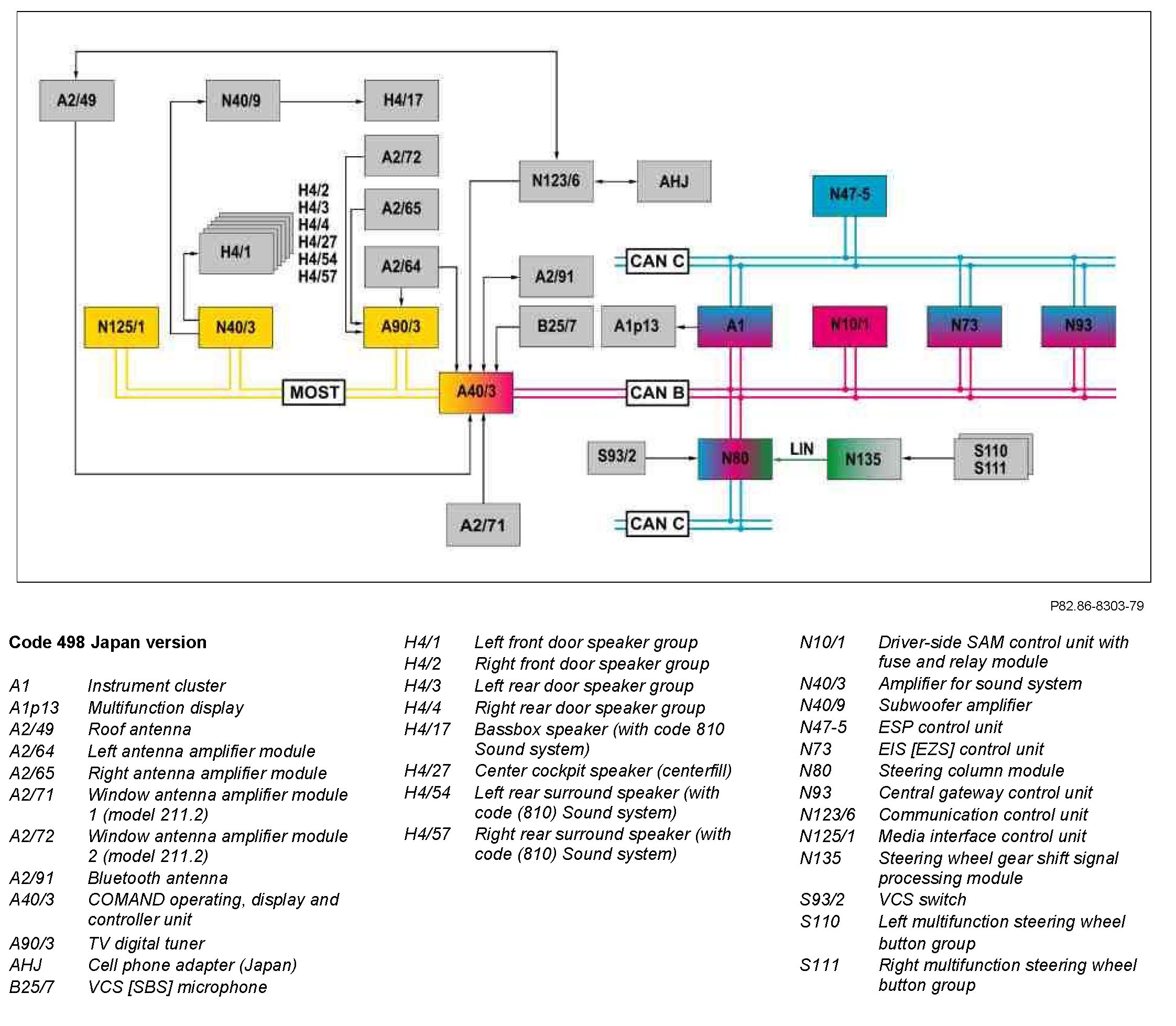

GF82.85-P-0003-11TXB Cockpit Management And Data System (COMAND) Block Diagram
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND with DVD changer
