Home >> Mercedes Benz >> 2009 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Accessory Control Display >> Description and Operation >> GF82.85-P-0003-01TM Cockpit Management and Data System (COMAND), Location of Components

GF82.85-P-0003-01TM Cockpit Management and Data System (COMAND), Location of Components



GF82.85-P-0003-01TM Cockpit Management And Data System (COMAND), Location Of Components
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND with DVD changer

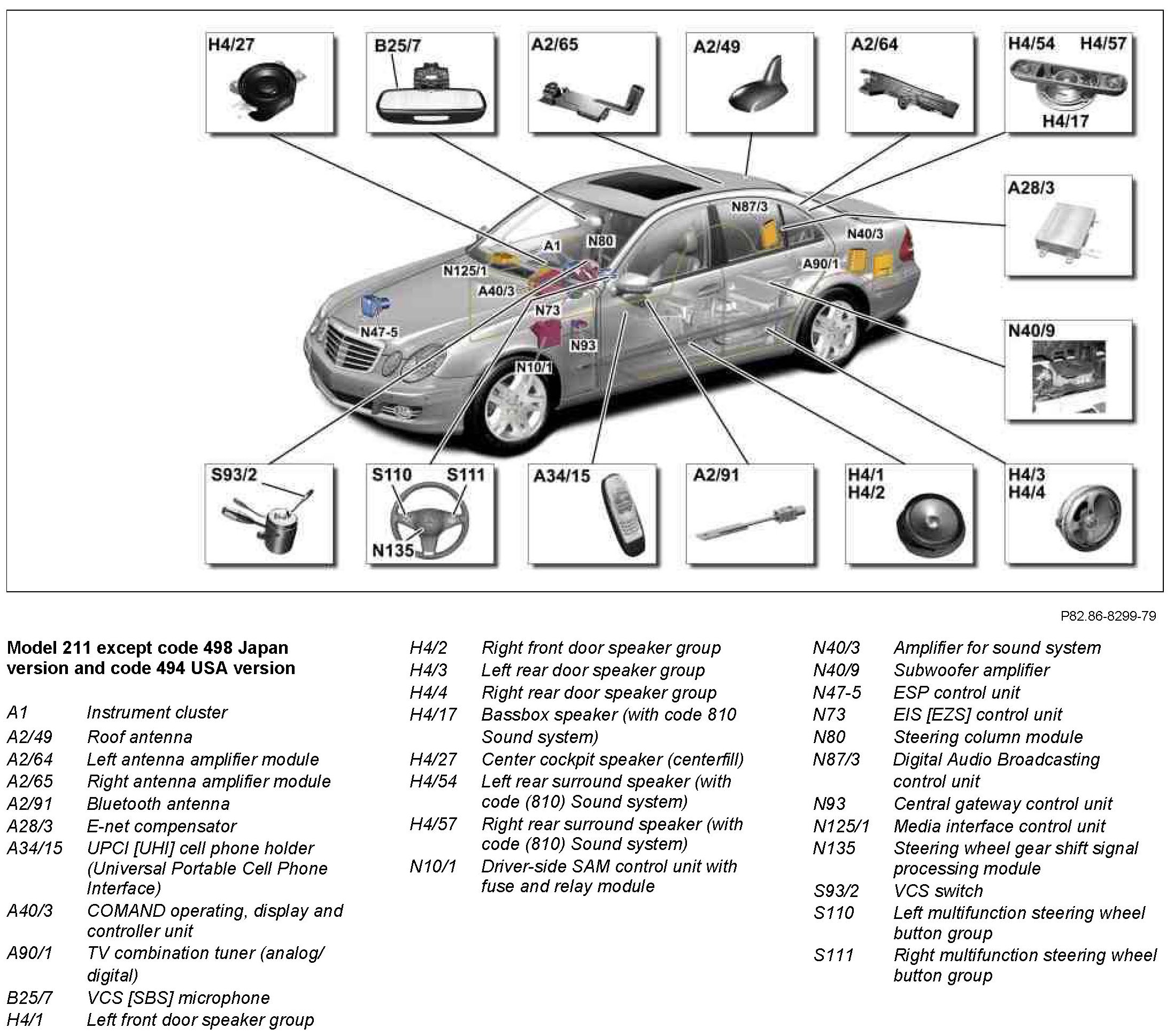

Component Identification:

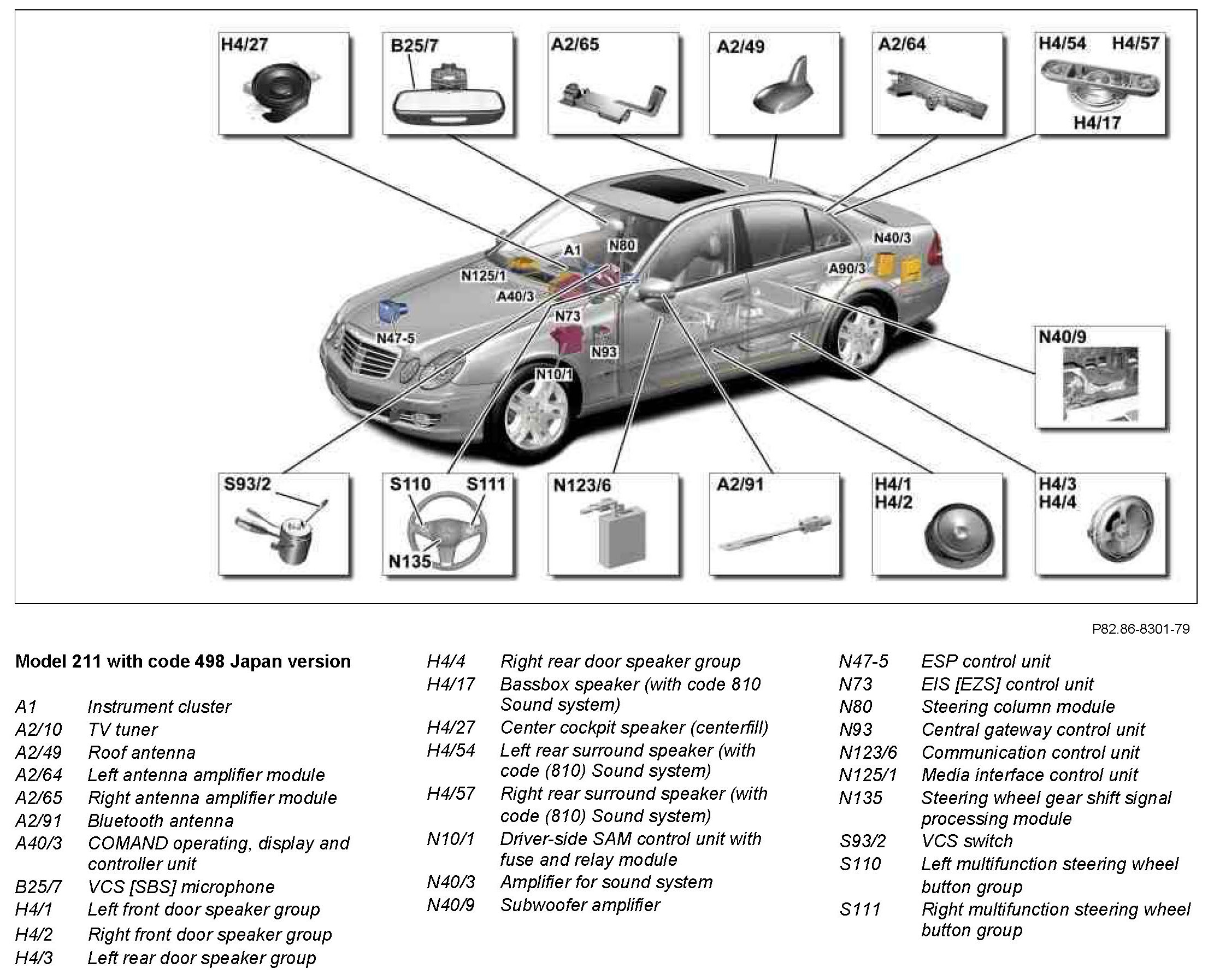

Component Identification:

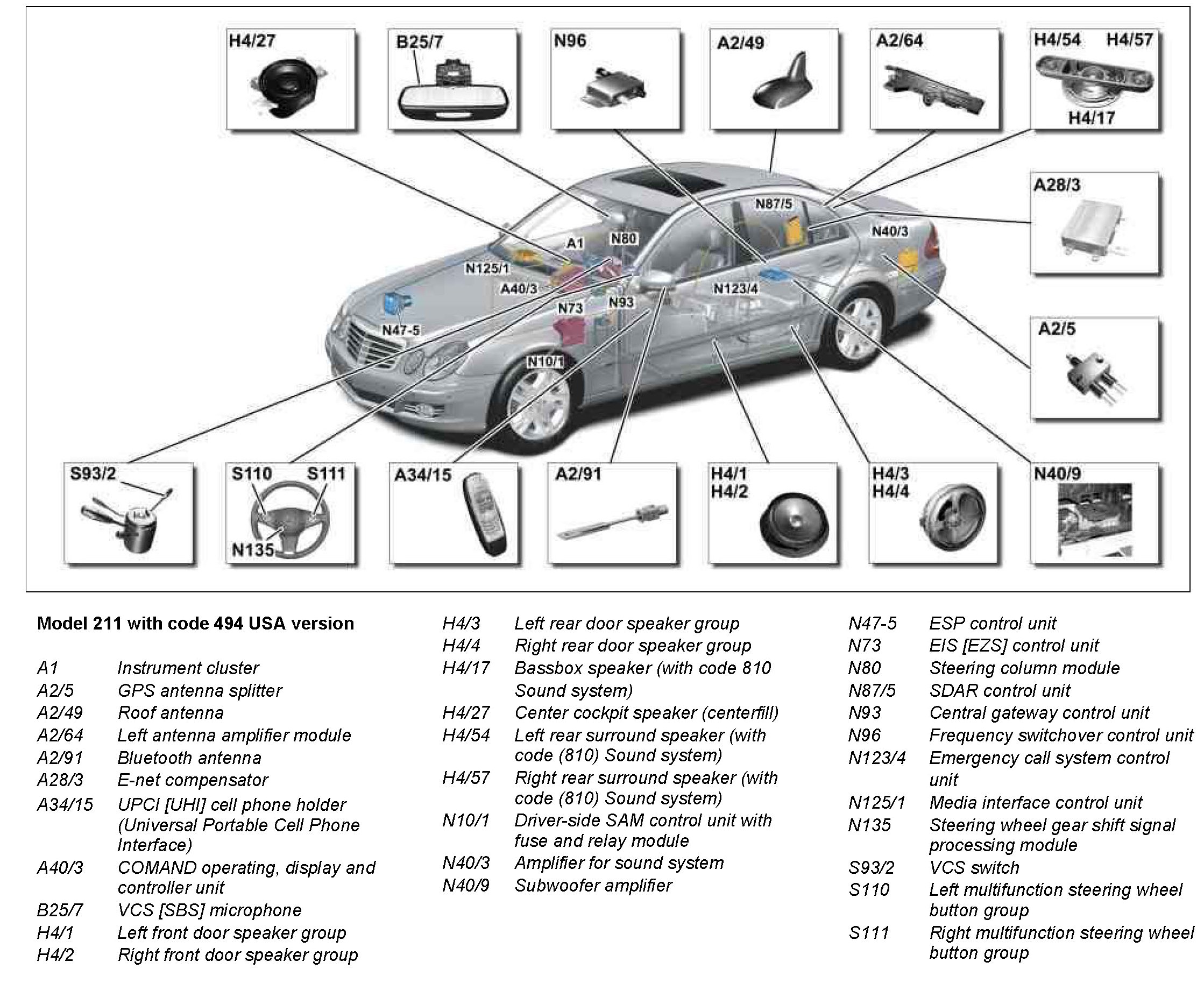

Component Identification:
