GF82.85-P-0003-01TJA Cockpit Management and Data System (COMAND), Location of Components



GF82.85-P-0003-01TJA Cockpit Management And Data System (COMAND), Location Of Components
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

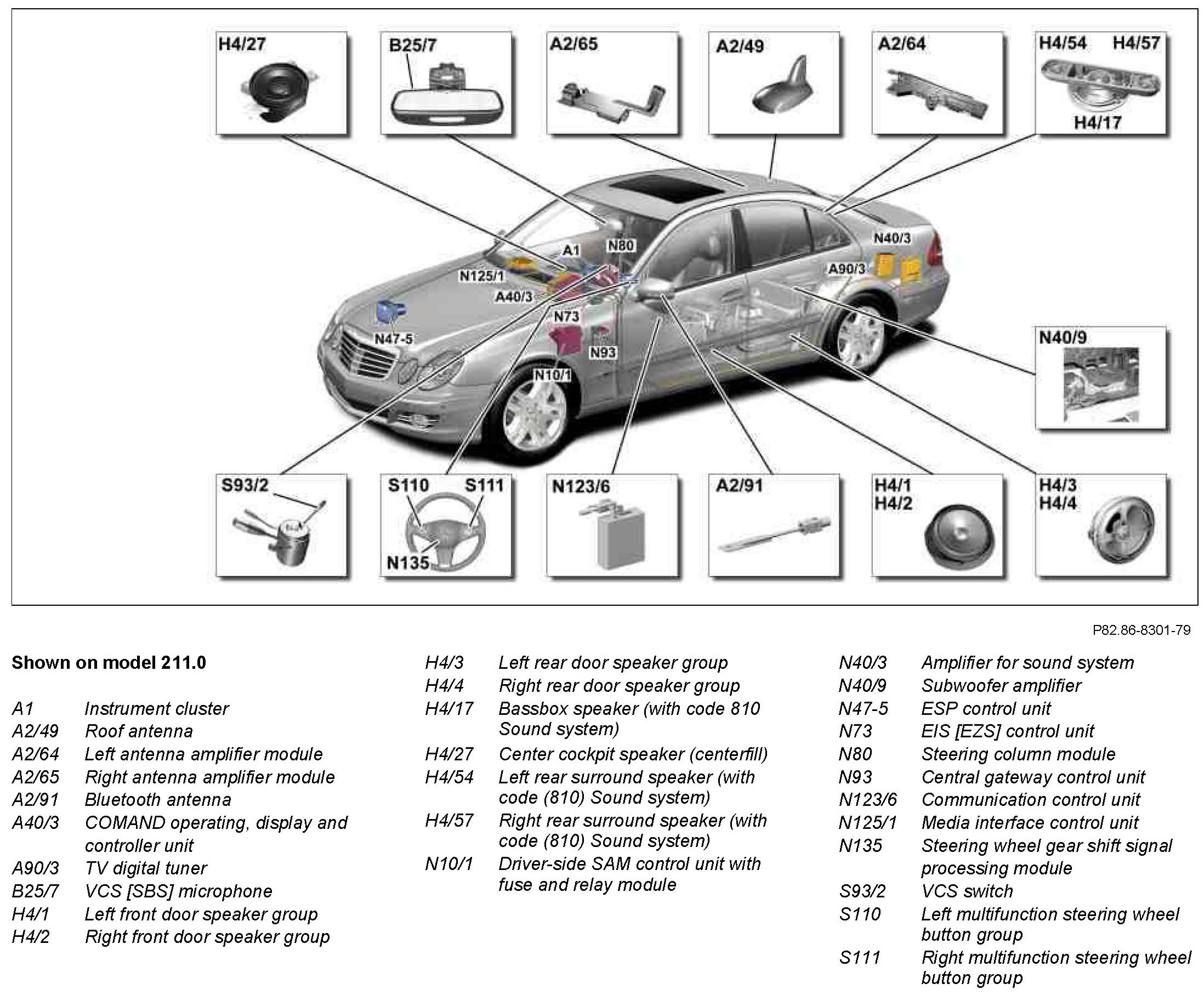

Component Identification:
