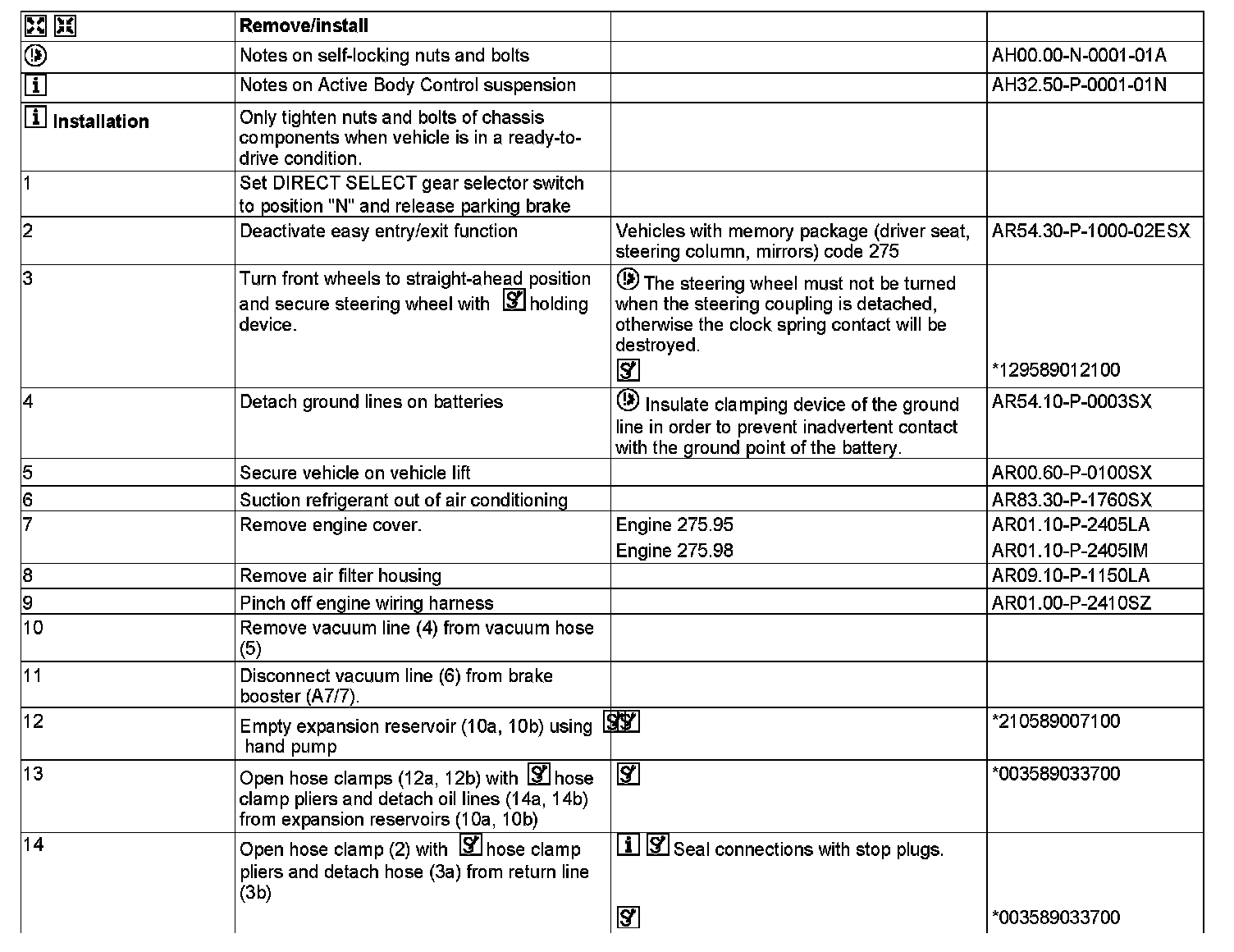

AR01.10-P-2500SZ Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500SZ Remove/Install Engine With Front Axle Carrier
ENGINES 275 in MODEL 216, 221

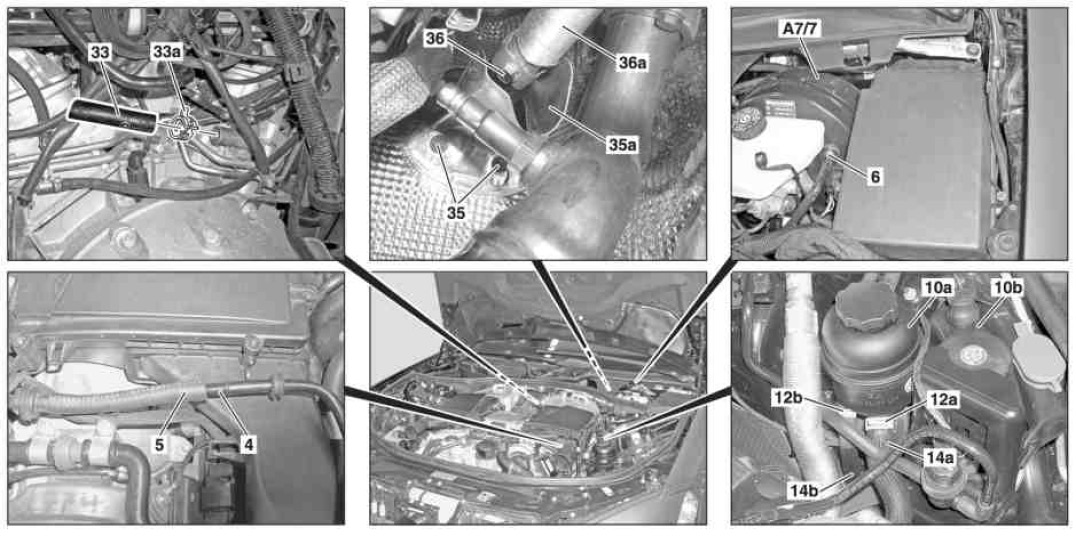

4 Vacuum line
5 Vacuum hose
6 Vacuum line
10a Power steering expansion reservoir
10b ABC expansion reservoir
12a Clamp
12b Clamp
14a Oil line
14b Oil line
33 Coolant line
33a Clamp
35 Bolts
35a Cover panel
36 Screw
36a Steering coupling

A7/7 BAS brake booster

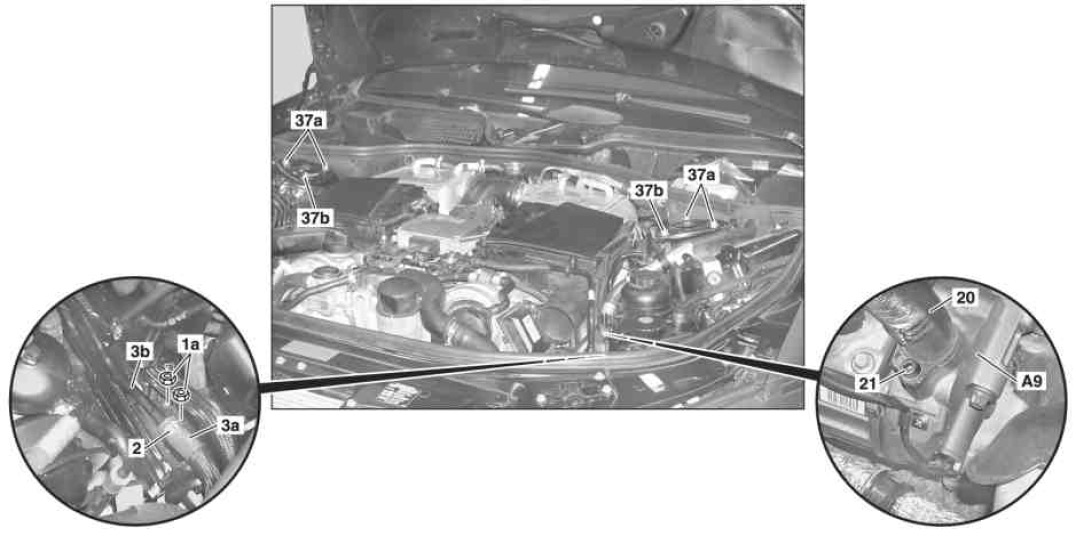

1a Nuts
2 Clamp
3a Hose
3b Return flow pipe
20 Refrigerant line
21 Screw
37a Nuts
37b Nut

A9 Refrigerant compressor

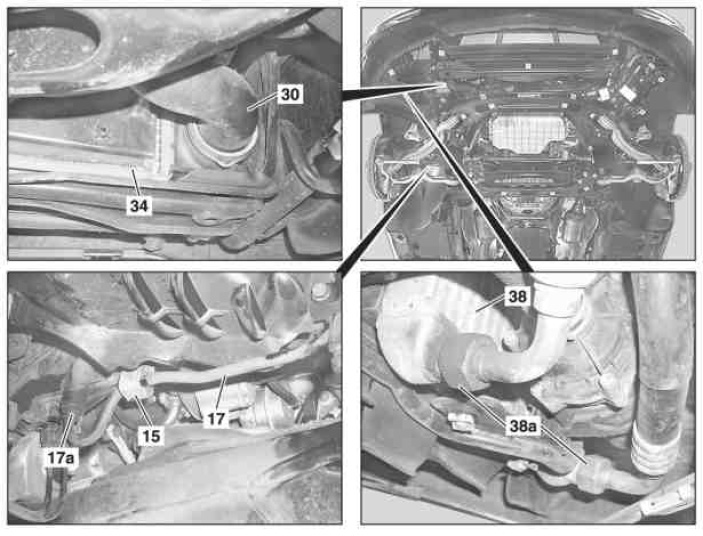

15 Retaining clamp
17 Hydraulic line
17a Quick-release coupling
30 Coolant line
34 Radiator
38 Engine oil cooler
38a Oil cooling line

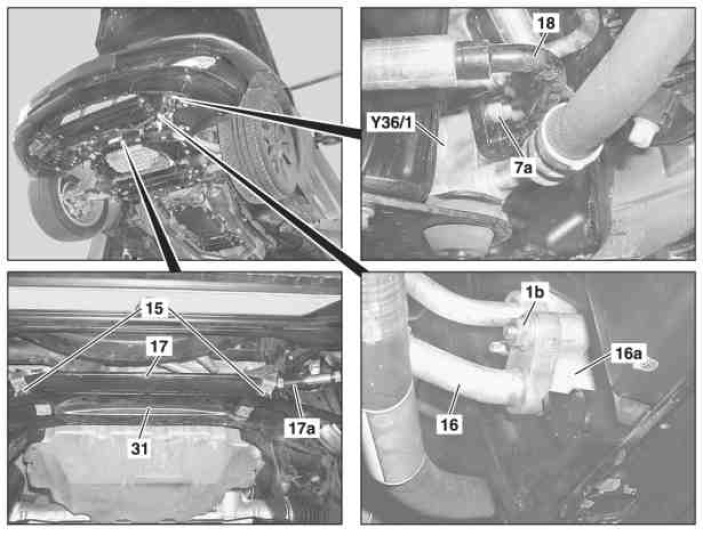

1b Nut
7a Screw
15 Retaining clamps
16 Refrigerant line
16a Fluid reservoir
17 Hydraulic line
17a Quick-release coupling
18 Hydraulic line

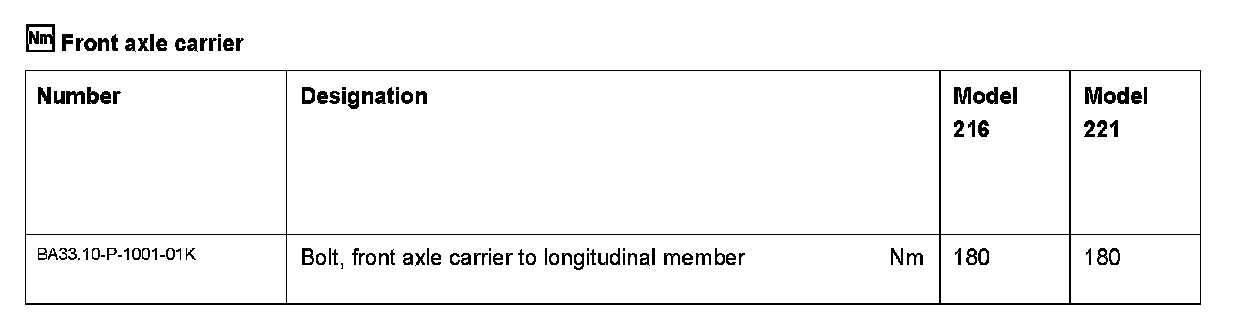

31 Front axle carrier

Y36/1 ABC front axle valve unit
