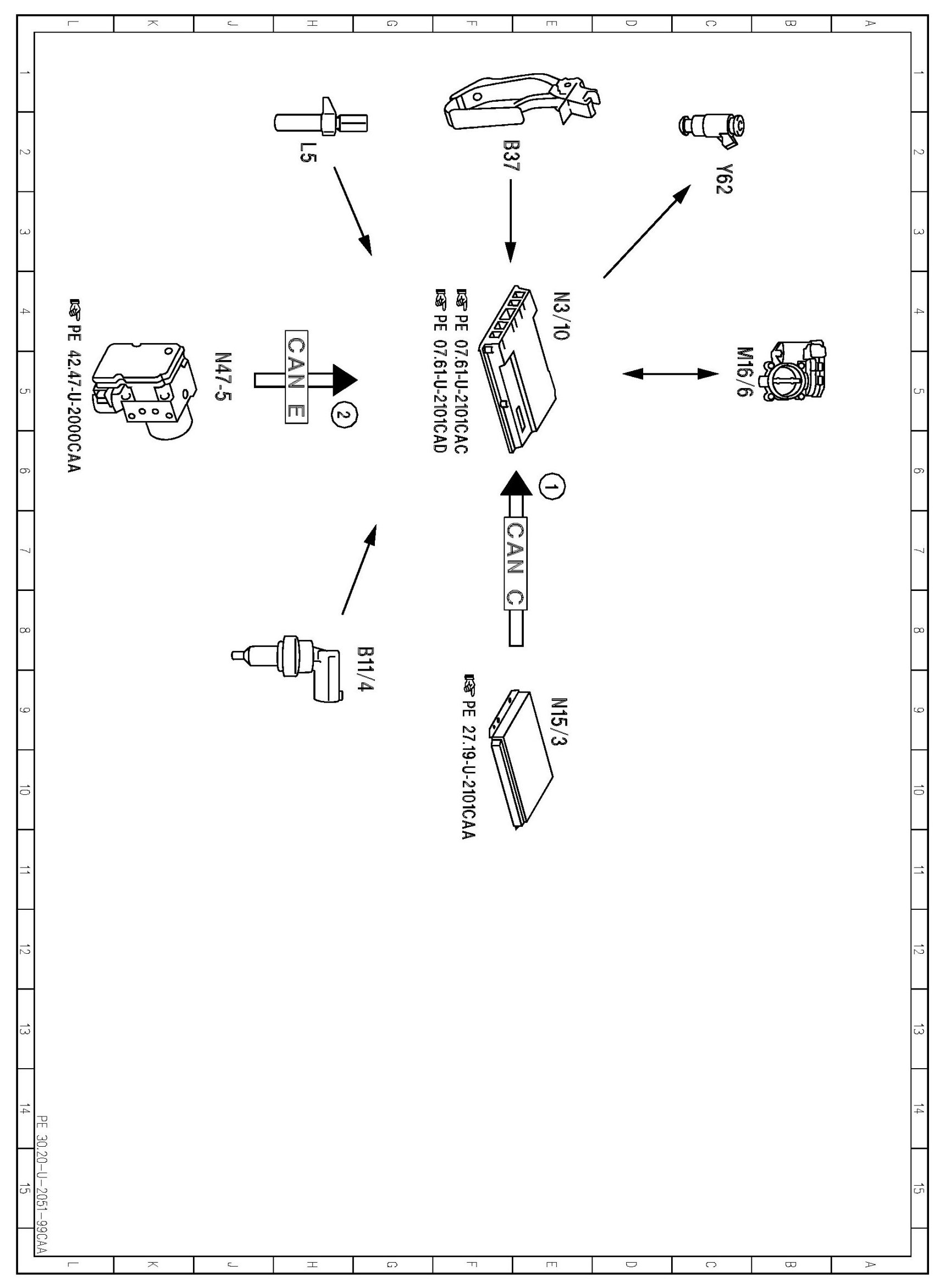

PE30.20-U-2051CAA Electrical Function Diagram For Electronic Accelerator Pedal Limp-Home Mode

PE30.20-U-2051CAA Electrical Function Diagram For Electronic Accelerator Pedal Limphome Mode

ENGINE 275 in MODEL 216
- as of Model Year 2009























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
