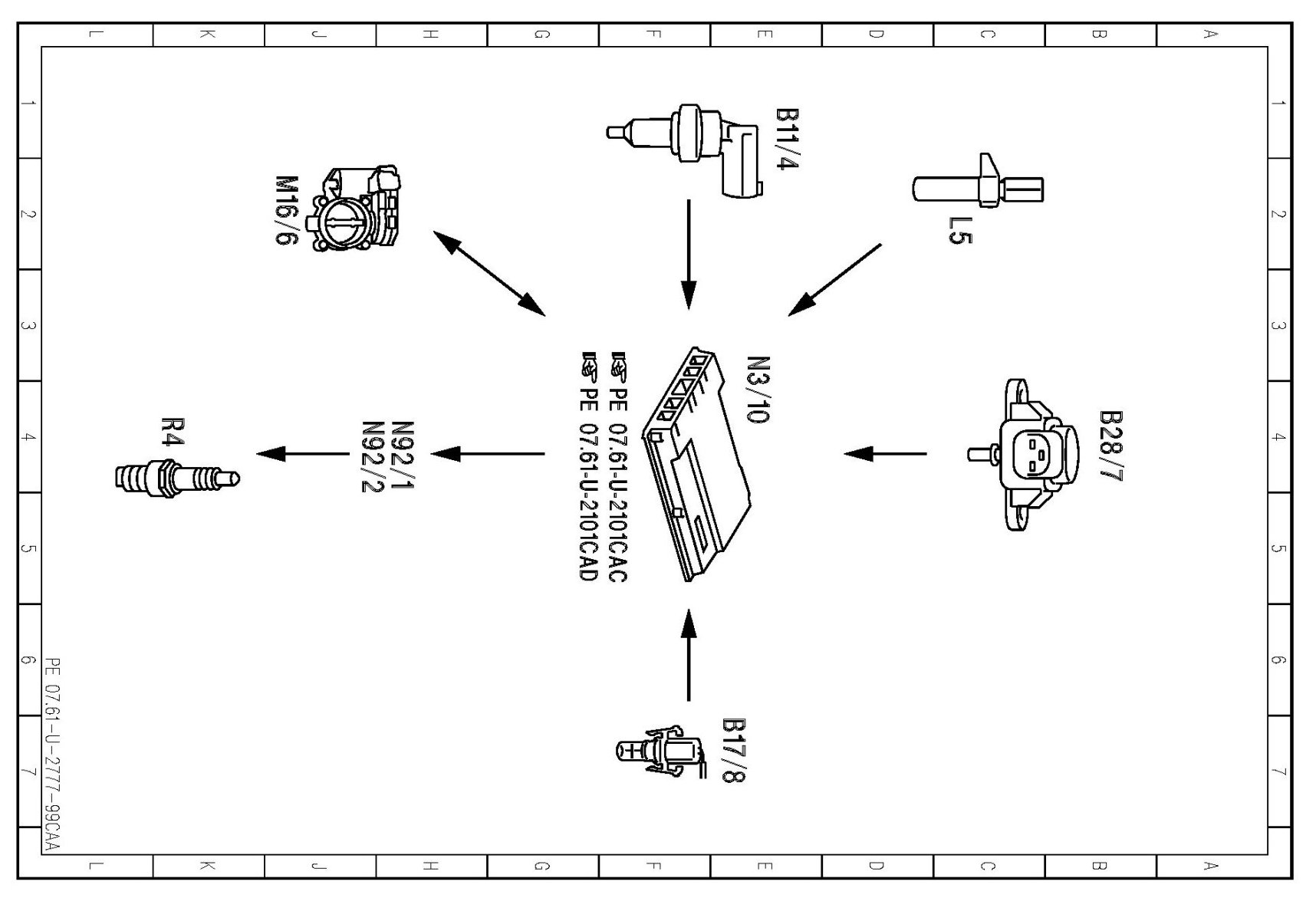

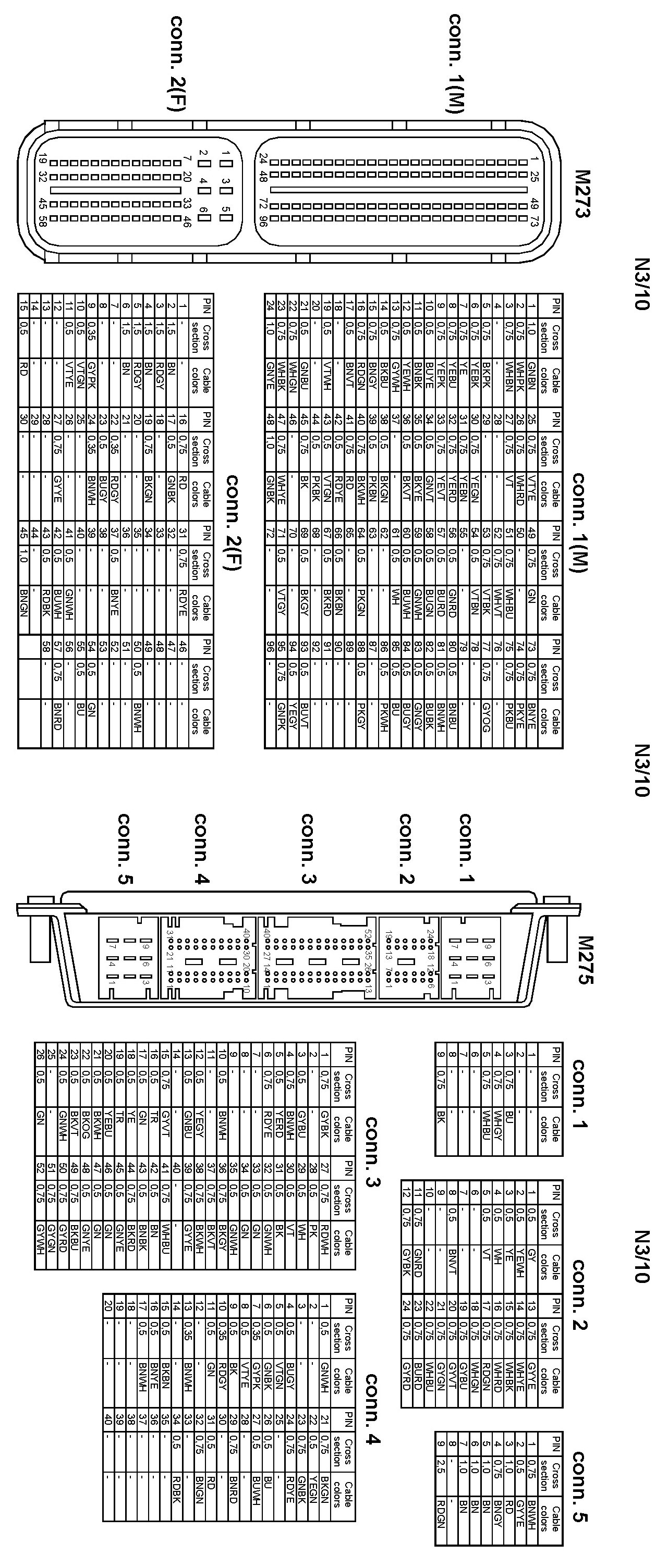

PE07.61-U-2777CAA Electrical Function Diagram For ME Overheating/Knock Protection Function



PE07.61-U-2777CAA Electrical Function Diagram For ME Overheating/Knock Protection Function

ENGINE 275 in MODEL 216
- as of Model Year 2009















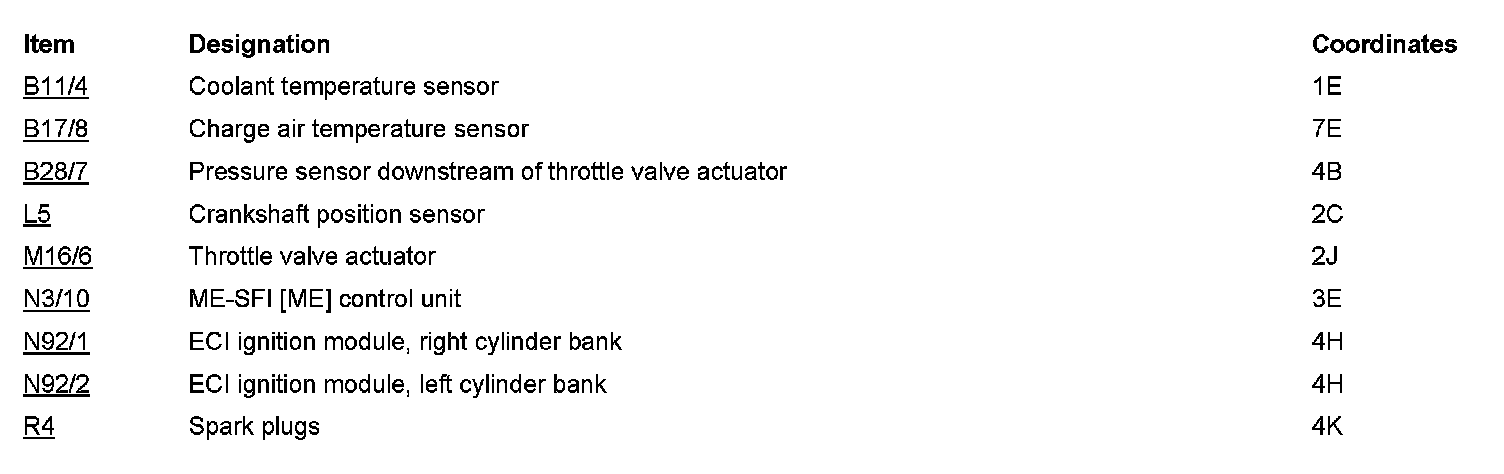

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
