Home >> Mercedes Benz >> 2009 >> CL 65 AMG (216.379) V12-6.0L Turbo (275.982) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Function Diagrams >> PE07.61-U-2771CAA Electrical Function Diagram For Synchronization of ME Injection and Firing Order

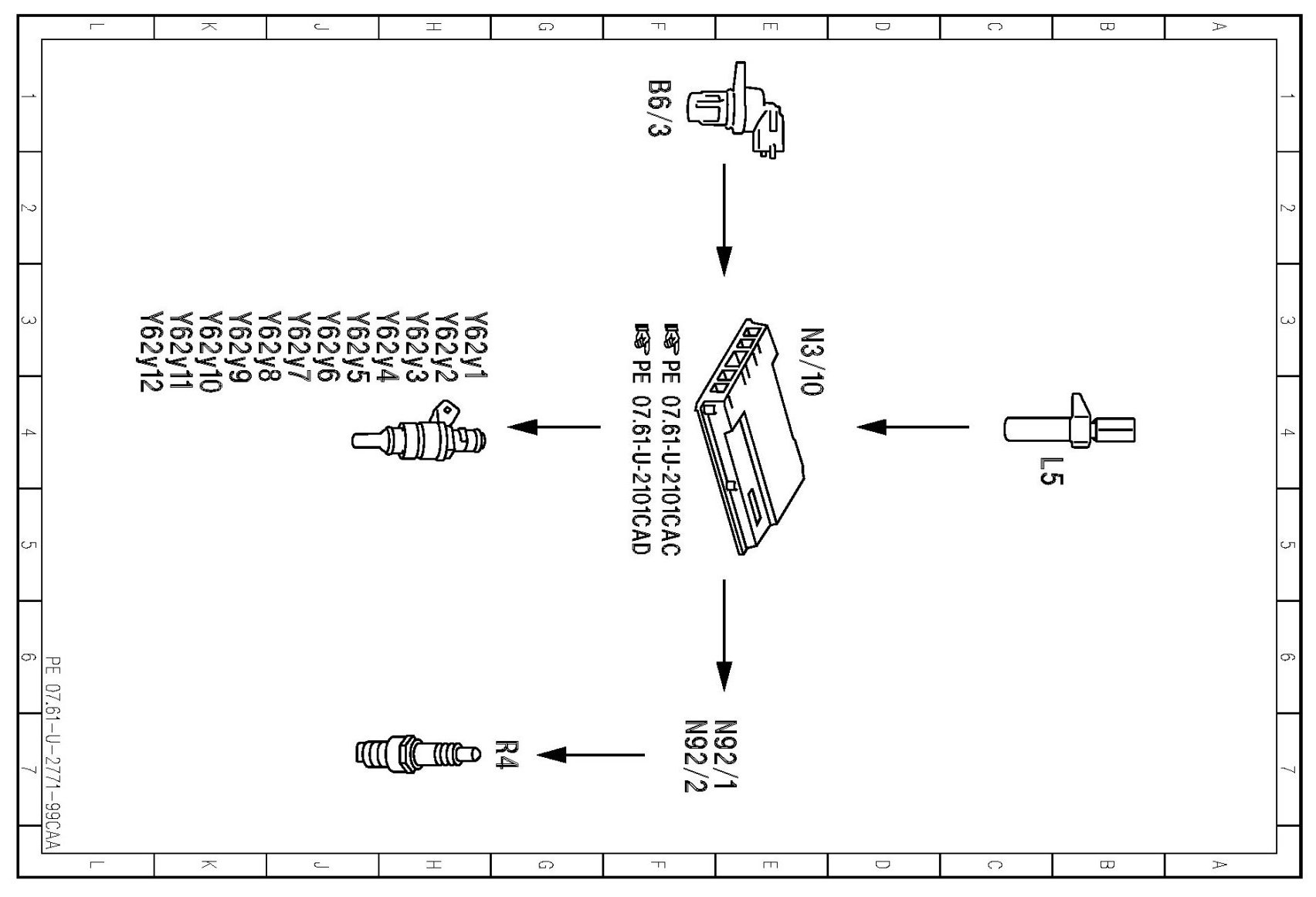

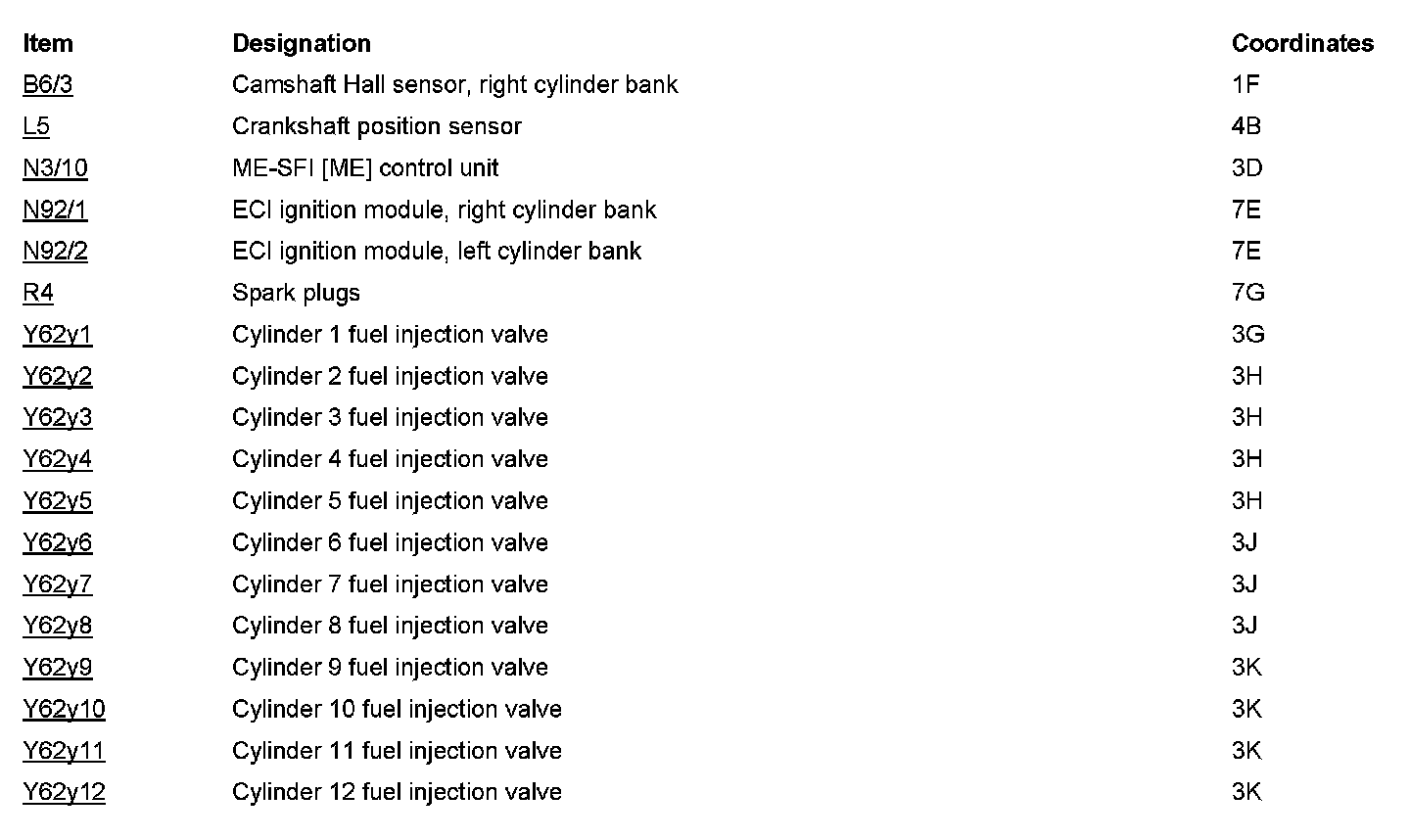

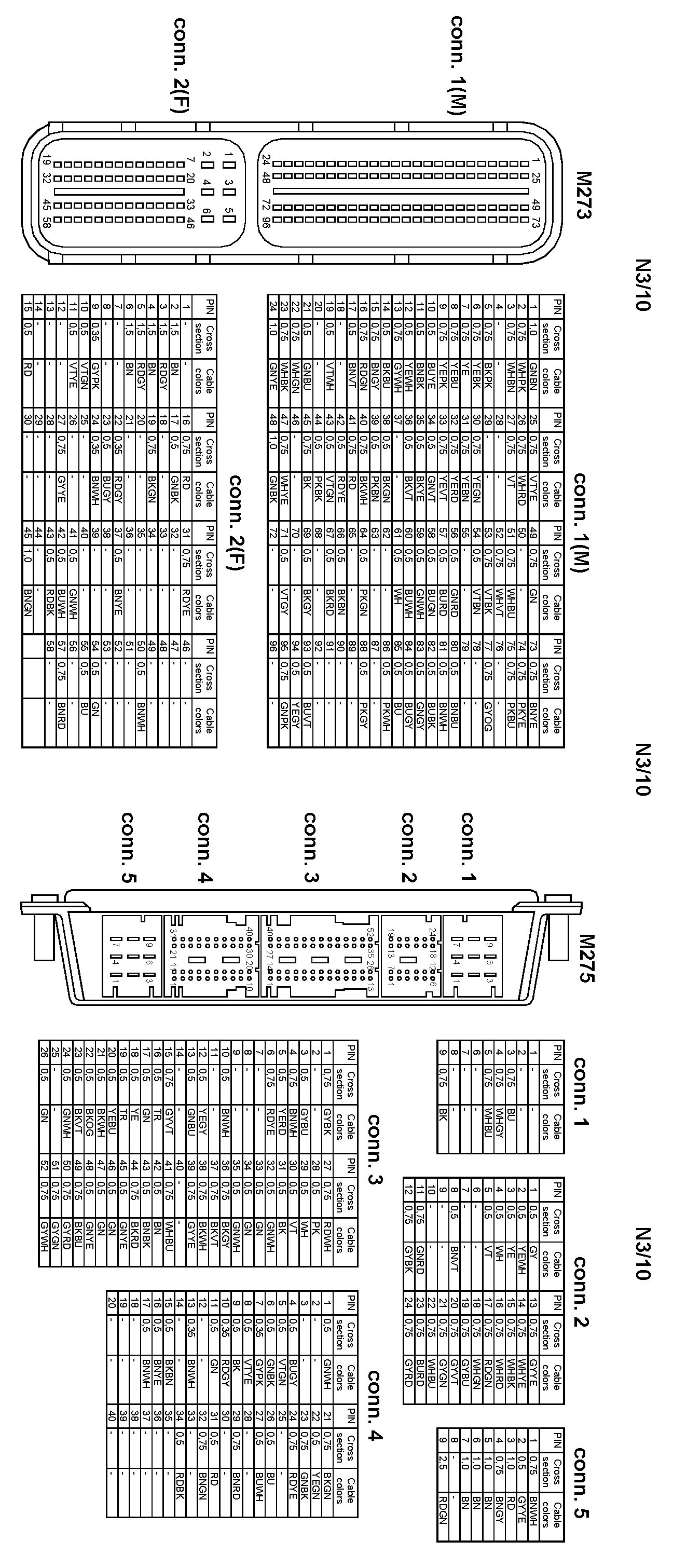

PE07.61-U-2771CAA Electrical Function Diagram For Synchronization of ME Injection and Firing Order



PE07.61-U-2771CAA Electrical Function Diagram For Synchronization of ME Injection and Firing Order

ENGINE 275 in MODEL 216
- as of Model Year 2009















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
