PE82.85-P-2101CAD Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101CAD
- with CODE (529) HIGH Class Japan
- as of model year 09
- control unit A40/3, sheet 1

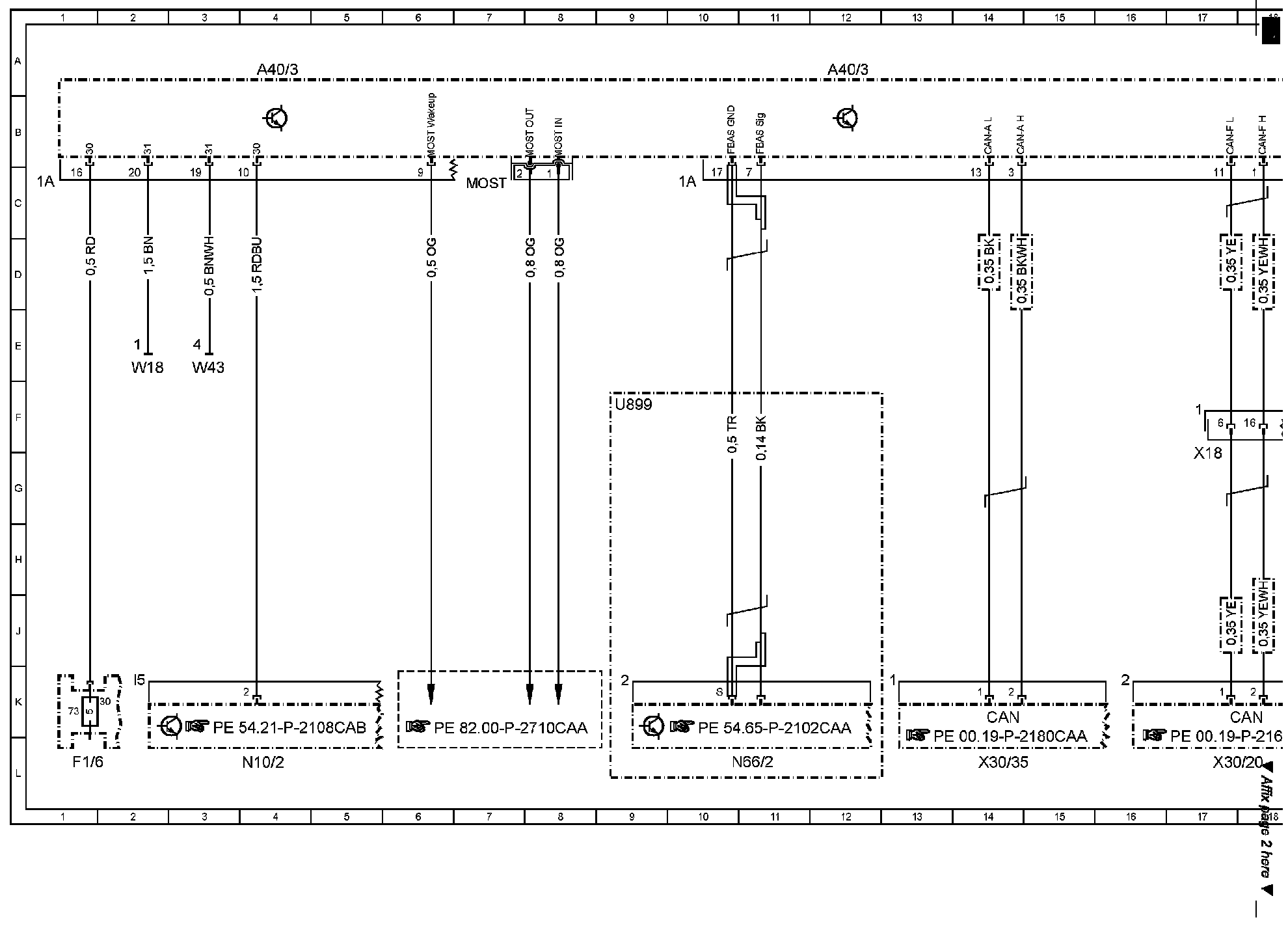

Wiring Diagram (Part 1):

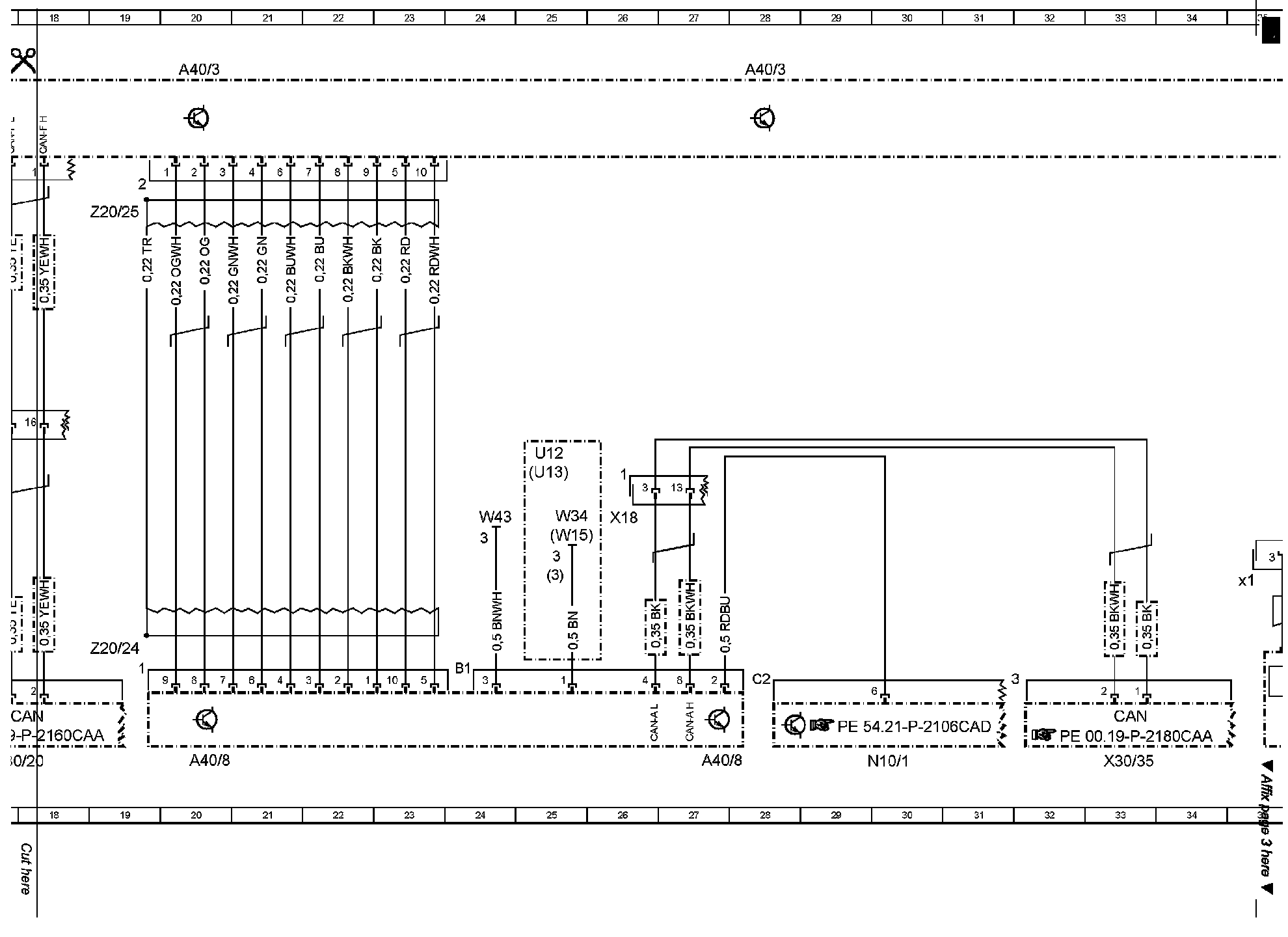

Wiring Diagram (Part 2):

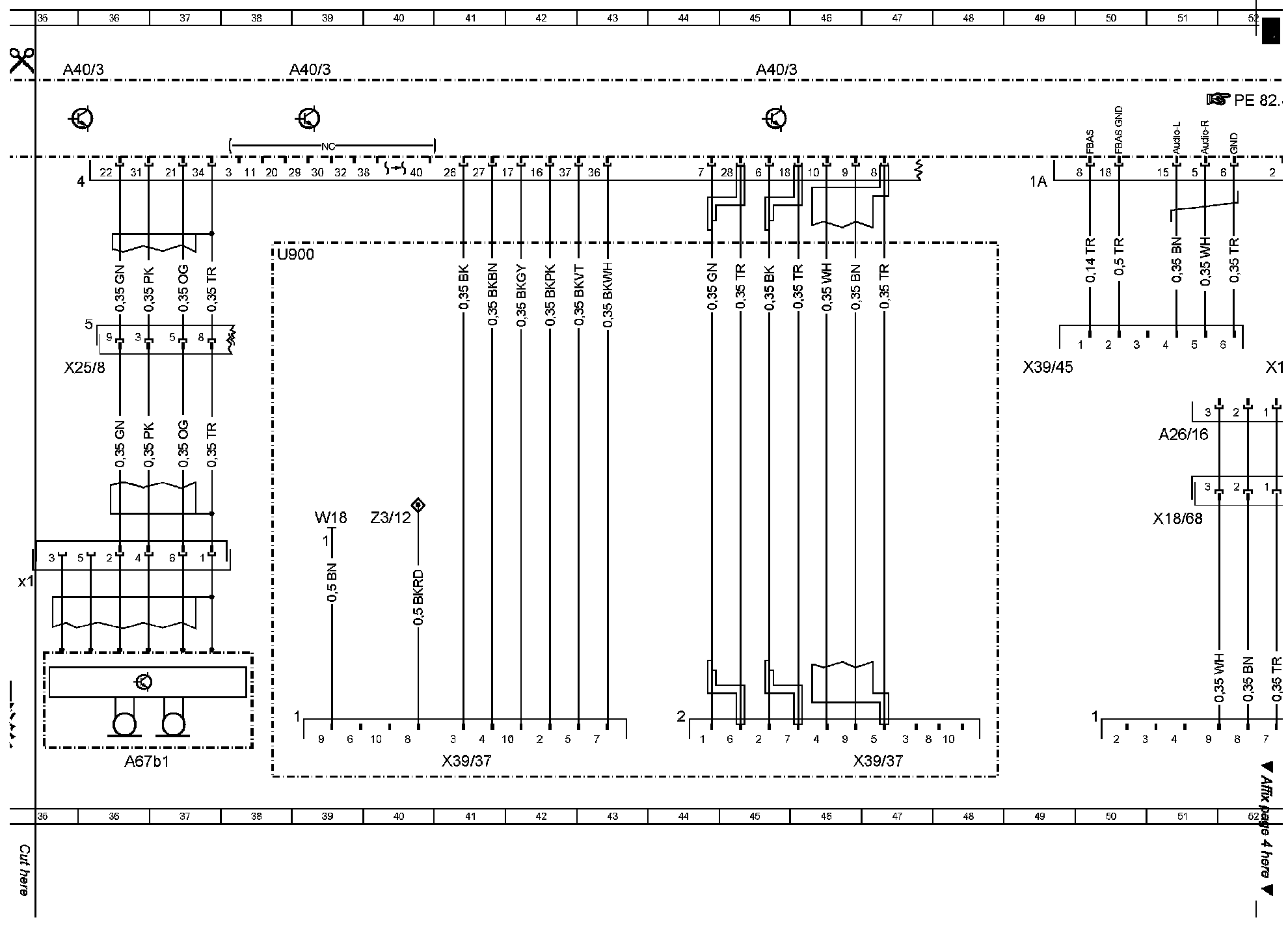

Wiring Diagram (Part 3):

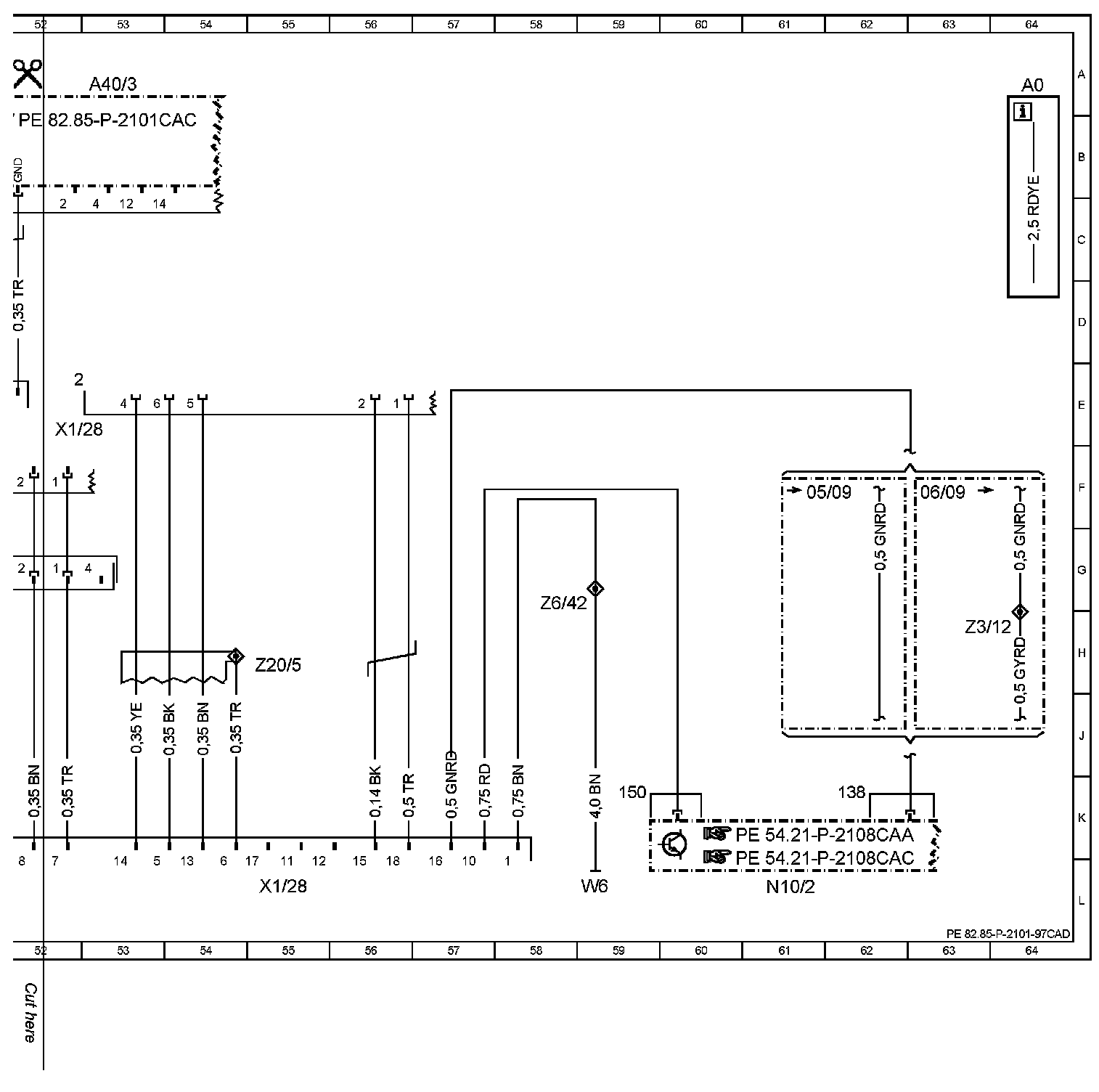

Wiring Diagram (Part 4):

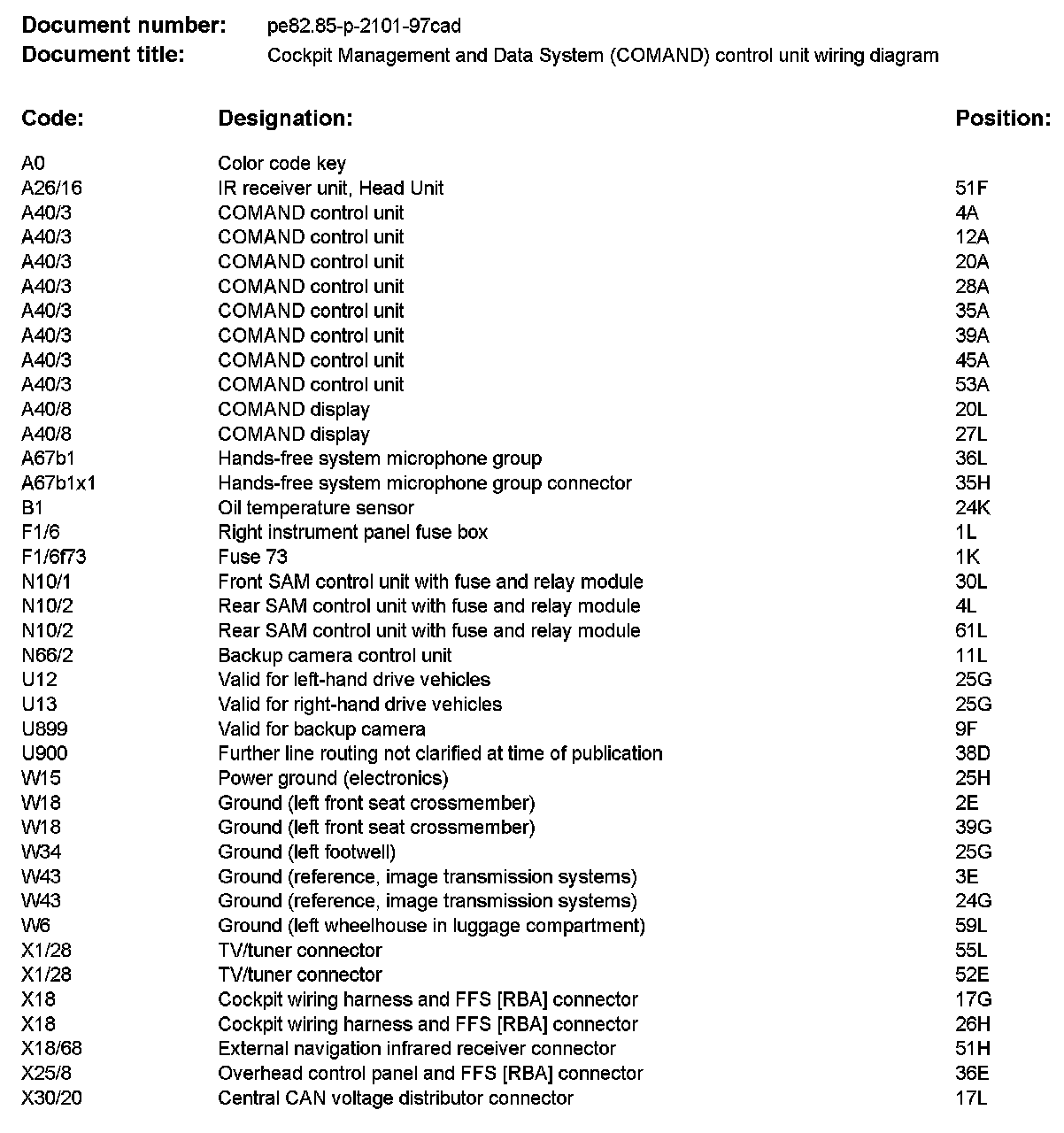

Component Description/Coordinates, A0 To X30/20:

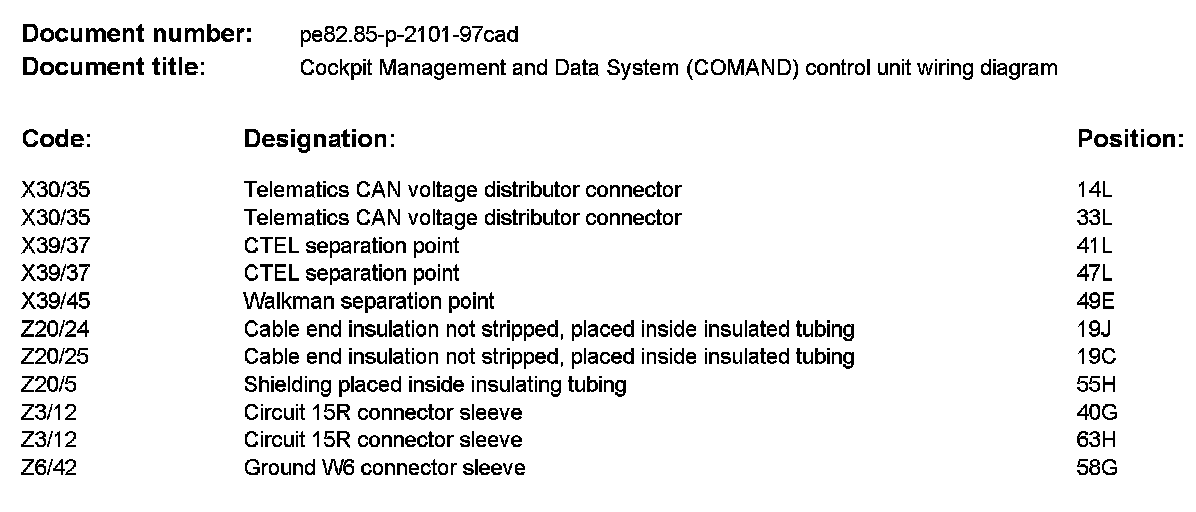

Component Description/Coordinates, X30/35 To Z6/42:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
