PE82.85-P-2101CAC Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101CAC
- with CODE (529) HIGH Class Japan
- control unit A40/3, sheet 2

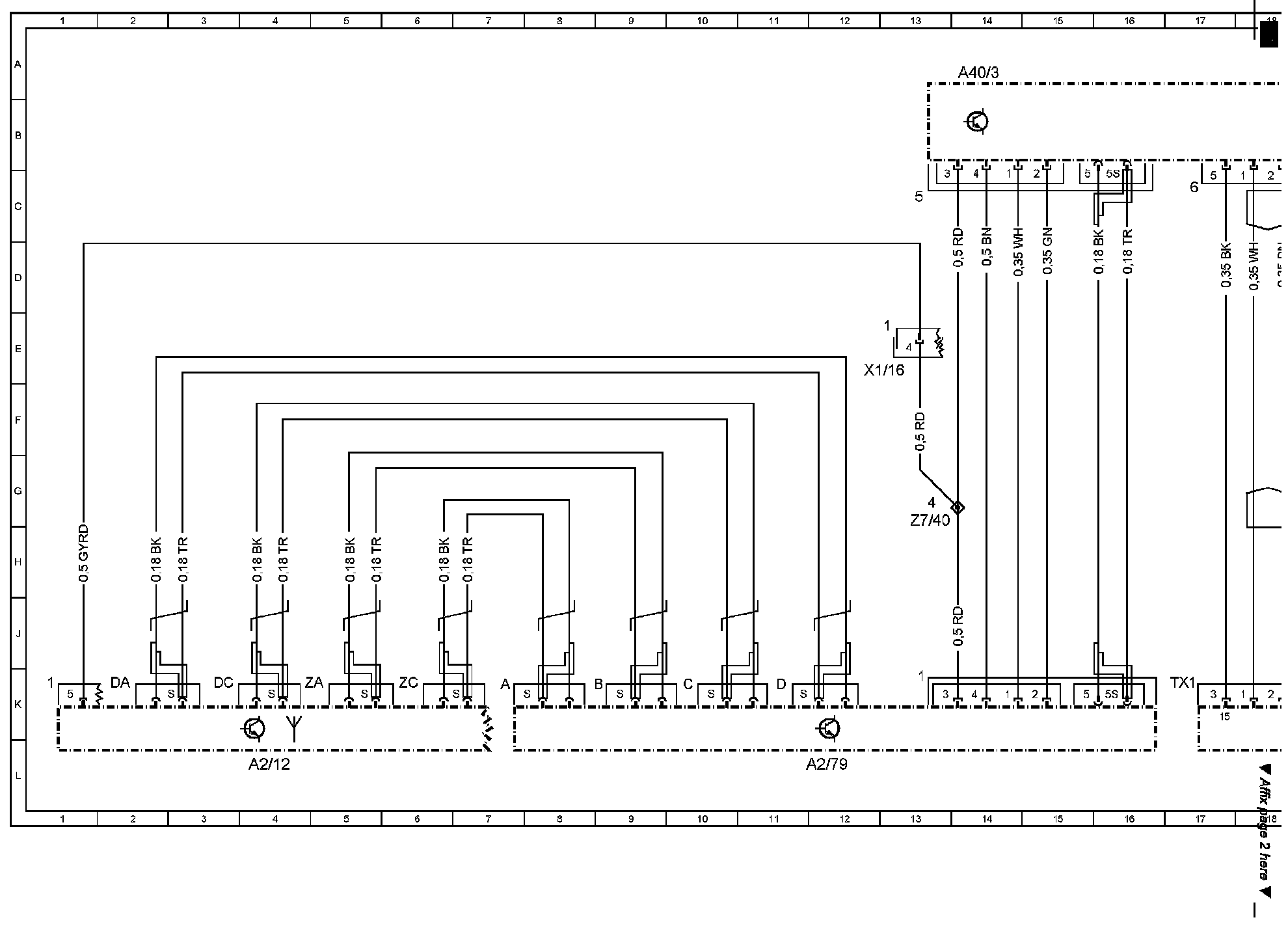

Wiring Diagram (Part 1):

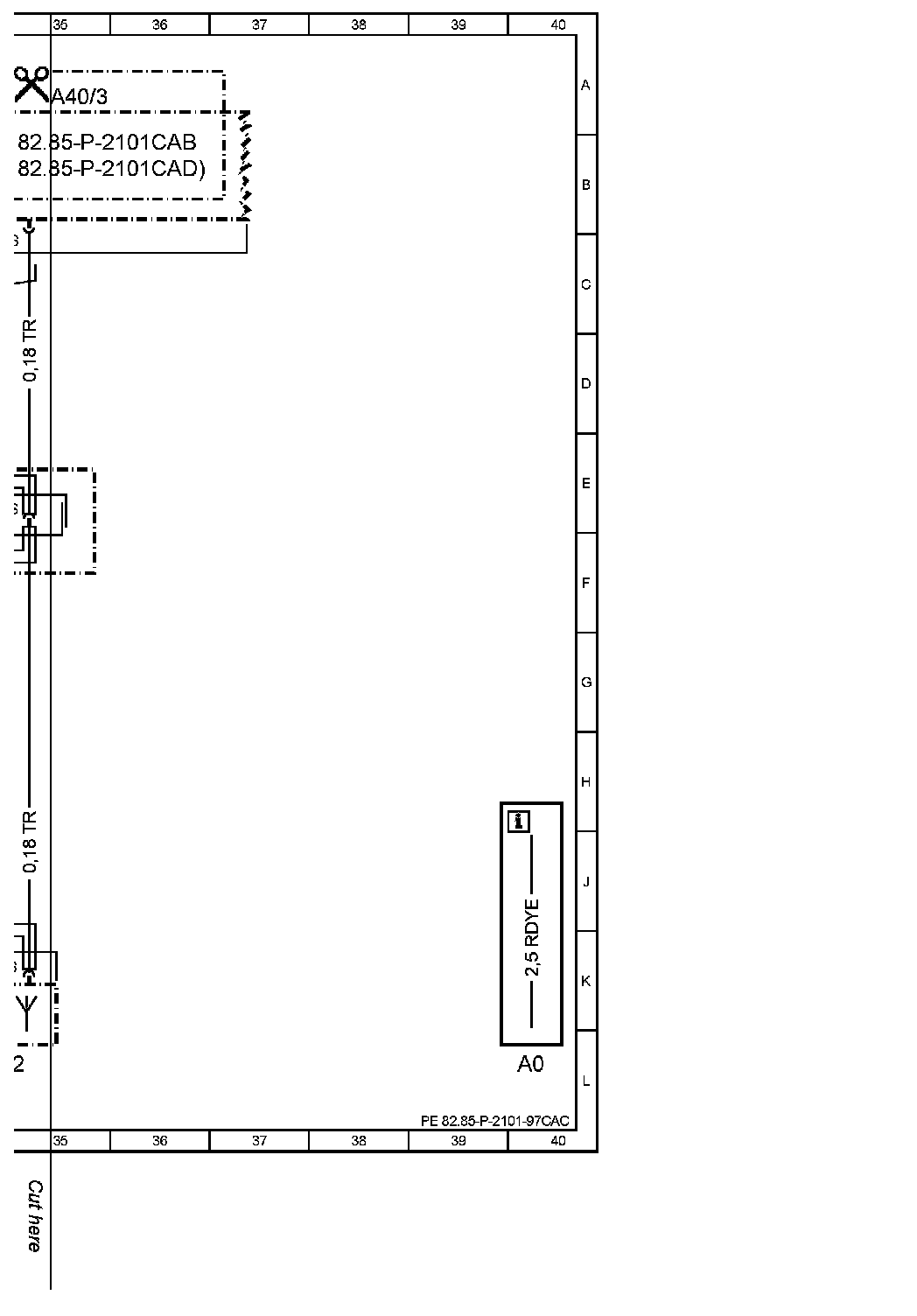

Wiring Diagram (Part 2):

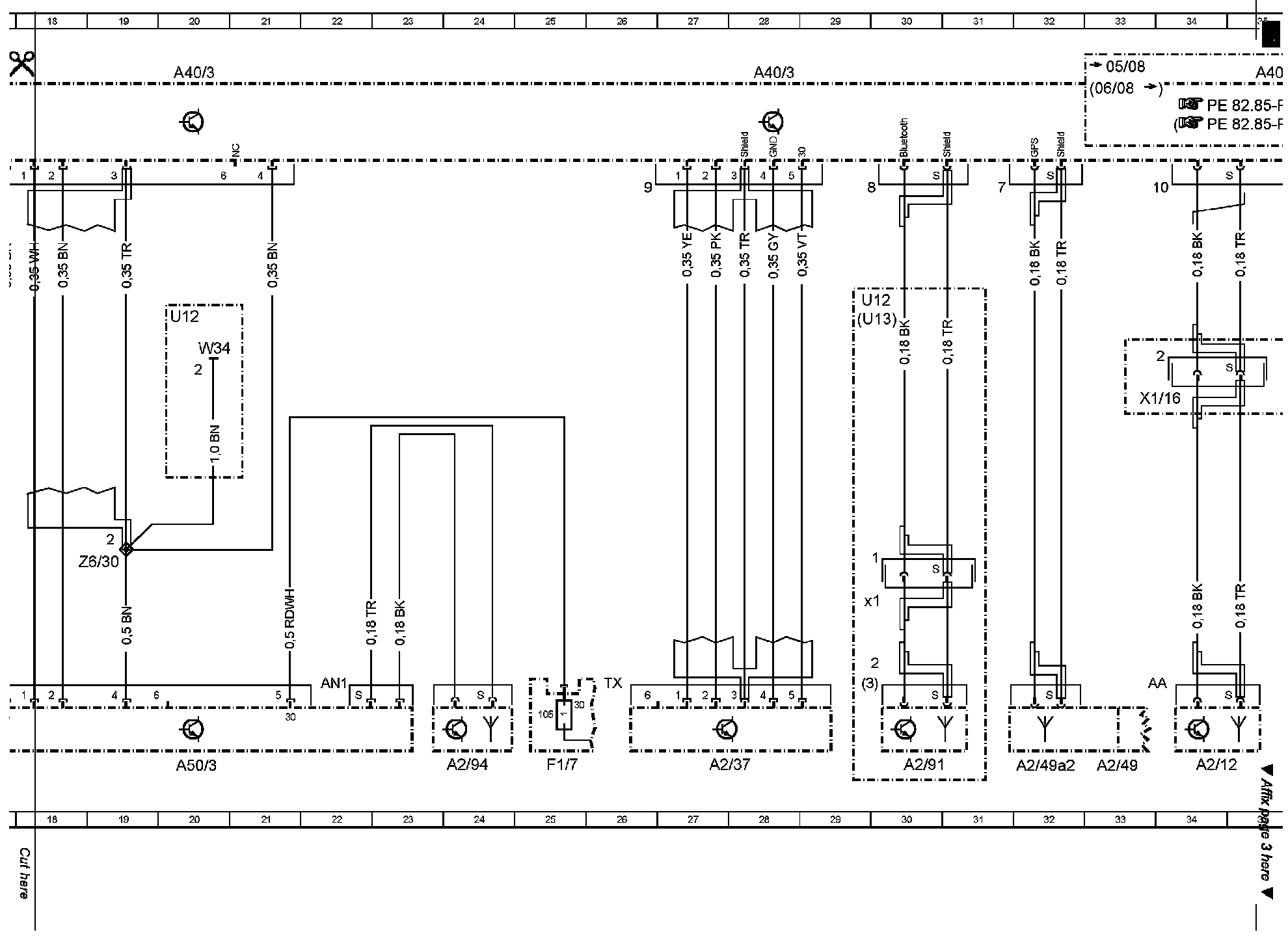

Wiring Diagram (Part 3):

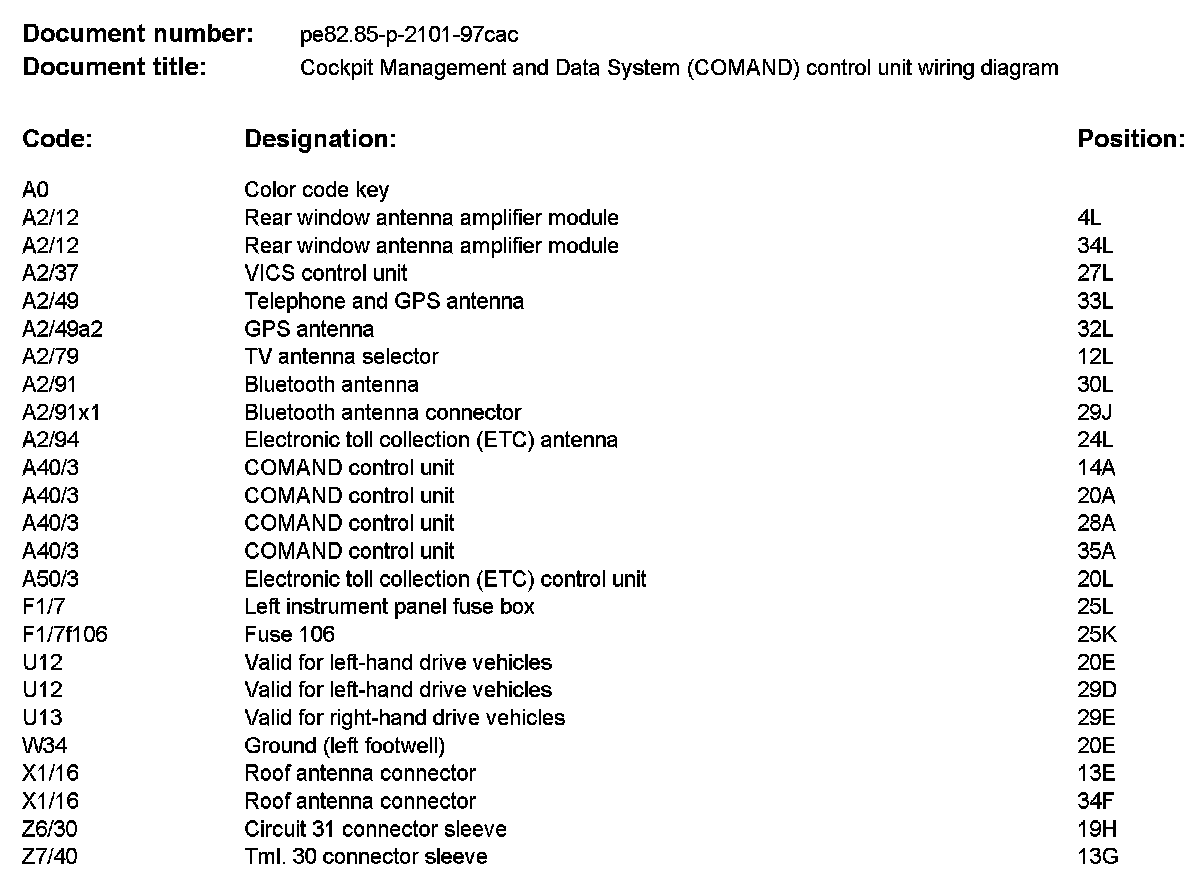

Component Description/Coordinates, A0 To Z7/40:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
