Radiator Support: Service and Repair
AR62.30-P-2300SXM Remove/install Front End Crossmember
Component Identification:

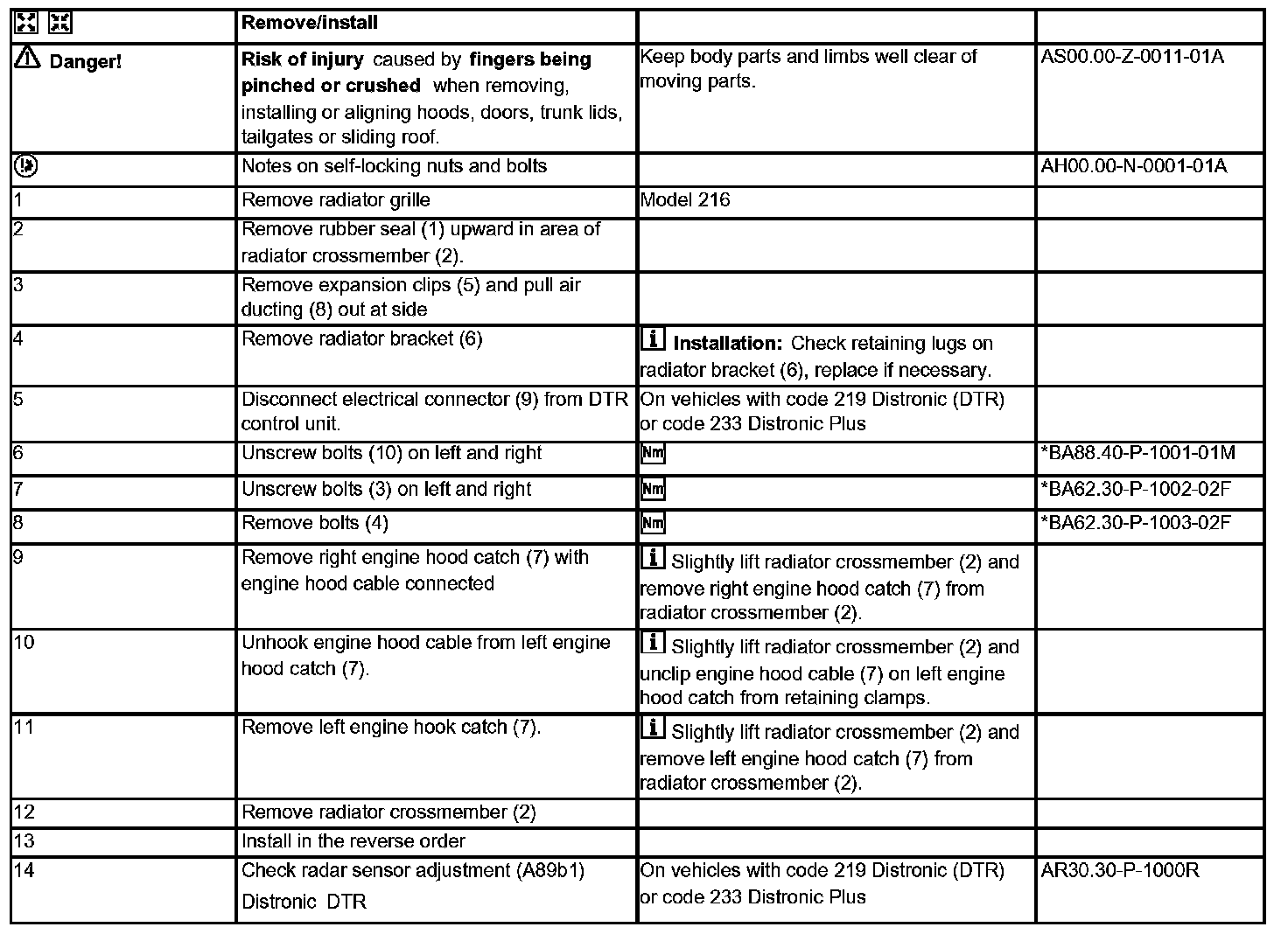

Steps 1-14:

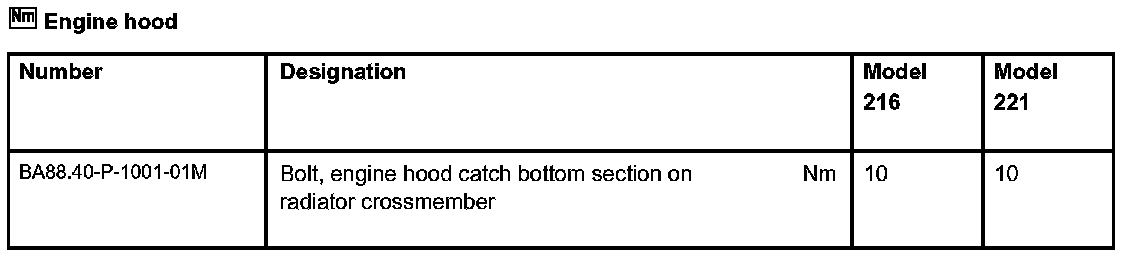

Engine Hood:

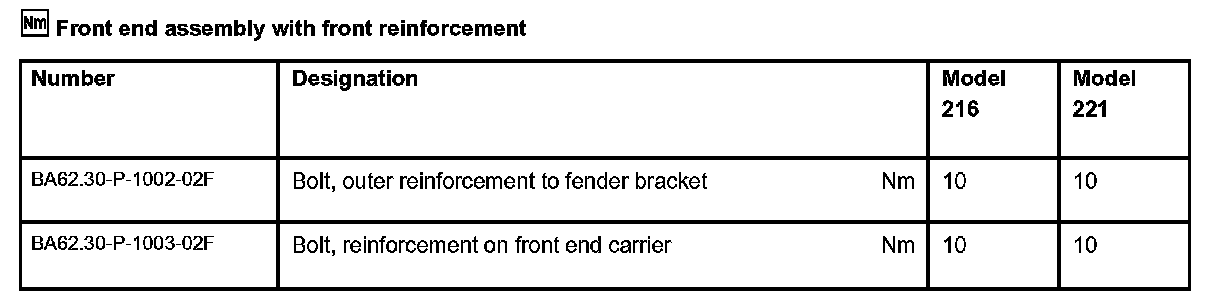

Front End Assembly With Front Reinforcement:
