Electrical - Engine Cranks But Won't Start
Date: November 26, 2008Order No.: P-B-54.15/205b
Supersedes: P-B-54.15/205a dated Nov. 20, 2008
Group: 54

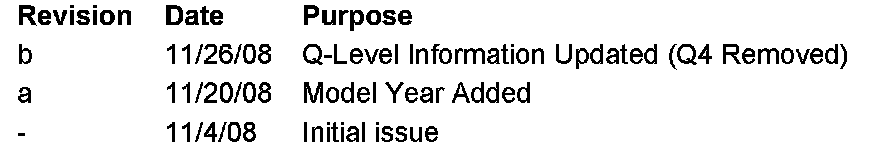

Revision History
SUBJECT:
Model 216.371/376/377/379/386, up to VIN A021048
Model 221.171/176/177/179/186, up to VIN A256812
Model Year 2009
Starter Turns but Engine Does Not Start / Selector Lever Cannot be Moved Out of Position "P"
If you receive customer reports in the above model vehicles that the starter turns (cranks) but the engine may not start or the selector lever cannot be moved out of park ("P") position, this may be due the no-load (Quiescent) current switch (RSS) not functioning correctly. To remedy, follow the procedure below.
1. Actuation of Quiescent current cut out relay: Connect a battery charger, start DAS... control units -> body -> BNS (Vehicle power supply control module -> actuations -> N82/1k1 (Quiescent current cutout relay) to actuate the no-load current switch. When RSS is actuated, a clicking sound can be heard from the pre-fuse box area. It is possible that an audible clicking noise is there, however, RSS is inoperative; follow DAS by testing the cutout relay and its signal line.

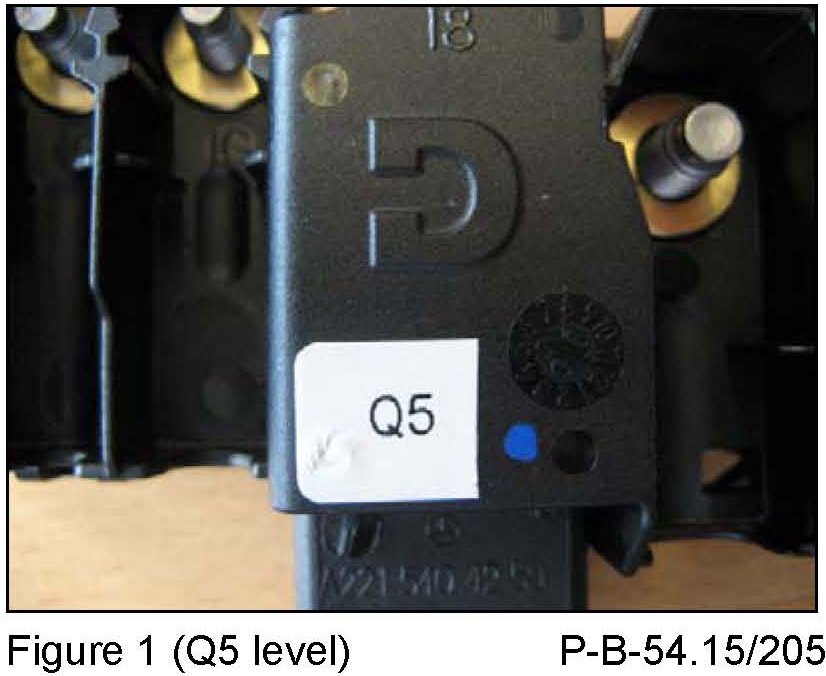

2. Inspect the pre-fuse box Q-Level and replace, if necessary. Check the Q-Level of the pre-fuse box to be at least Q5. Q5 can be identified by a blue dot and a white label (Figure 1).

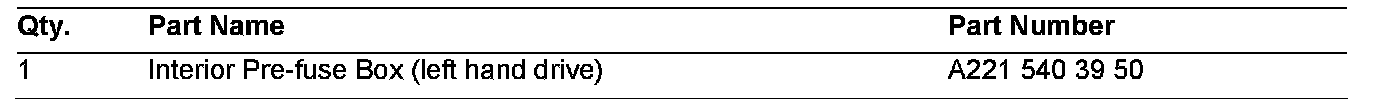

Parts Information
NOTE:

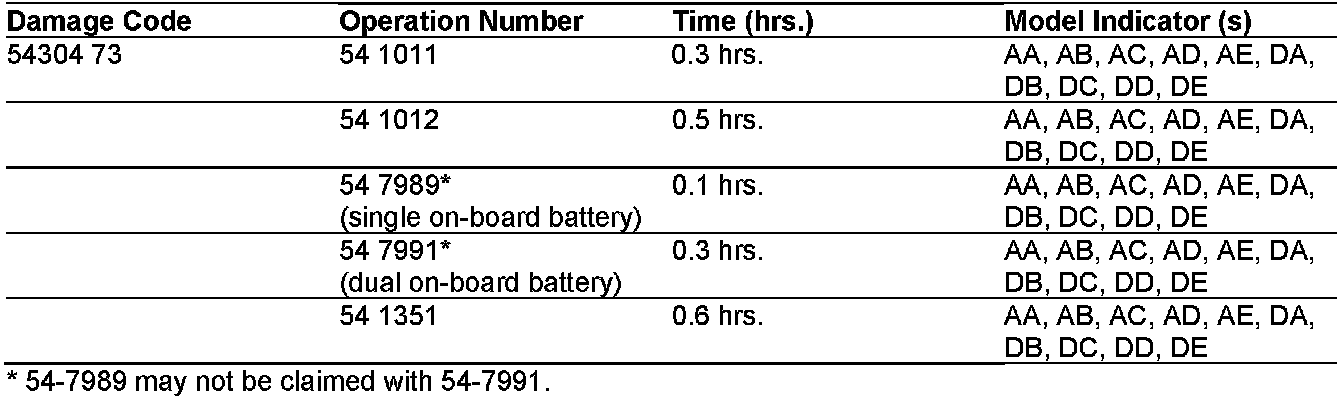

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 4, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.
In Case of Warranty
Operation: Short test, perform (54-1011)
Test program - after short test, perform (54-1012)
Ground cable - elec. system battery, D&C (when separating electrical connectors (54-7989)
Ground cables on both batteries remove/install (when disconnecting elect. connectors w/o accidental contact protection) (54-7991)
Passenger compartment prefuse box, replace (after check) (54-1351)
