Alternator: Service and Repair
AR15.40-P-5032SX Remove/install
alternator

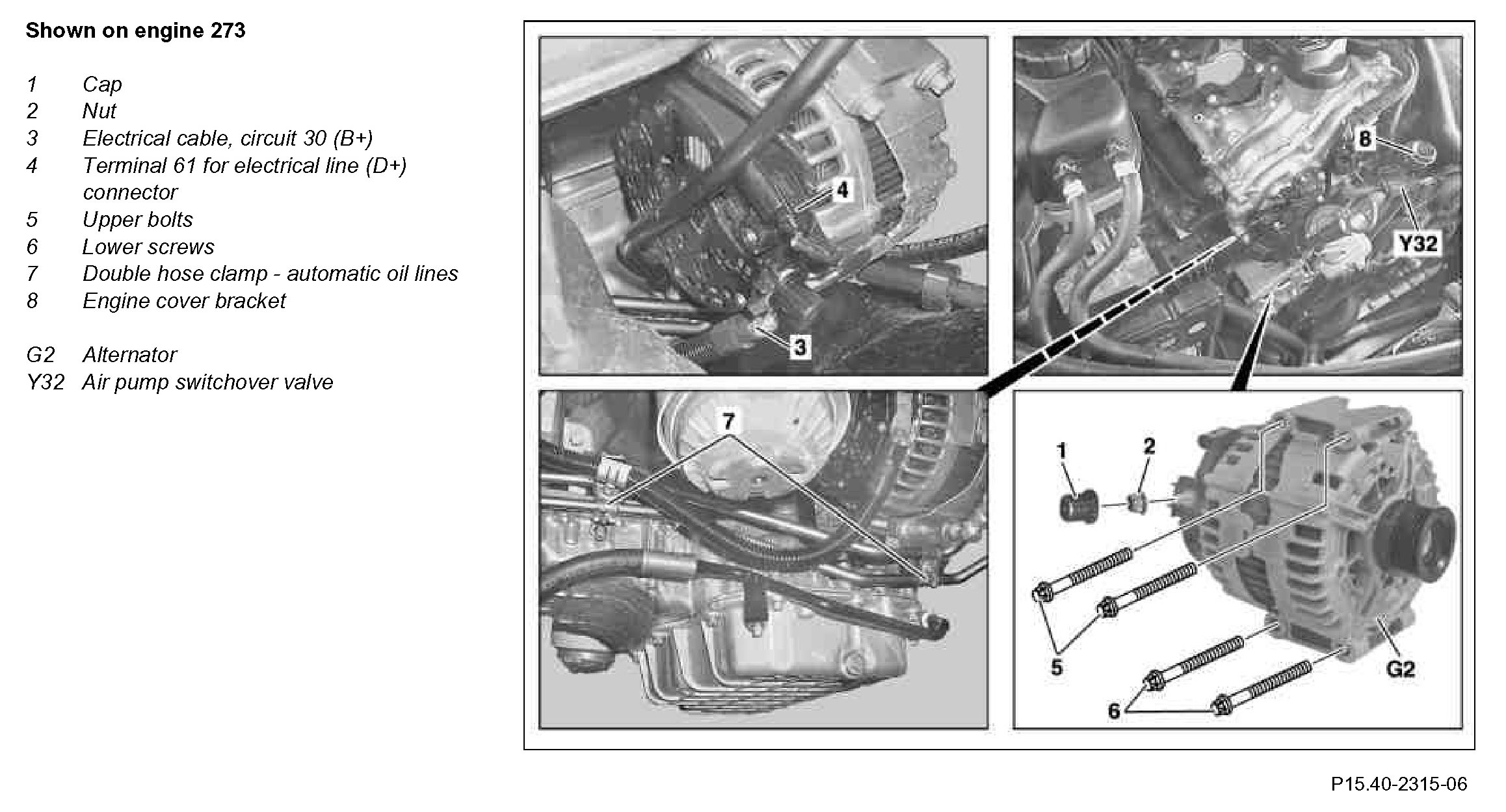

Component Identification:

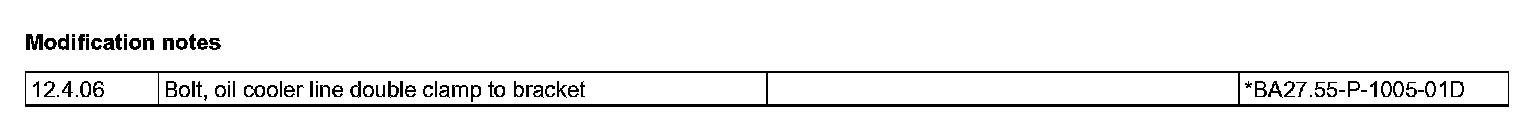

Modification notes:

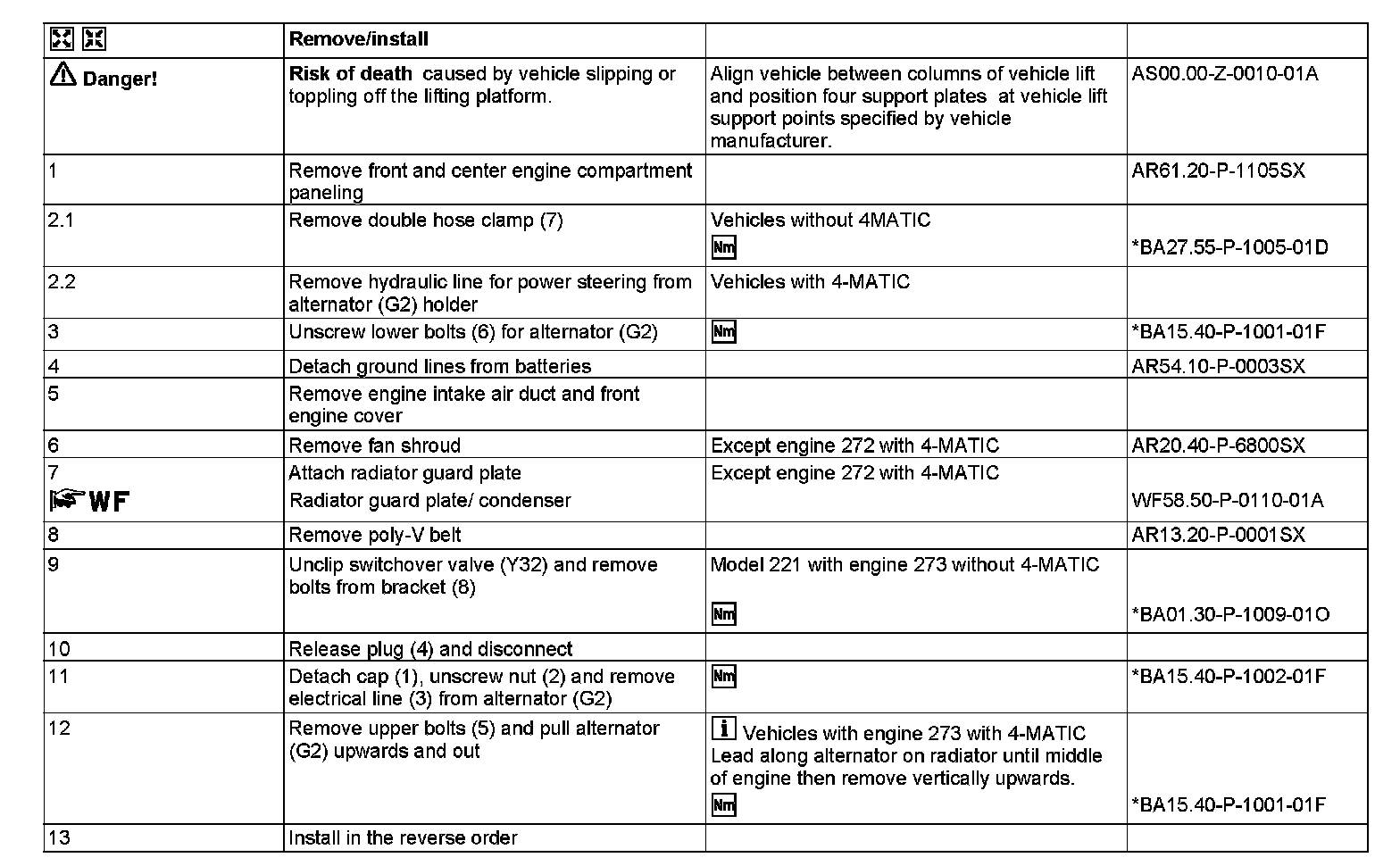

Steps 1-13:

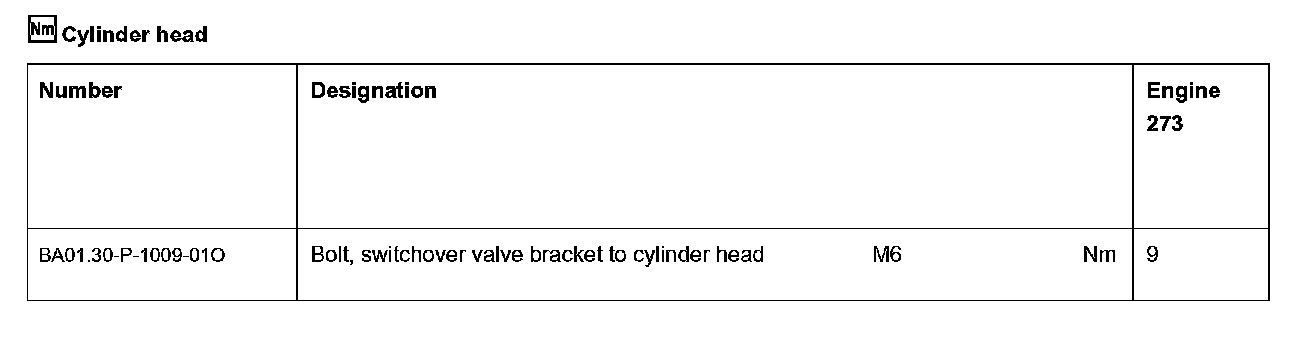

Cylinder head:

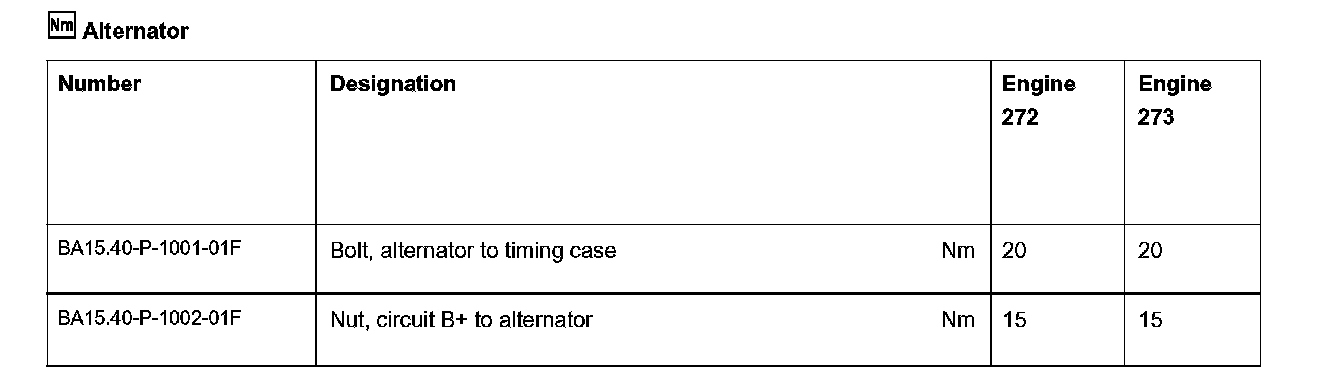

Alternator:

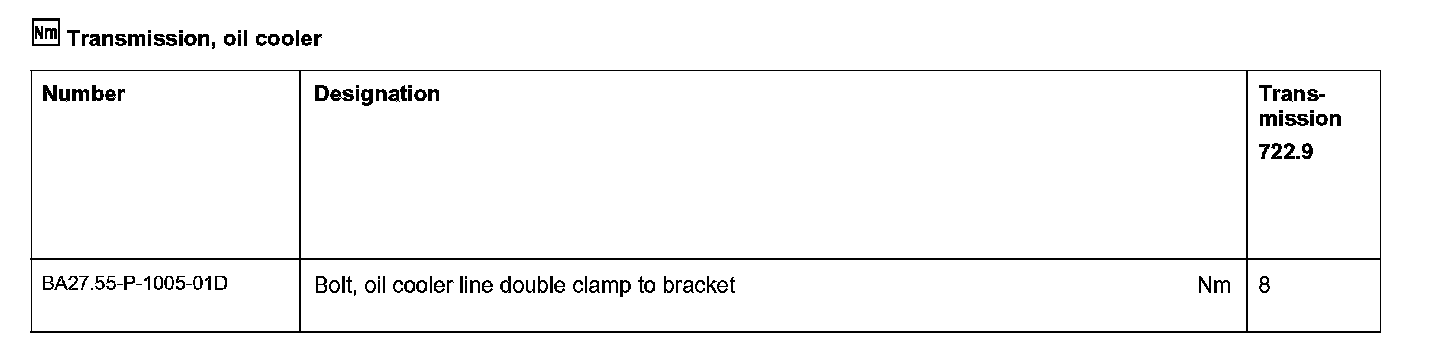

Transmission, oil cooler:
