AR09.20-P-1993SX Remove/Install The Resonance Flap Switchover Valve At The Intake Manifold



AR09.20-P-1993SX Remove/Install The Resonance Flap Switchover Valve At The Intake Manifold

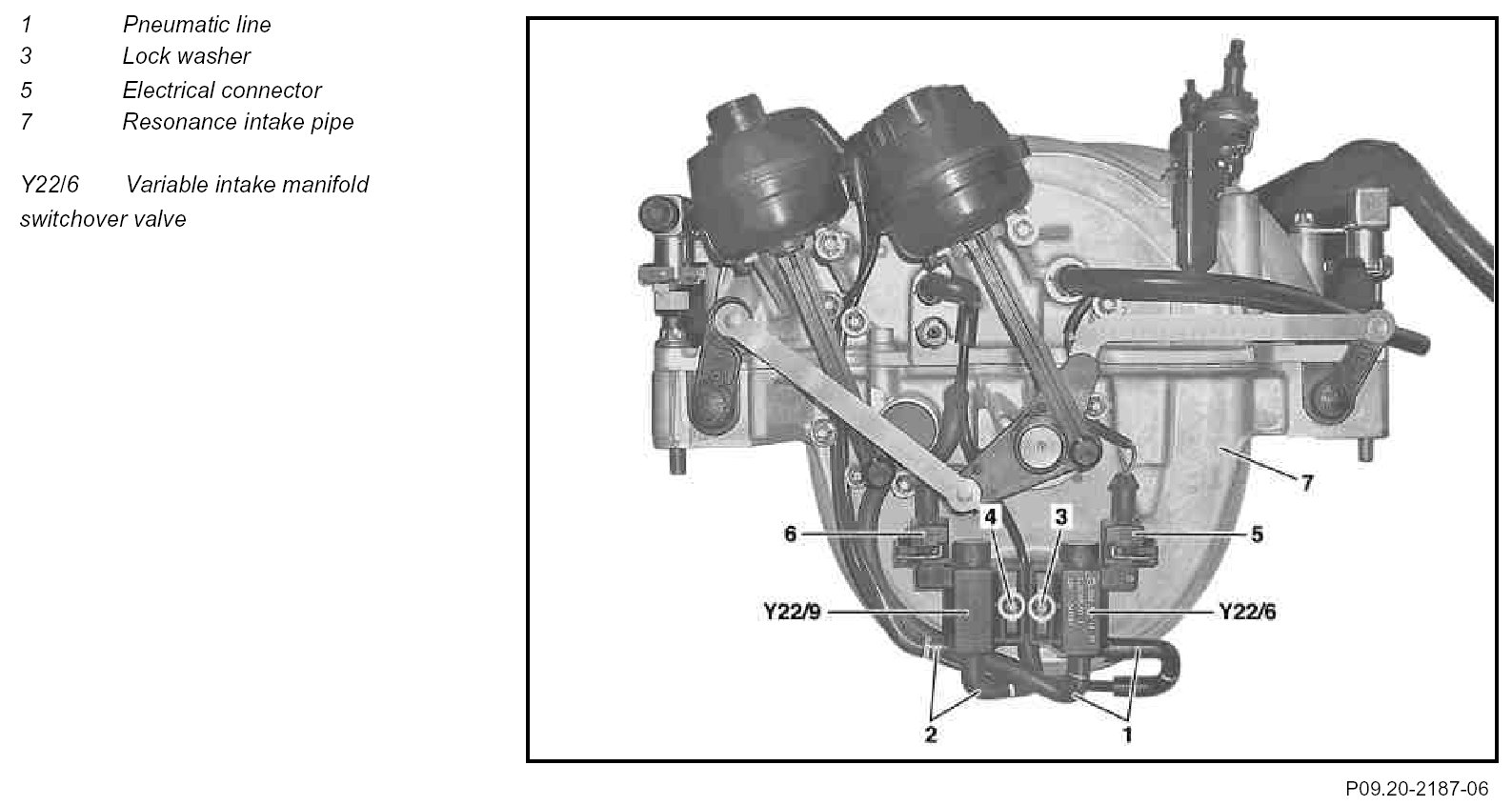

Component Identification:

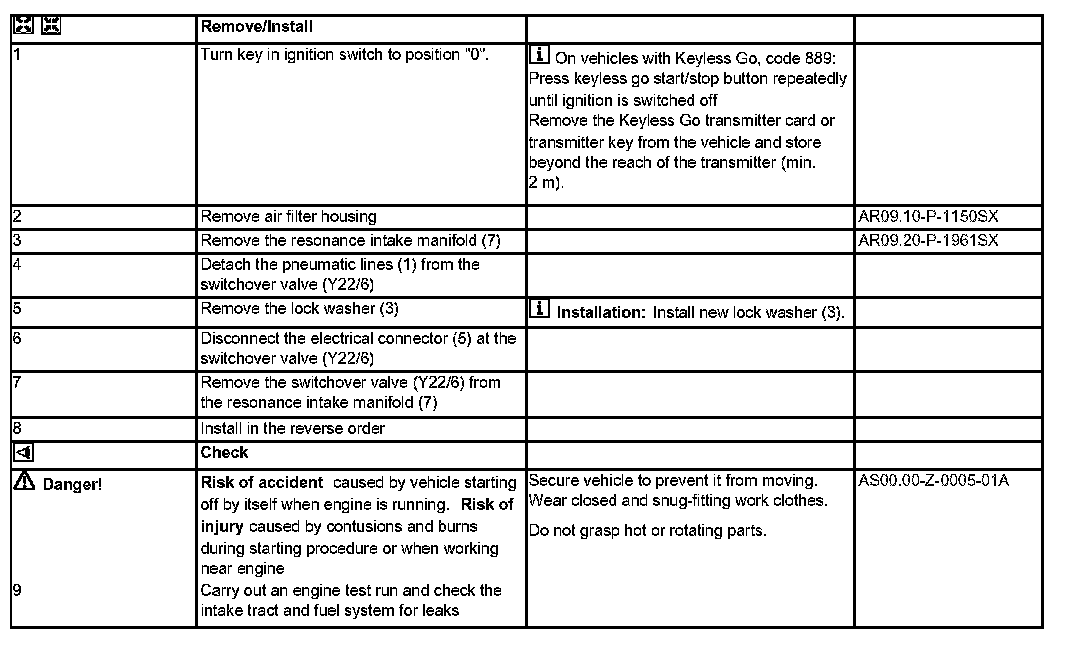

Steps 1 - 9:
