Air Injection Control Valve: Service and Repair
AR14.30-P-7255SX Remove/install air pump switchover valve
Component Identification:

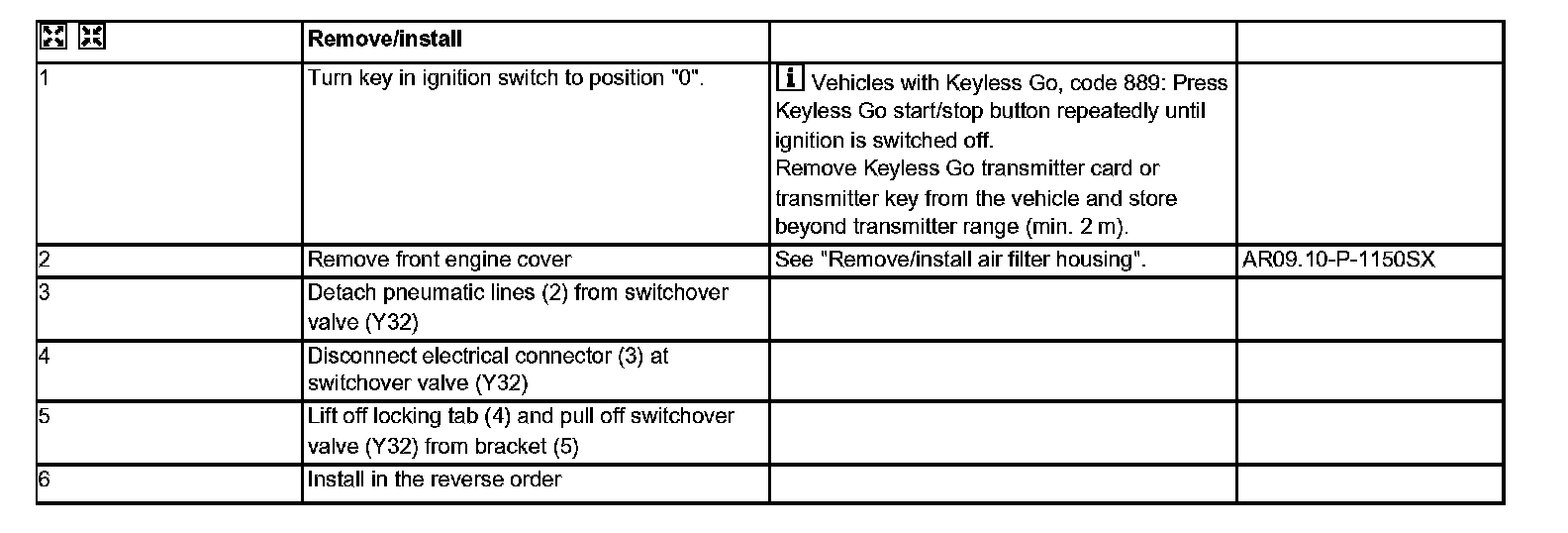

Remove/install Steps 1-6:
