PE07.61-P-2101CAB Wiring Diagram For ME-SFI [ME] Gasoline Injection and Ignition System Control Unit

Wiring Diagram For ME-SFI [ME] Gasoline Injection And Ignition System Control Unit PE07.61-P-2101CAB
- Control unit N3/10, on the engine side

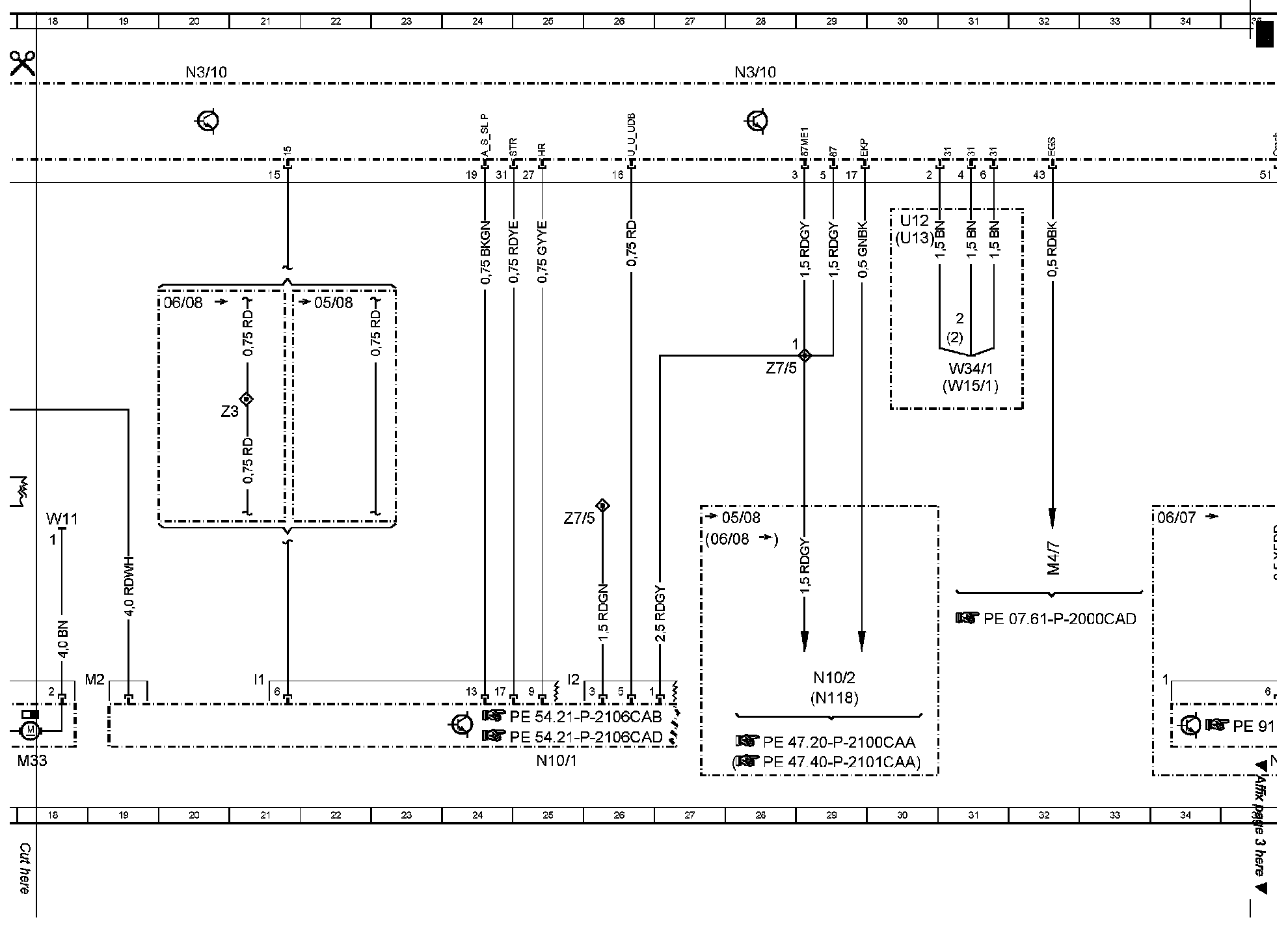

Wiring Diagram (Part 1):

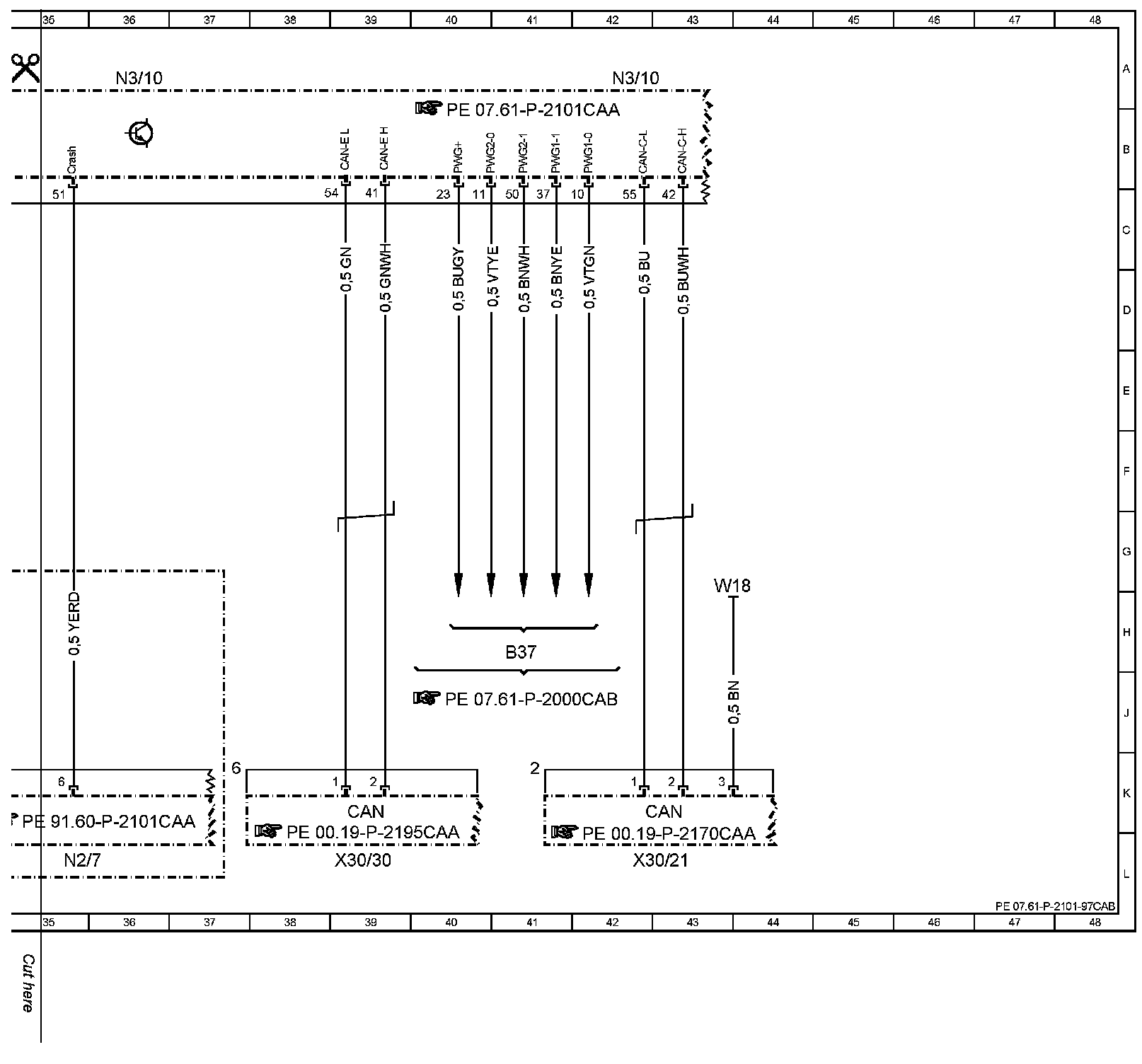

Wiring Diagram (Part 2):

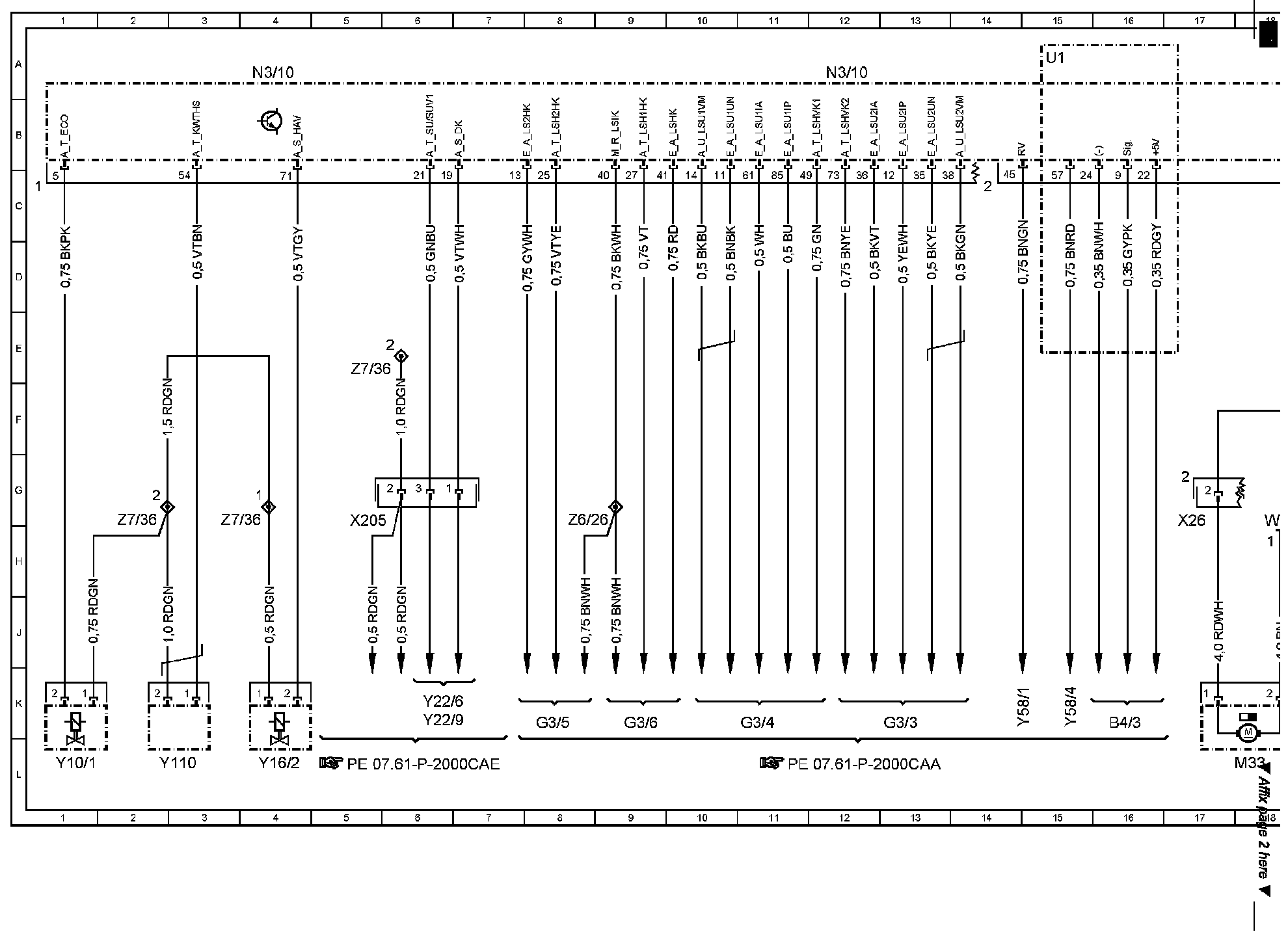

Wiring Diagram (Part 3):

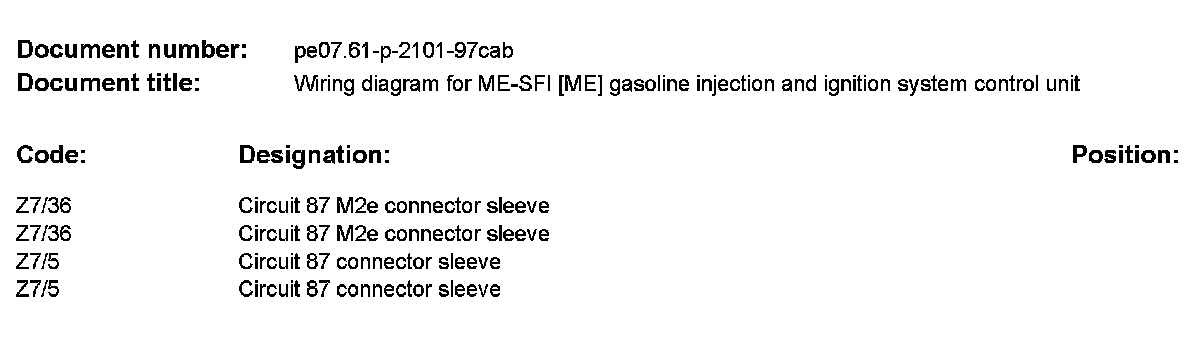

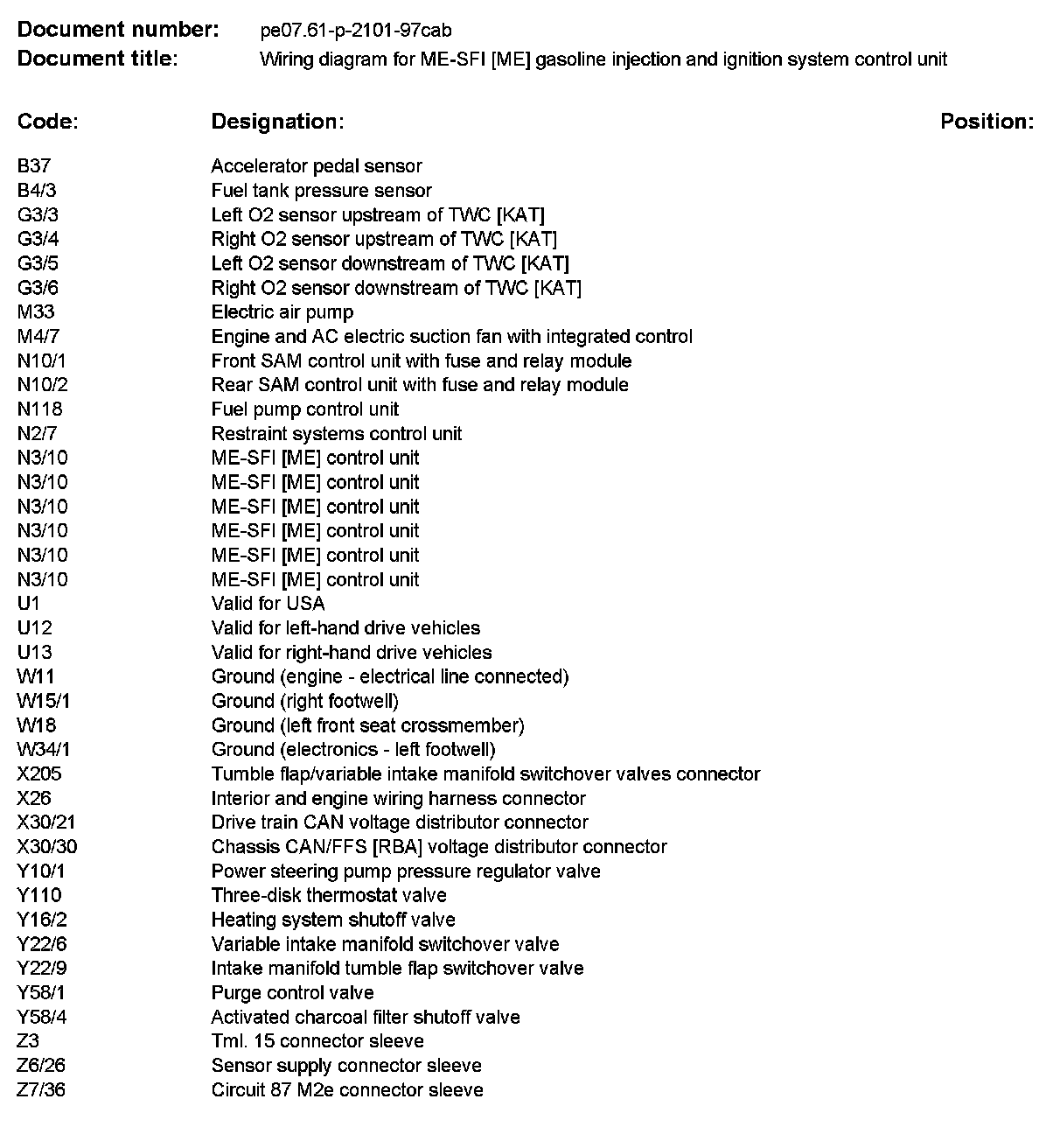

Component Description/Coordinates, B37 To Z7/36:

Component Description/Coordinates, Z7/36 To Z7/5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
