Computer/Controls - DAS/XD Add-On 2009-11-25-1318

DAS/XD ADD-ON 2009-11-25-1318 FOR PASSENGER CARS

Topic number LI58.40-P-048665

Version 1

Design group 58.40 Workshop equipment/MB testers

Date 12-16-2009

Validity DVD version 11/2009

Reason for change

Reason for block

Complaint:

AAC

Model series: 221, 216

Fault code 963C is set and AC OFF cannot be activated

CDI

Model series: 169, 245

Control unit programming for several software object numbers reports: "No newer control unit software found".

Front SAM

Model series: 164, 251

Control unit programming for software object number 1644421700,1644423300,1644423400 reports: "The following control unit software versions are available for control unit programming:" After control unit programming, the control unit cannot be started up.

Cause:

For all complaints: XD and DAS diagnostic data.

Remedy:

DAS/XD add-on 2009-11-25-1318 for passenger cars:

This add-on can be installed over DAS/XD version 11/2009.

This add-on does not supersede any other add-ons and must be additionally installed.

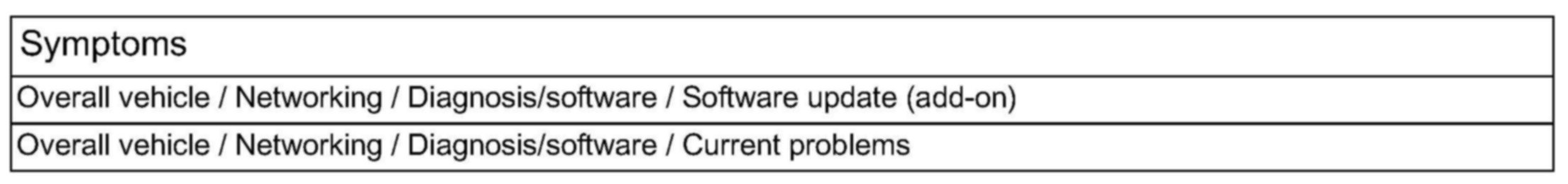

Symptoms

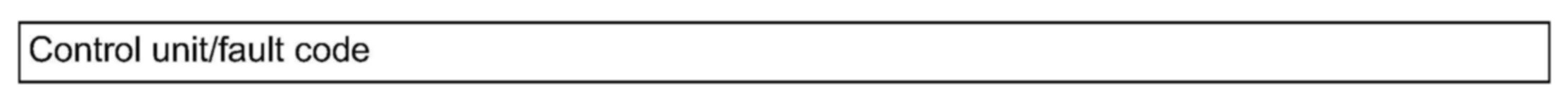

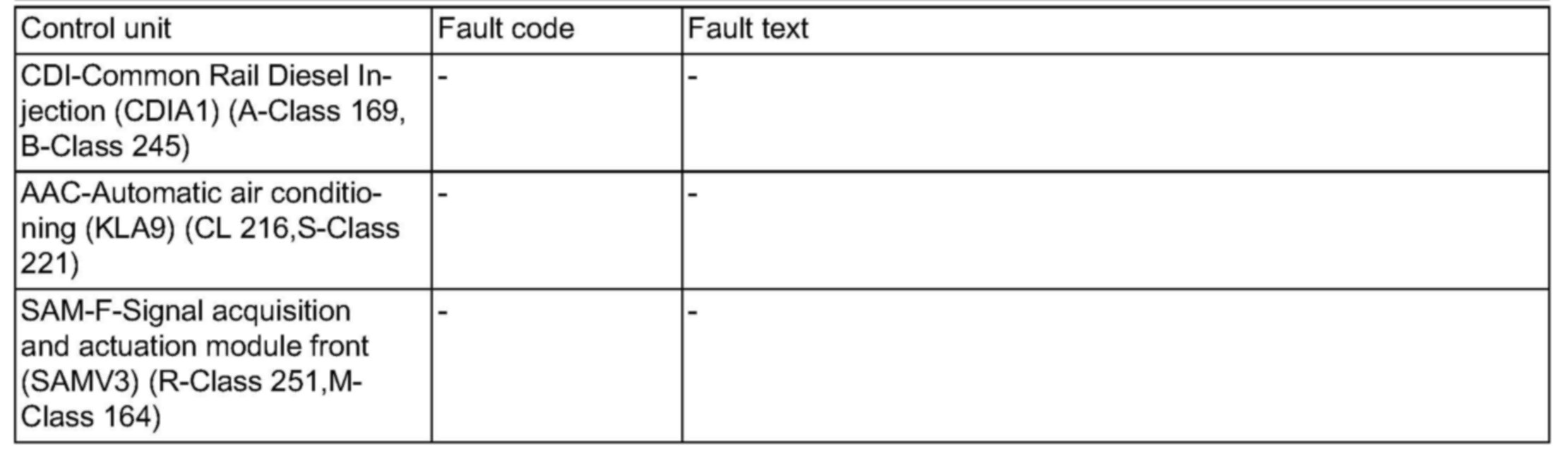

Control unit/fault code

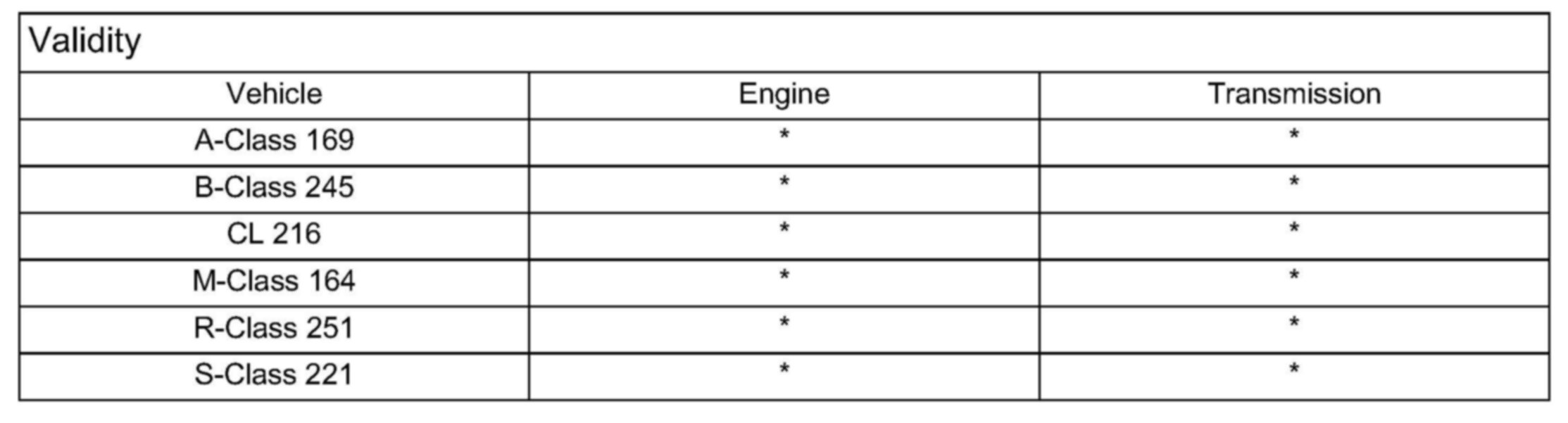

Validity
