Fog/Driving Lamp: Service and Repair



AR82.10-P-5103SC Remove/Install Fog Lamp

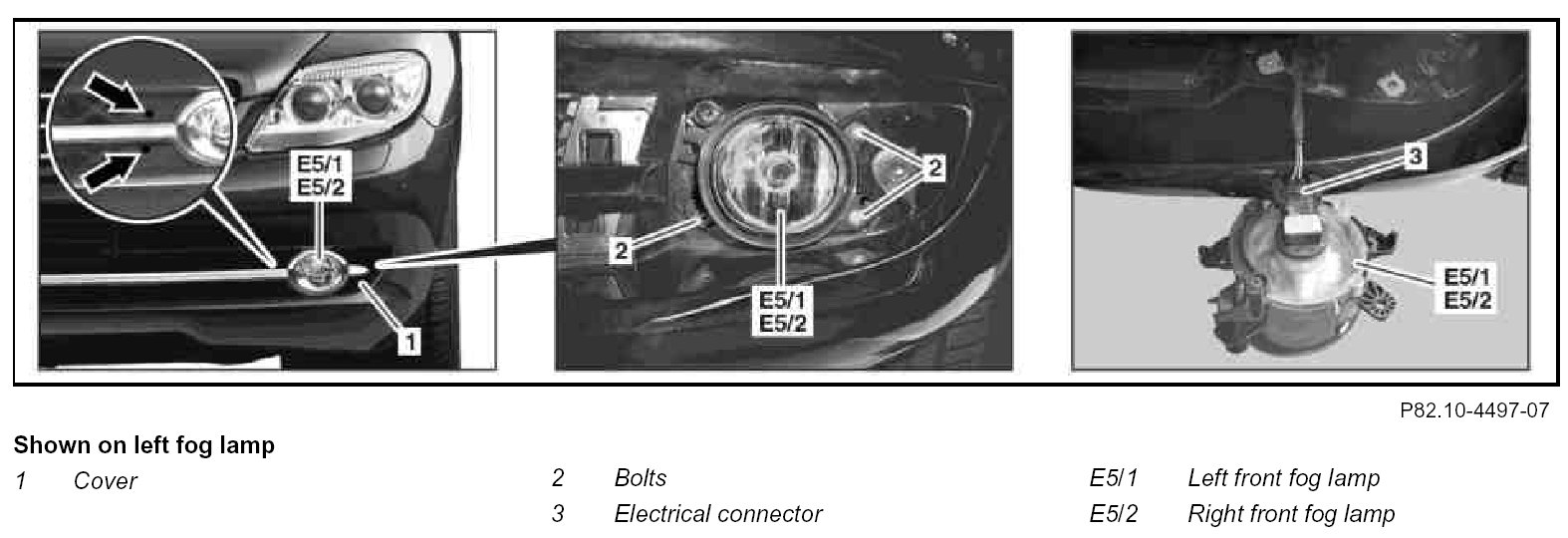

Component Identification:

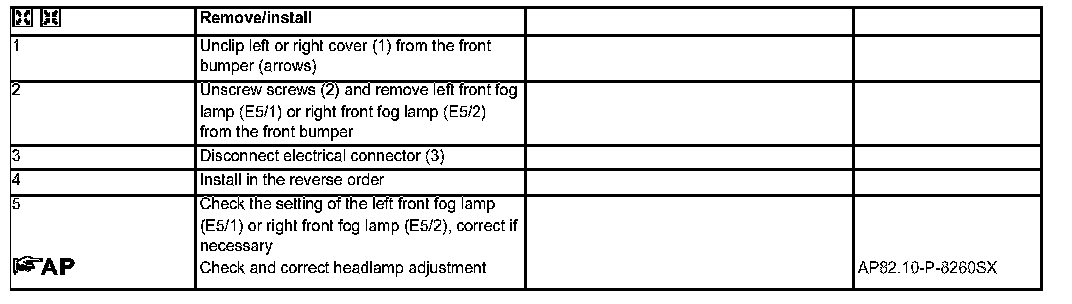

Steps 1 - 5:
