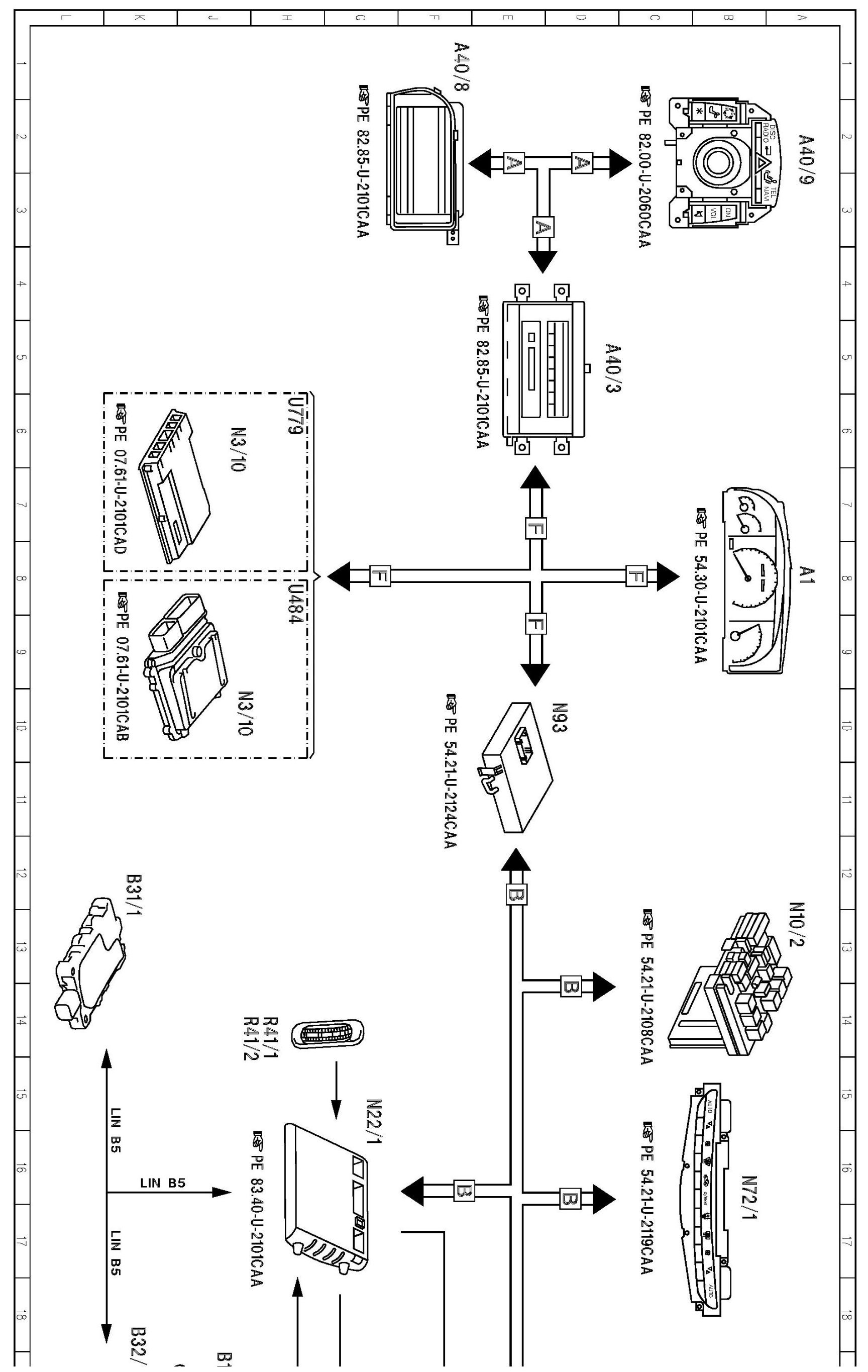

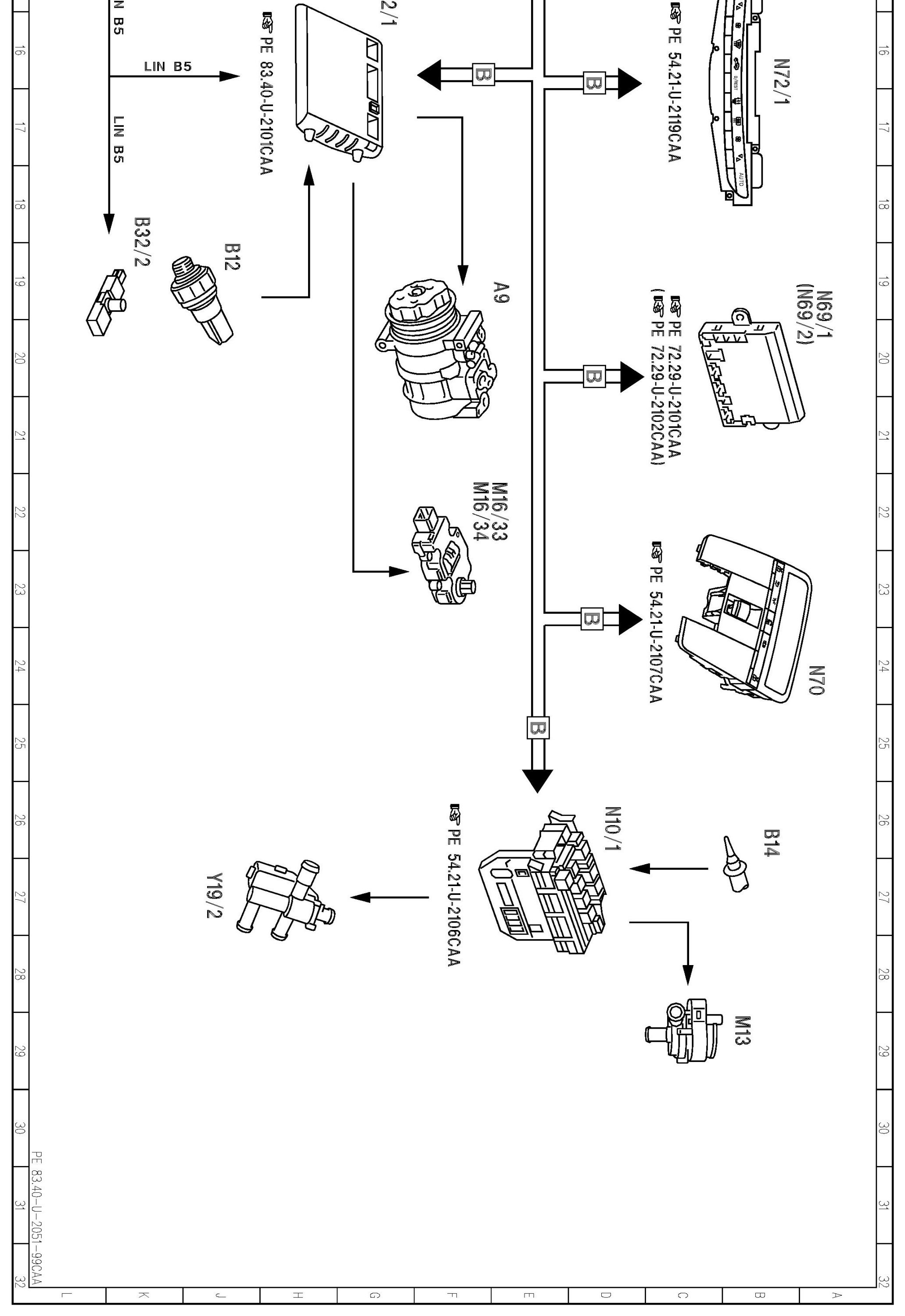

PE83.40-U-2051CAA Electrical Function Diagram For Automatic Air Conditioning (AAC)

PE83.40-U-2051CAA Electrical Function Diagram For Automatic Air Conditioning (AAC)

MODEL 216
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- up to Model Year 2009

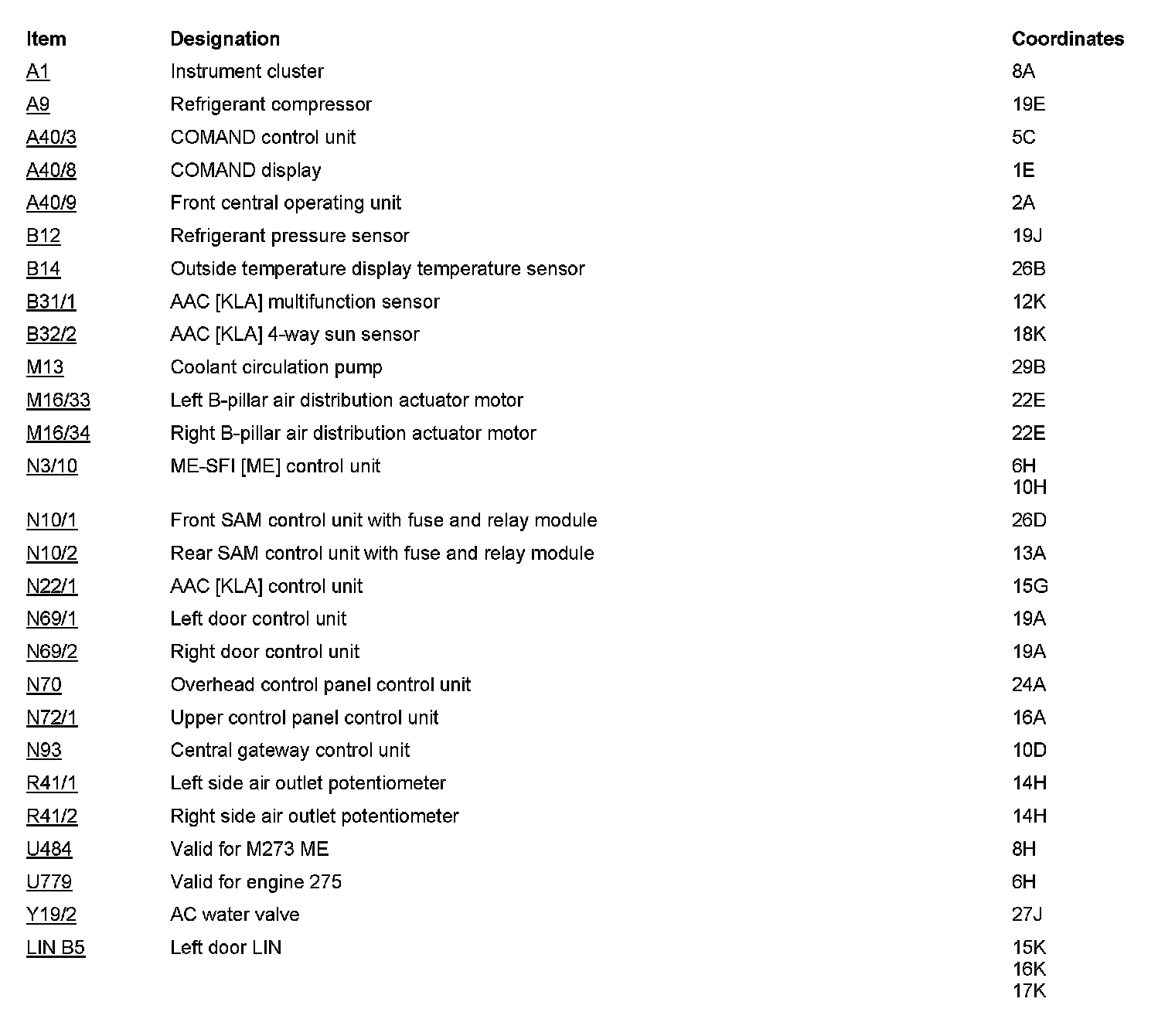

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
