AR49.10-P-7100SX Remove/Install Components of Exhaust System

Component Identification:

Modification notes:

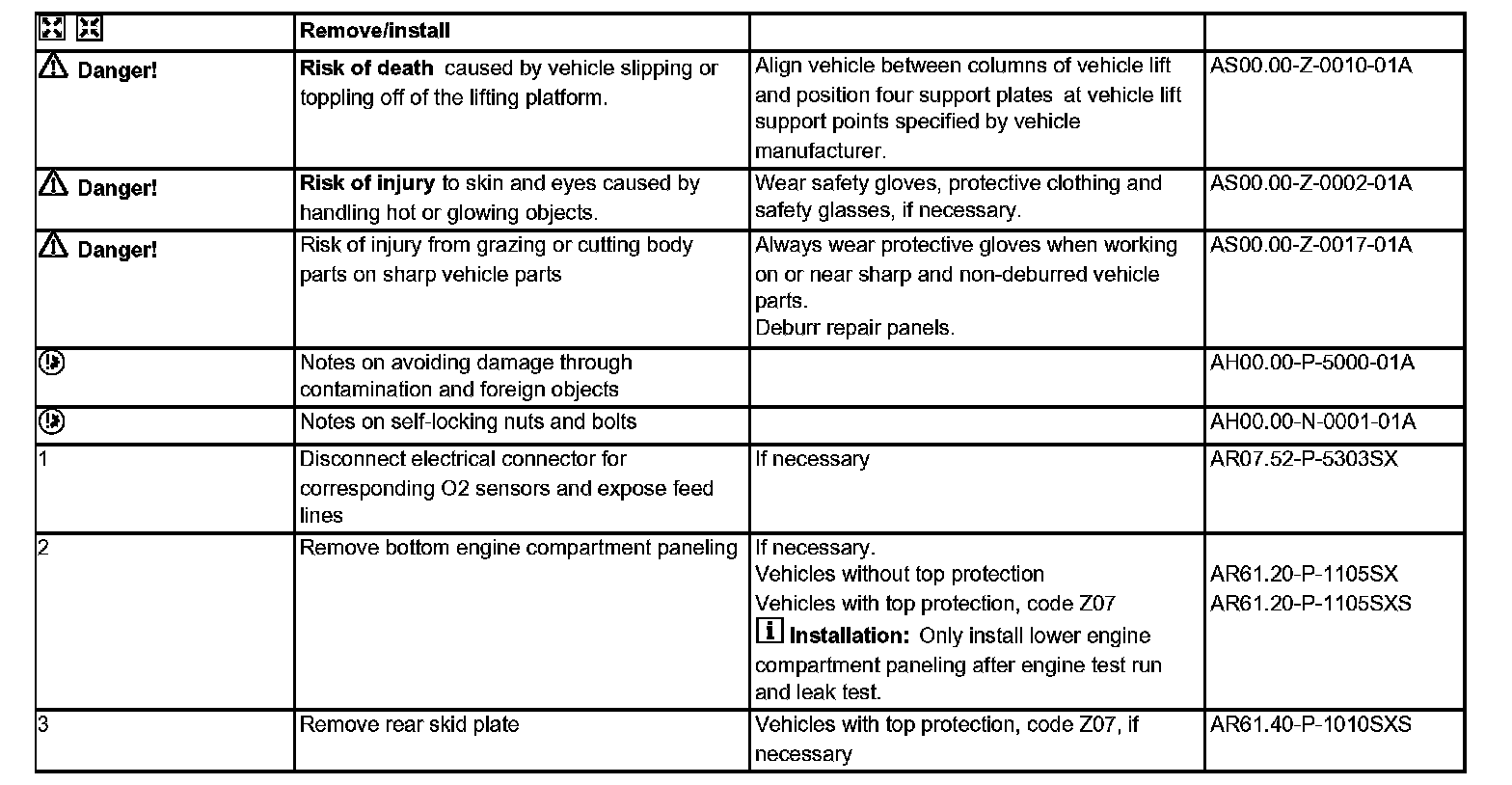

Remove/install Steps 1-3:

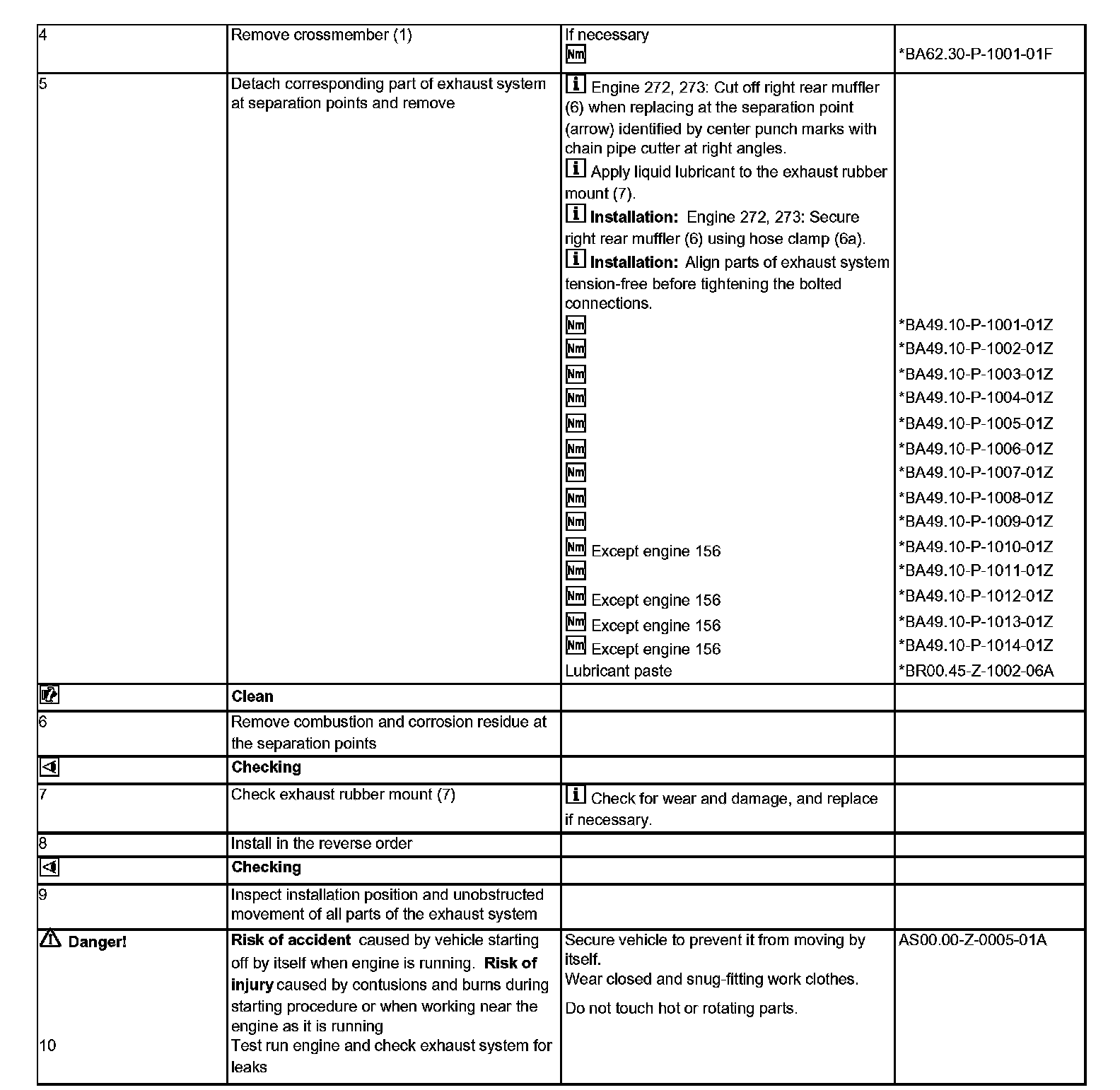

Remove/install Steps 4-10:

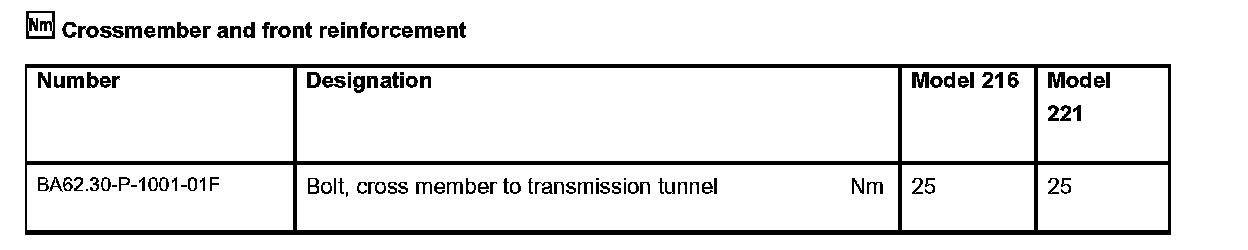

Crossmember and front reinforcement:

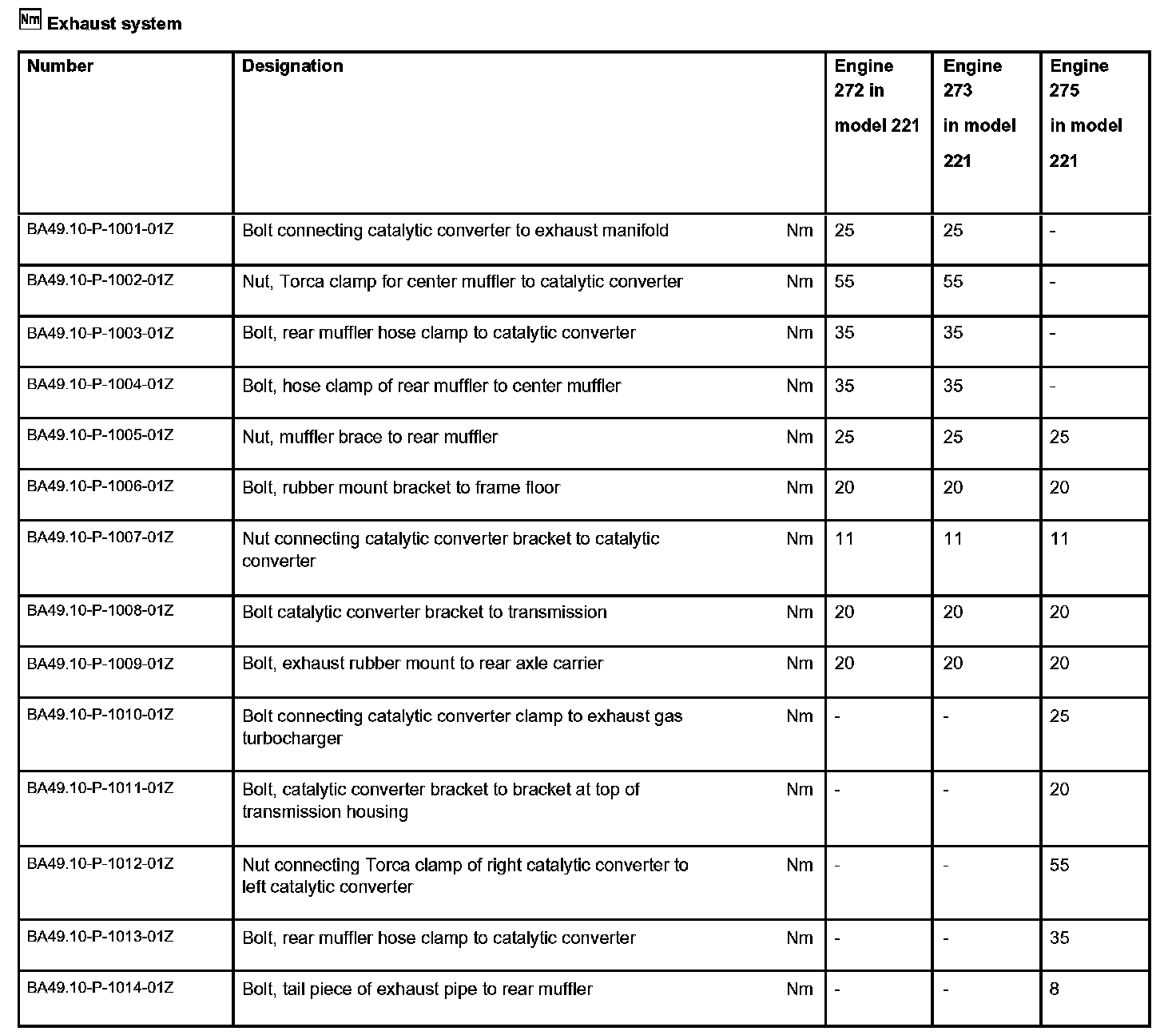

Exhaust system:

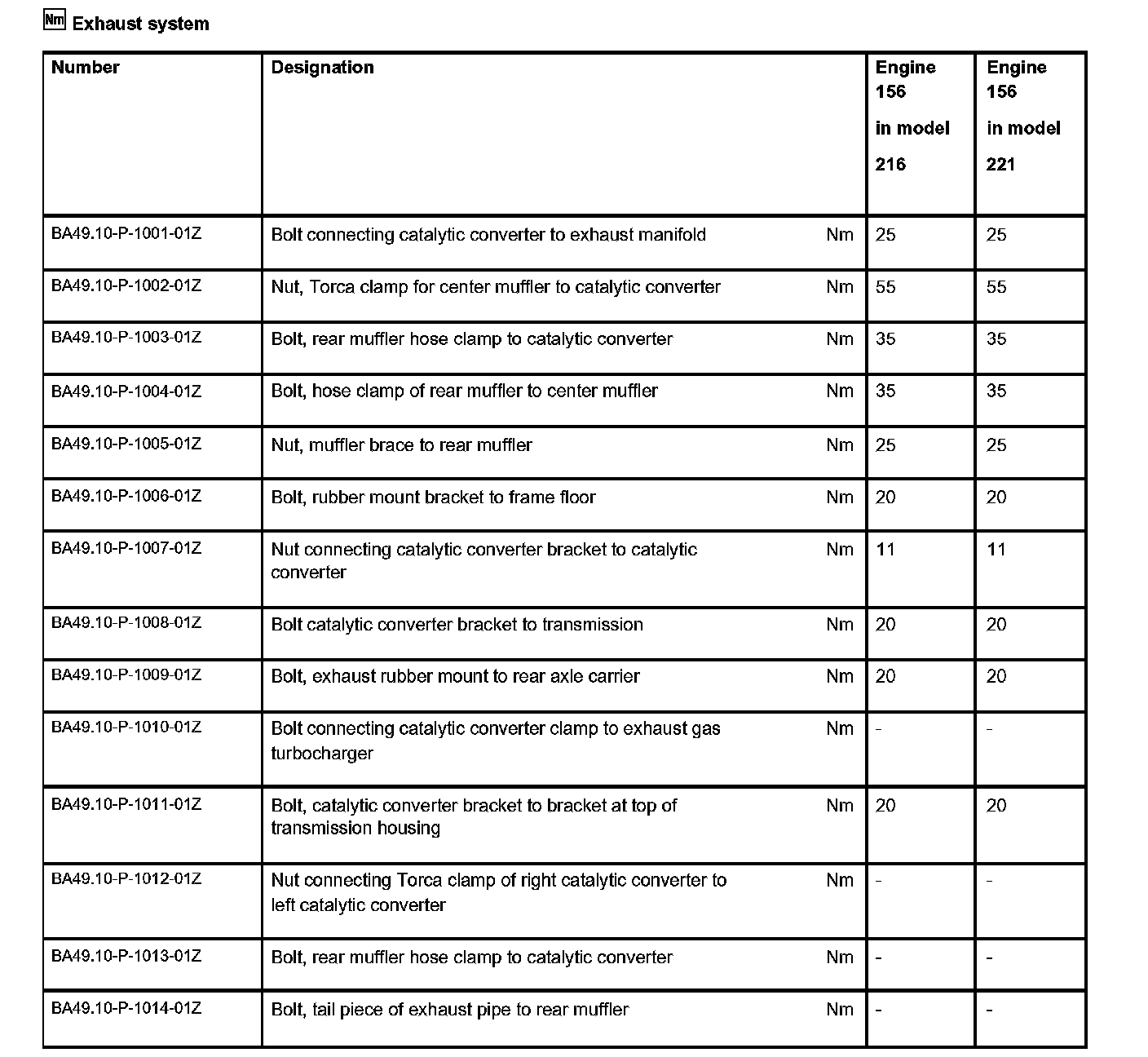

Exhaust system:

Exhaust system:

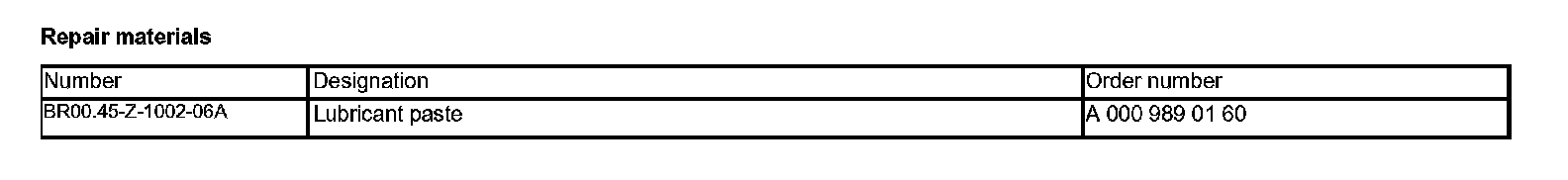

Repair materials:
