AR05.20-P-7295SY Remove/Install Solenoid Camshaft



AR05.20-P-7295SY Remove/install solenoid camshaft
- Right cylinder head

Component Identification:

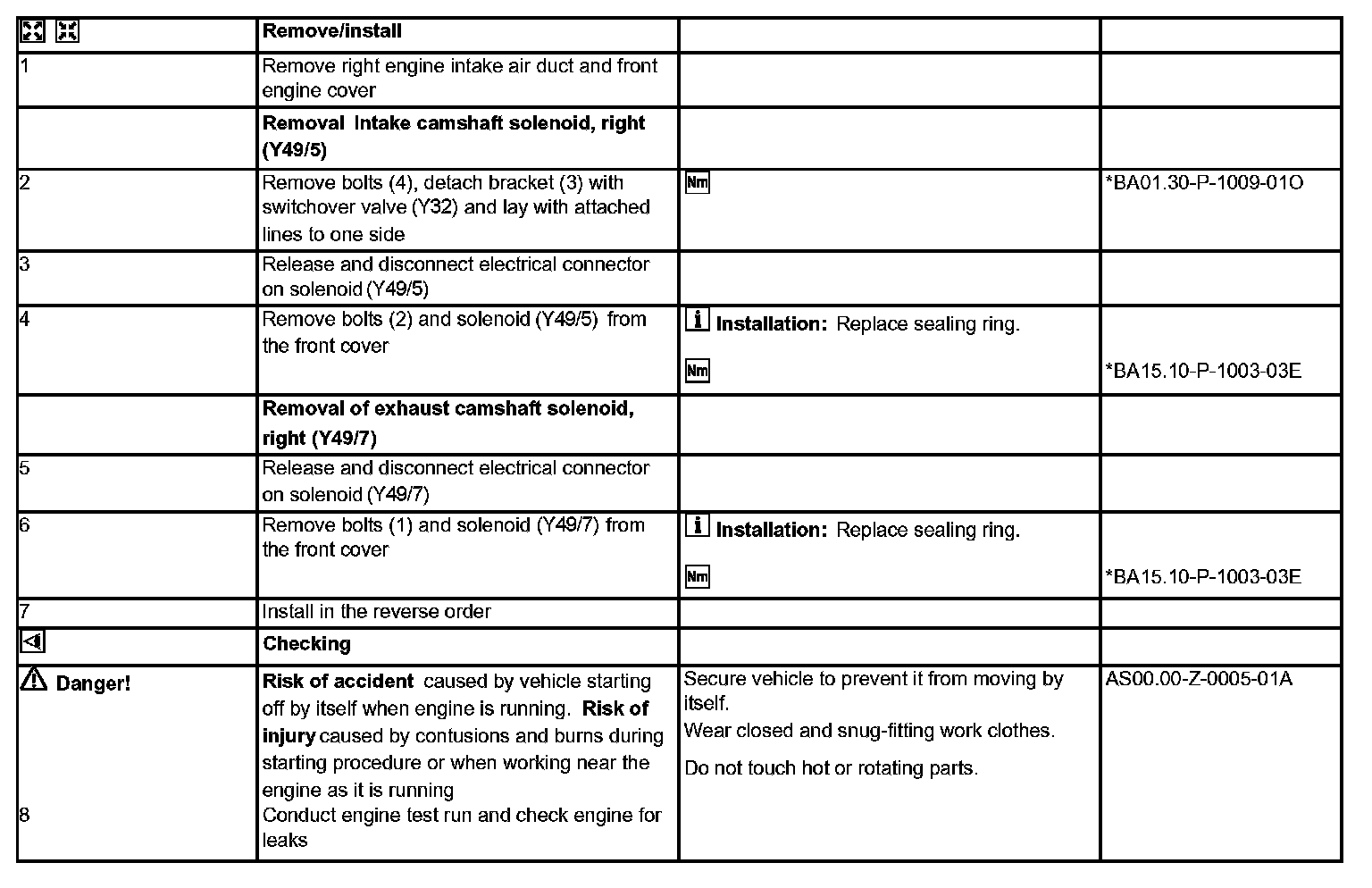

Remove/install Steps 1-8:

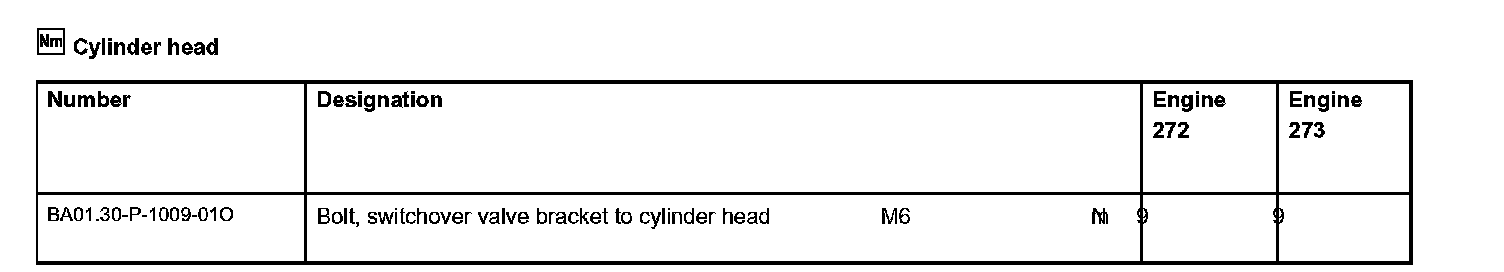

Cylinder head:

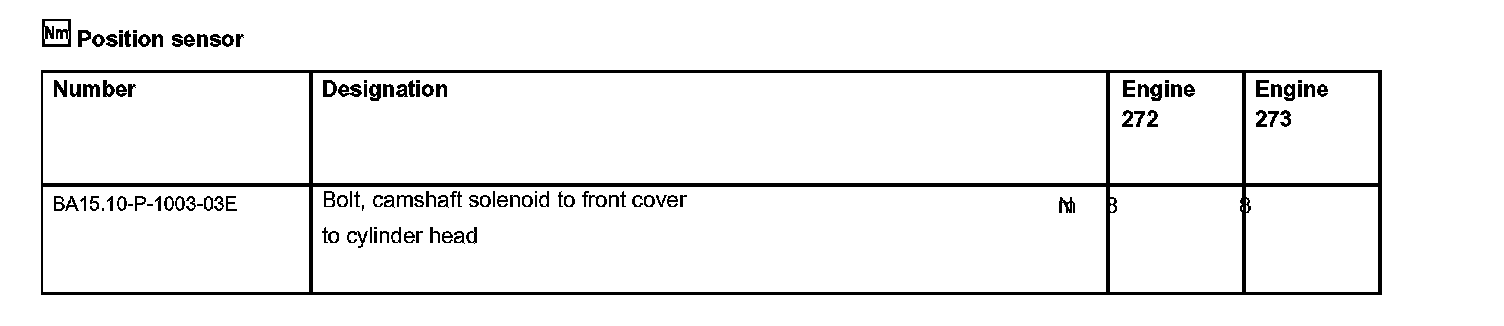

Position sensor:
