AR05.10-P-7601SX Replace Timing Chain

AR05.10-P-7601SX Replace timing chain

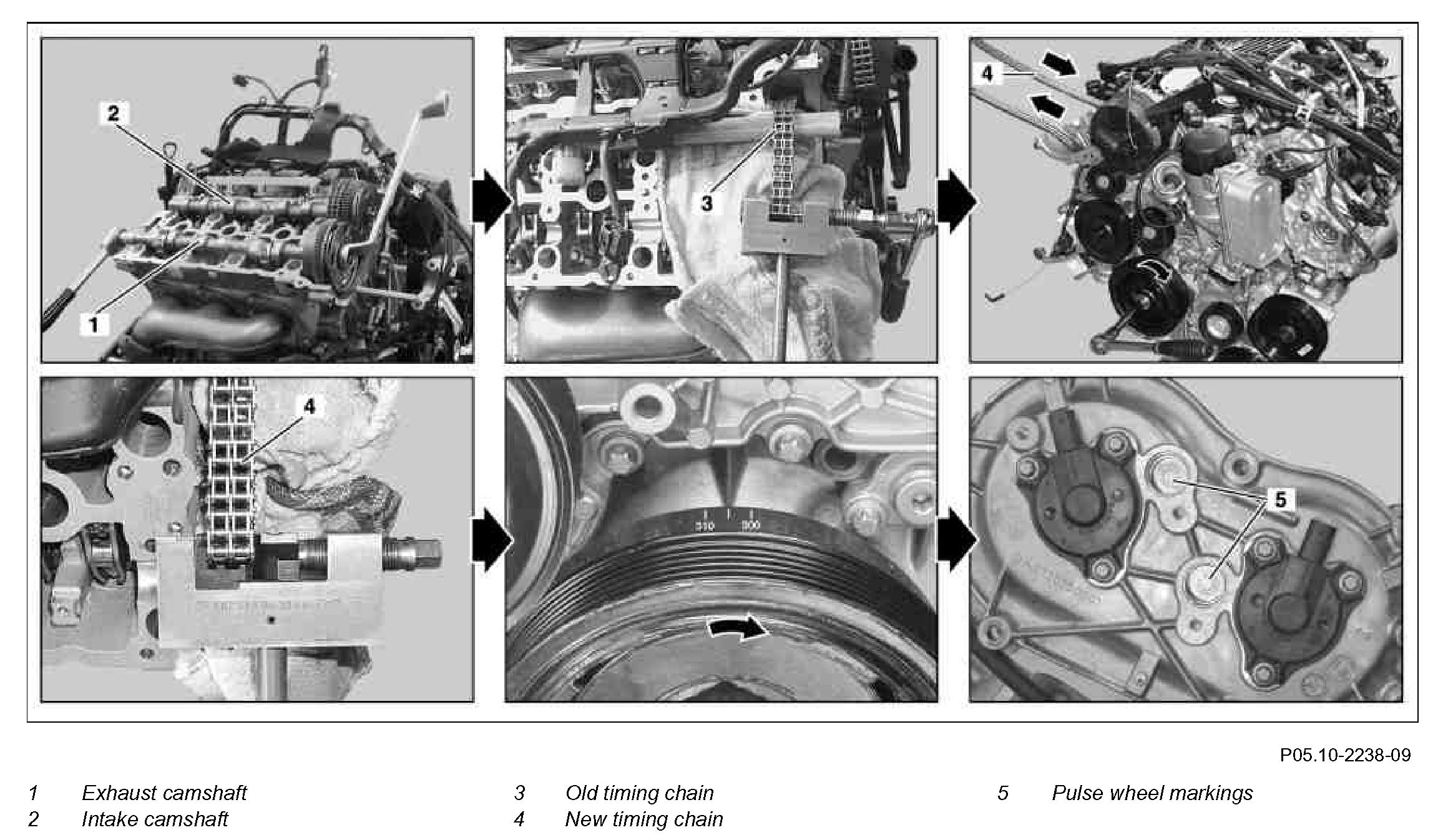

Component Identification:

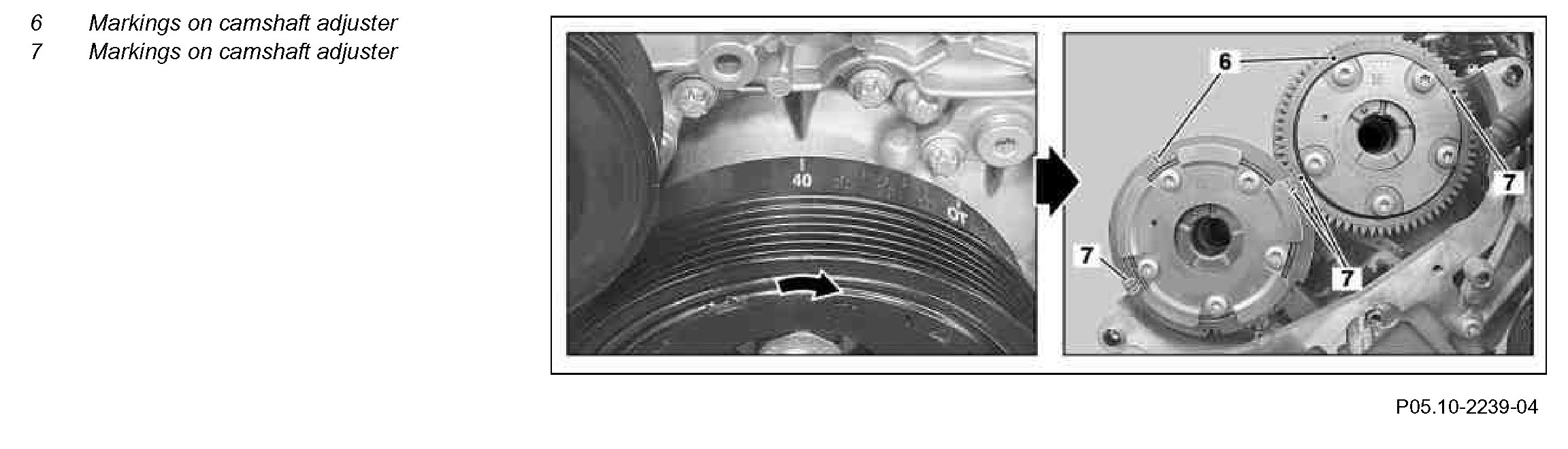

Component Identification:

Steps 1-3:

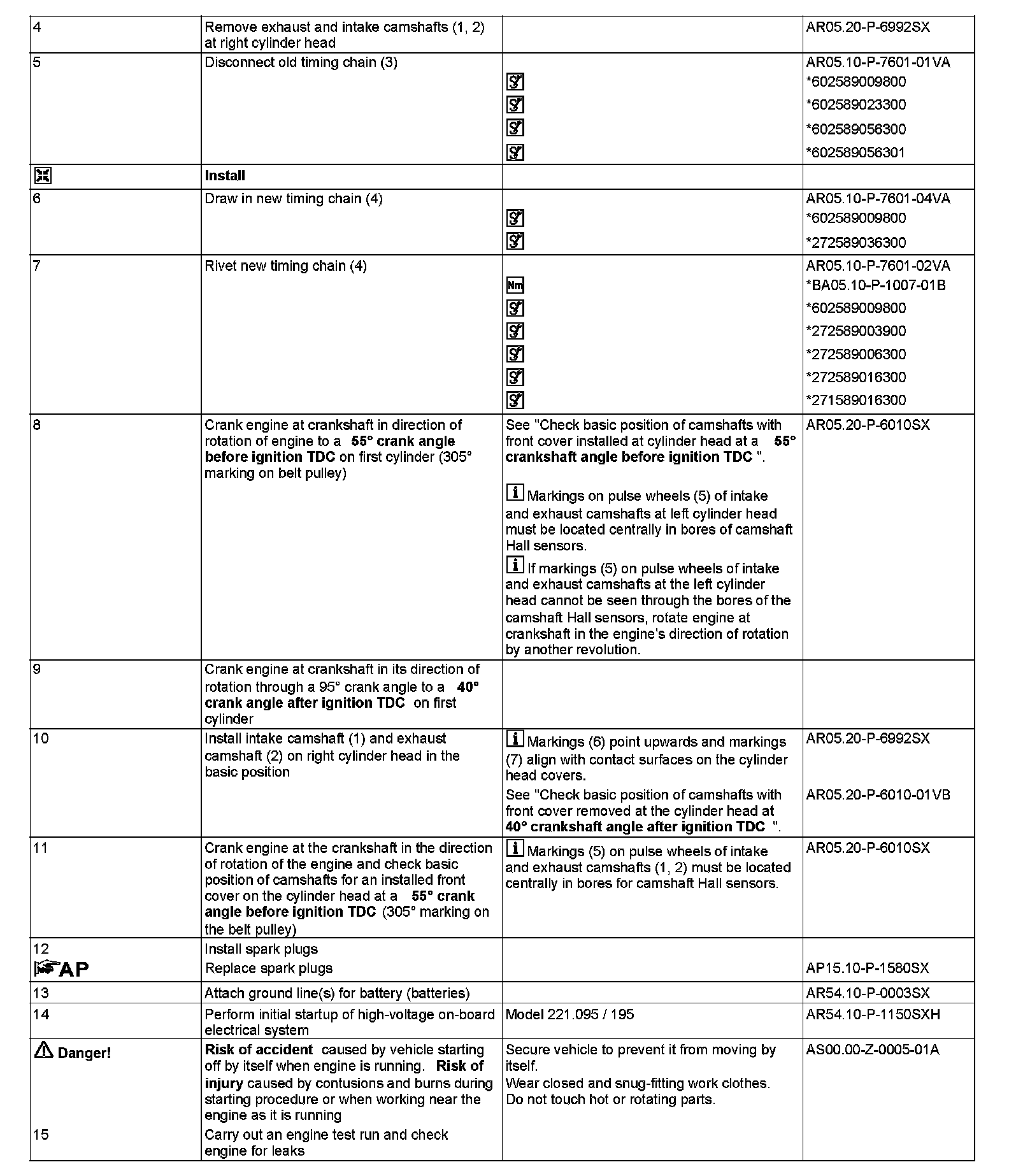

Steps 4-15:

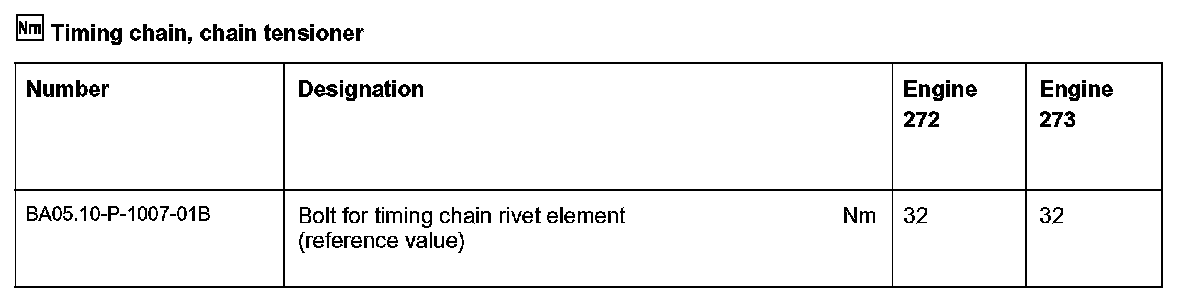

Timing chain, chain tensioner:

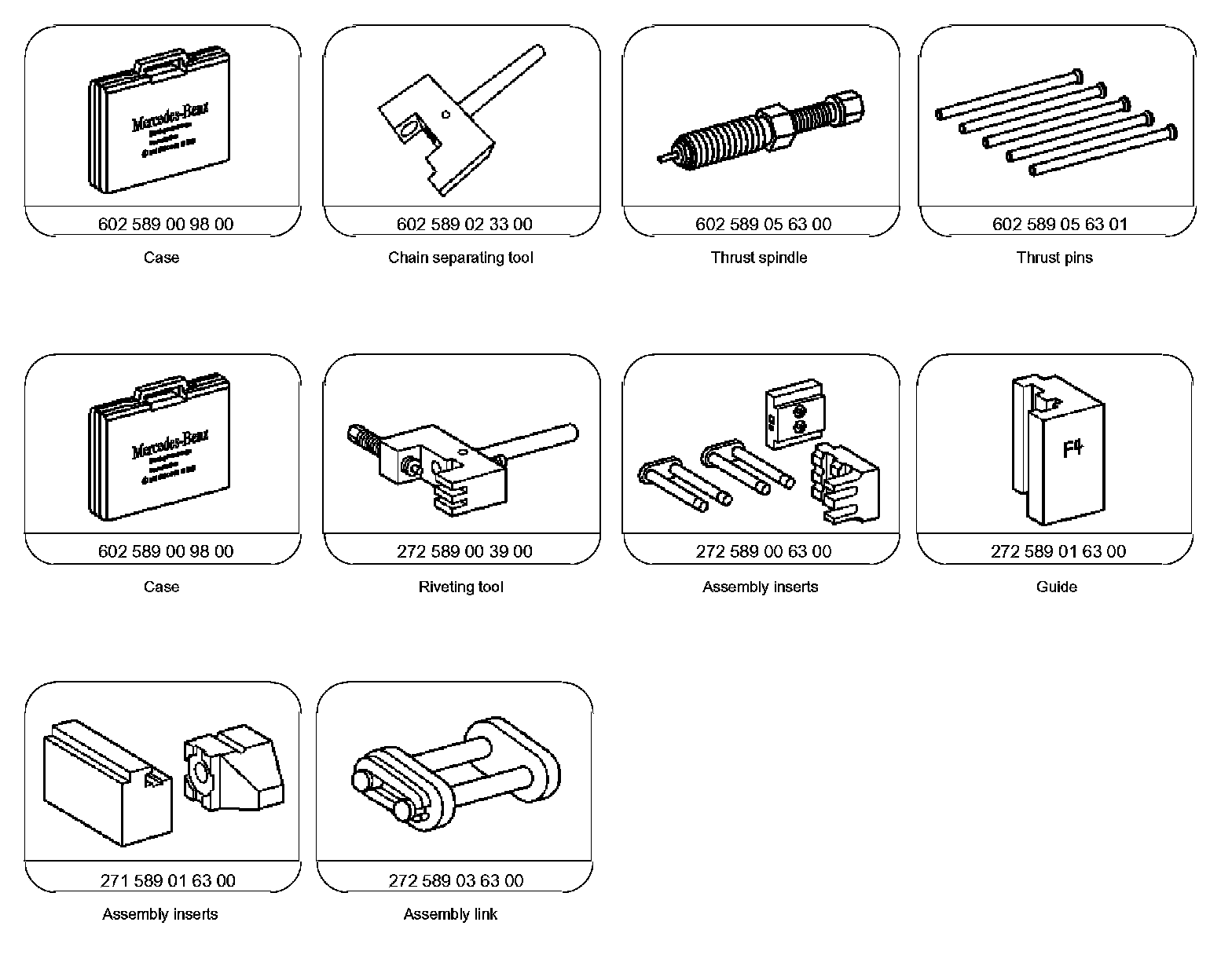

Special Tools:
