AR05.10-P-7800SX Remove/Install Chain Tensioner

AR05.10-P-7800SX Remove/Install Chain Tensioner
ENGINES 273 in MODEL 216
ENGINES 272, 273 in MODEL 221

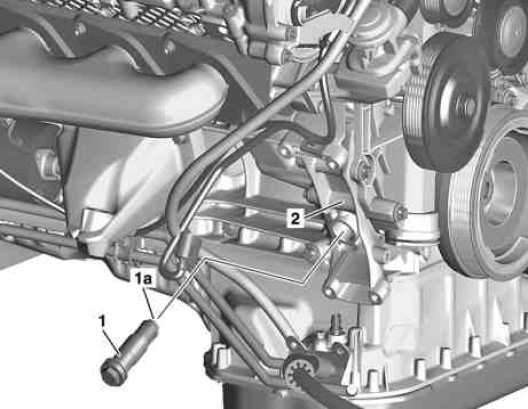

1 Chain tensioner
1a Pressure pin
2 Timing case cover

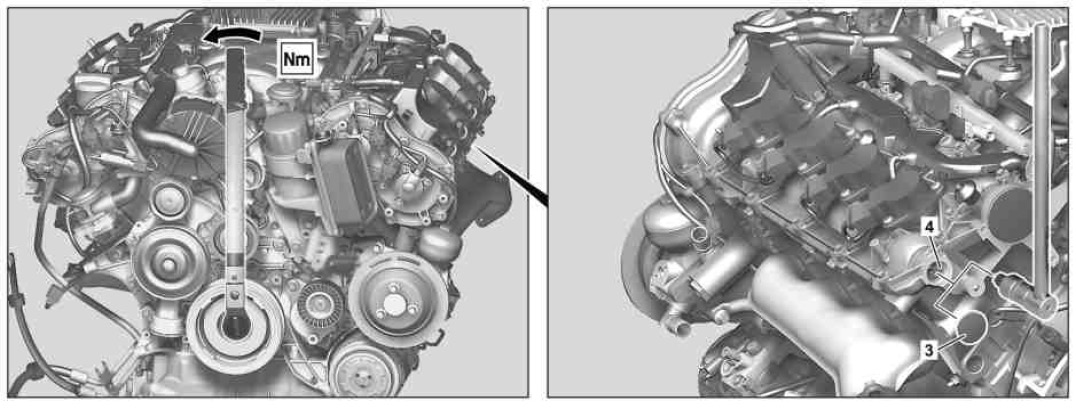

3 Cap
4 Left exhaust camshaft











001 589 65 09 00
Wrench socket
