AR01.10-P-2500SX Remove/Install Engine With Front Axle Carrier

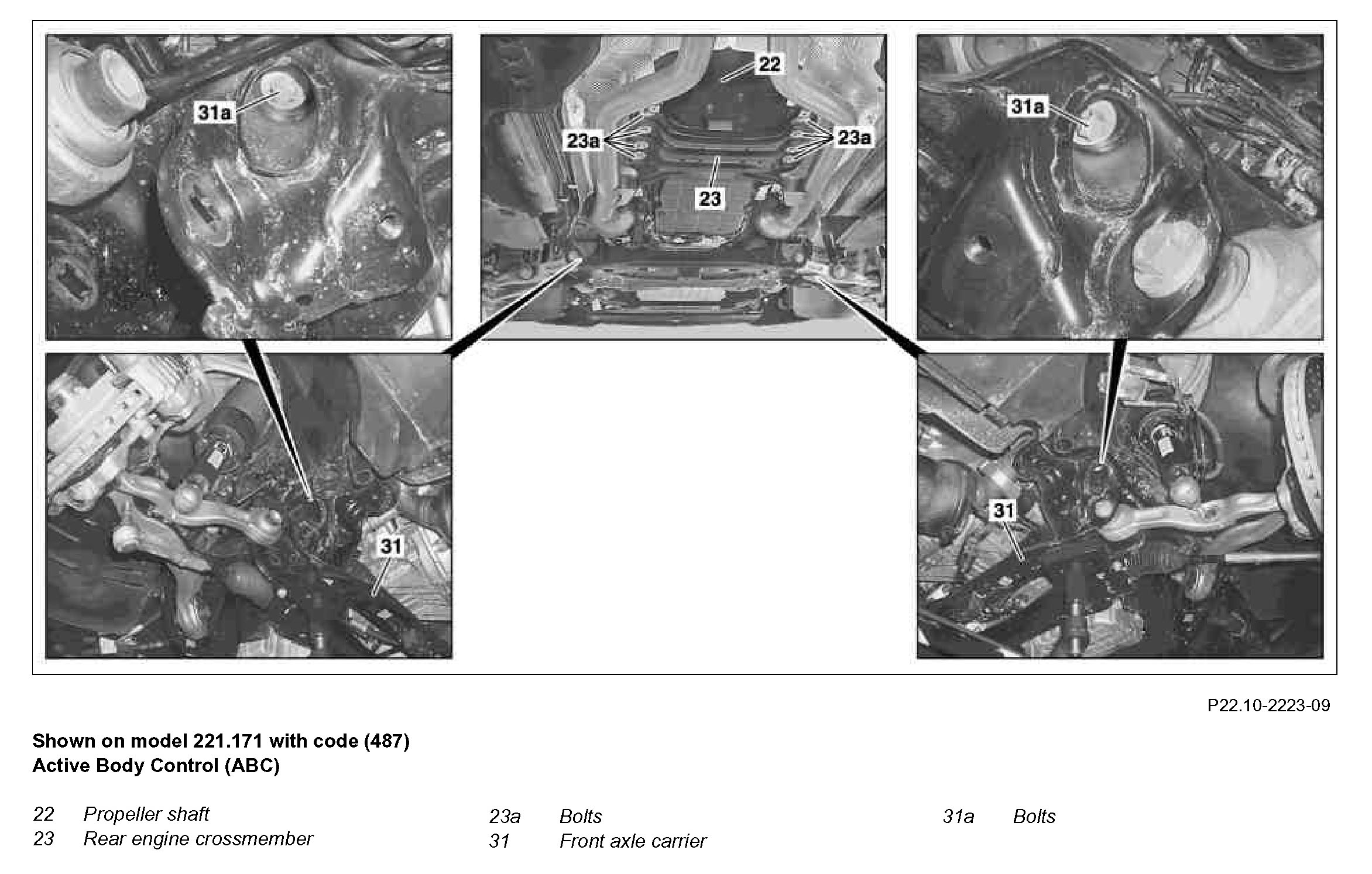

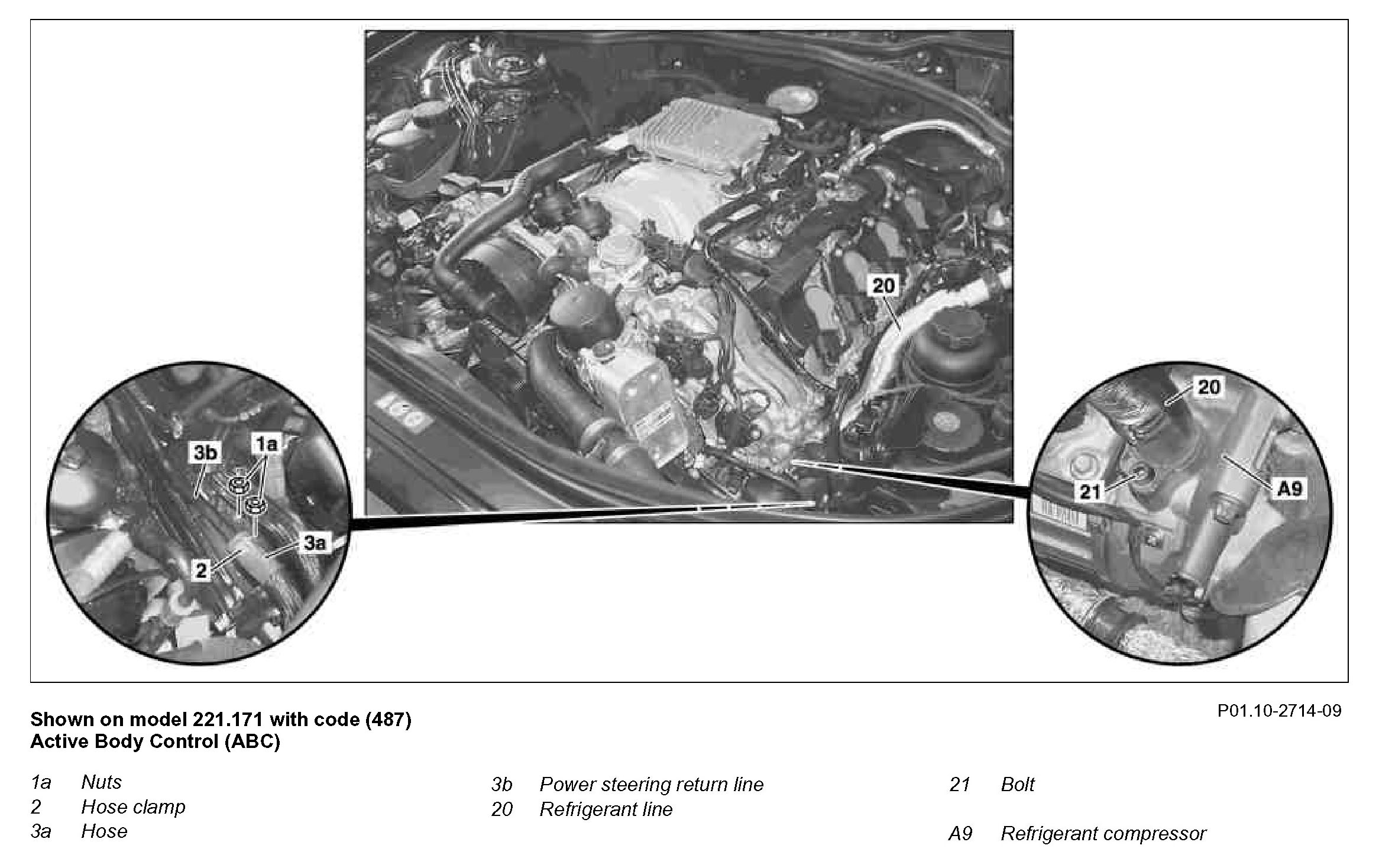

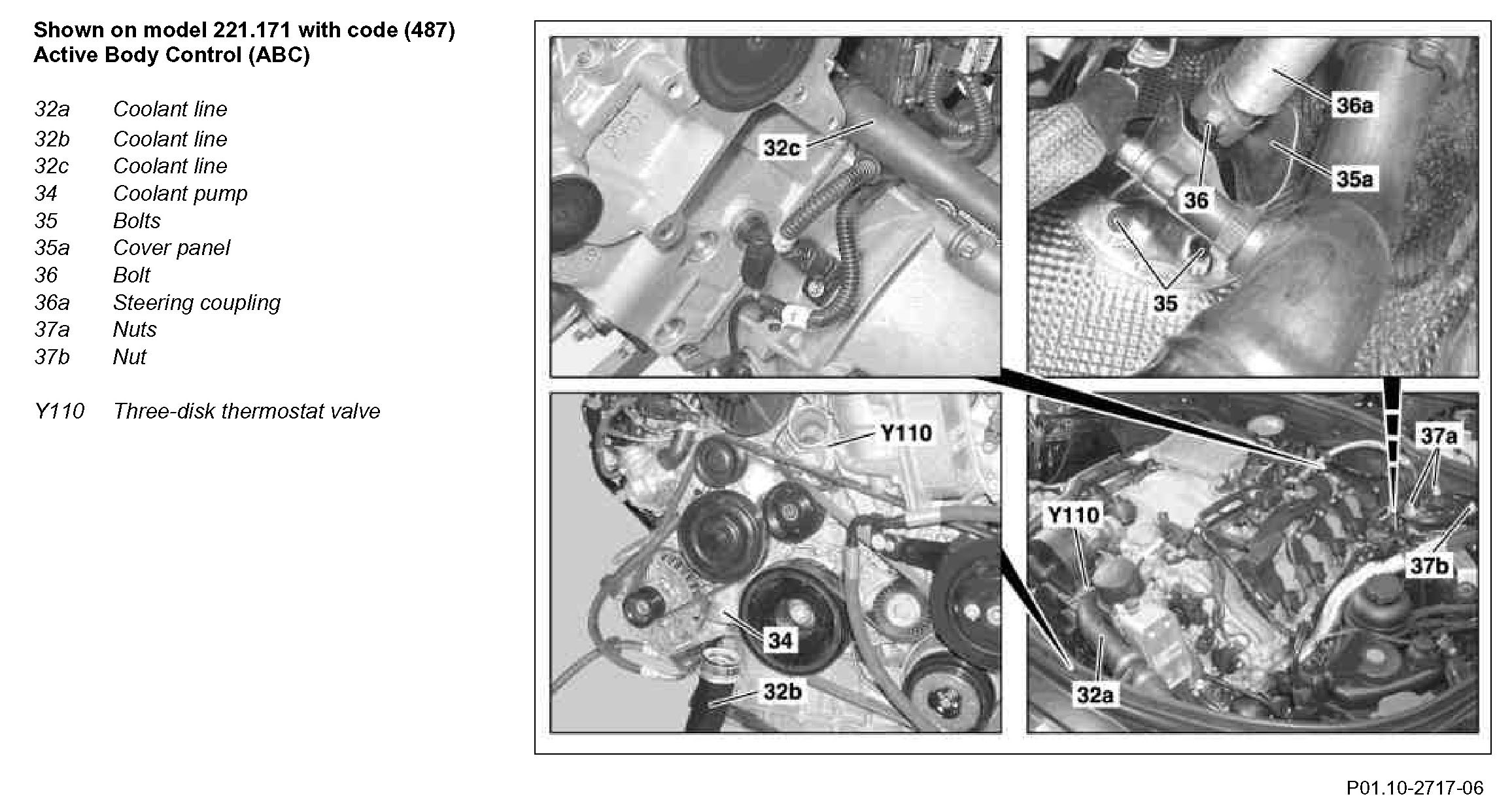

Component Identification:

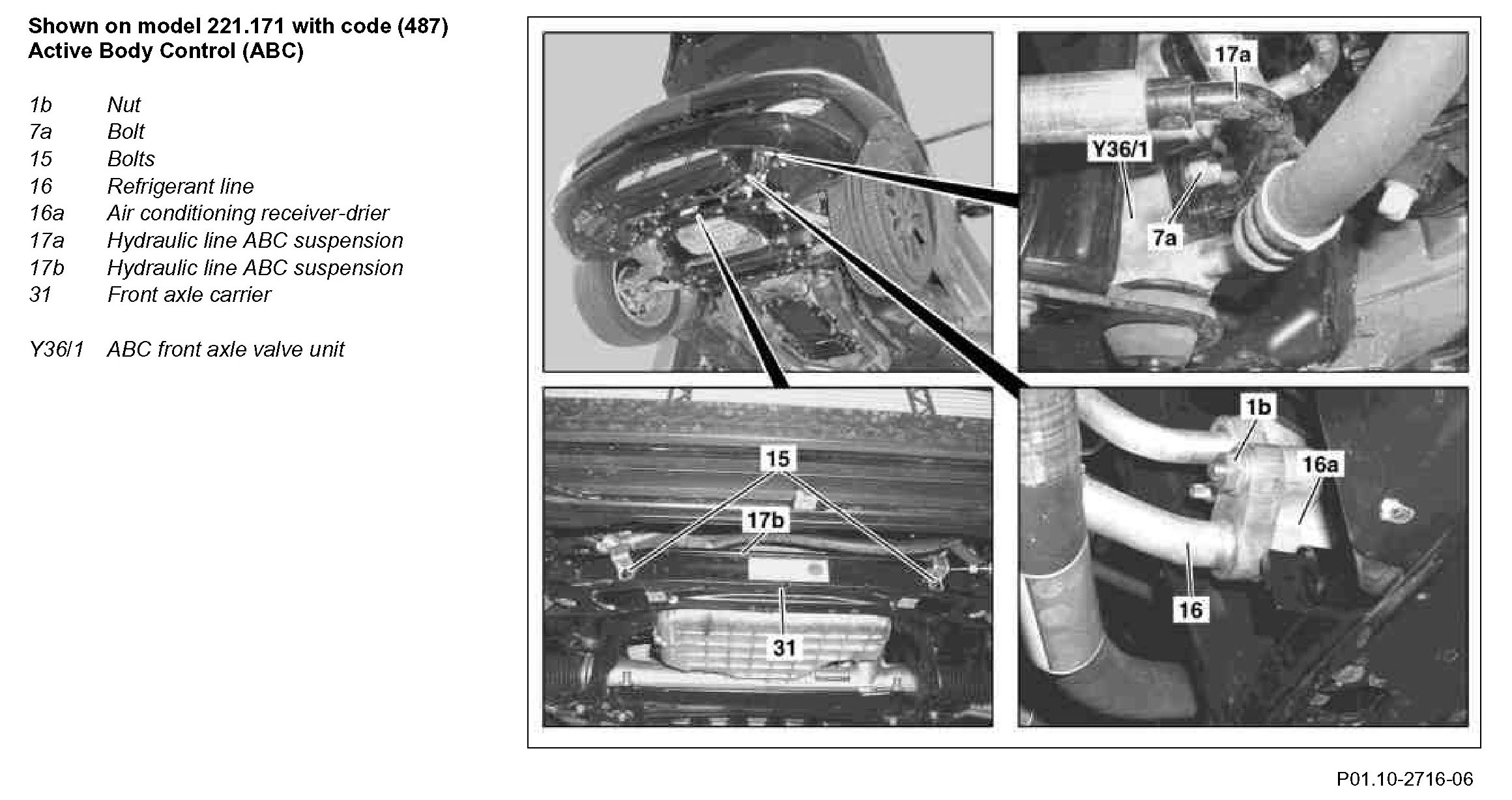

Component Identification:

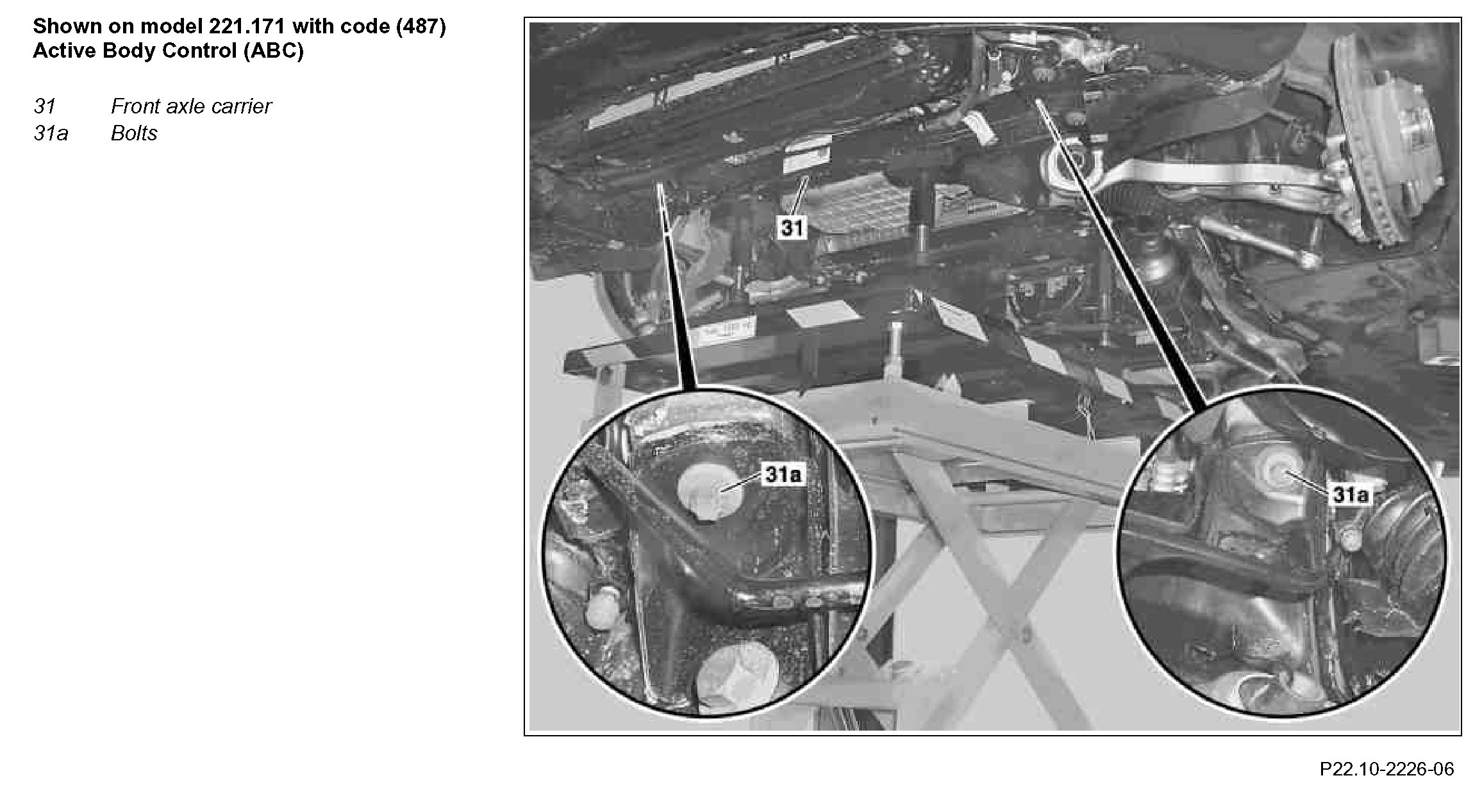

Component Identification:

Component Identification:

Component Identification:

Component Identification:

Component Identification:

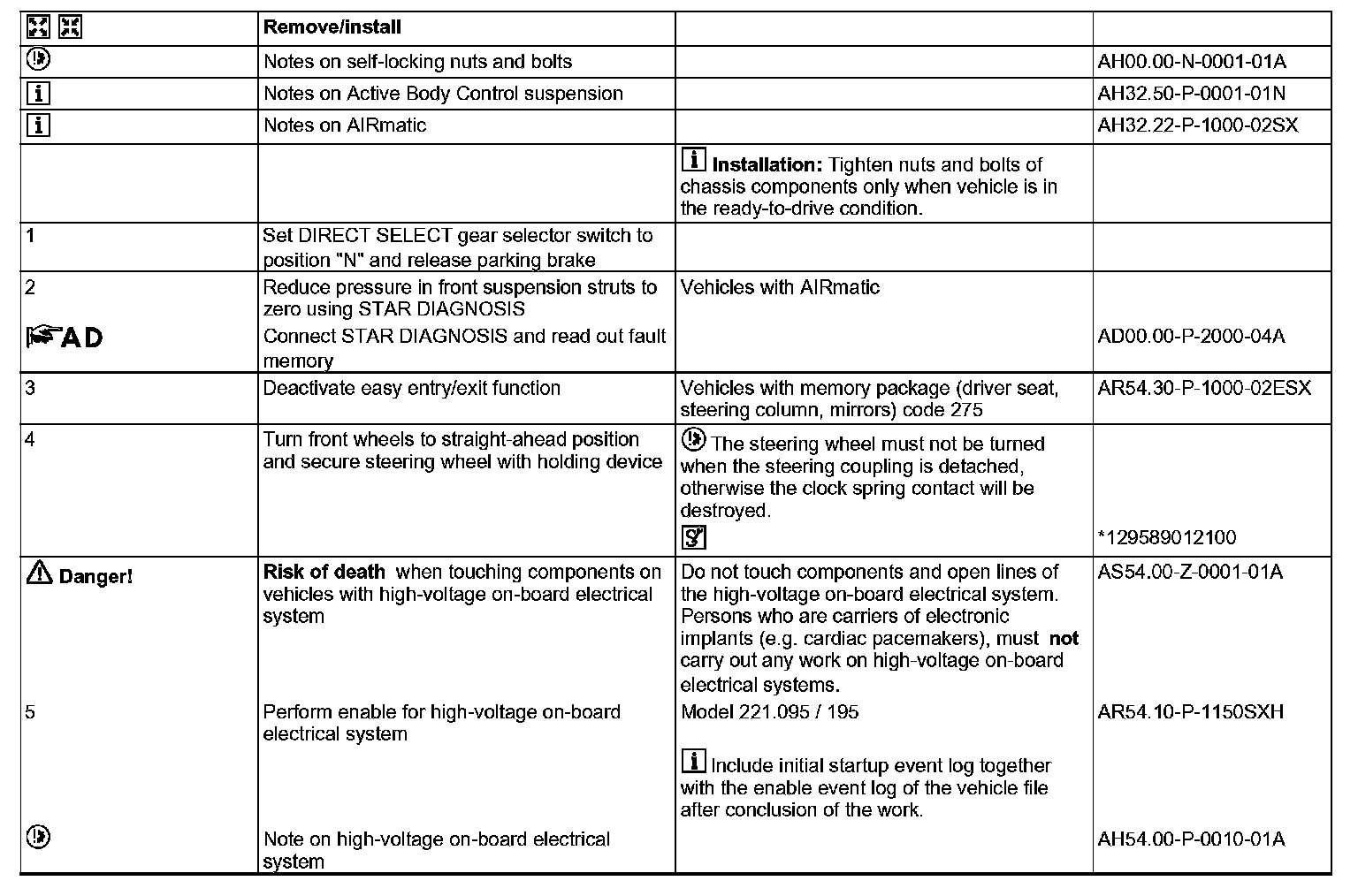

Steps 1-5:

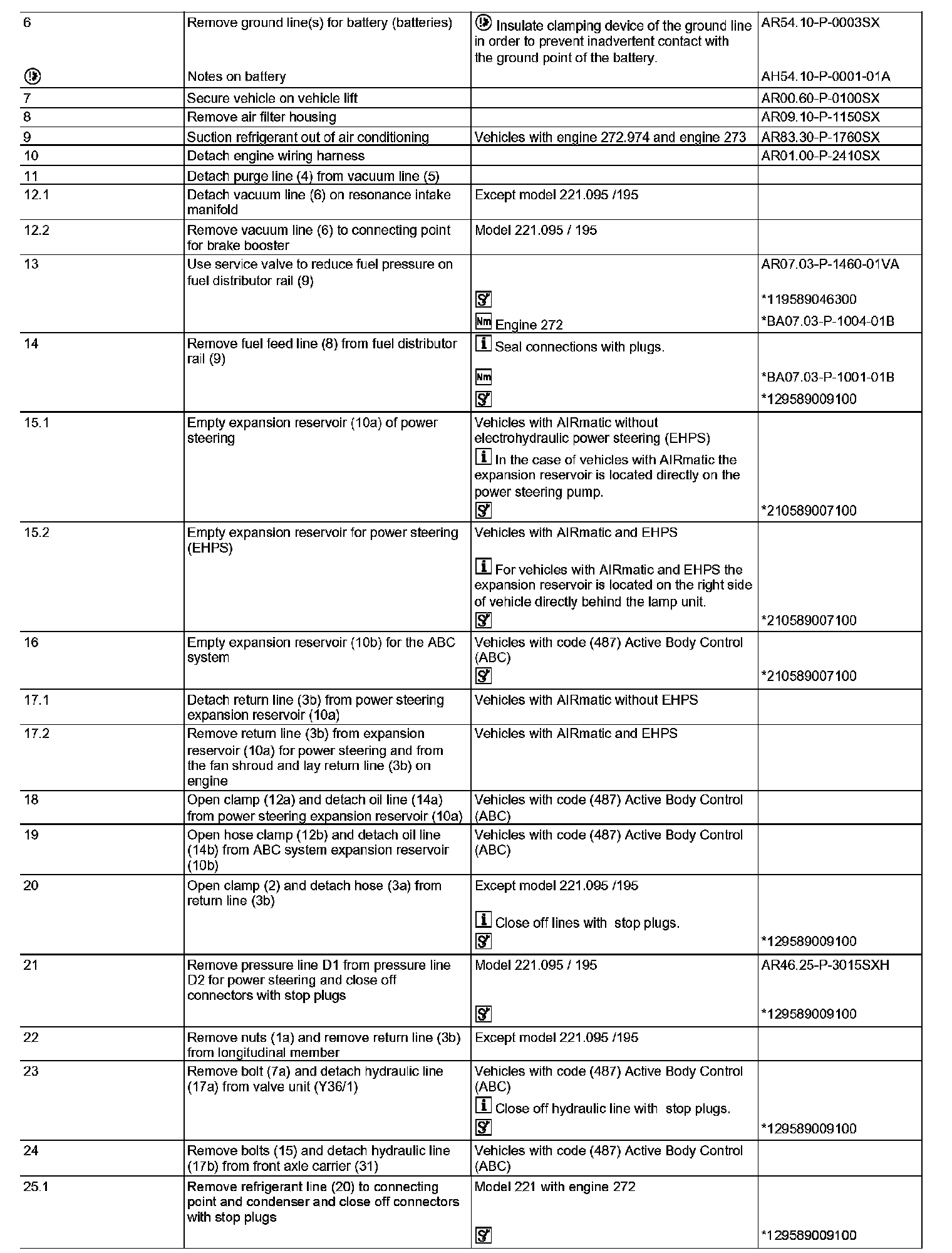

Steps 6-25.1:

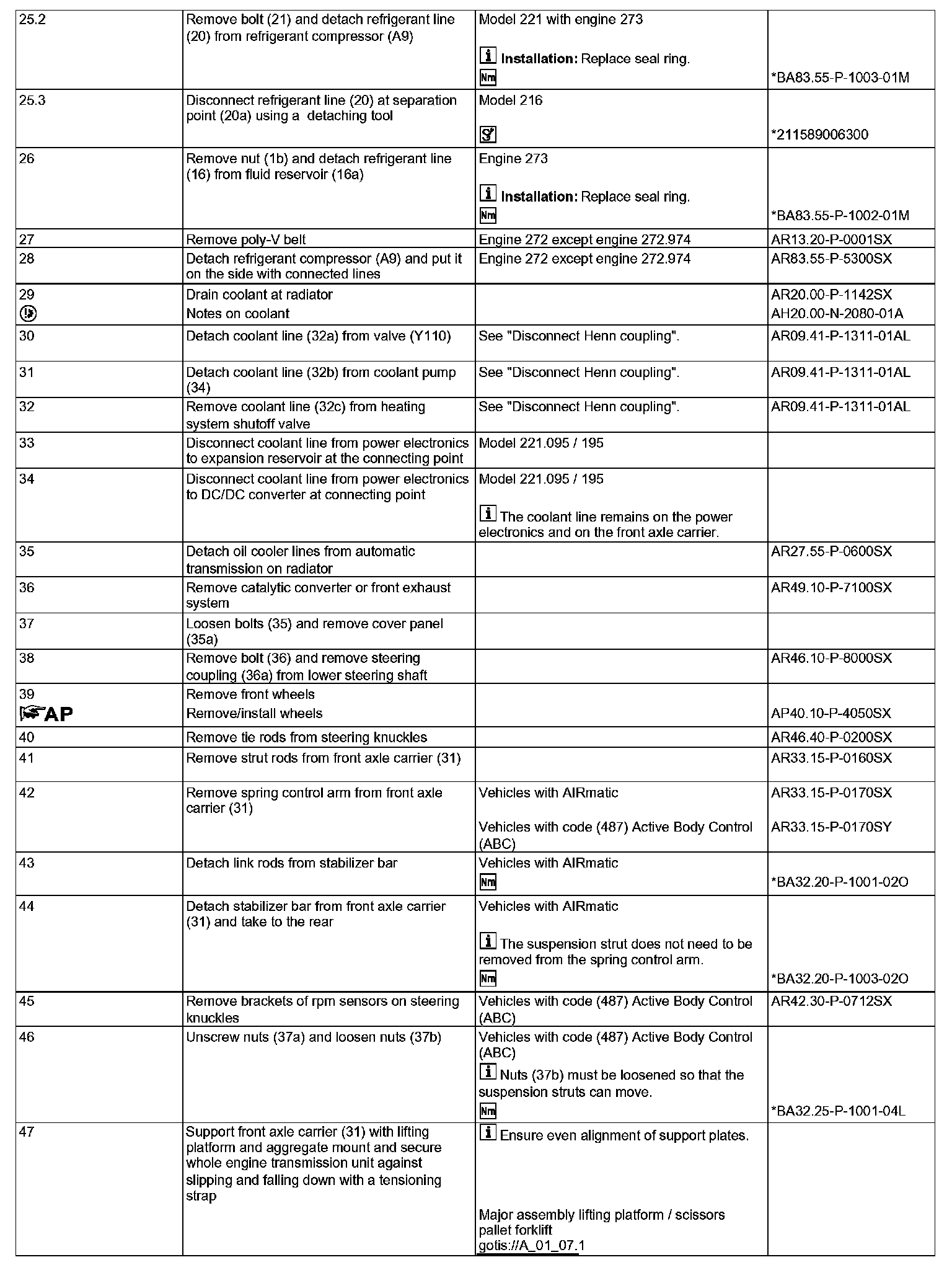

Steps 25.2-47:

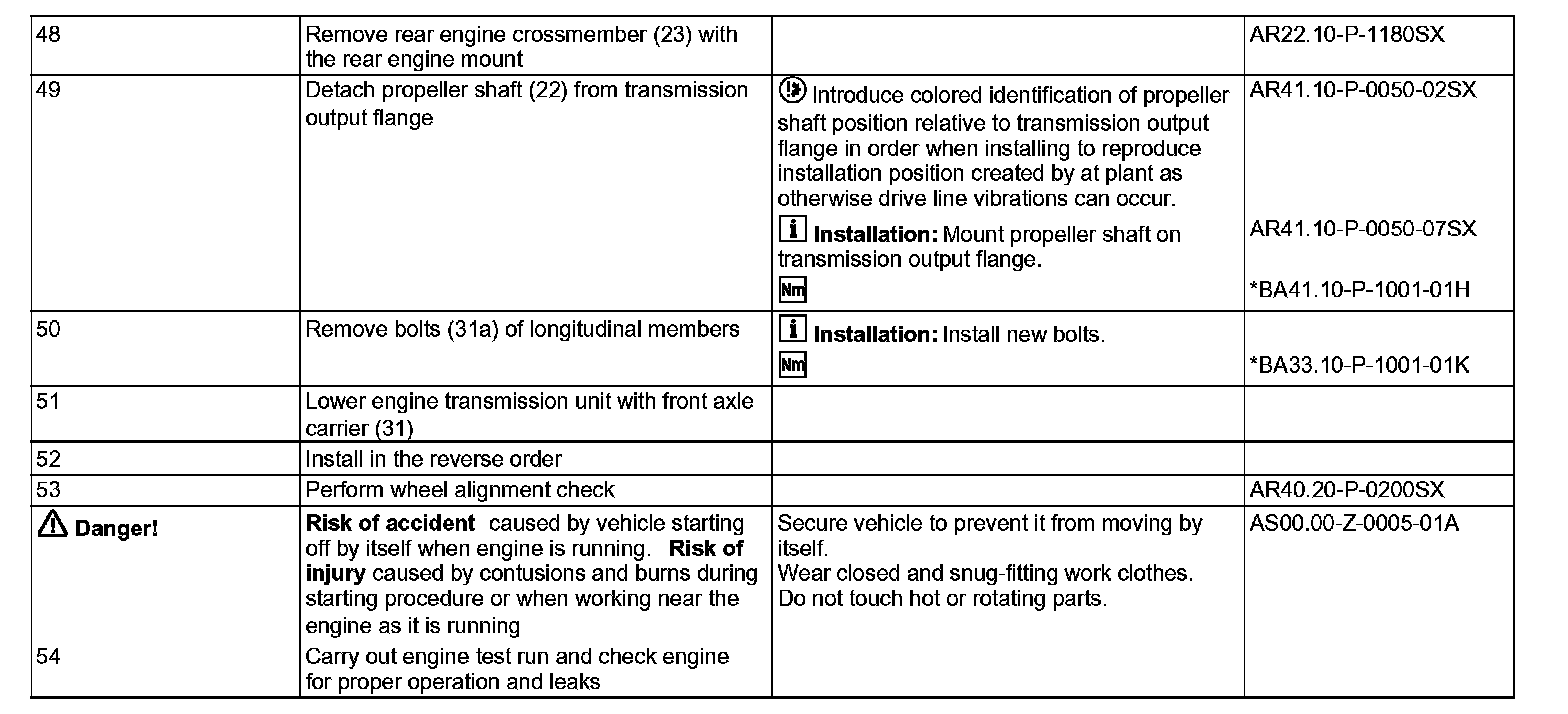

Steps 48-54:

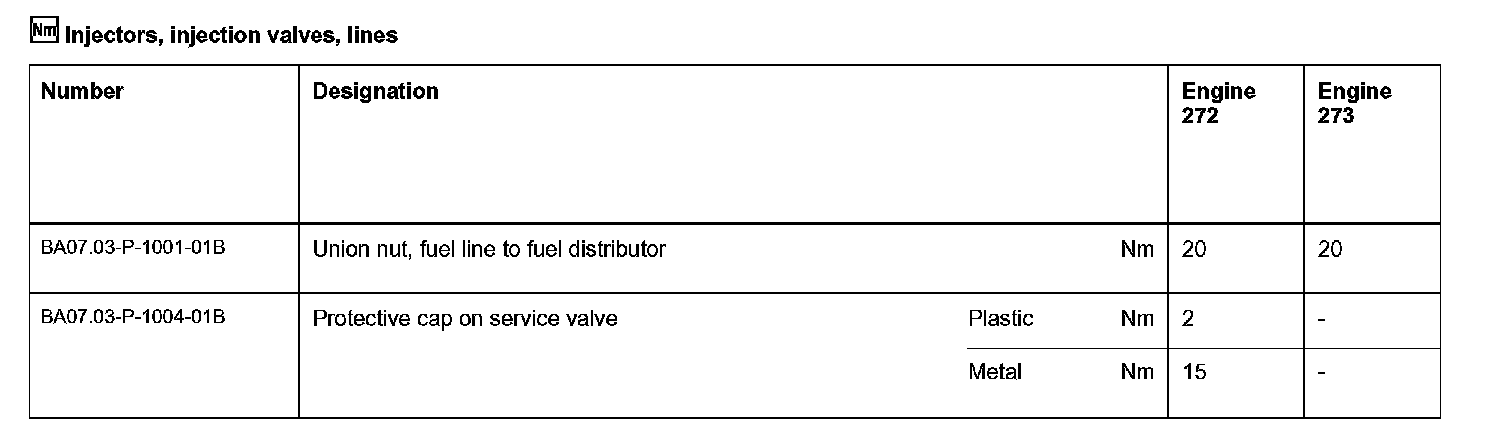

Injectors, injection valves, lines:

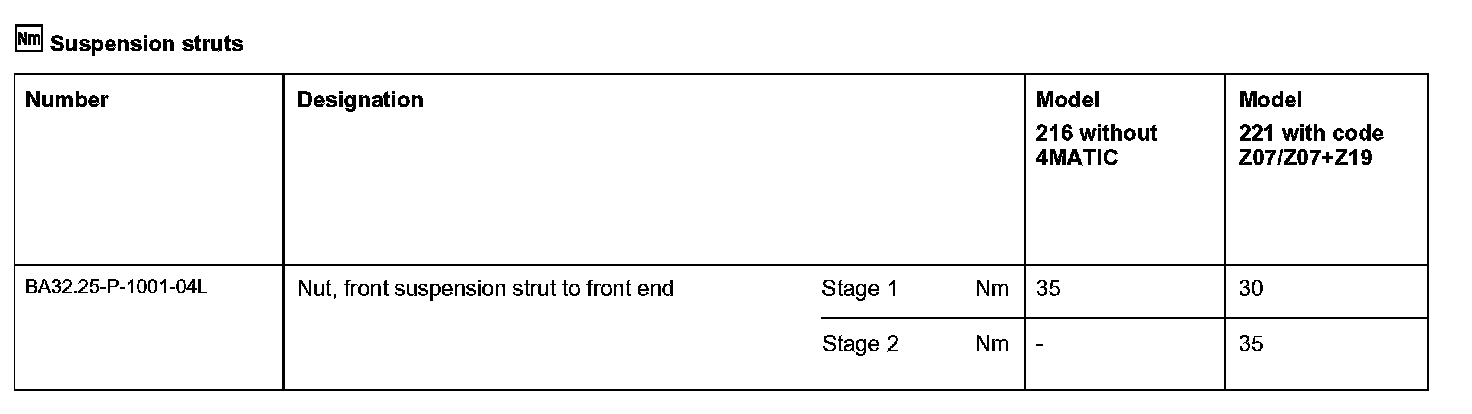

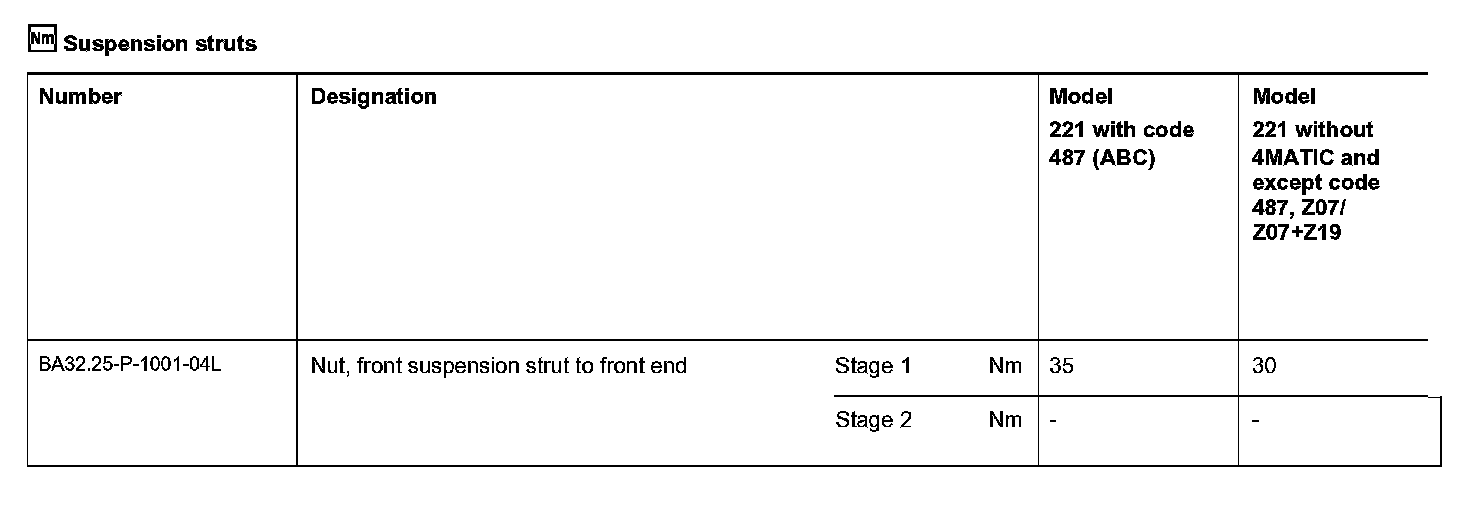

Suspension struts:

Suspension struts:

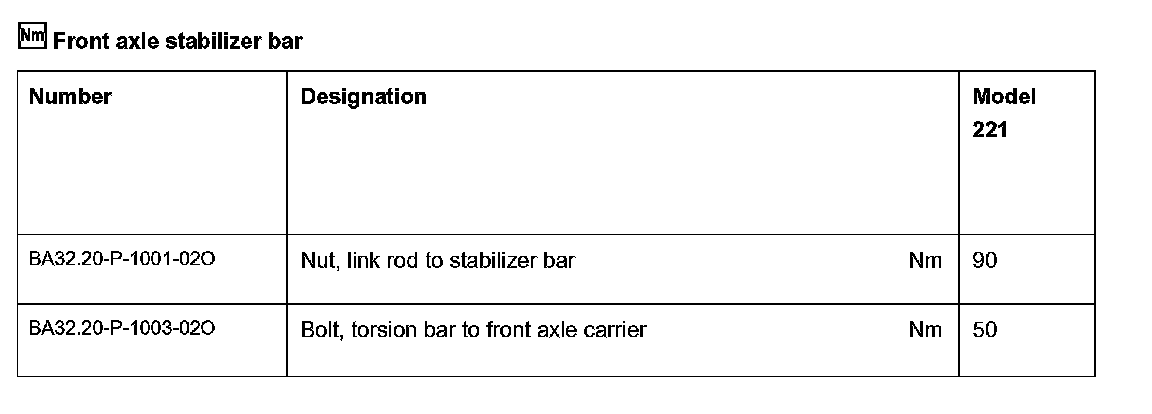

Front axle stabilizer bar:

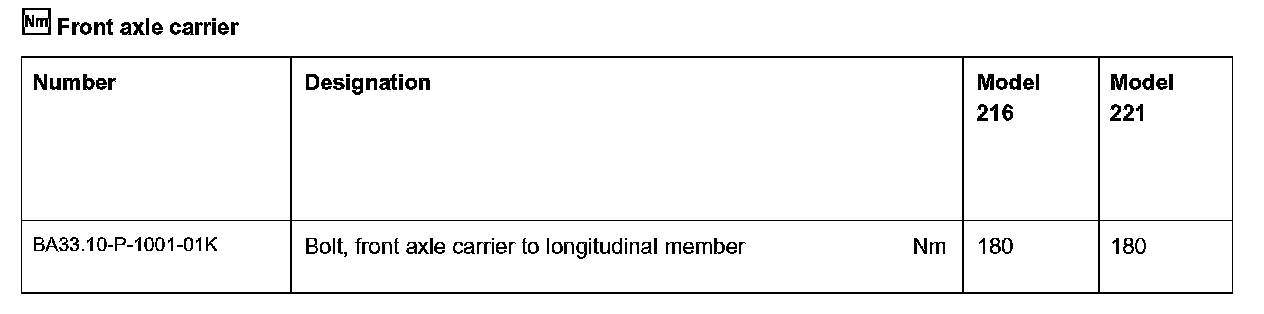

Front axle carrier:

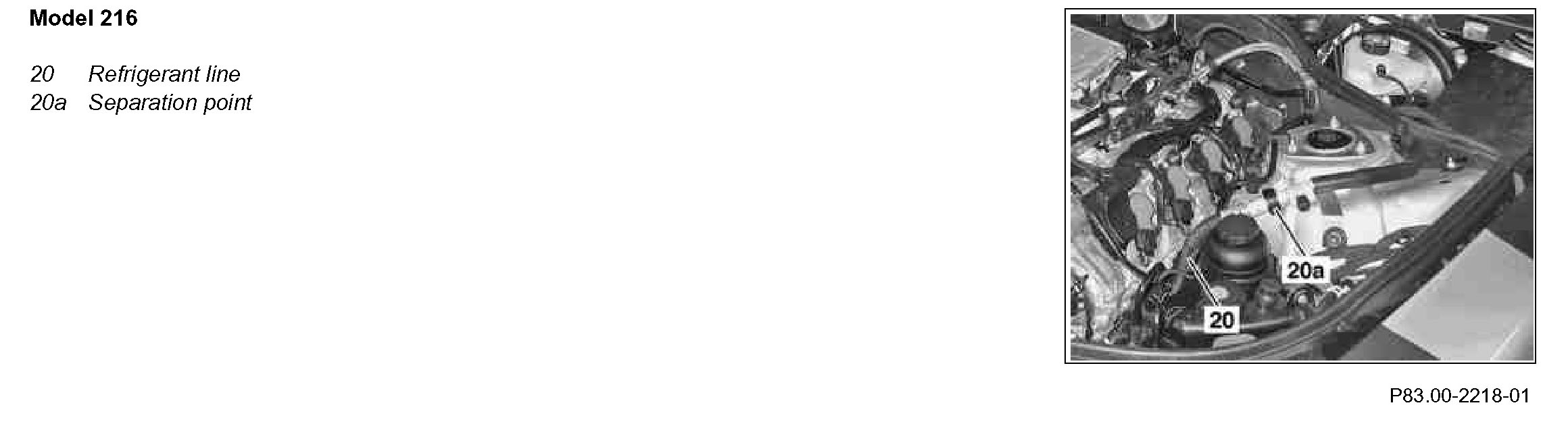

Refrigerant compressor:

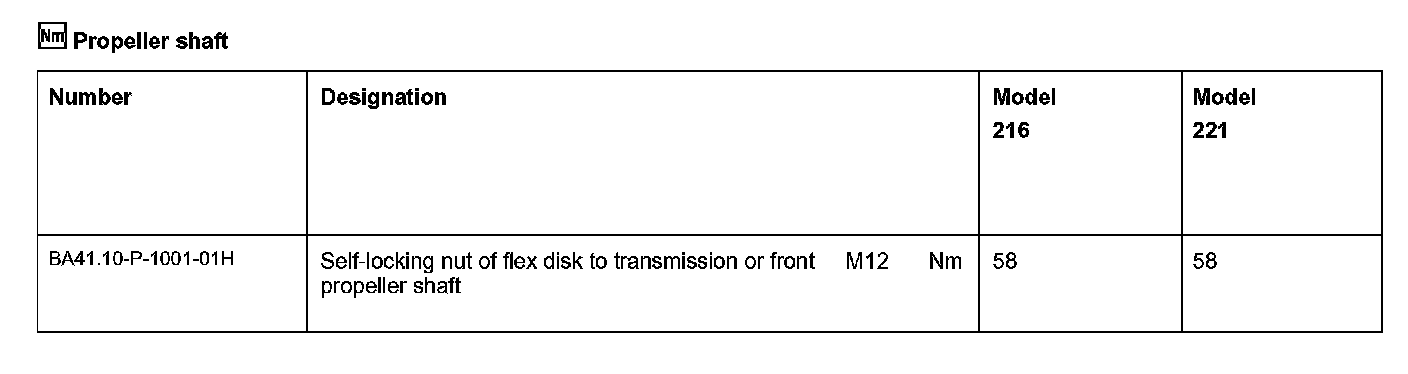

Propeller shaft:

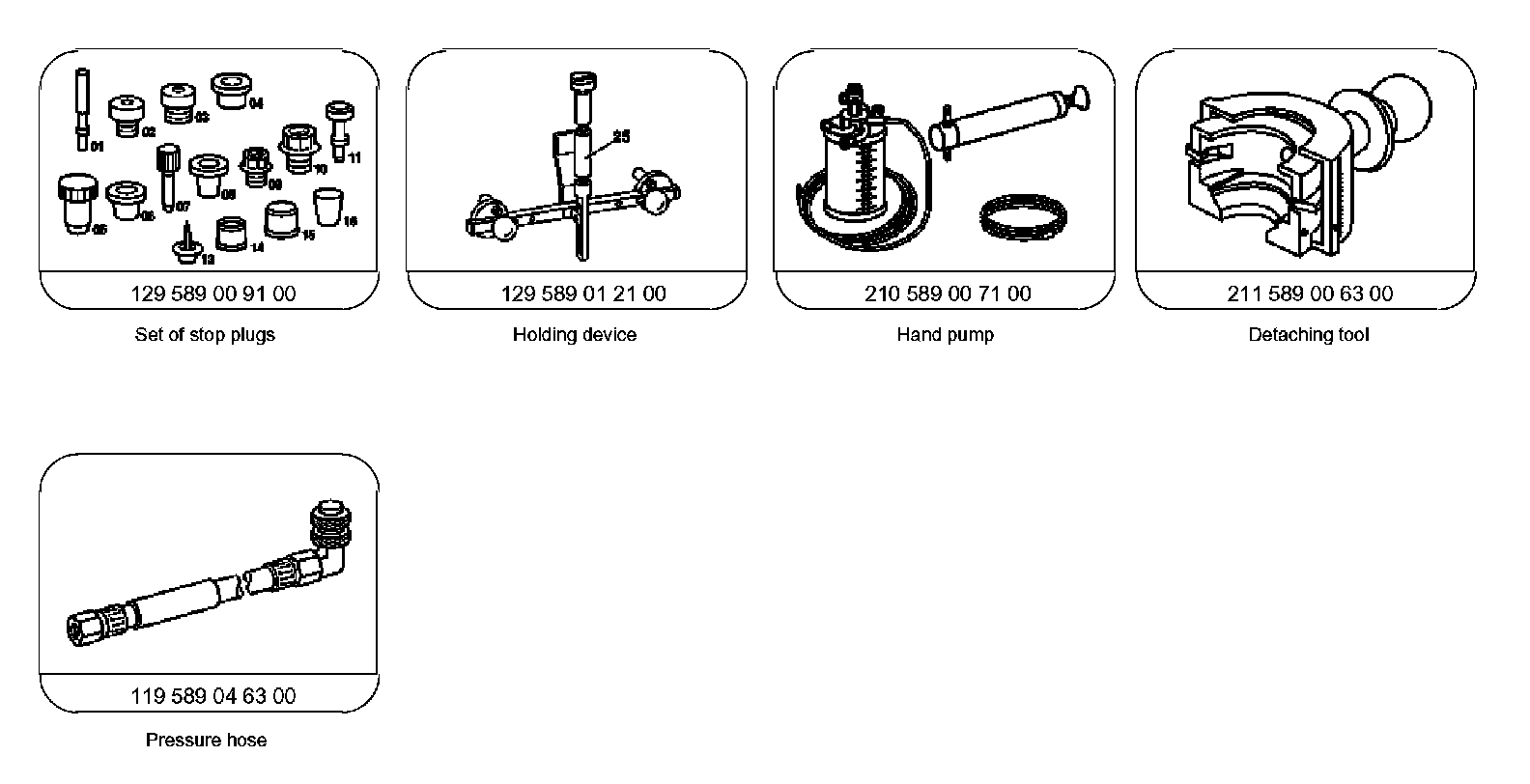

Special Tools:
