AR18.10-P-6020SX Remove/Install Oil Pump
AR18.10-P-6020SX Remove/Install Oil Pump
AR18.10-P-6020SX Remove/install oil pump

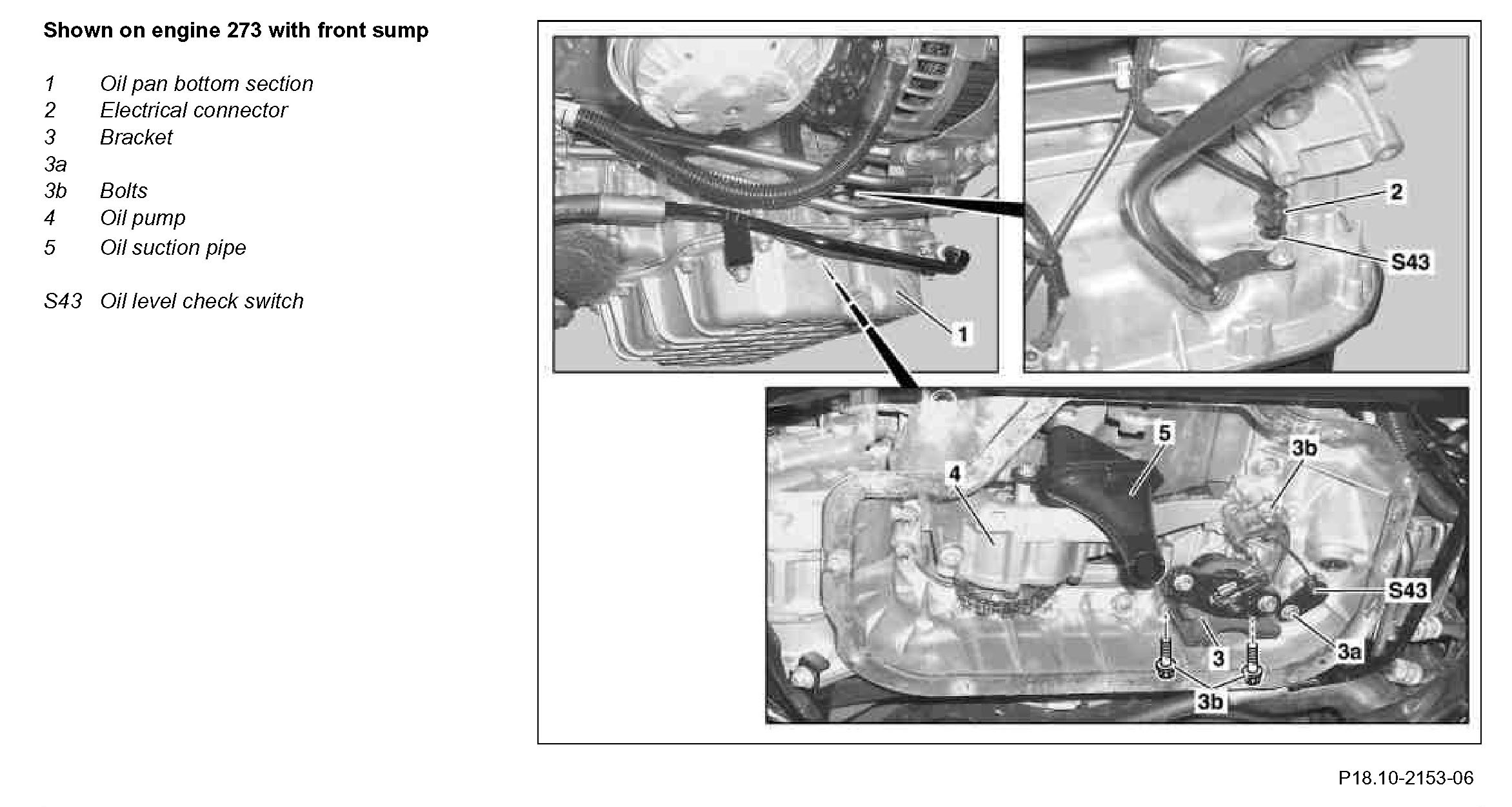

Component Identification:
Component Identification:

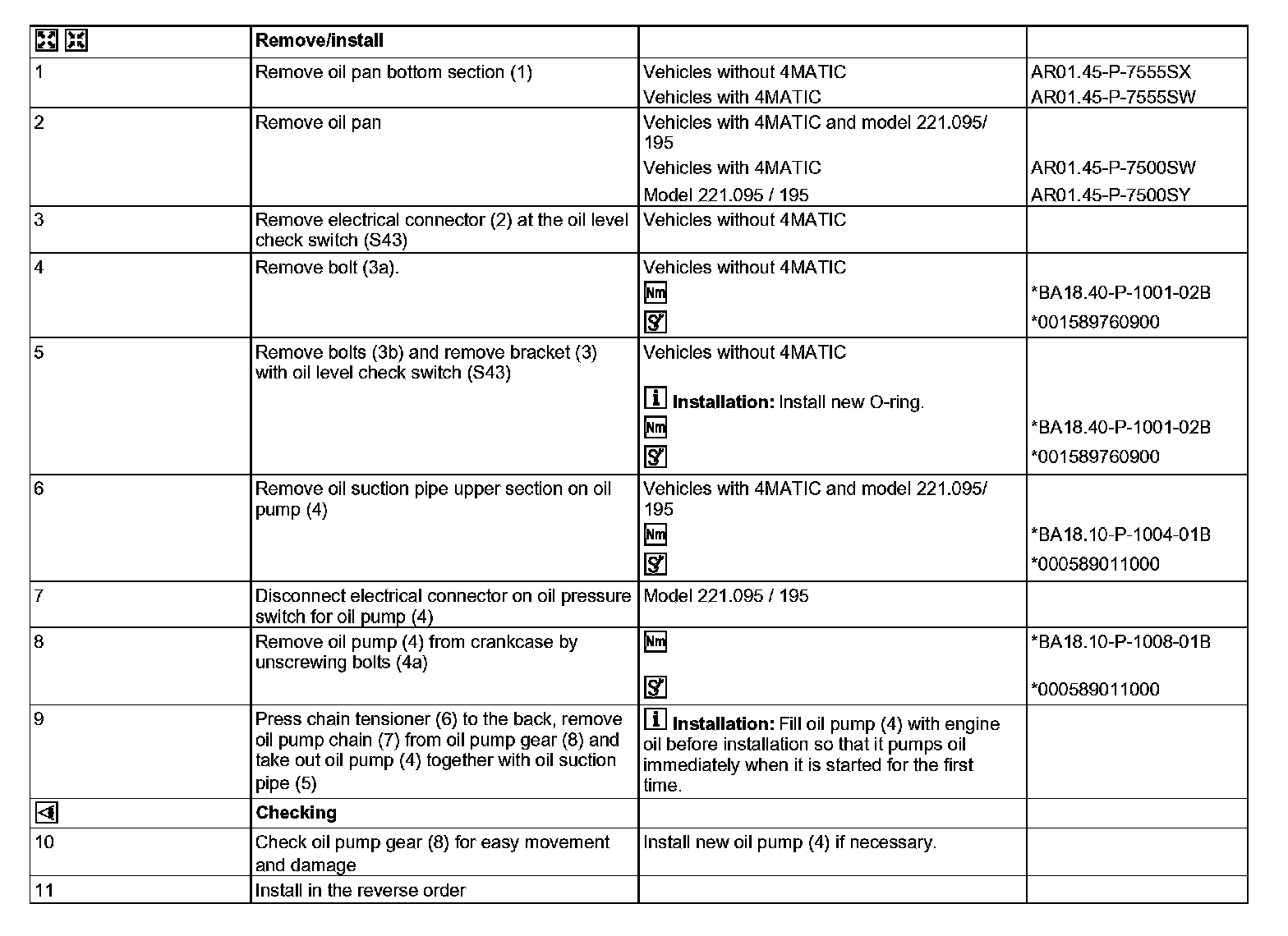

Steps 1-11:
Oil pump:
Oil sensor:

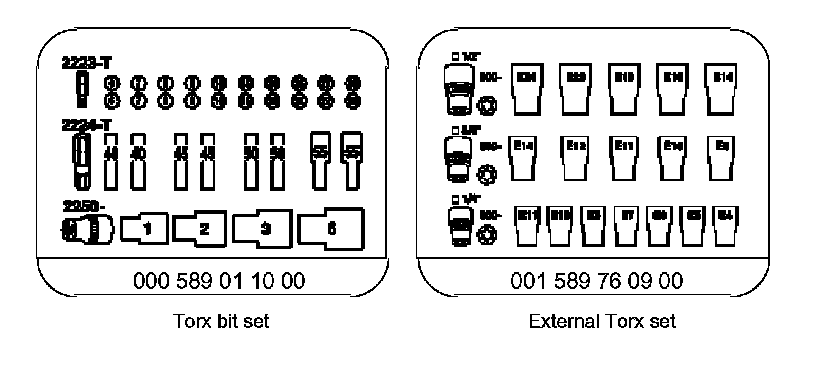

Special Tools:
