PE40.15-P-2051CAA Electrical Function Schematic For Tire Pressure Loss Warning (RDW) System

Electrical Function Schematic For Tire Pressure Loss Warning (RDW) System PE40.15-P-2051CAA
- as of model year 09
- except CODE (494)
- USA version

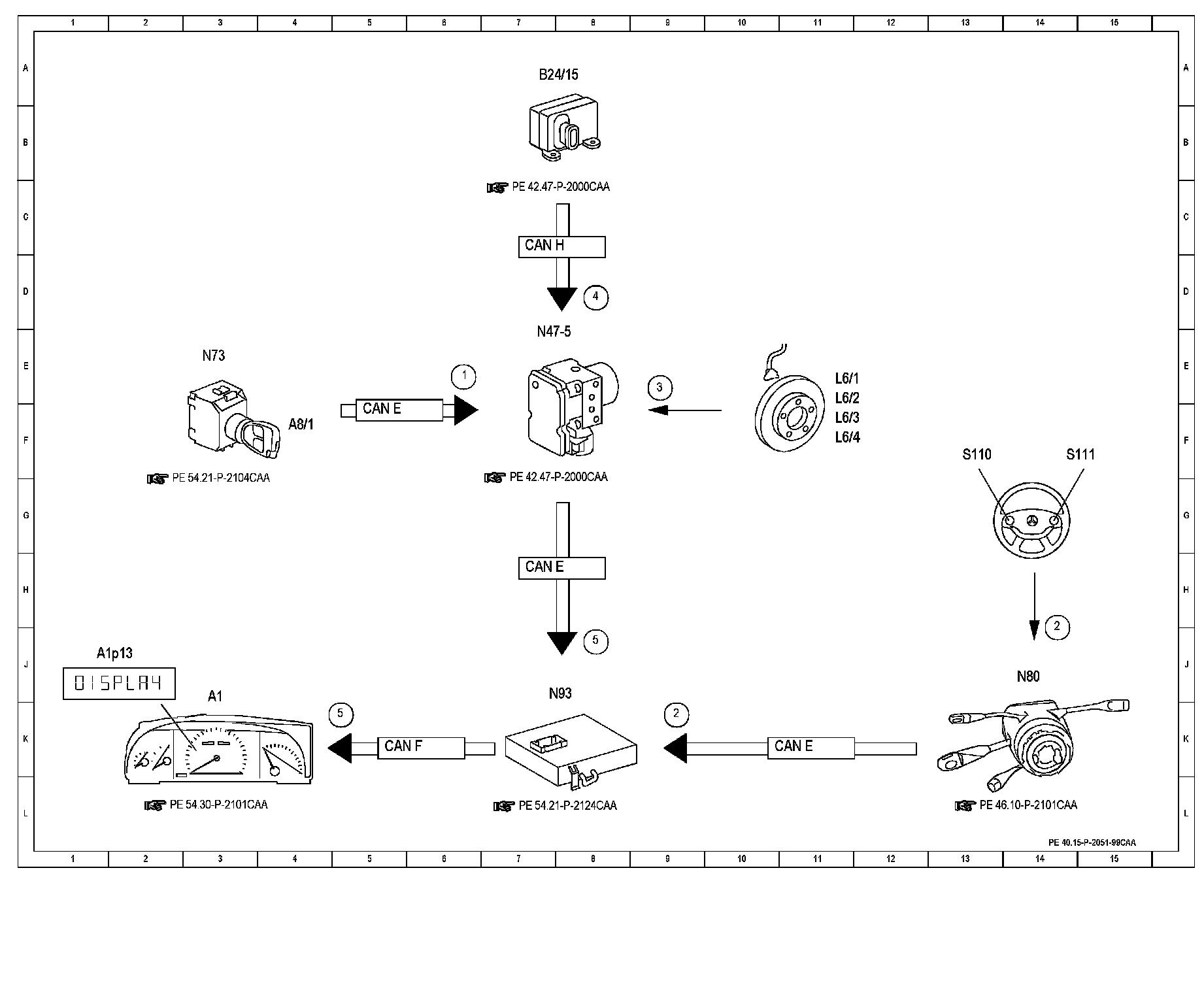

Function Diagram:

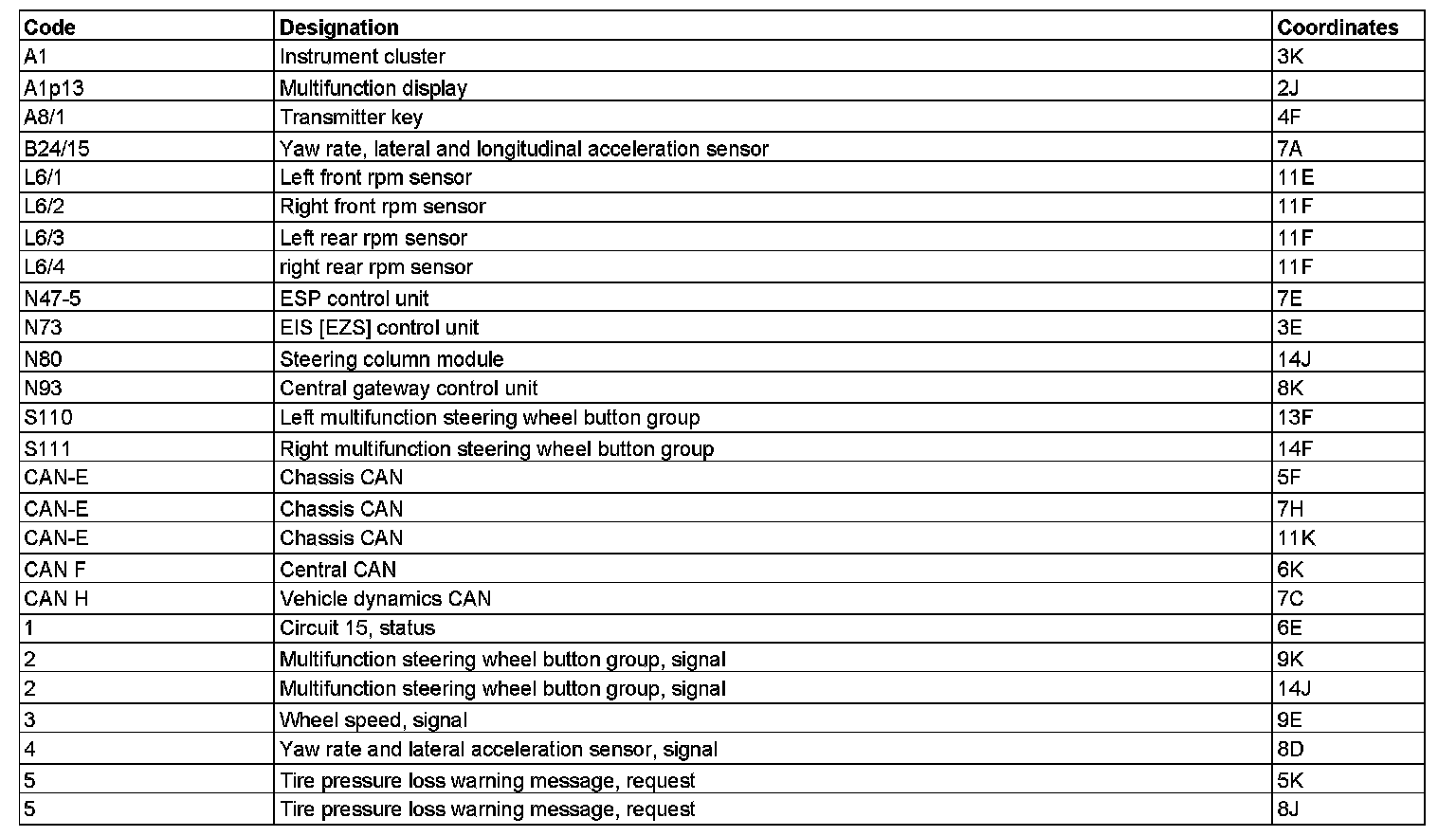

Component Description/Coordinates, A1 To 5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
