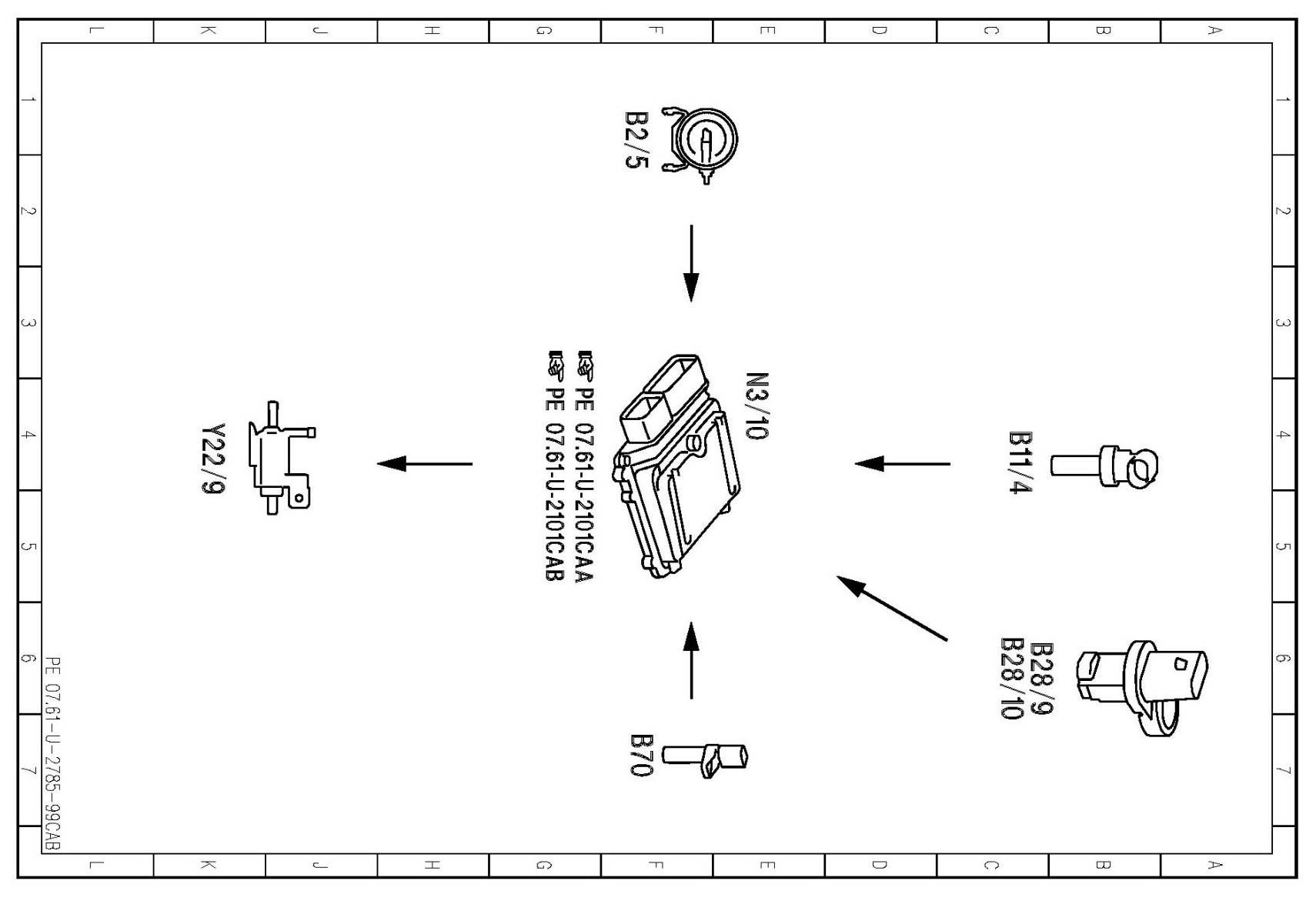

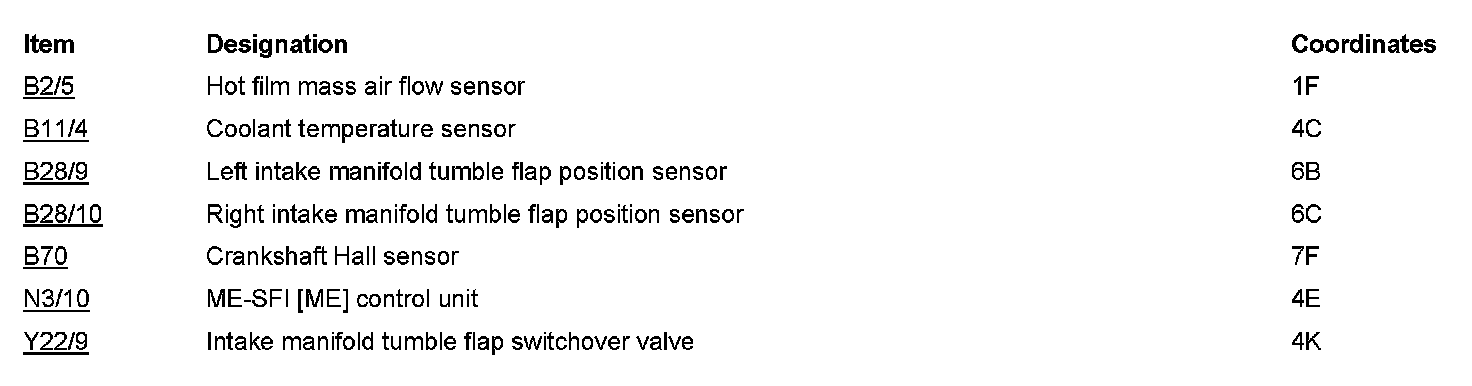

PE07.61-U-2785CAB Electrical Function Diagram For Tumble Flap Switchover

PE07.61-U-2785CAB Electrical Function Diagram For Tumble Flap Switchover

ENGINE 273 in MODEL 216
- as of Model Year 2009















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
