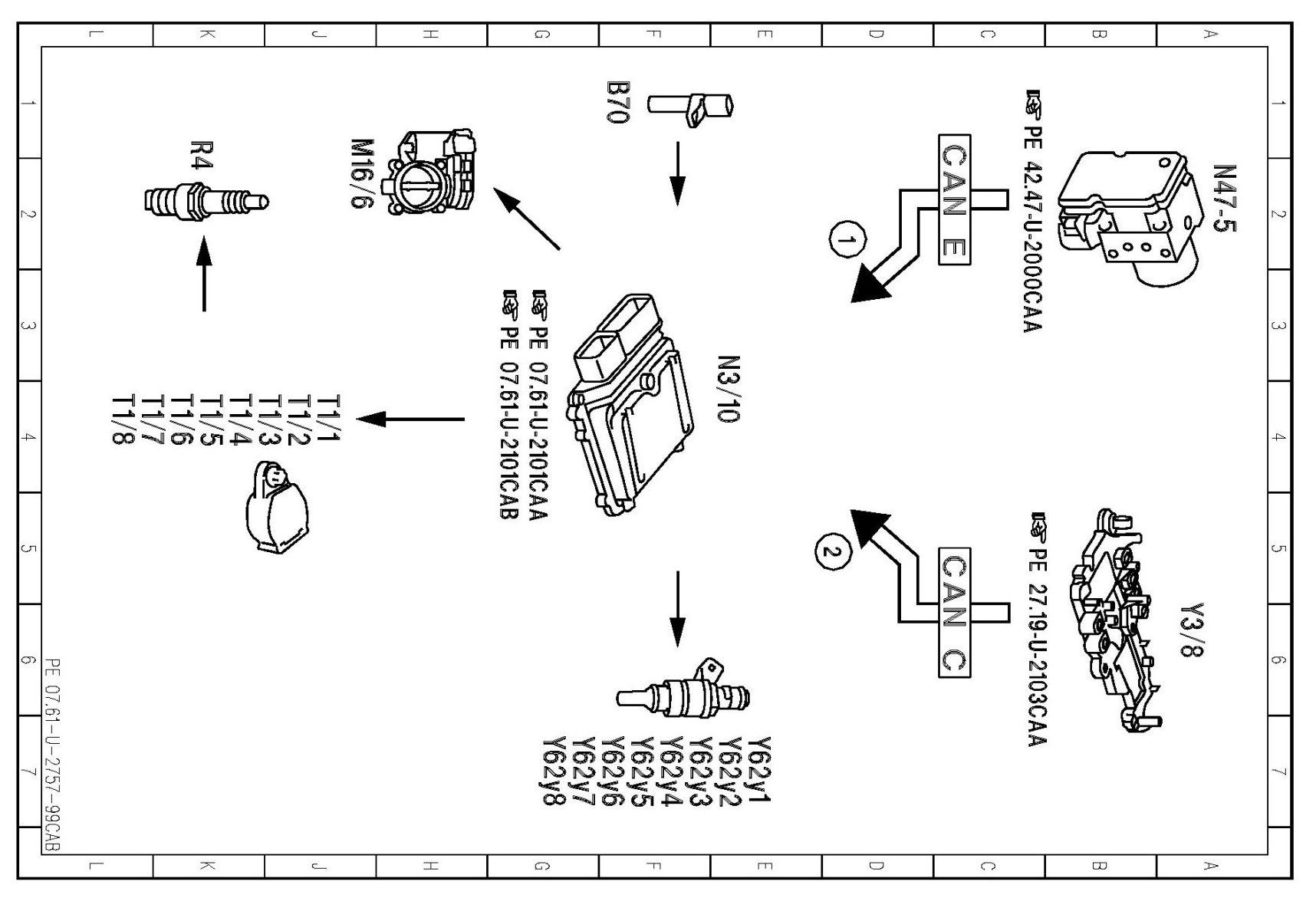

PE07.61-U-2757CAB Electrical Function Diagram For ME Maximum Engine Speed Limitation

PE07.61-U-2757CAB Electrical Function Diagram For ME Maximum Engine Speed Limitation

ENGINE 273 in MODEL 216
- as of Model Year 2009



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
