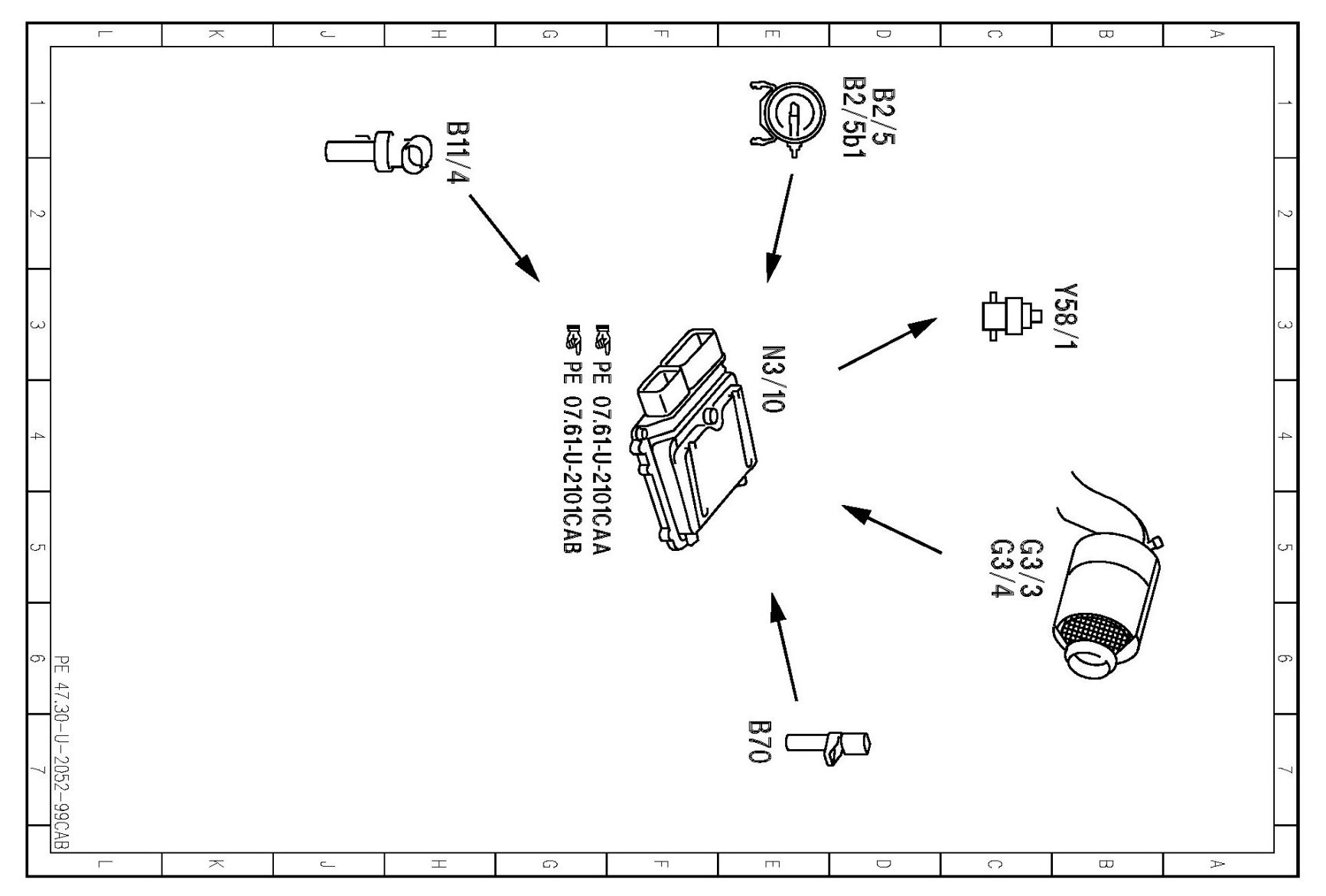

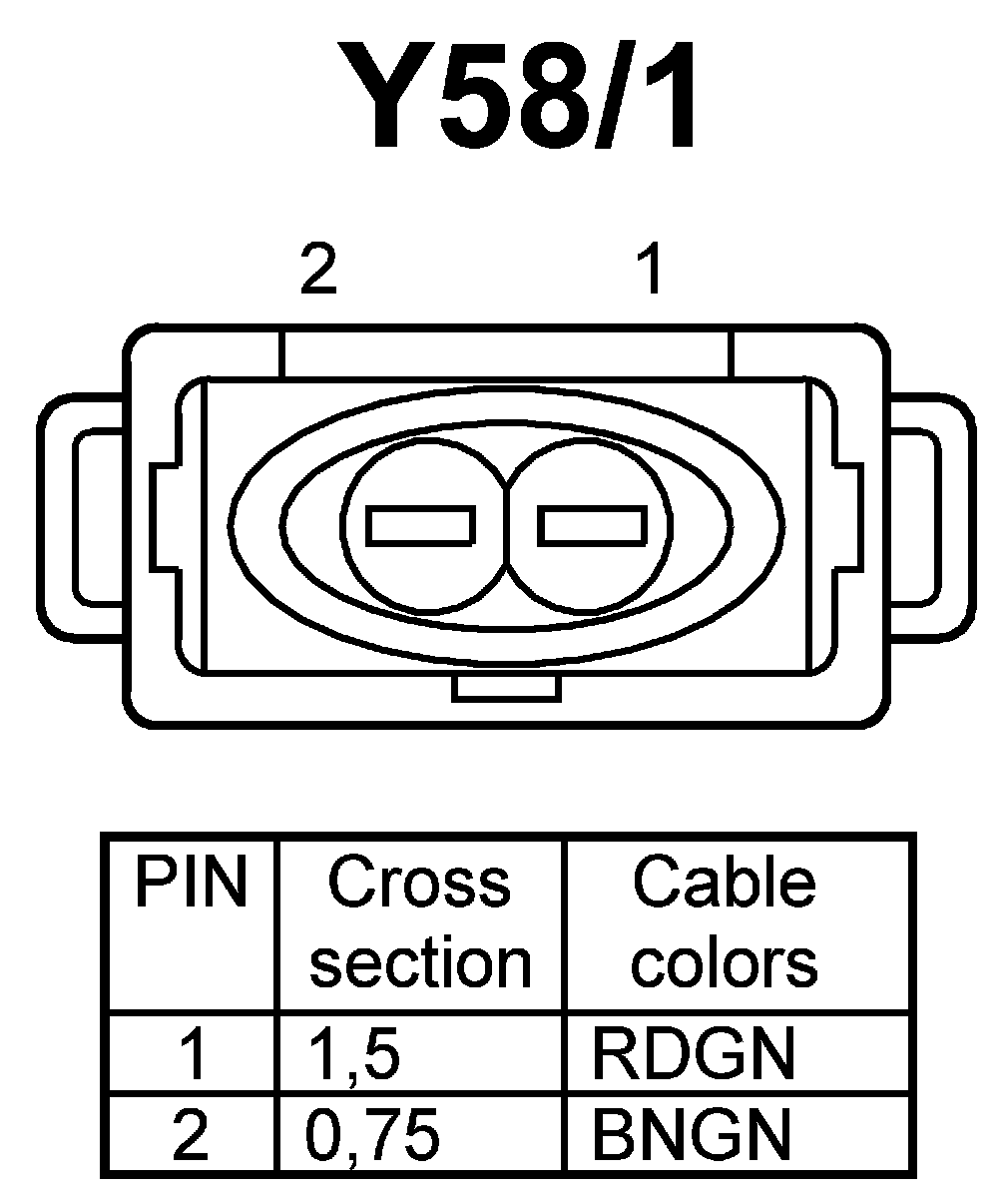

PE47.30-U-2052CAB Electrical Function Schematic For Purge Control

PE47.30-U-2052CAB Electrical Function Schematic For Purge Control

MODEL 216
- with ENGINE 273
- as of Model Year 2009

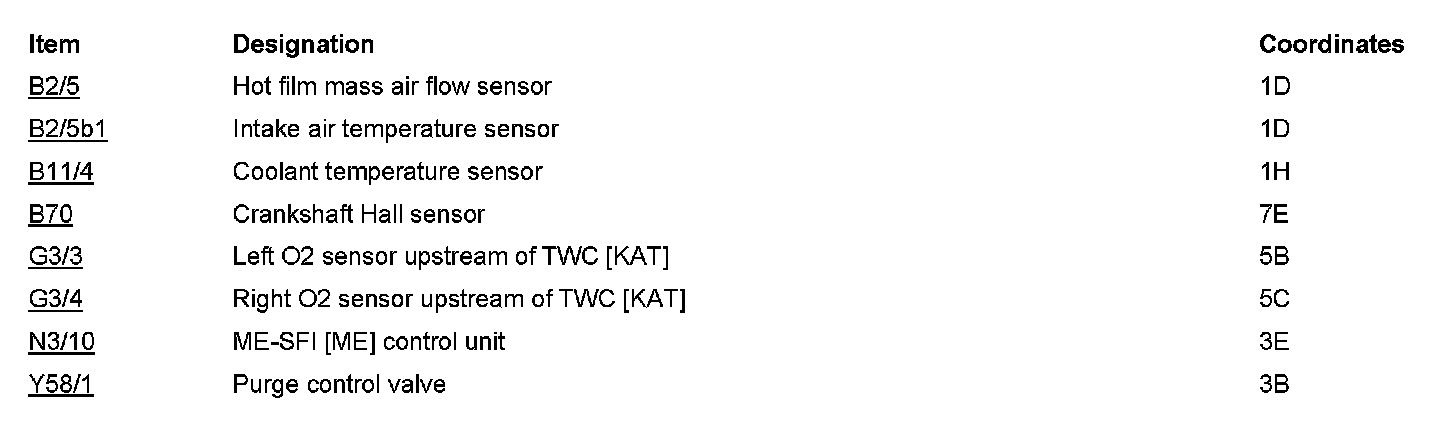

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
