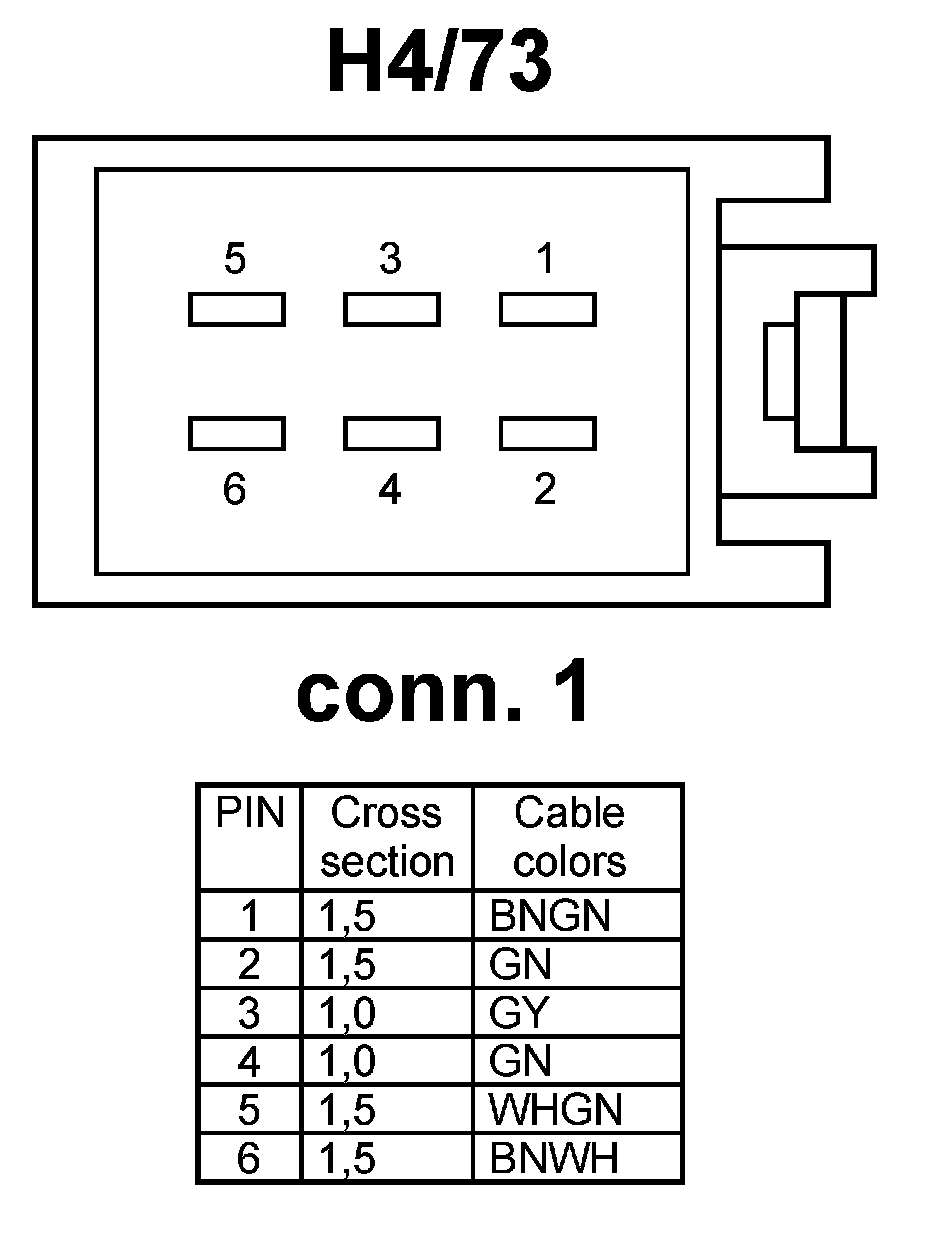

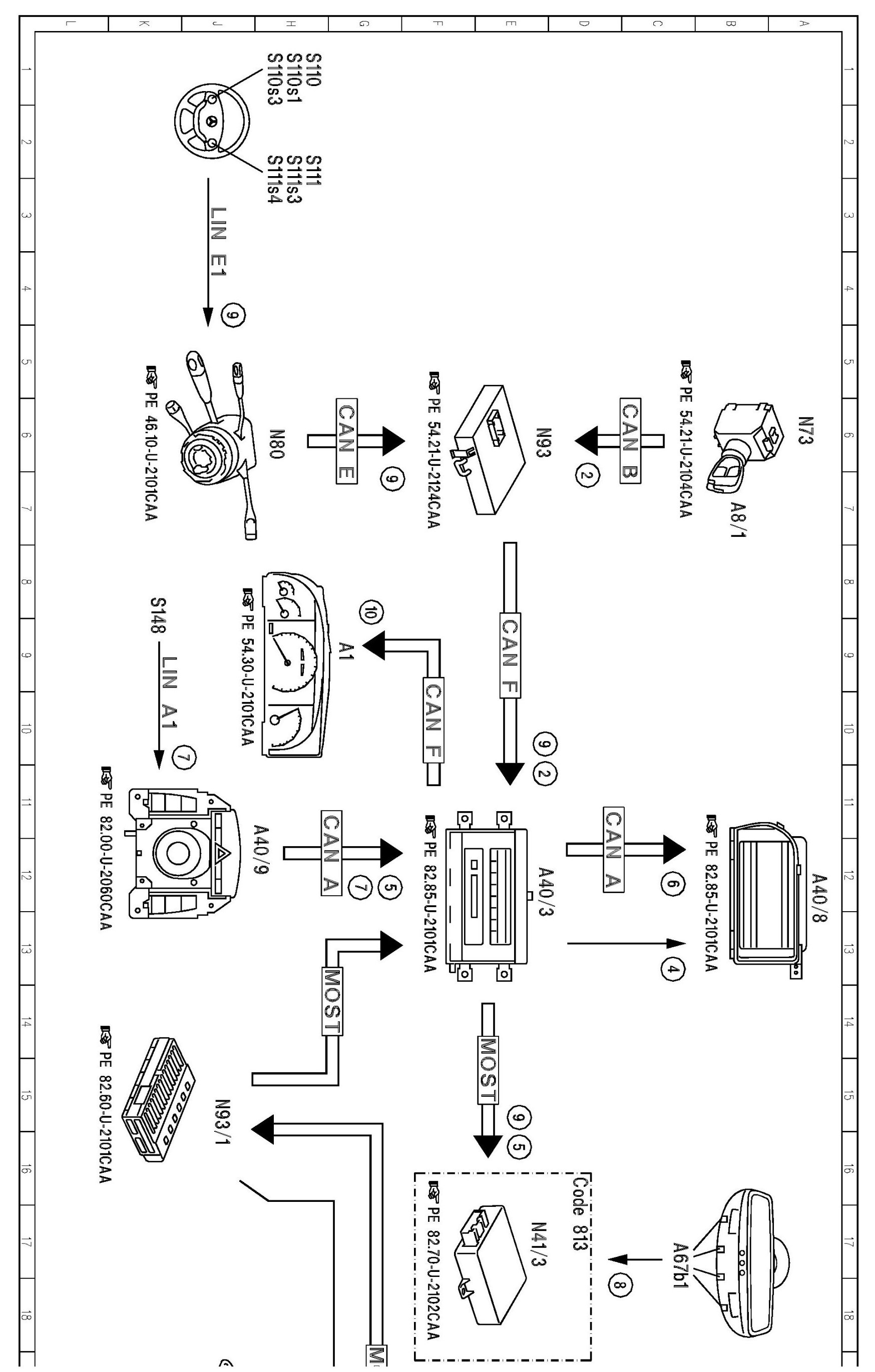

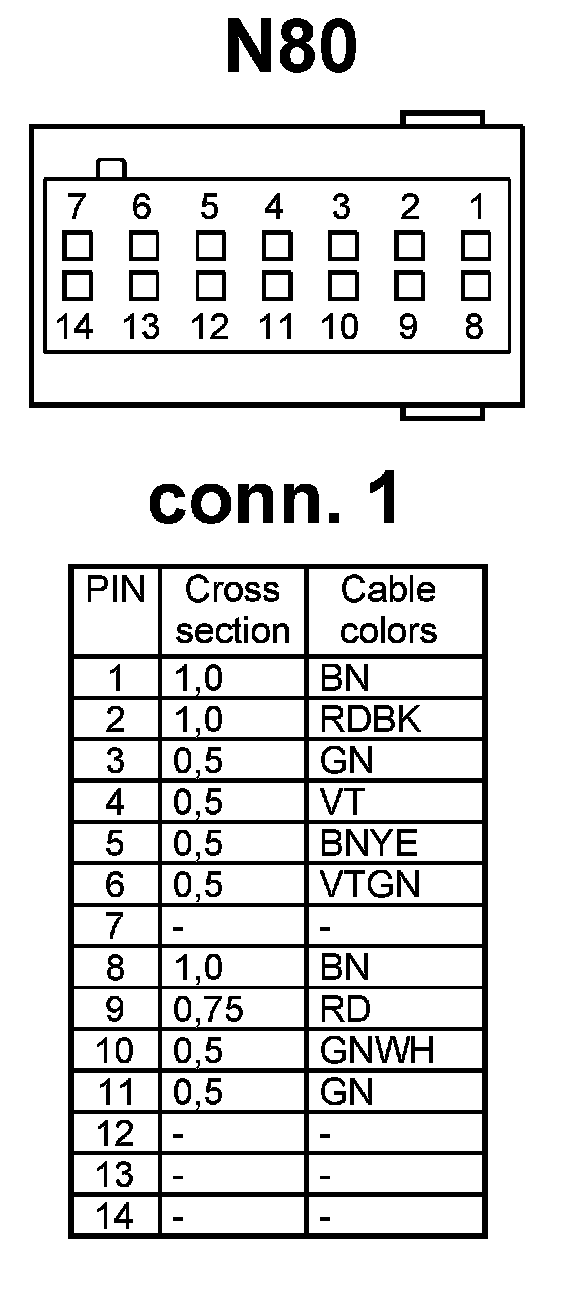

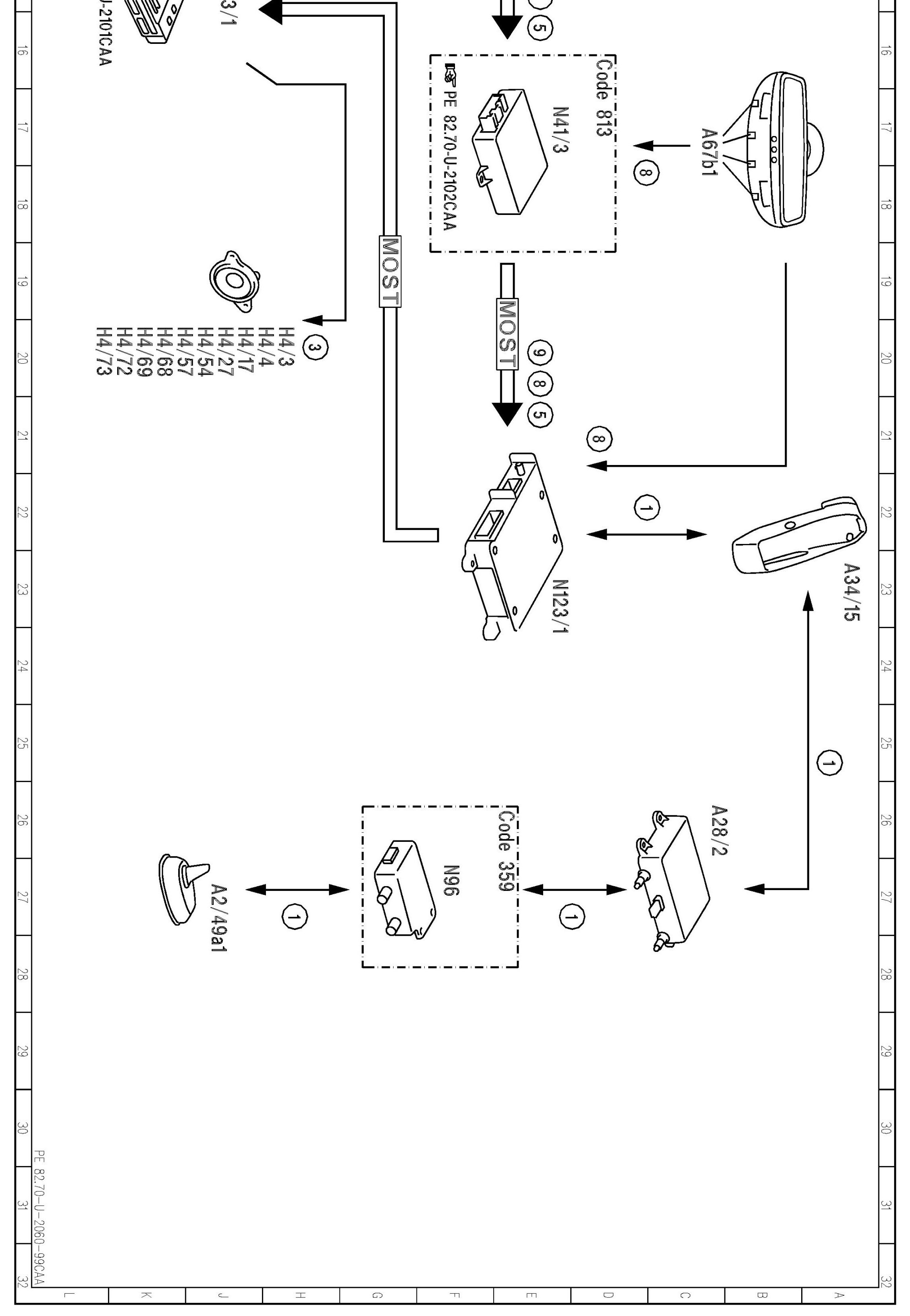

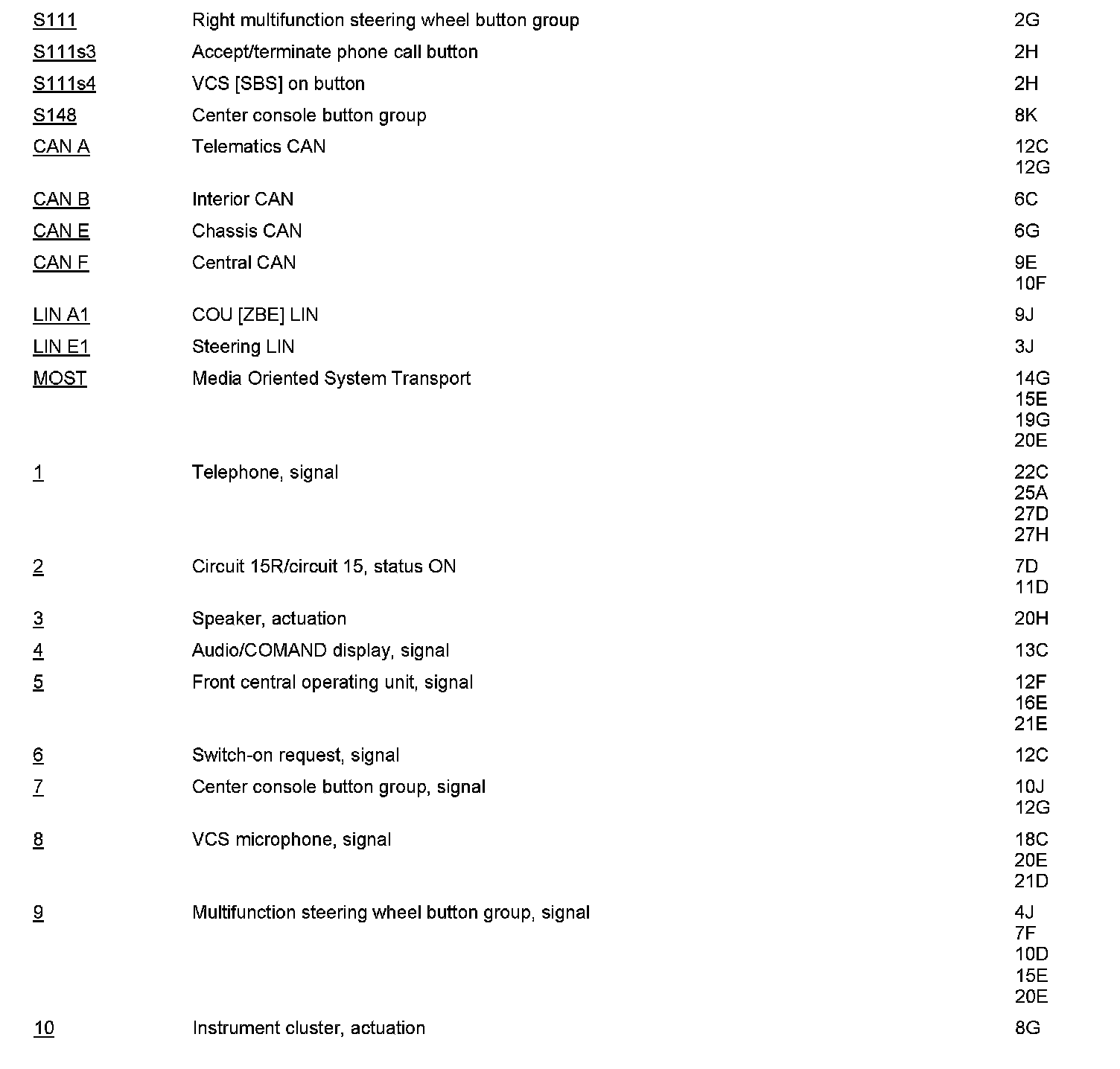

PE82.70-U-2060CAA Electrical Function Schematic For Mobile Phone, Setting Up Call and Ending Call

PE82.70-U-2060CAA Electrical Function Schematic For Mobile Phone, Setting Up Call and Ending Call

MODEL 216
- with CODE (386) Preinstallation for telephone "Handy", UPCI system
- with CODE (389) Mobile phone preinstallation
- with universal interface, USA/Canada
- as of Model Year 2009
- up to Model Year 2010































































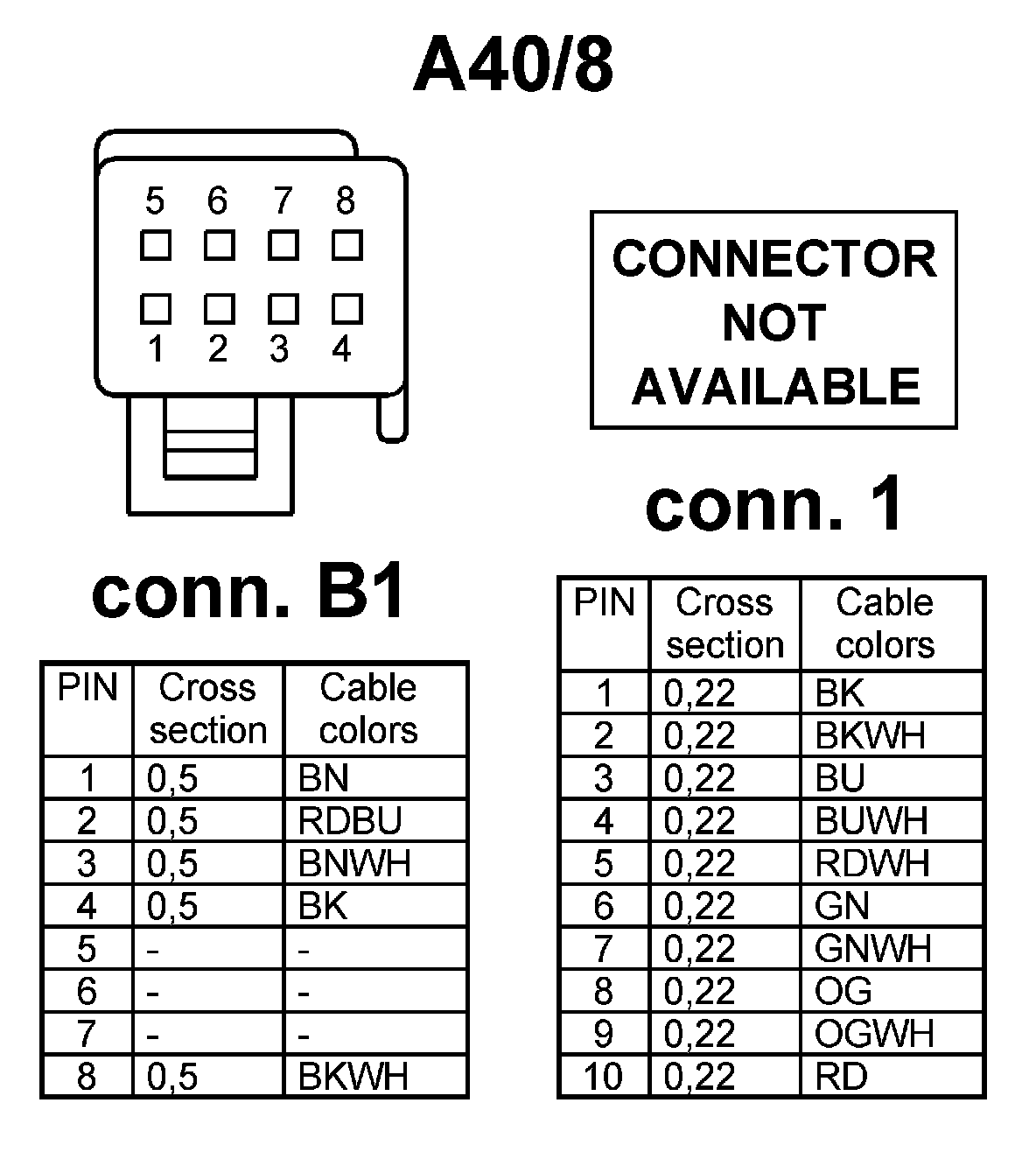

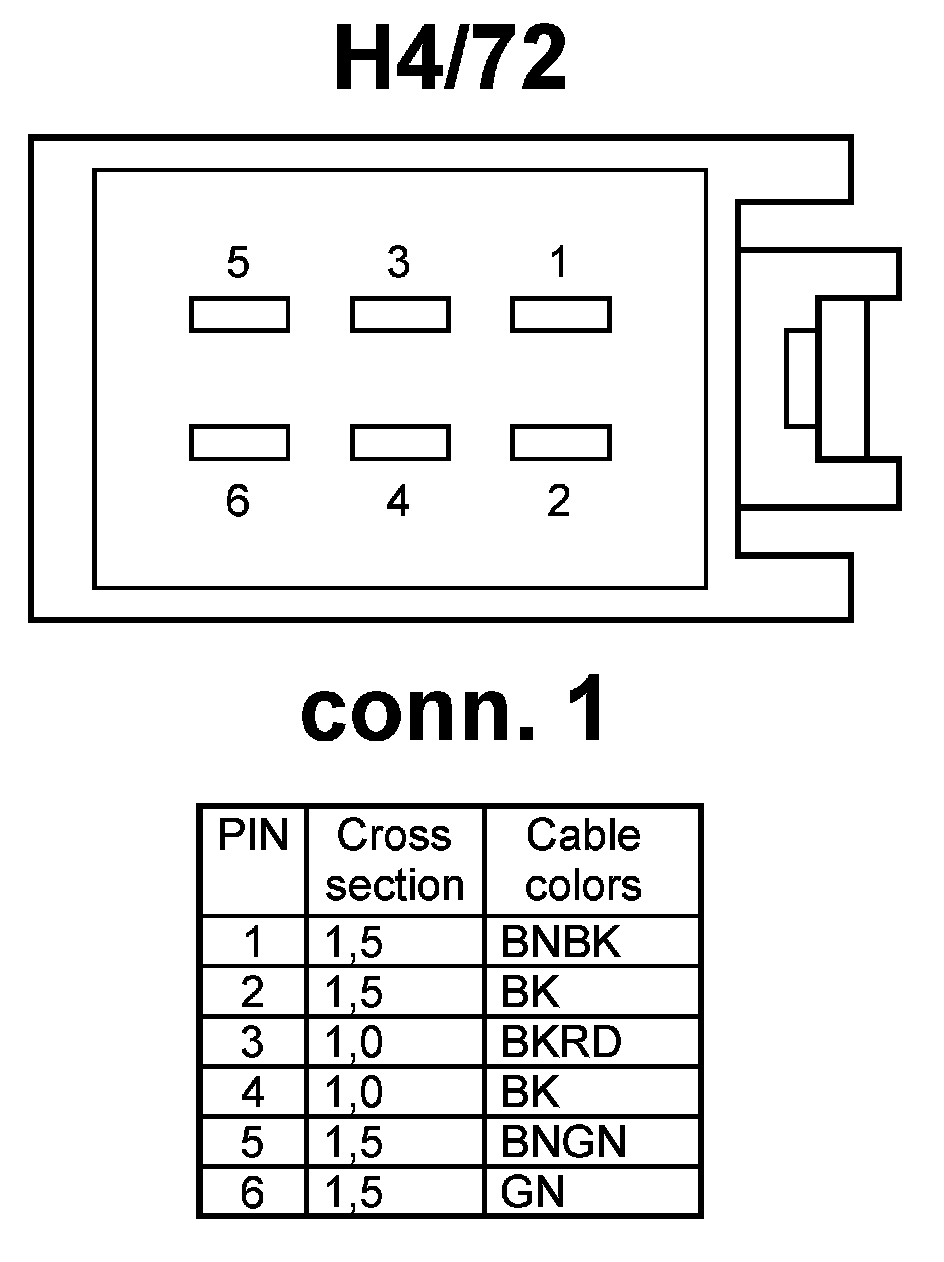

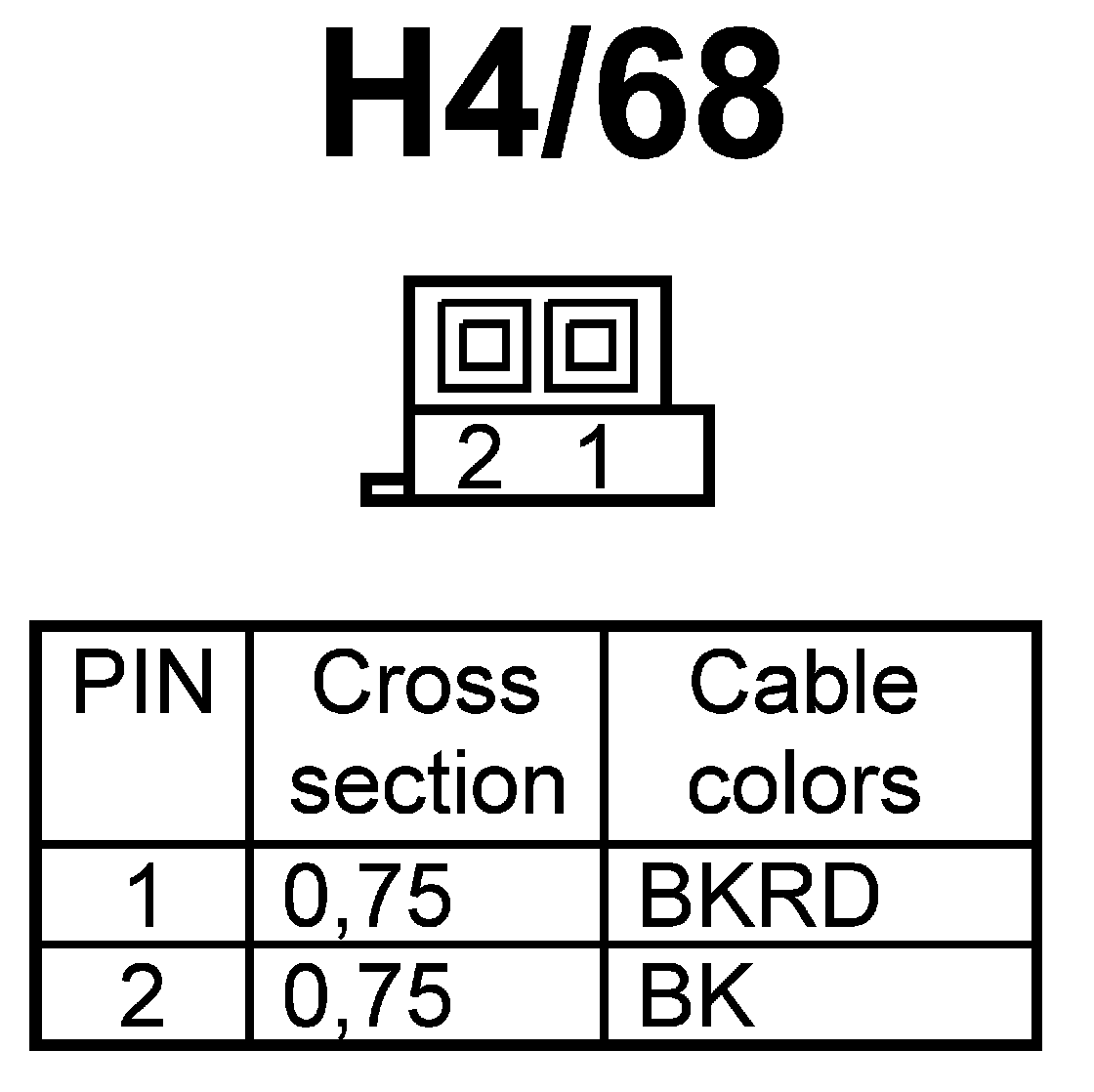

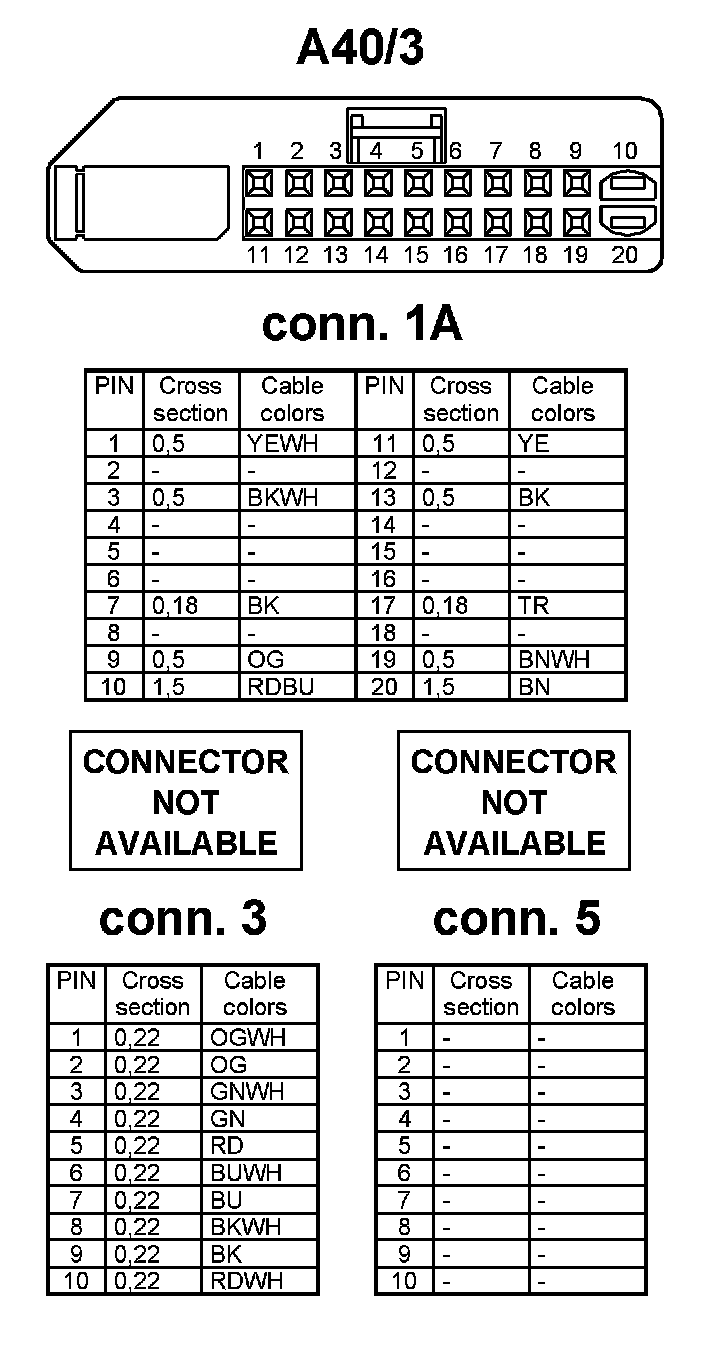

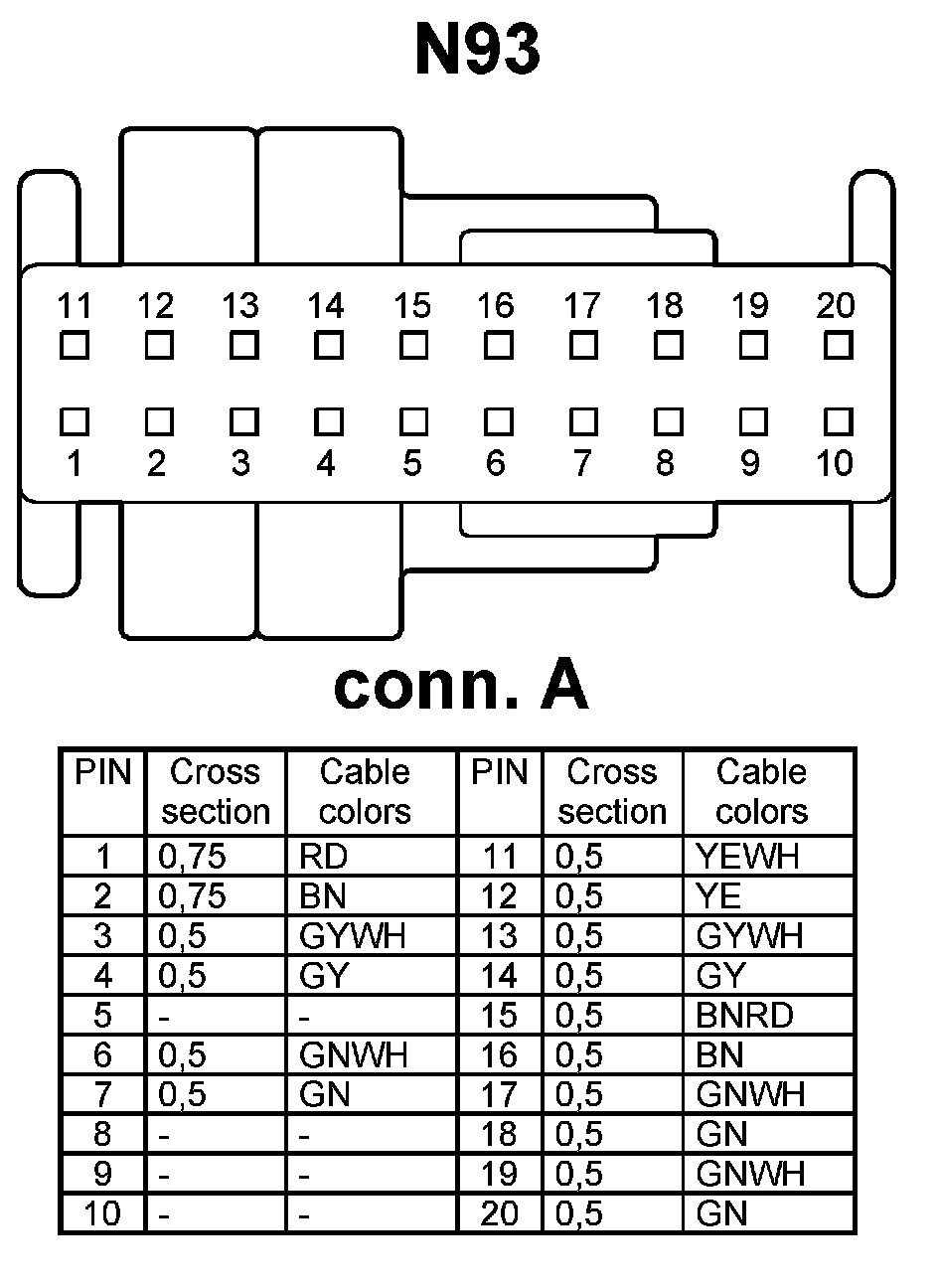

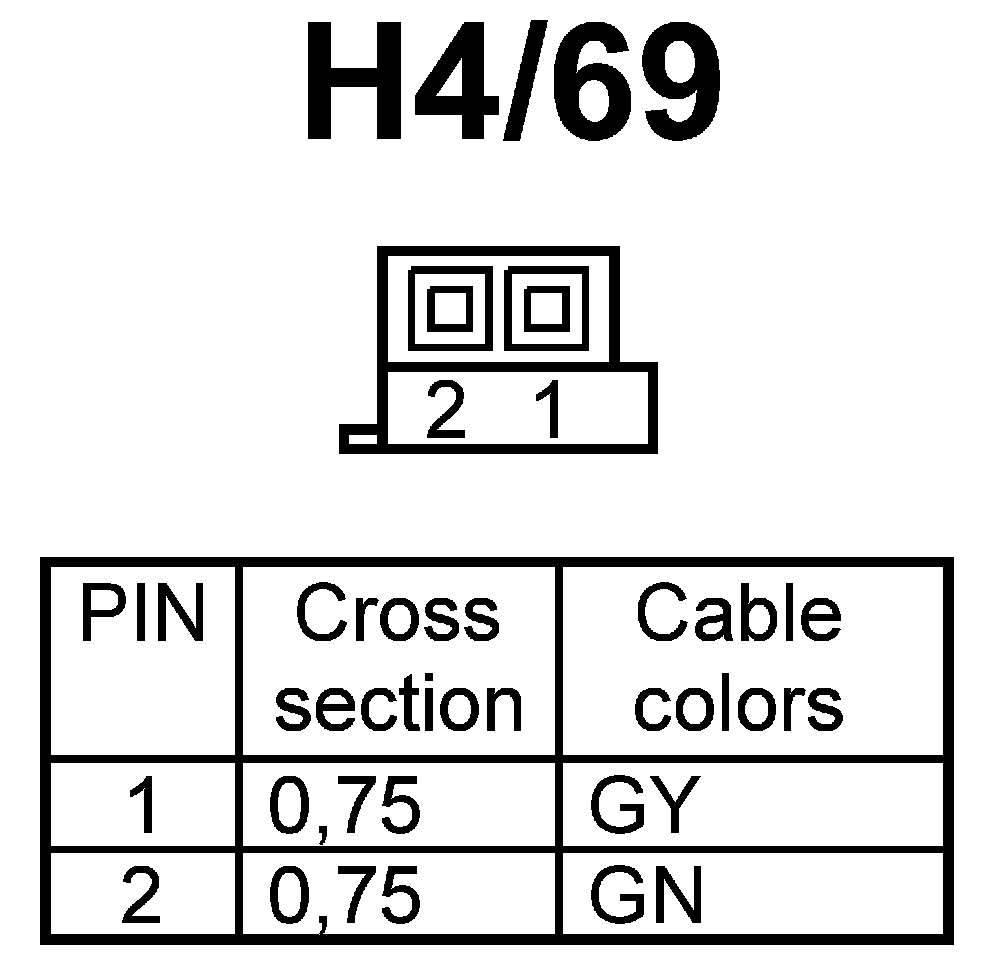

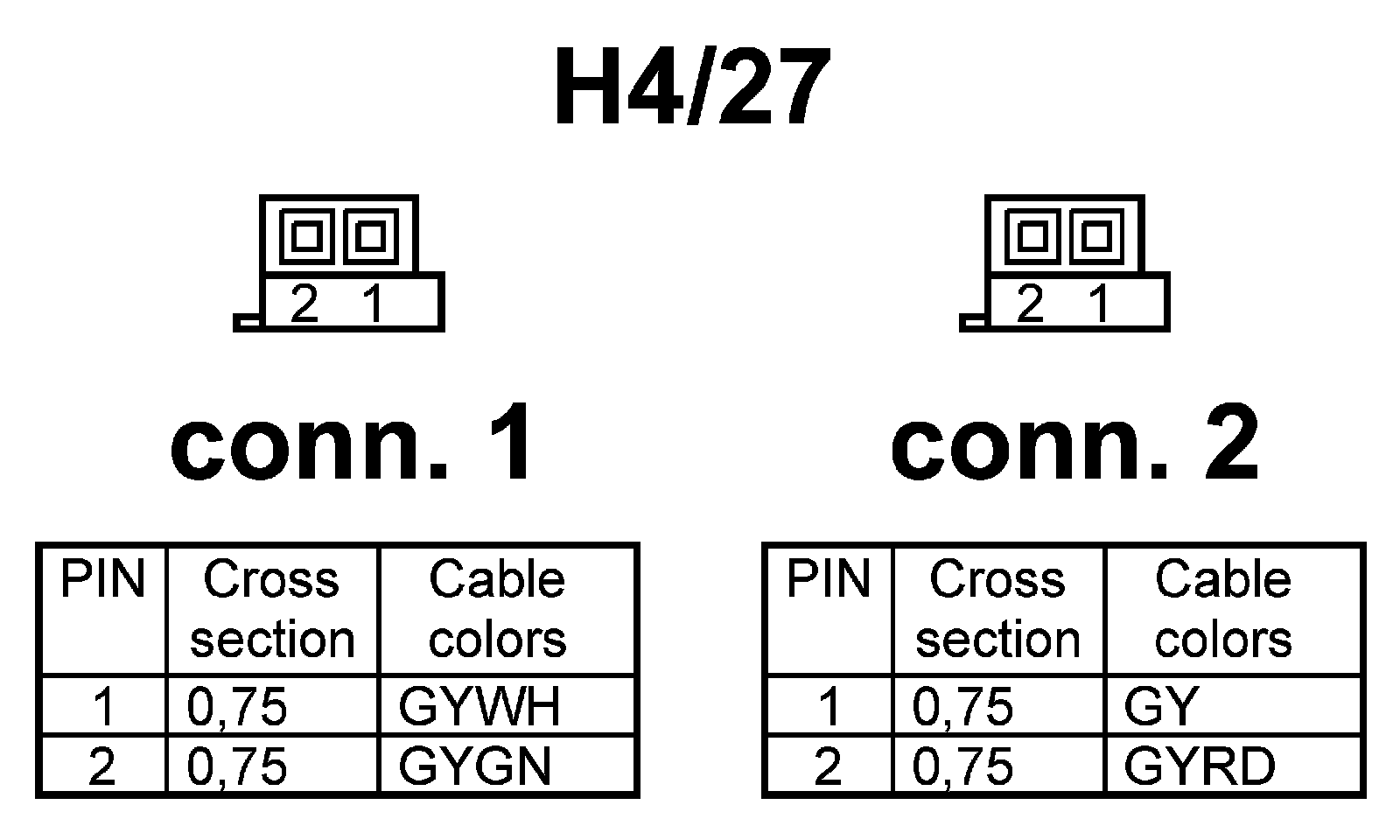

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
