PE82.70-P-2069CAA Electrical Function Schematic, Internet Mode (I-Mode) Function

Electrical Function Schematic, Internet Mode (I-Mode) Function PE82.70-P-2069CAA
- with CODE (529) HIGH Class Japan
- as of model year 09

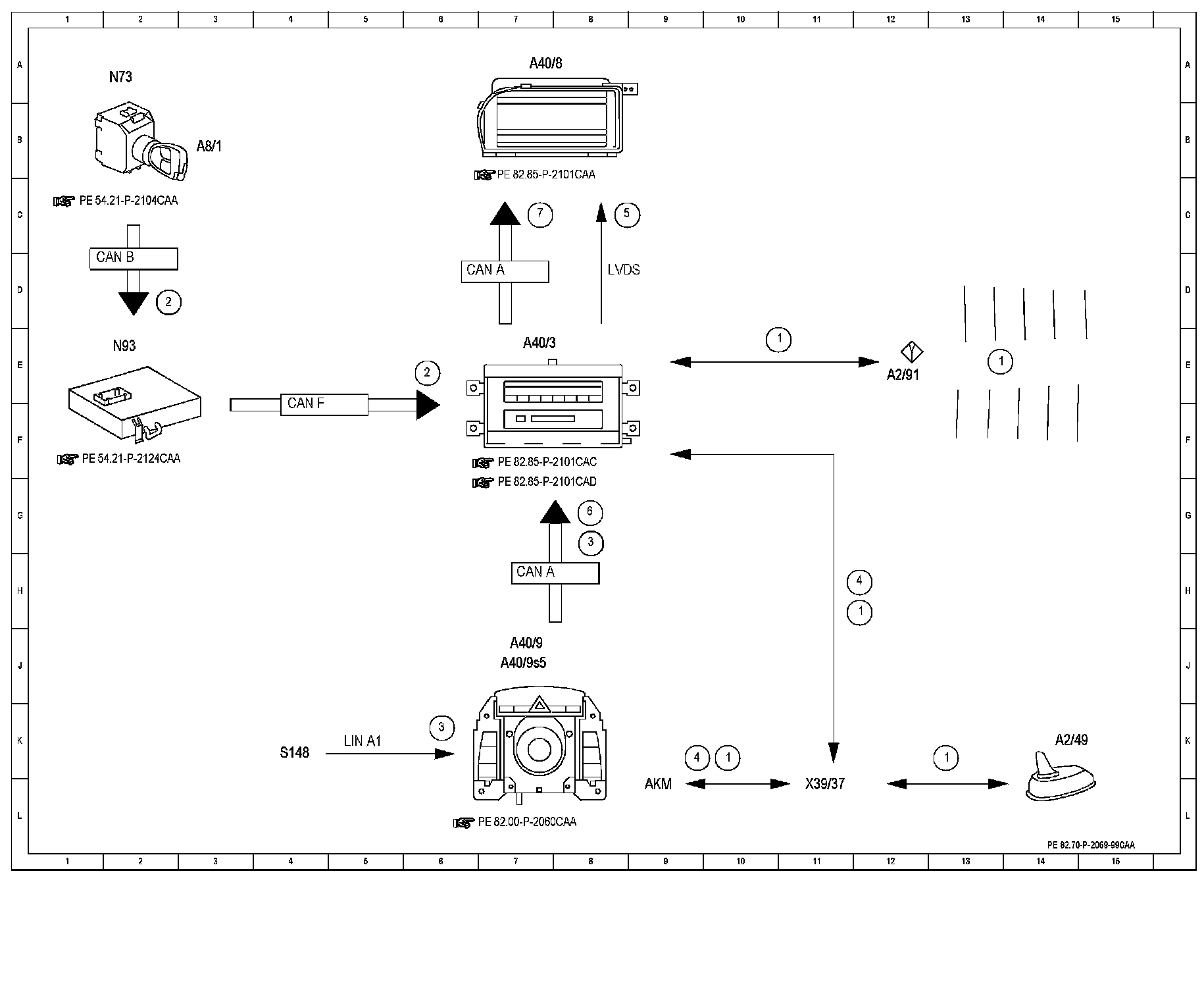

Function Diagram:

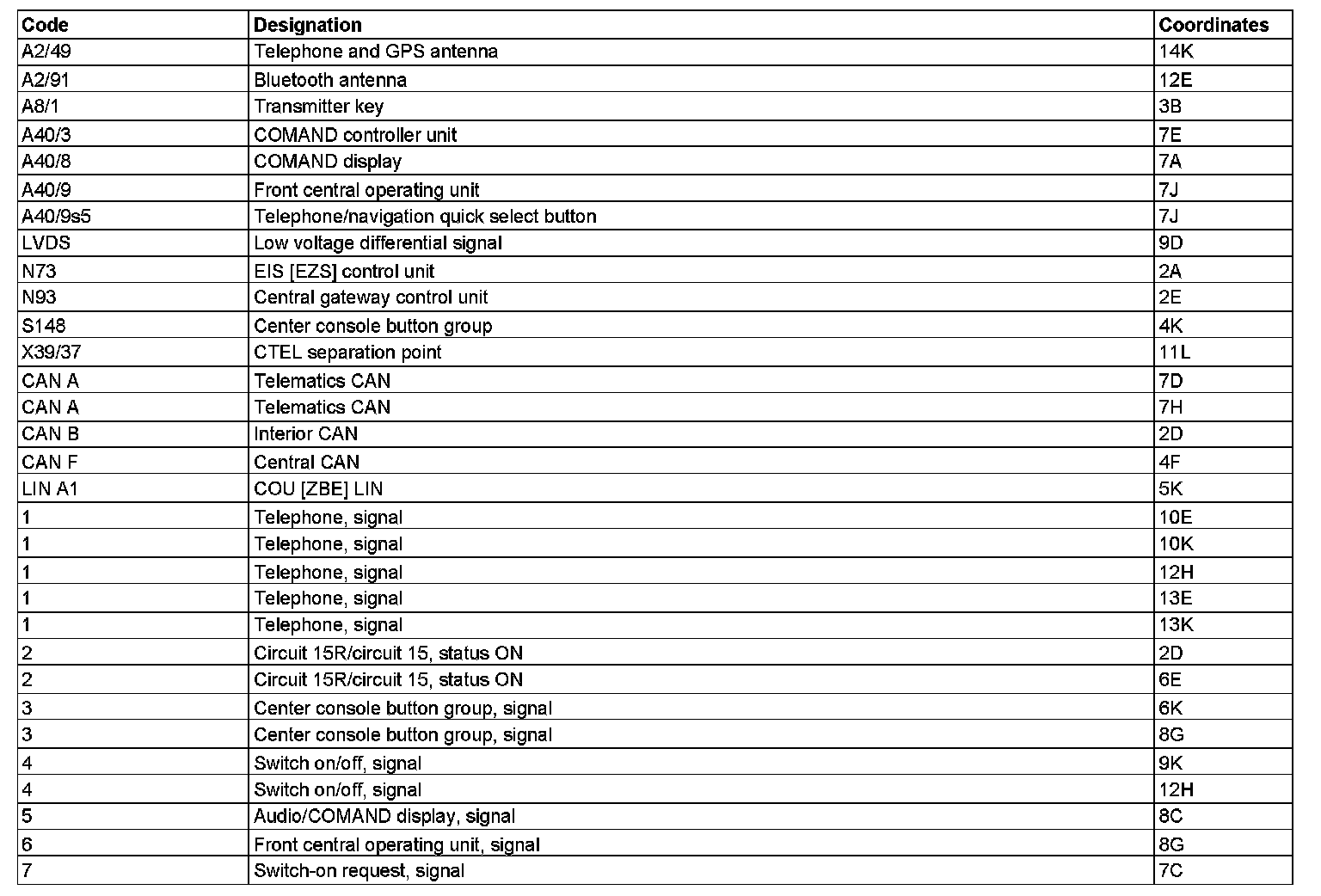

Component Description/Coordinates, A2/49 To 7:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
