PE82.70-P-2056CAA Electrical Function Schematic For Switch On/Off Characteristics, Establishing, Accepting And Ending Calls

Electrical Function Schematic For Switch On And Switch Off Characteristics, Establishing, Accepting And Ending Calls PE82.70-P-2056CAA
- with CODE (529) HIGH Class Japan
- as of model year 09

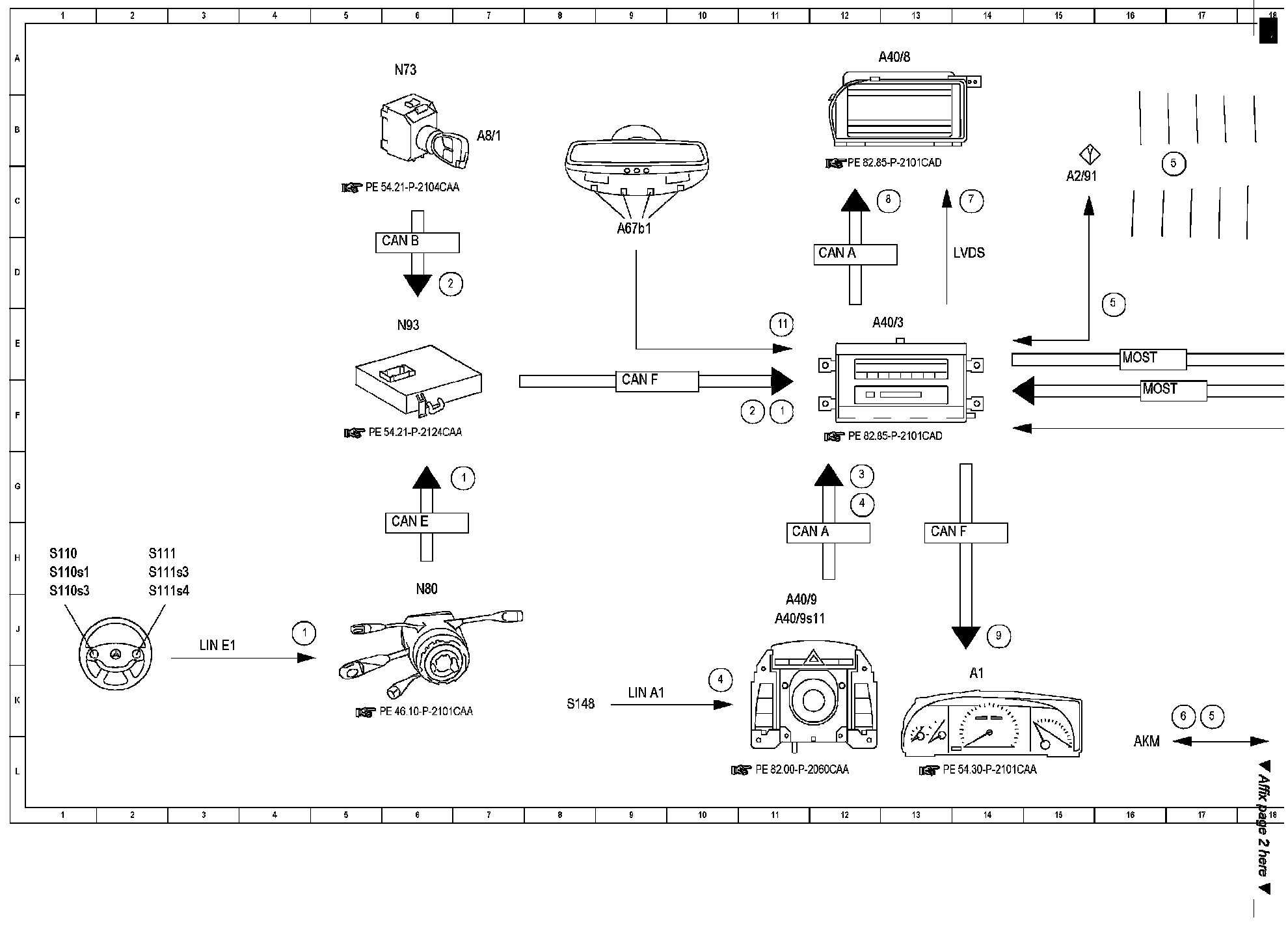

Function Diagram (Part 1):

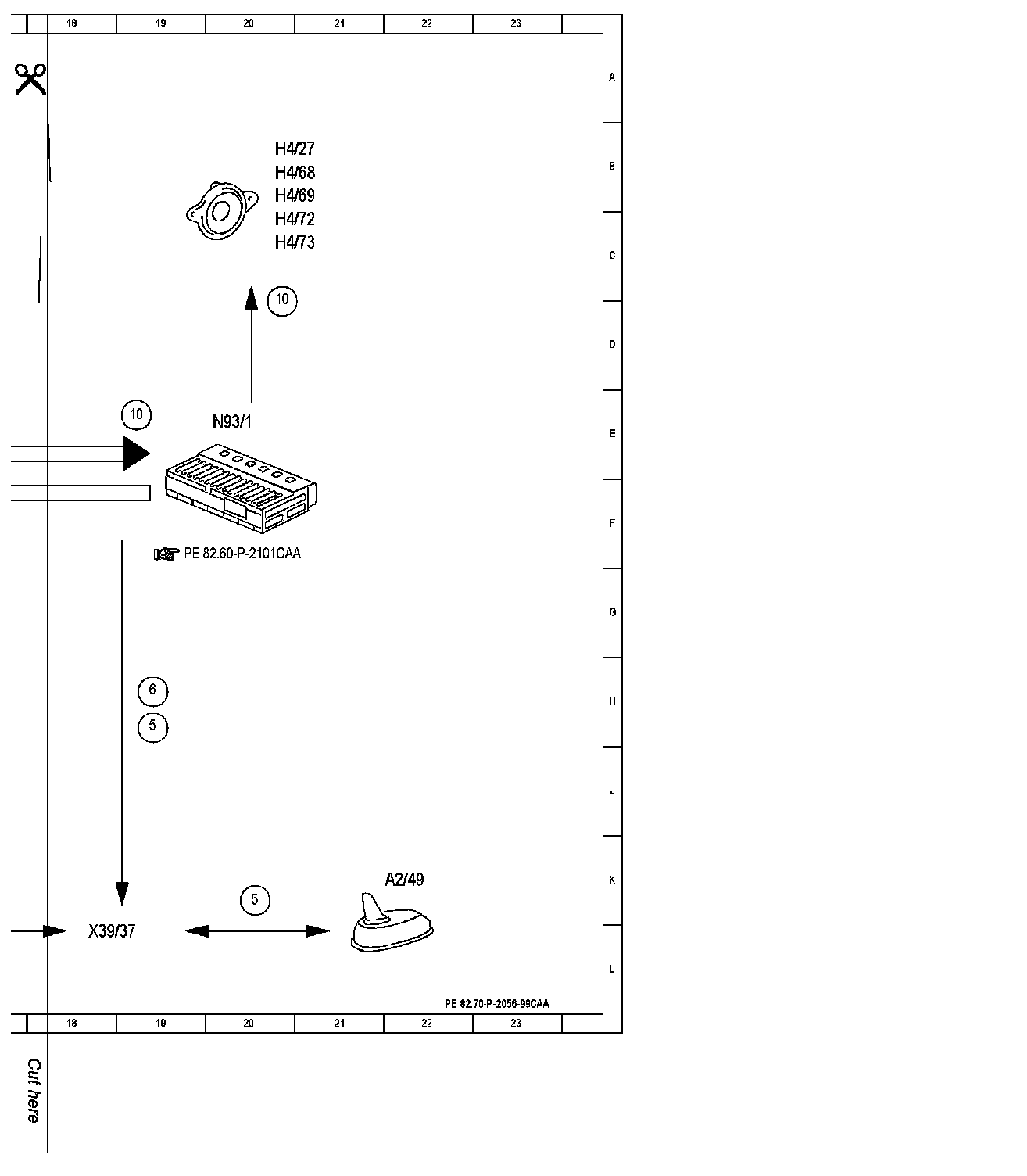

Function Diagram (Part 2):

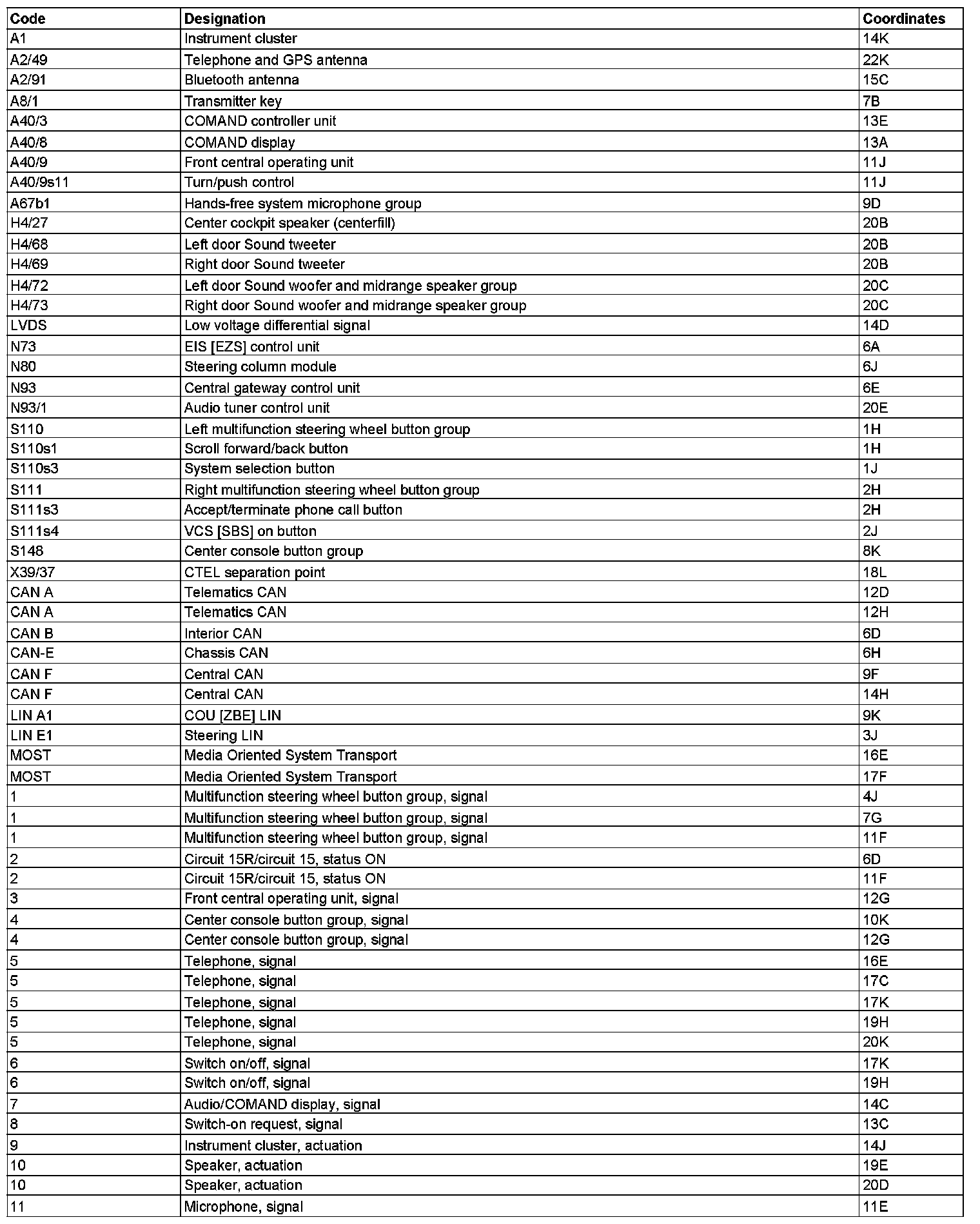

Component Description/Coordinates, A1 To 11:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
