PE82.85-P-2065CAA Electrical Function Diagram For TV Mode, Function

Electrical Function Diagram For TV Mode, Function PE82.85-P-2065CAA
- with CODE (863) Digital/analog TV tuner
- as of model year 2009

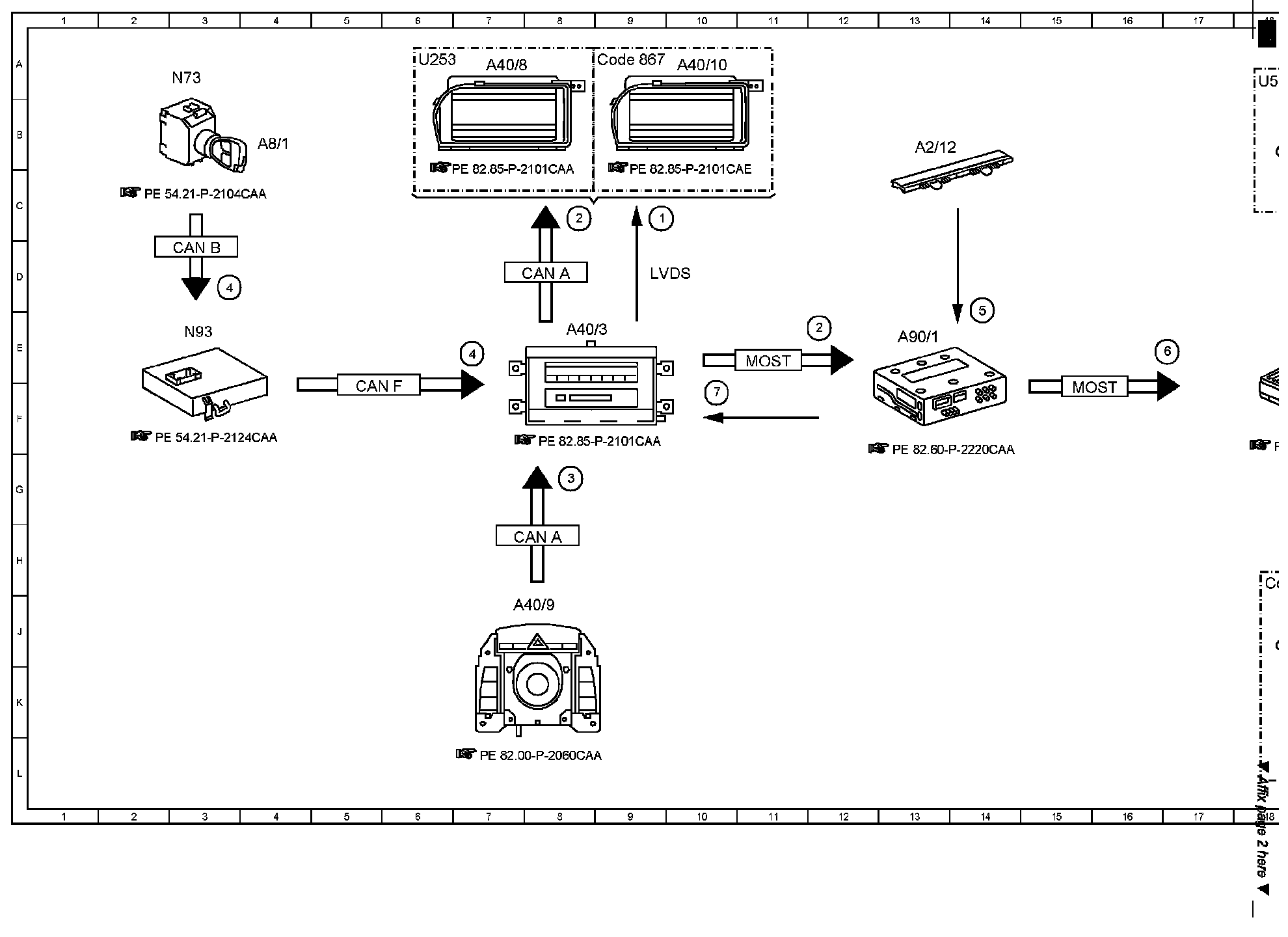

Function Diagram (Part 1):

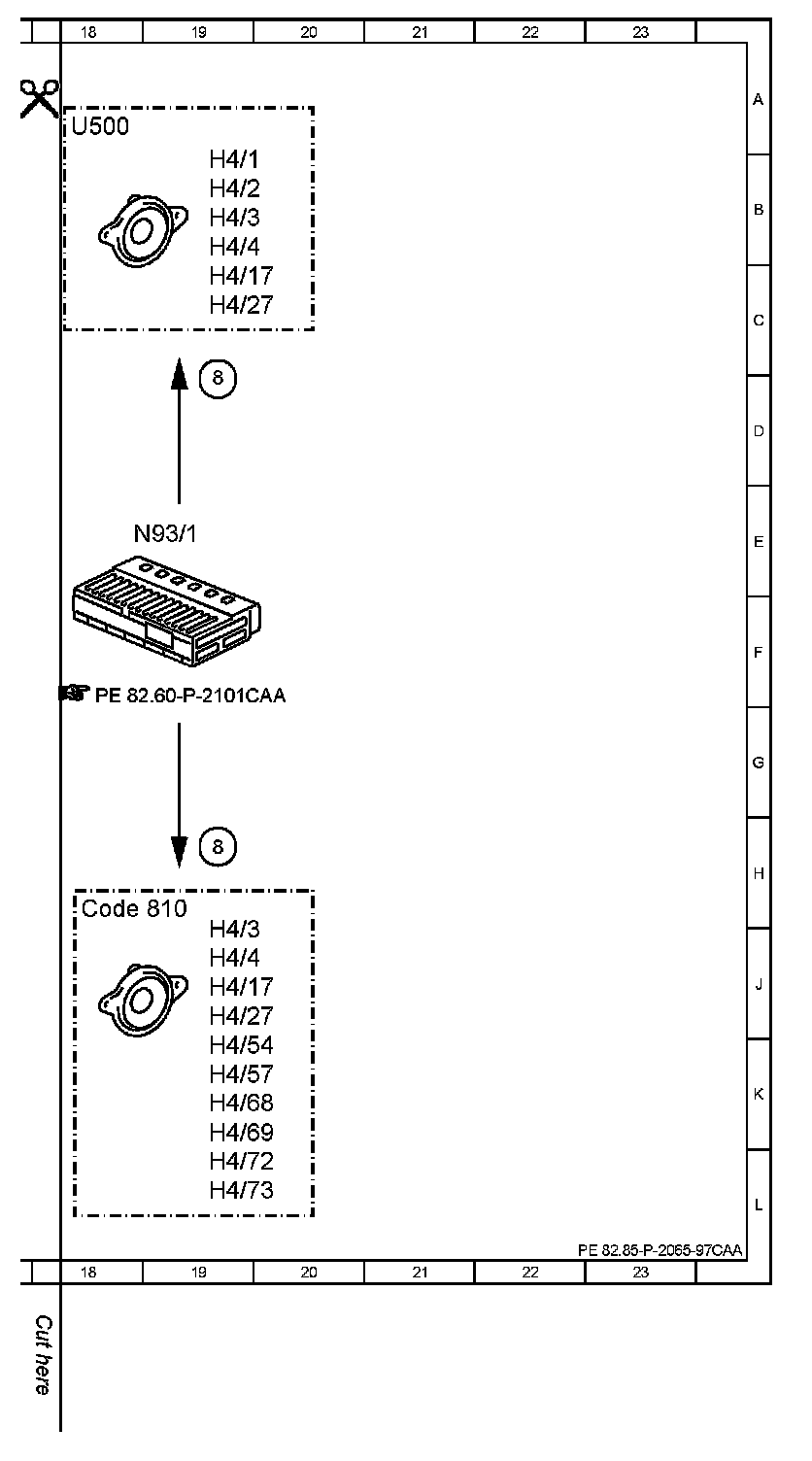

Function Diagram (Part 2):

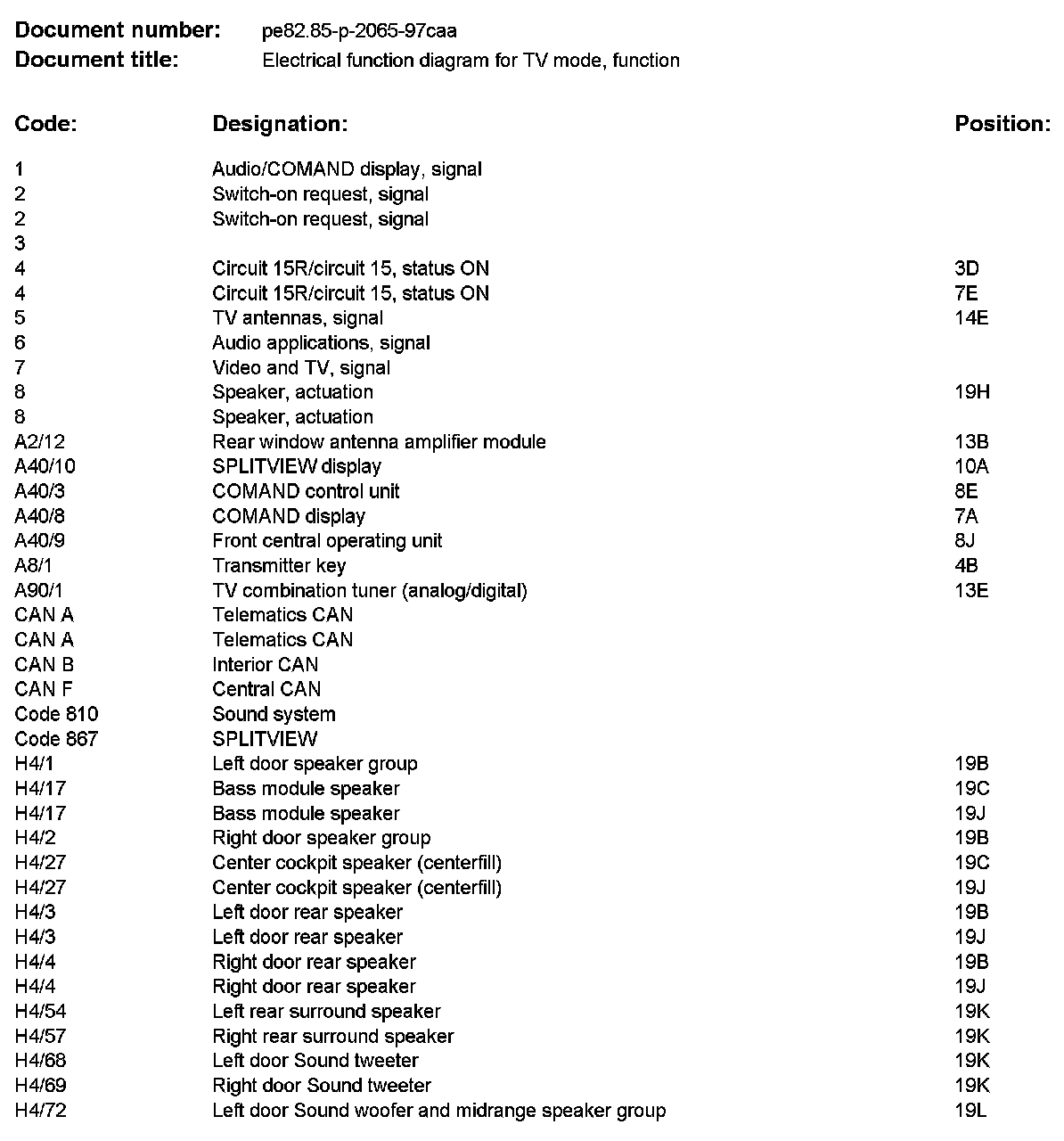

Component Description/Coordinates, 1 To H4/72:

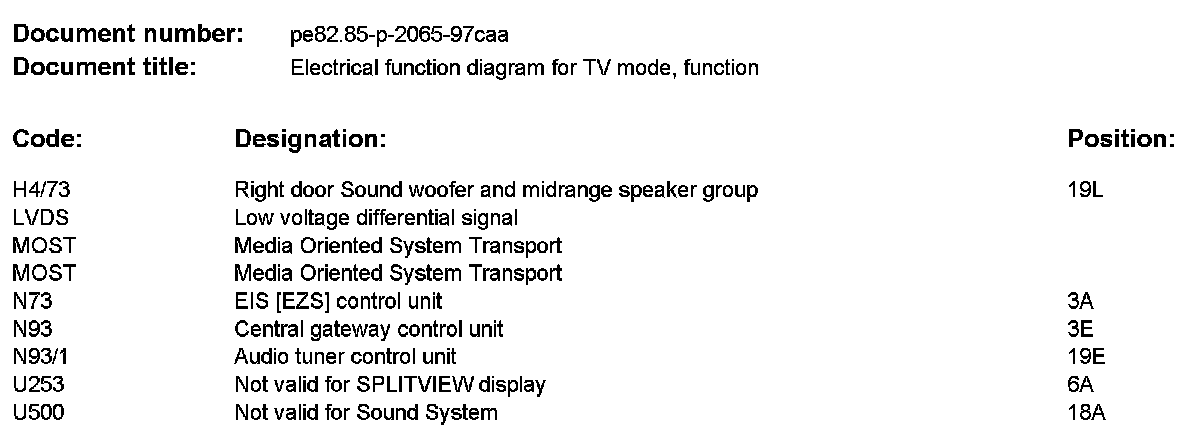

Component Description/Coordinates, H4/73 To U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
