PE82.85-P-2064CAB Electrical Function Diagram For Video Mode, Function

Electrical Function Diagram For Video Mode, Function PE82.85-P-2064CAB
- with CODE (529) HIGH Class Japan
- as of model year 09

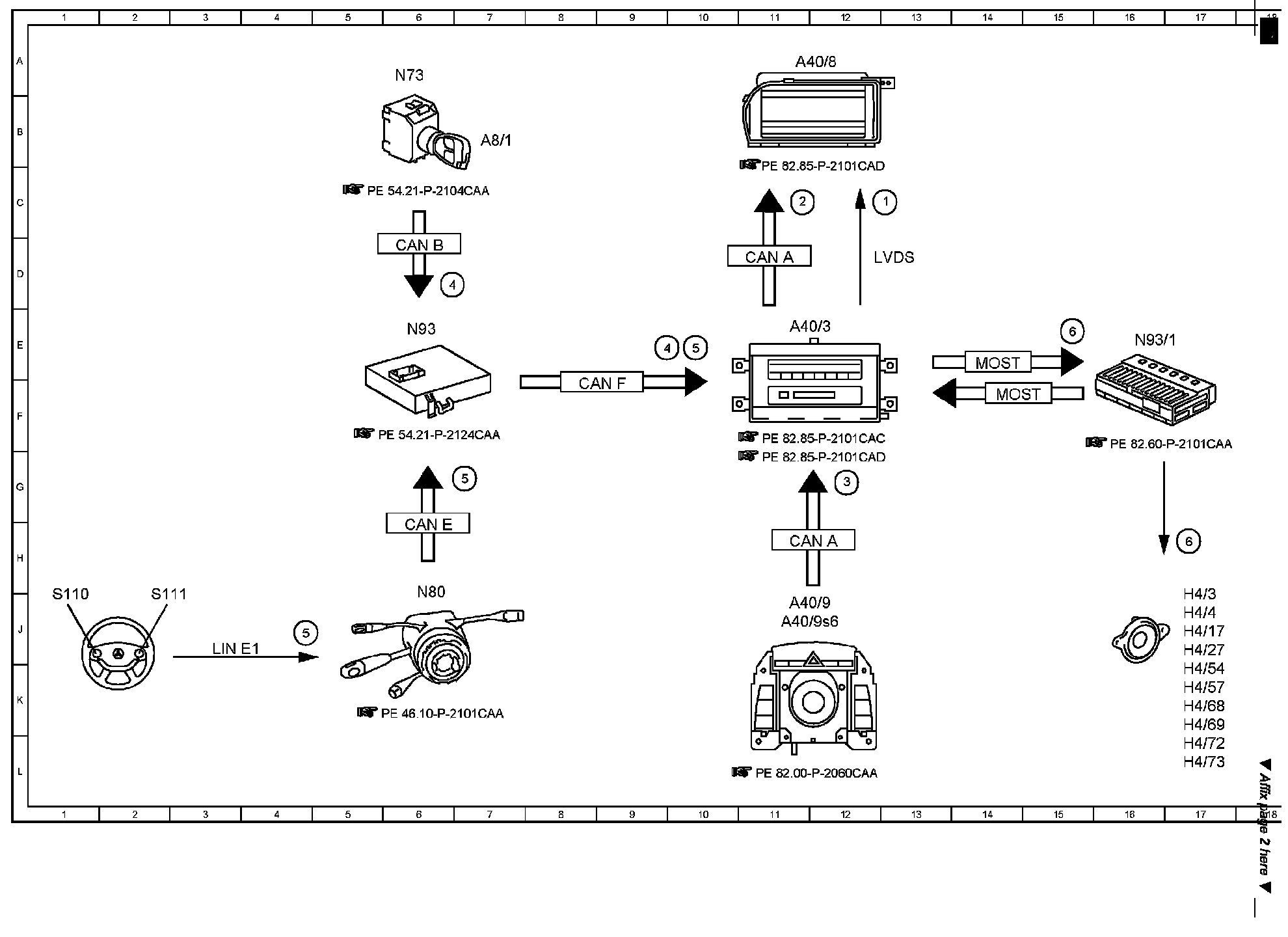

Function Diagram (Part 1):

Function Diagram (Part 2):

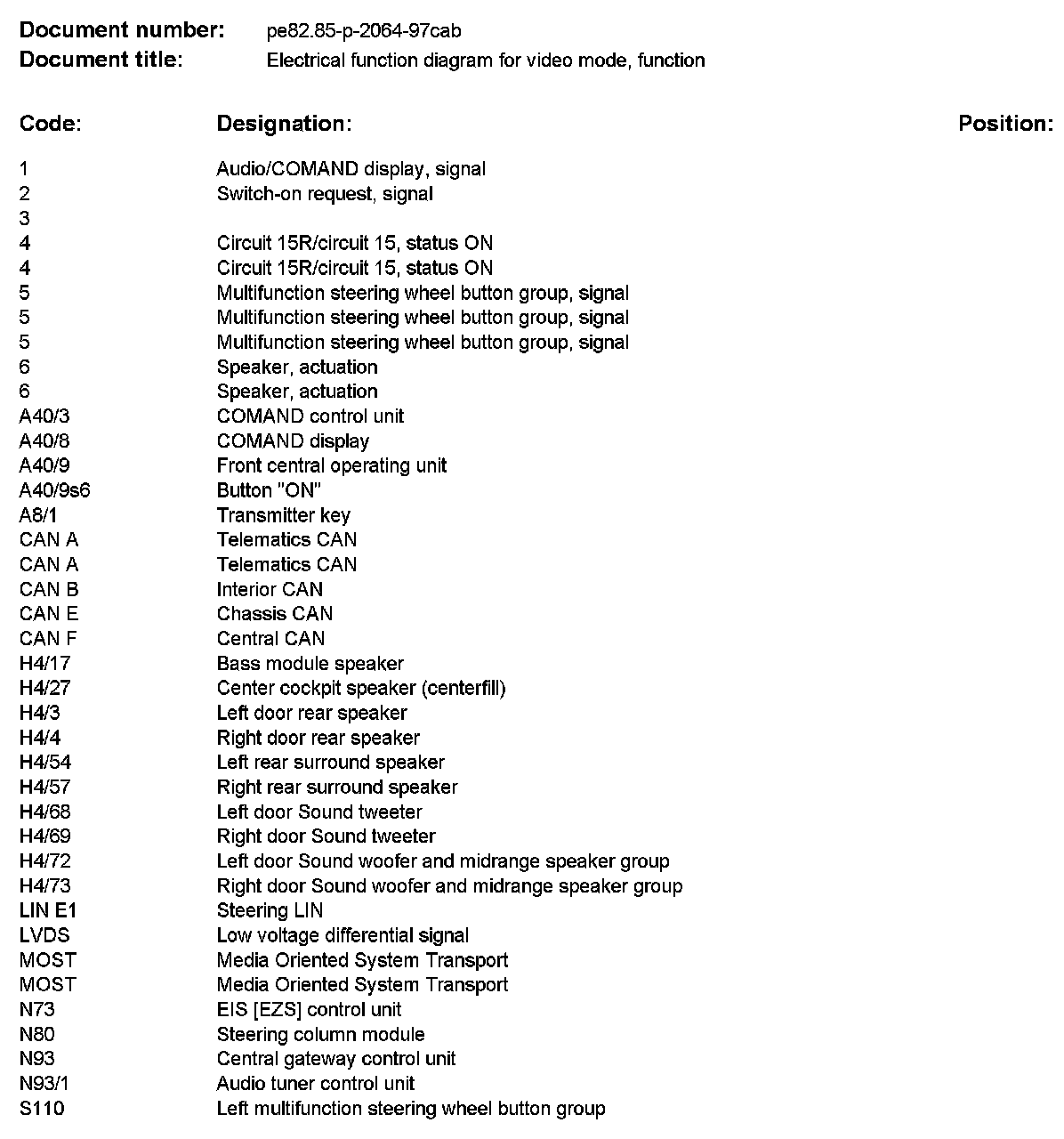

Component Description/Coordinates, 1 To S110:

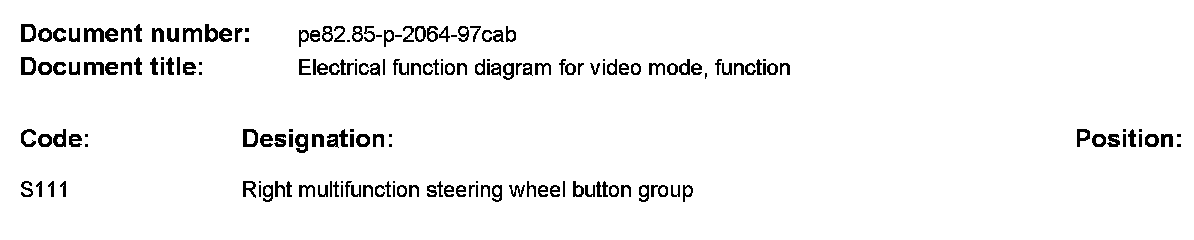

Component Description/Coordinates, S111:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
