PE82.85-P-2063CAA Electrical Function Diagram For Navigation Mode (COMAND), Function

Electrical Function Diagram For Navigation Mode (COMAND), Function PE82.85-P-2063CAA
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (530) COMAND APS USA (with navigation system)
- as of model year 2009

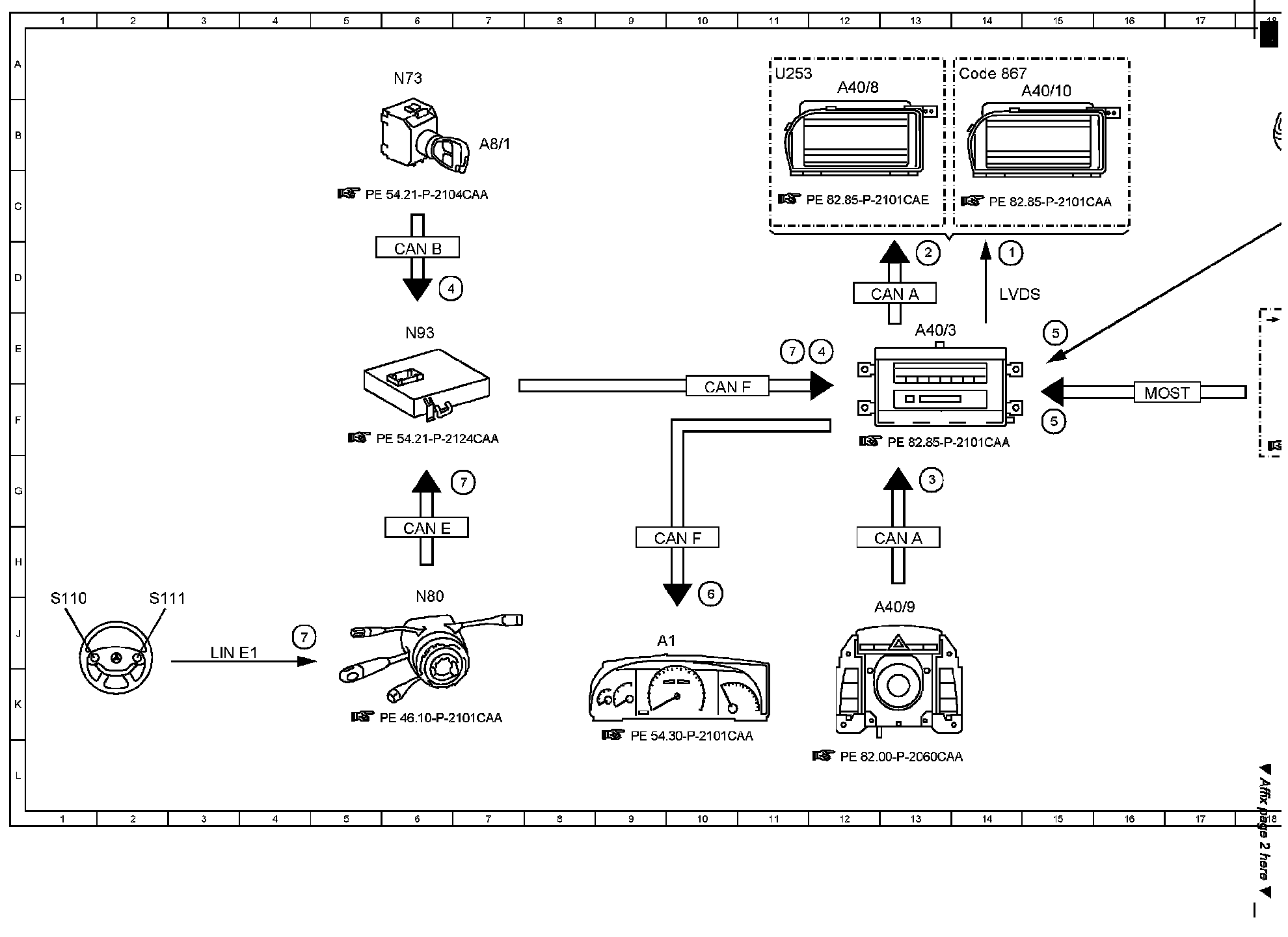

Function Diagram (Part 1):

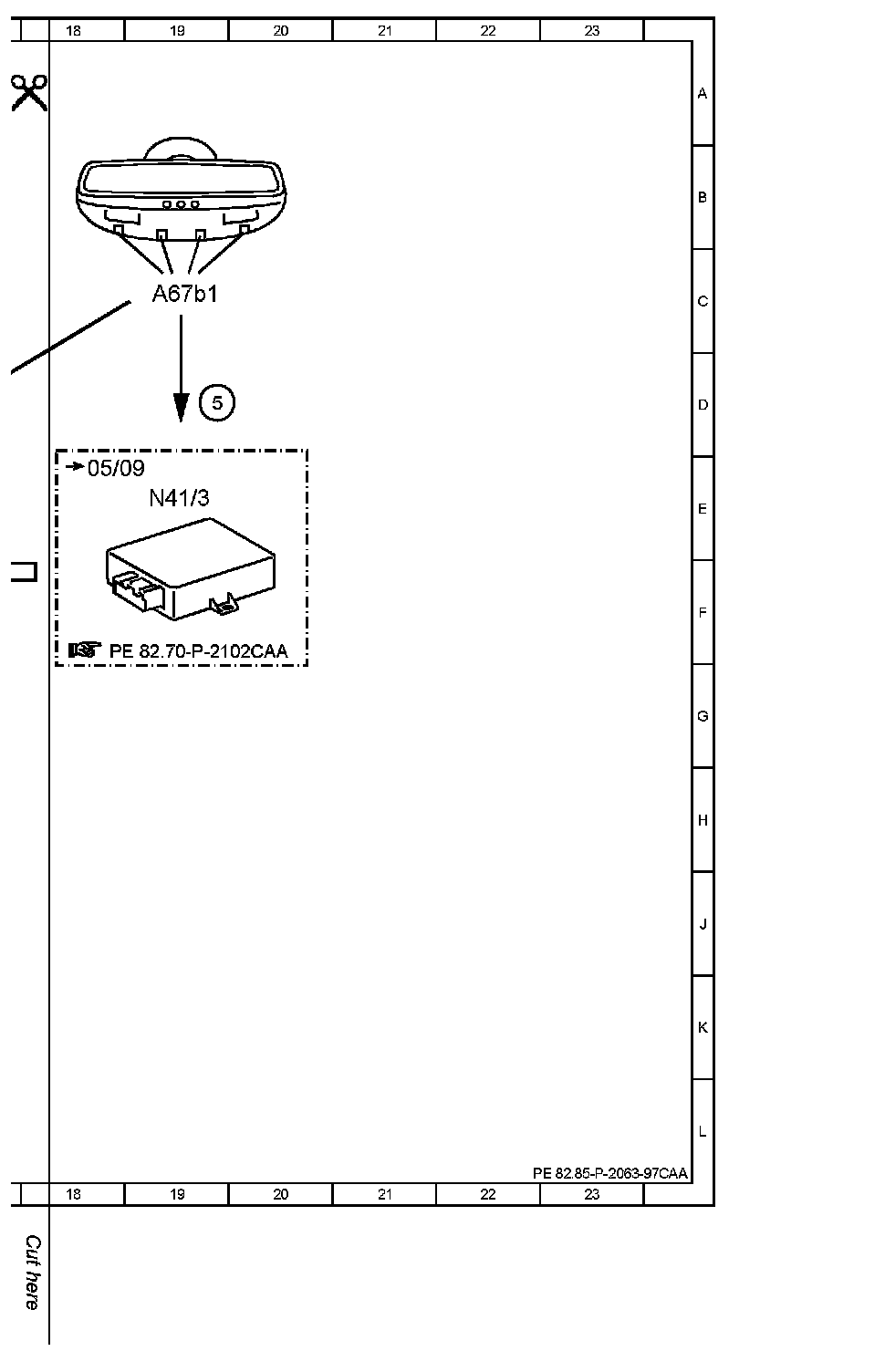

Function Diagram (Part 2):

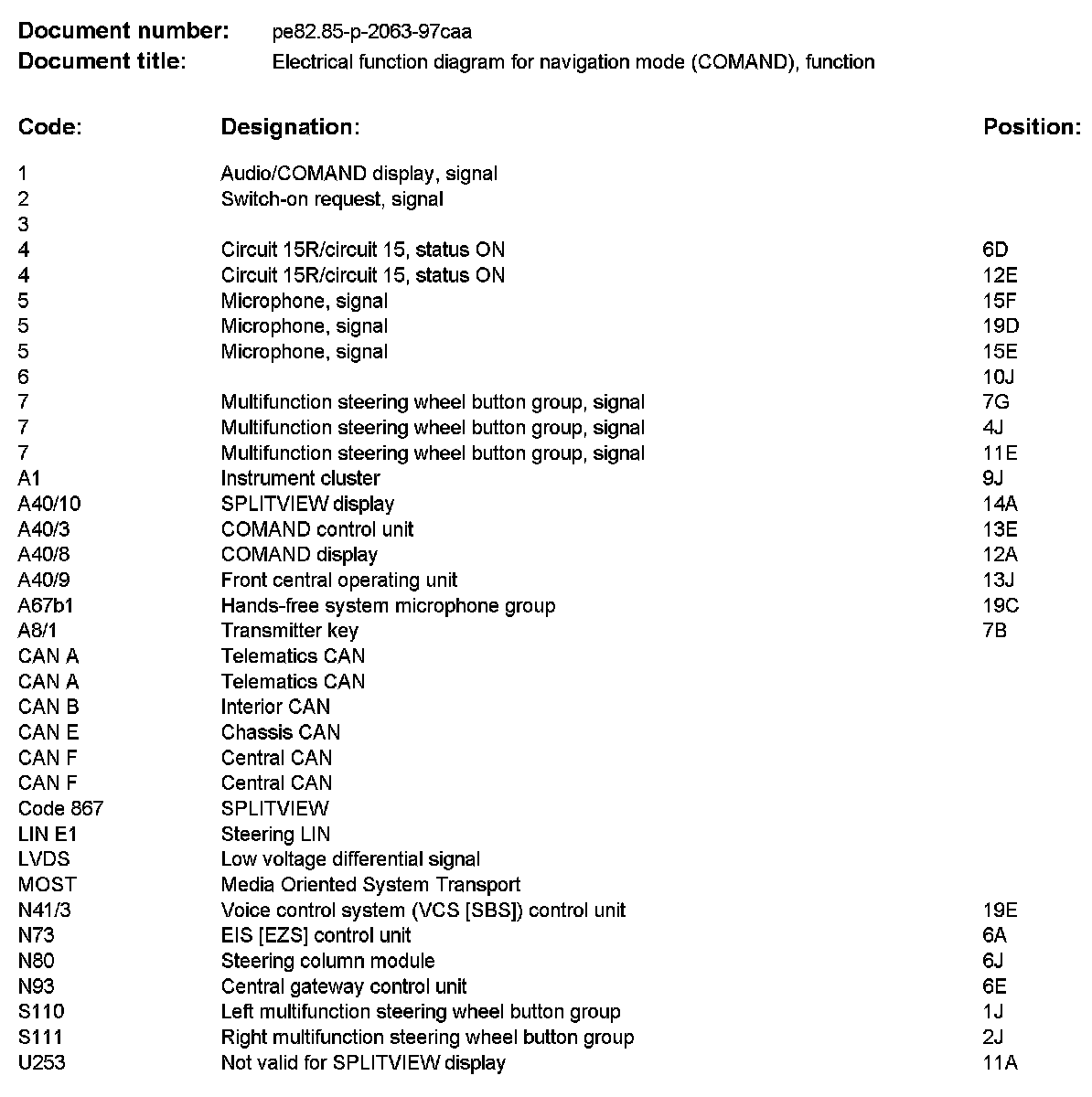

Component Description/Coordinates, 1 To U253:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
